Aluminum Interfold Closer Hinge
Waterson Self-Closing Aluminum hinges are ideal for concealed, interior and half doors of all kinds, as well as providing a suitable closing force for wood and lightweight metal doors under 75 kg (160 lbs). They are very easy to install, adjust and maintain. Made from extrusion aluminum, this hinge looks great in any indoor environment and is a great cost-saving solution.
- Non-Fire Rated
- Soft Close Spring Hinge
- Residential Applications
- Good to the Eye
- Easy Installation
- UL Certified Mechanical Structure
- Overcome Air Pressure Problem in Confined Space
- Replacement for the Traditional Door Closer
Aluminum Interfold Closer Hinge
Waterson Self-Closing Aluminum hinges are ideal for concealed, interior and half doors of all kinds, as well as providing a suitable closing force for wood and lightweight metal doors under 75 kg (160 lbs). They are very easy to install, adjust and maintain. Made from extrusion aluminum, this hinge looks great in any indoor environment and is a great cost-saving solution.
- Non-Fire Rated
- Soft Close Spring Hinge
- Residential Applications
- Good to the Eye
- Easy Installation
- UL Certified Mechanical Structure
- Overcome Air Pressure Problem in Confined Space
- Replacement for the Traditional Door Closer
With Waterson Hinge, Life is Even Easier!
- Keep kitchen odor away
- Hygiene controlled
- Cover up all the mess
- Looks neat
- Guard home security
- Privacy kept
- Property guarded
- Expensive belongings guarded
With Waterson Hinge,
Life is Even Easier!
- Cover up all the mess
- Looks neat
- Guard home security
- Privacy kept
- Property guarded
- Expensive belongings guarded
W41K- Compatible With Your Current Doors; Seamless Replacement For Your Hinge!
No need to consider the thickness of hinge leaves or gap sizes of door and frames.
Simply install and enjoy the self-closing convenience right away.
Before
After
W41K- Compatible With Your Current Doors;
Seamless Replacement For Your Hinge!
No need to consider the thickness of hinge leaves or gap sizes of door and frames.
Simply install and enjoy the self-closing convenience right away.
Before
After
W41K – Other Countries
Aluminum Interfold Hinge

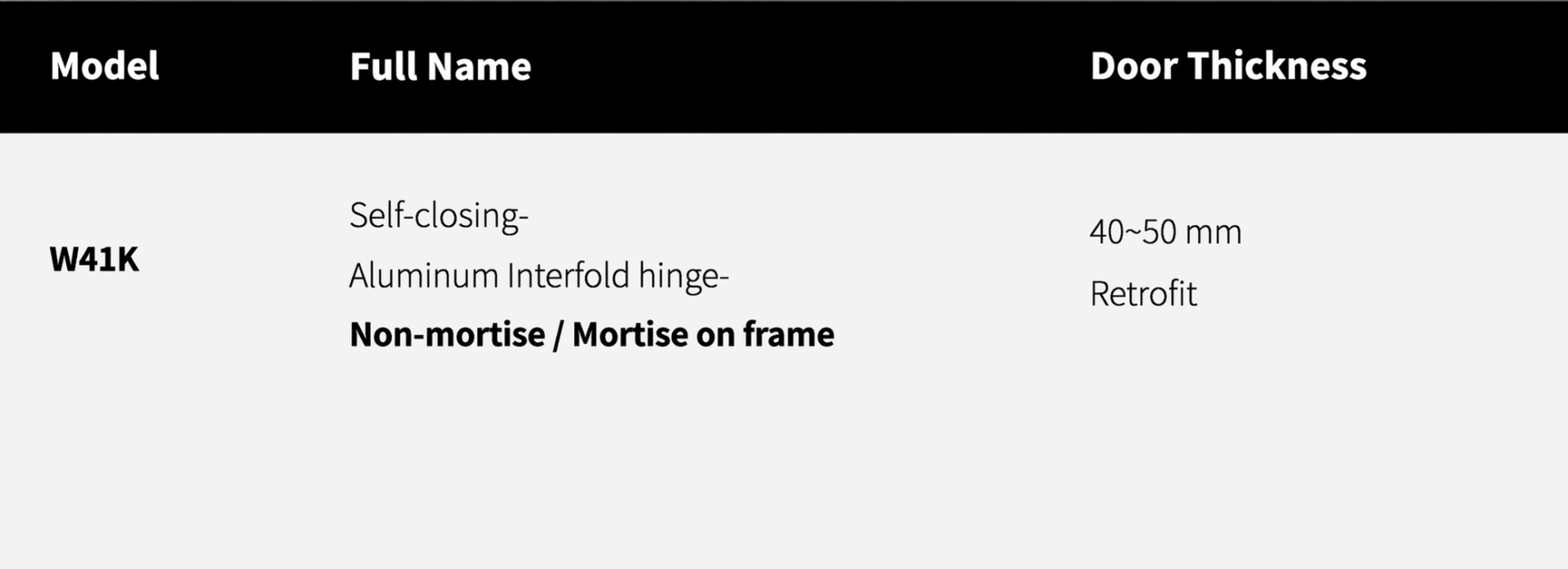

| Model | Full Name |
Door Thickness |
|---|---|---|
| W41K | Self-closing- Aluminum Interfold hinge- Non-mortise |
40~50 mm Retrofit |
| W41K | Self-closing- Aluminum Interfold hinge- Mortise on frame |
40~50 mm |
W41K – Other Countries
Aluminum Interfold Hinge
Configuration

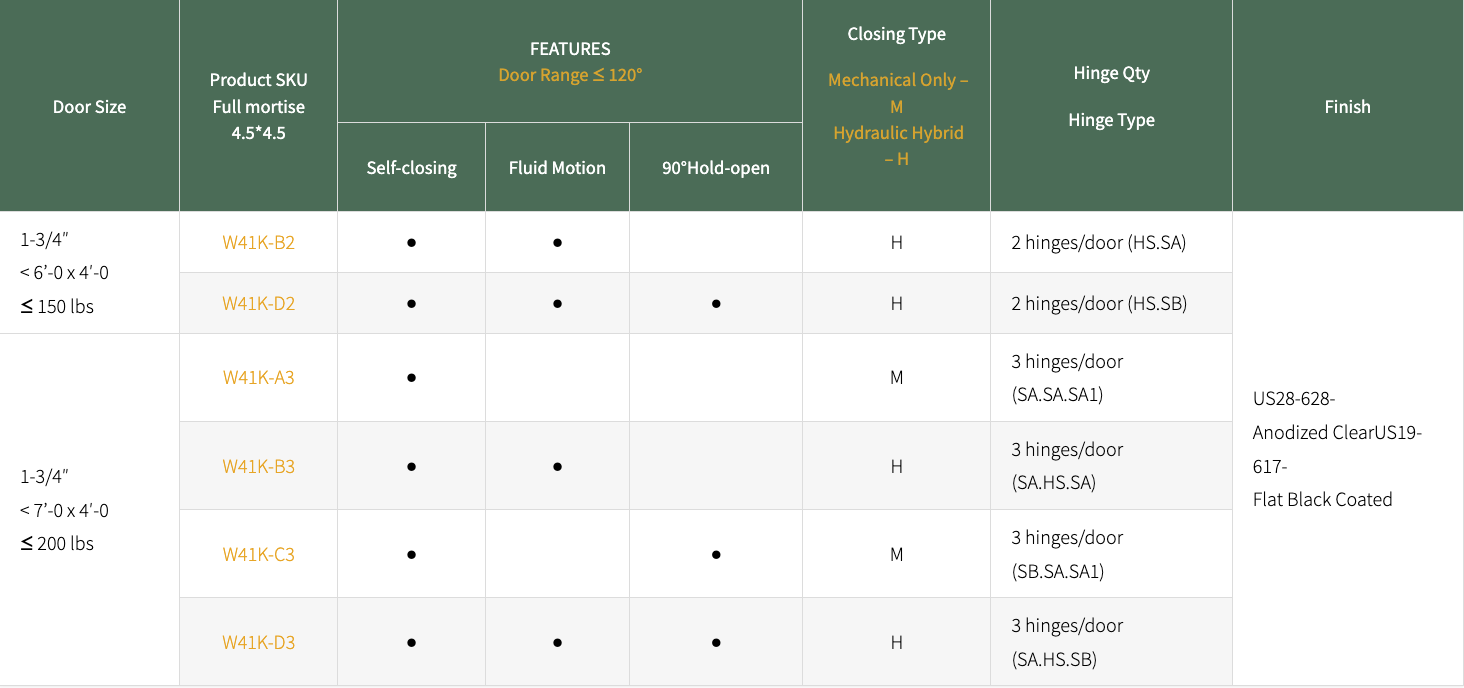

W41K – US STANDARD
| Door Size | Product SKU Full mortise 4.5*4.5 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| 1-3/4″ < 6’-0 x 4′-0 ≤ 150 lbs |
W41K-B2 | ● | ● | H | 2 hinges/door (HS.SA) | US28-628- Anodized ClearUS19-617- Flat Black Coated |
|
| W41K-D2 | ● | ● | ● | H | 2 hinges/door (HS.SB) | ||
| 1-3/4″ < 7’-0 x 4′-0 ≤ 200 lbs |
W41K-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | |||
| W41K-B3 | ● | ● | H | 3 hinges/door (SA.HS.SA1) | |||
| W41K-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| W41K-D3 | ● | ● | ● | H | 3 hinges/door (SA.HS.SB) | ||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
Quick Tips For Installing Interfold Hinge – W41K
Waterson Aluminum Flush Hinge is non-handed. No need for mortise and grooving. Lightening-fast installation.
After these 3 tips, you will have wonderful self-closing hereafter:
1. Major leaf for Frame, minor leaf for door
2. Use only Waterson screws
3. No mortise/grooving needed
Quick Tips For Installing Interfold Hinge – W41K
Waterson Aluminum Flush Hinge is non-handed. No need for mortise and grooving. Lightening-fast installation.
After these 3 tips, you will have wonderful self-closing hereafter:
1. Major leaf for Frame, minor leaf for door
2. Use only Waterson screws
3. No mortise/grooving needed
