Commercial Stainless Steel Closer Hinge
Commercial self-closing hinges need to handle the daily rigors of frequent use. Waterson Stainless Steel Closer Hinges are designed to manage commercial closing demands while maintaining fluid and effective movement, particularly with obligatory fire rated doors. A typical 7’0 door utilizes three active Waterson Closer Hinges to create a perfect, self-closing system. Each hinge’s unique numerical panel allows the spring tensions to adjust precisely according to door weight and environmental conditions. Additionally, Waterson hinges meet all ADA codes concerning speed control, closing force, and door clearance.
Commercial Stainless Steel Closer Hinge
Commercial self-closing hinges need to handle the daily rigors of frequent use. Waterson Stainless Steel Closer Hinges are designed to manage commercial closing demands while maintaining fluid and effective movement, particularly with obligatory fire rated doors. A typical 7’0 door utilizes three active Waterson Closer Hinges to create a perfect, self-closing system. Each hinge’s unique numerical panel allows the spring tensions to adjust precisely according to door weight and environmental conditions. Additionally, Waterson hinges meet all ADA codes concerning speed control, closing force, and door clearance.
Specification and Configuration
US STANDARD
1. Specification

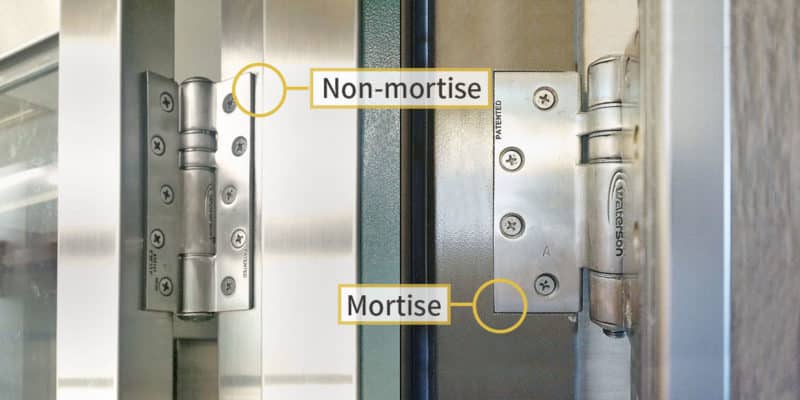

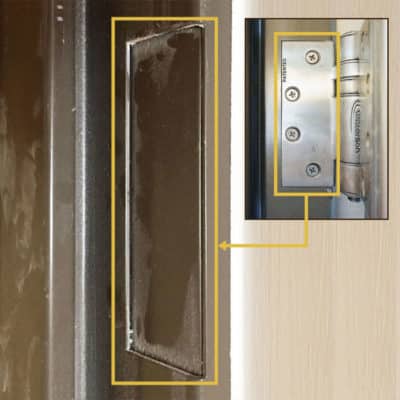

| Hinge Type | DIM (H x W) | BHMA# | Door thickness | Model# | Gauge | Options |
|---|---|---|---|---|---|---|
| Full Mortise | 4″ x 4″ | A40M | 1-3/8″ | K51M–400 |
0.130″ |
STANDARD FINISHES US32D-630-Satin Stainless Steel MATCHING FINISHES US19-631-Flat Black – Powder coating US10B-695-Dark Satin Bronze – Powder coating US4-731-Satin Brass – Physical vapor deposition Custom CORNERS Square 1/4R radius 5/8R radius |
| 4-1/2″ x 4-1/2″ | A45M | 1-3/4″ | K51M-450 |
0.134″ |
||
| 5″ x 5″ | A50M | 1-3/4″~2-1/2″ | K51M-500 |
0.146″ |
||
| 5″ x 5″ | A50B | 1-3/4″~2-1/2″ | K51M-500D |
0.190″ |

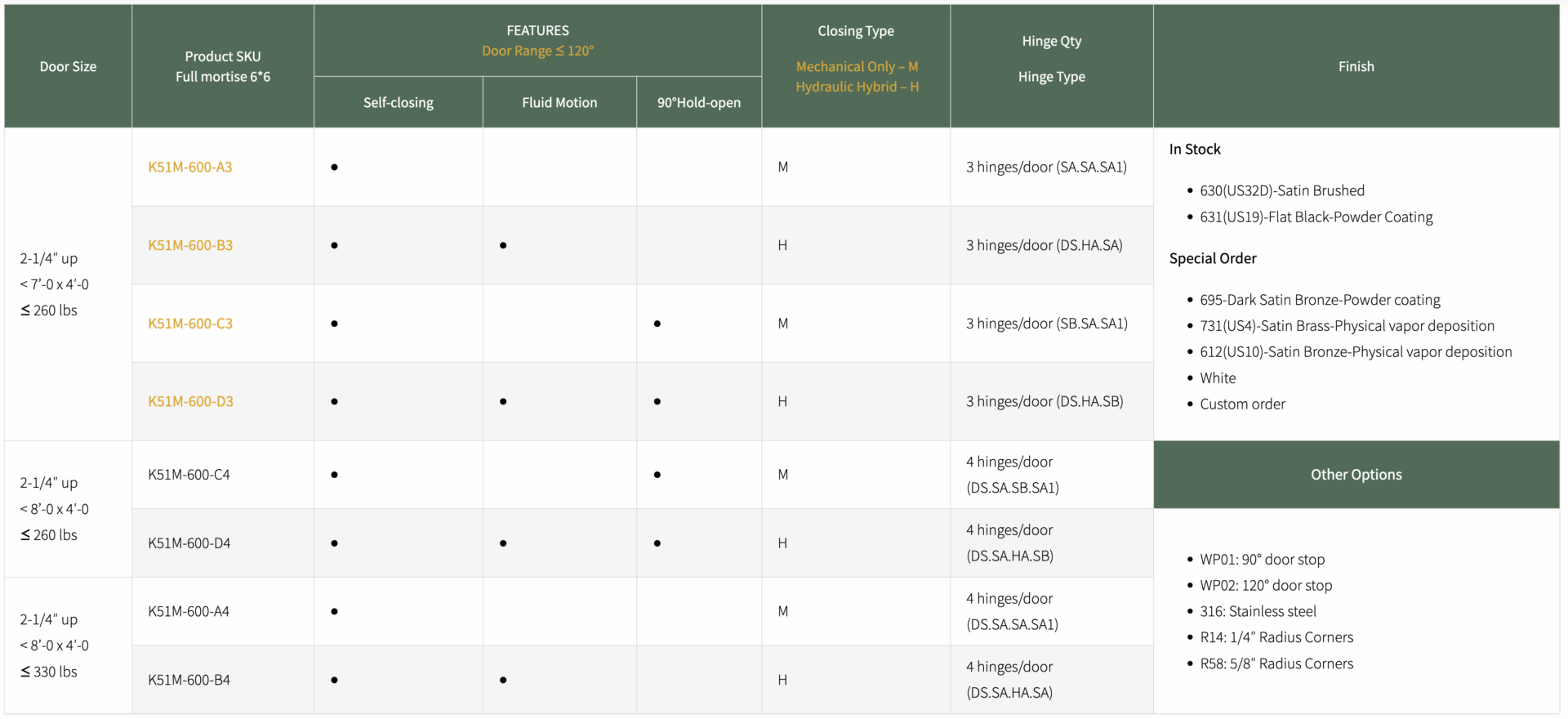

||
| 6″ x 6″ | A60M | 1-3/4″~2-1/2″ | K51M-600 |
0.160″ |
||
| Swing Clear | 4-1/2″ x 4-1/2″ | A45M5 | 1-3/4″ | K51L-SWRH-450 |
0.134″ |
|
| 5″ x 4-1/2″ | n/a | 1-3/4″ | K51L-SWRH-545 |
0.146″ |
2. Configuration

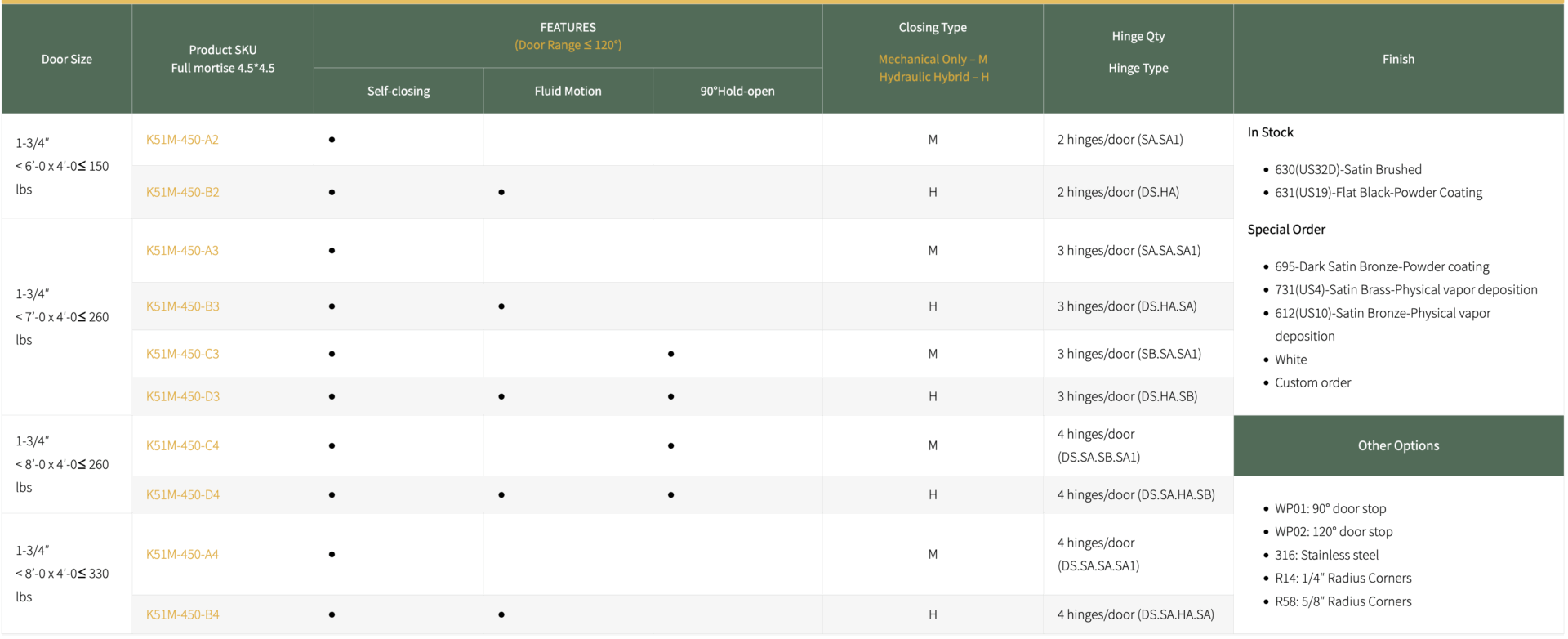

| Door Size | Product SKU Full mortise 4.5*4.5 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| 1-3/4″ < 7’-0 x 4′-0 ≤ 260 lbs |
K51M-450-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | Stocking
US32D-630-Satin Stainless Steel Special Order US10B-695-Dark Satin Bronze – Powder coating on SST
|
||
| K51M-450-B3 | ● | ● |
H |
3 hinges/door (DS.HA.SA1) | |||
| K51M-450-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| K51M-450-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| 1-3/4″ < 8’-0 x 4′-0 ≤ 260 lbs |
K51M-450-C4 | ● | ● | M | 4 hinges/door (SA.SB.SA.SA1) | ||
| K51M-450-D4 | ● | ● | ● | H | 4 hinges/door (DS.SB.HA.SA1) | ||
| 1-3/4″ < 8’-0 x 4′-0 ≤ 330 lbs |
K51M-450-A4 | ● | M | 4 hinges/door (DS,SA,SA,SA1) | |||
| K51M-450-B4 | ● | ● | H | 4 hinges/door (DS.SA.HA.SA1) | |||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.

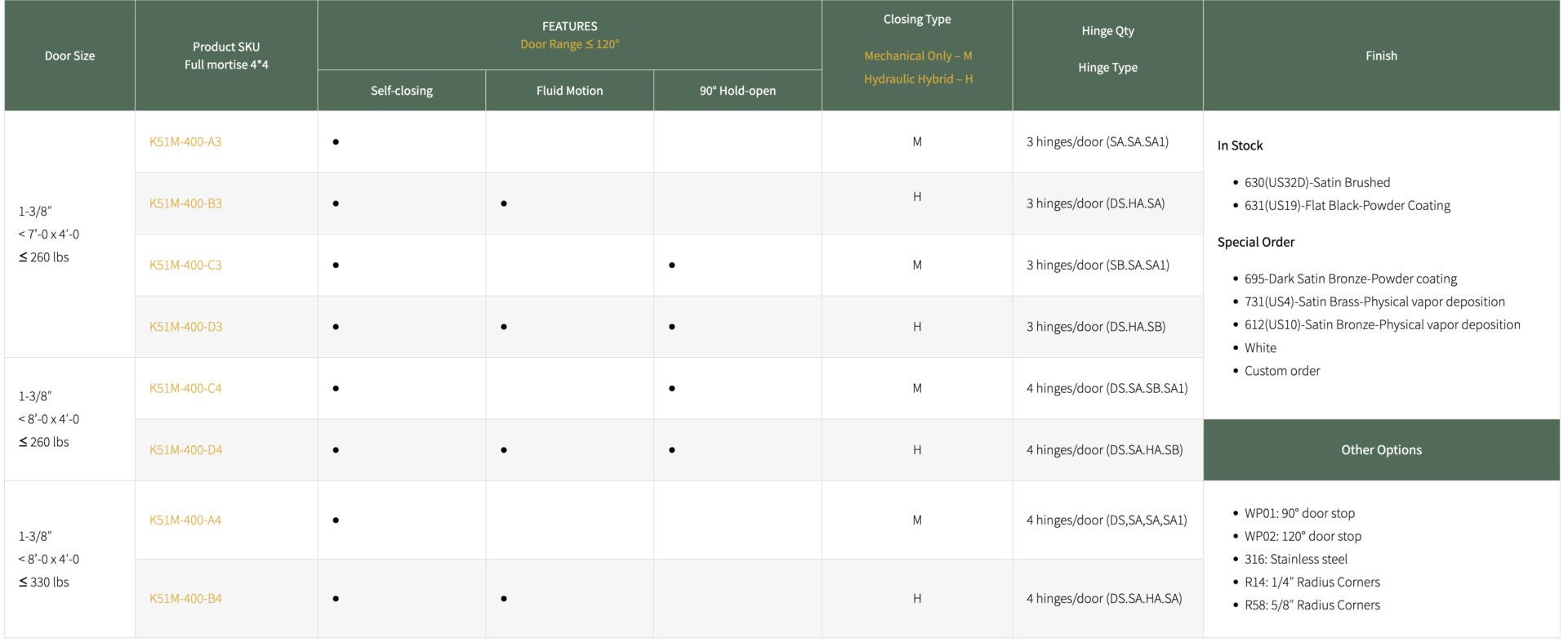

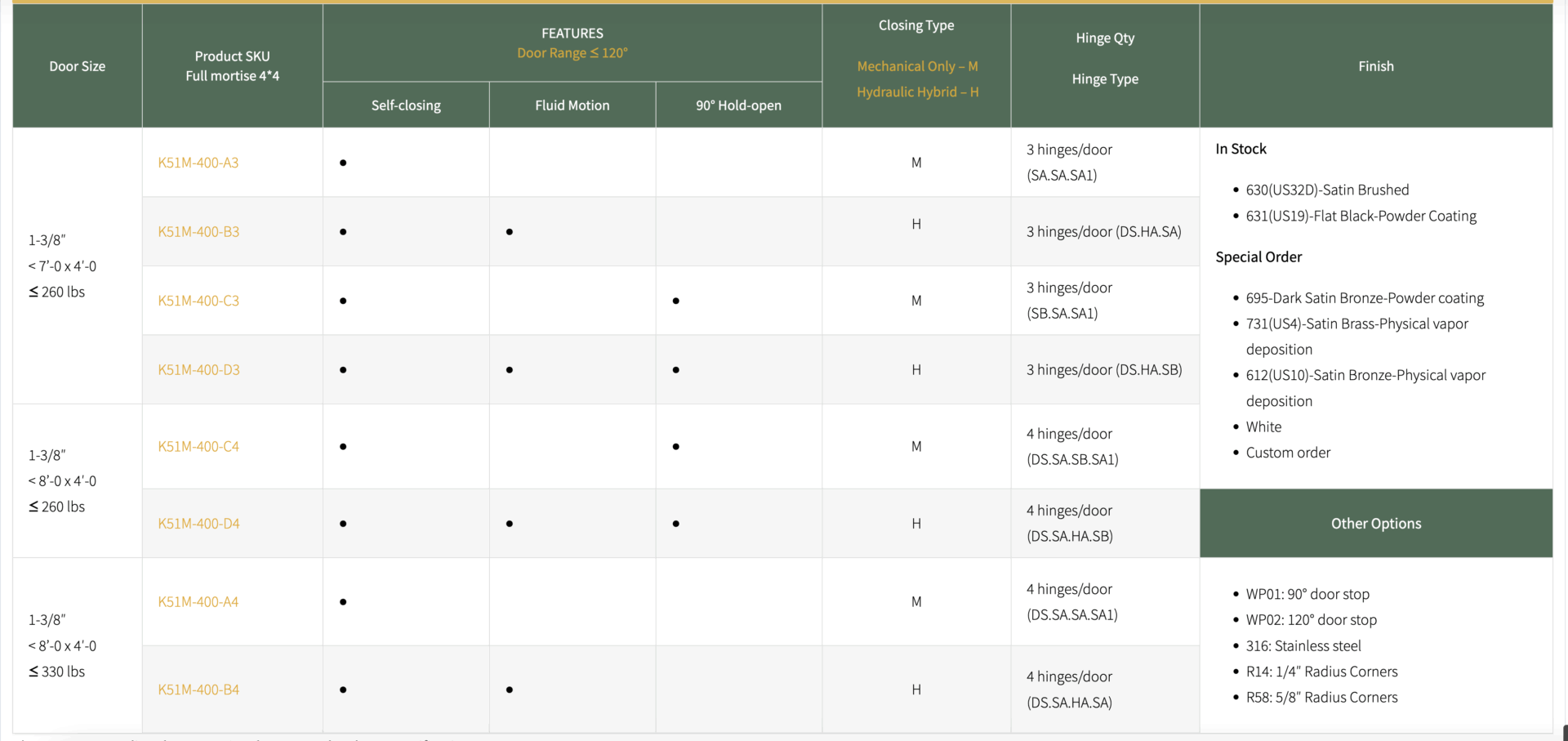

| Door Size | Product SKU Full mortise 4*4 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90° Hold-open | |||||
| 1-3/8″ < 7’-0 x 4′-0 ≤ 260 lbs |
K51M-400-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | Stocking
US32D-630-Satin Stainless Steel Special Order US10B-695-Dark Satin Bronze – Powder coating on SST
|
||
| K51M-400-B3 | ● | ● |
H |
3 hinges/door (DS.HA.SA1) | |||
| K51M-400-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| K51M-400-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| 1-3/8″ < 8’-0 x 4′-0 ≤ 260 lbs |
K51M-400-C4 | ● | ● | M | 4 hinges/door (SA.SB.SA.SA1) | ||
| K51M-400-D4 | ● | ● | ● | H | 4 hinges/door (DS.SB.HA.SA1) | ||
| 1-3/8″ < 8’-0 x 4′-0 ≤ 330 lbs |
K51M-400-A4 | ● | M | 4 hinges/door (DS,SA,SA,SA1) | |||
| K51M-400-B4 | ● | ● | H | 4 hinges/door (DS.SA.HA.SA1) | |||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.

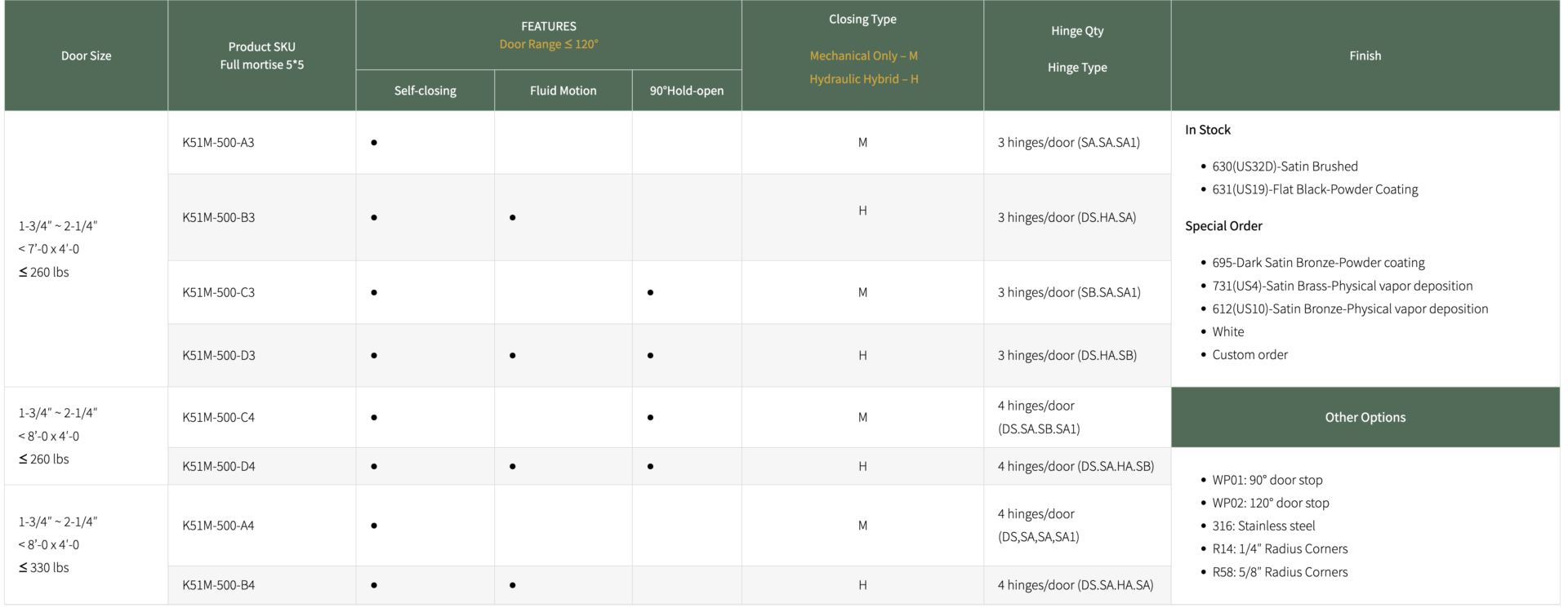

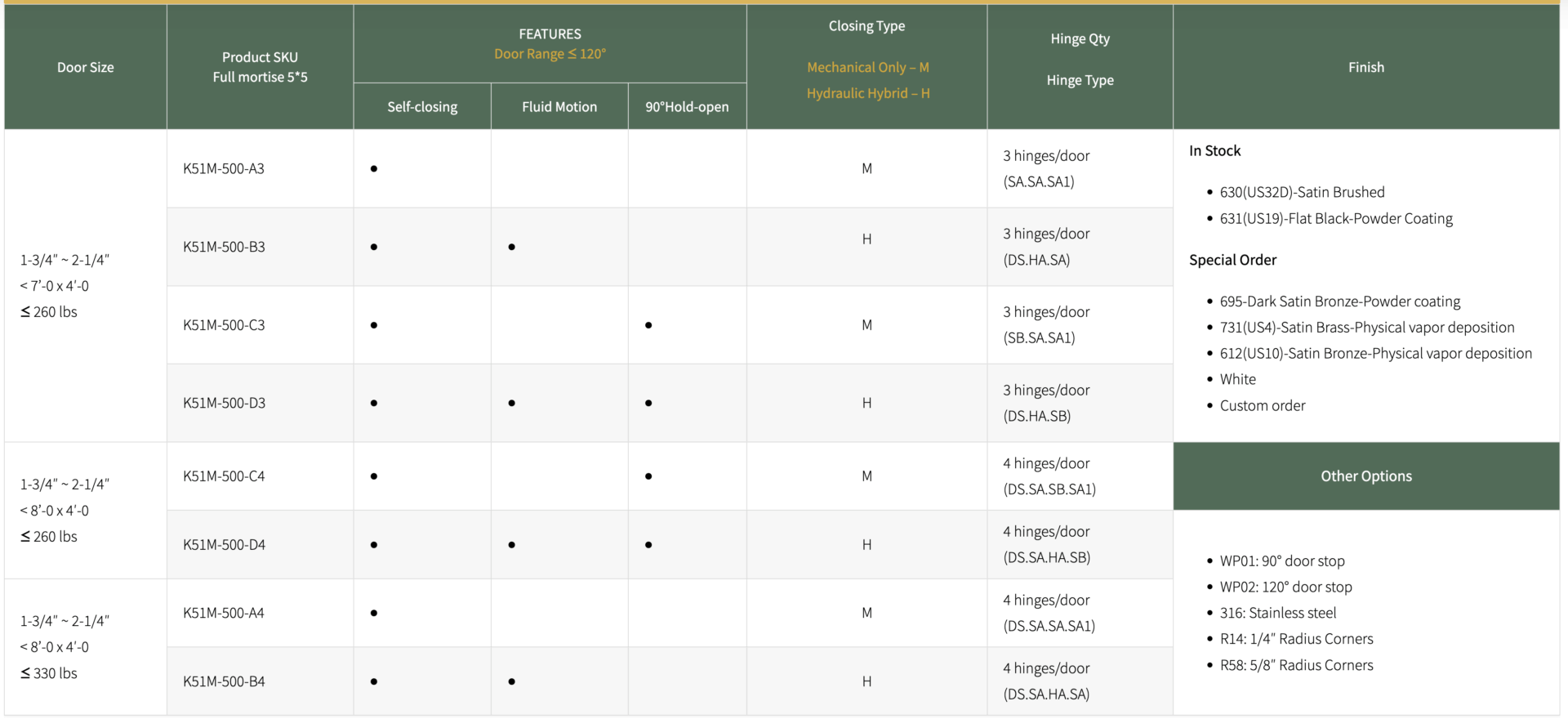

| Door Size | Product SKU Full mortise 5*5 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| 1-3/4″ ~ 2-1/4″ < 7’-0 x 4′-0 ≤ 260 lbs |
K51M-500-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | Stocking
US32D-630-Satin Stainless Steel Special Order US10B-695-Dark Satin Bronze – Powder coating on SST
|
||
| K51M-500-B3 | ● | ● |
H |
3 hinges/door (DS.HA.SA1) | |||
| K51M-500-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| K51M-500-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| 1-3/4″ ~ 2-1/4″ < 8’-0 x 4′-0 ≤ 260 lbs |
K51M-500-C4 | ● | ● | M | 4 hinges/door (SA.SB.SA.SA1) | ||
| K51M-500-D4 | ● | ● | ● | H | 4 hinges/door (DS.SB.HA.SA1) | ||
| 1-3/4″ ~ 2-1/4″ < 8’-0 x 4′-0 ≤ 330 lbs |
K51M-500-A4 | ● | M | 4 hinges/door (DS,SA,SA,SA1) | |||
| K51M-500-B4 | ● | ● | H | 4 hinges/door (DS.SA.HA.SA1) | |||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.

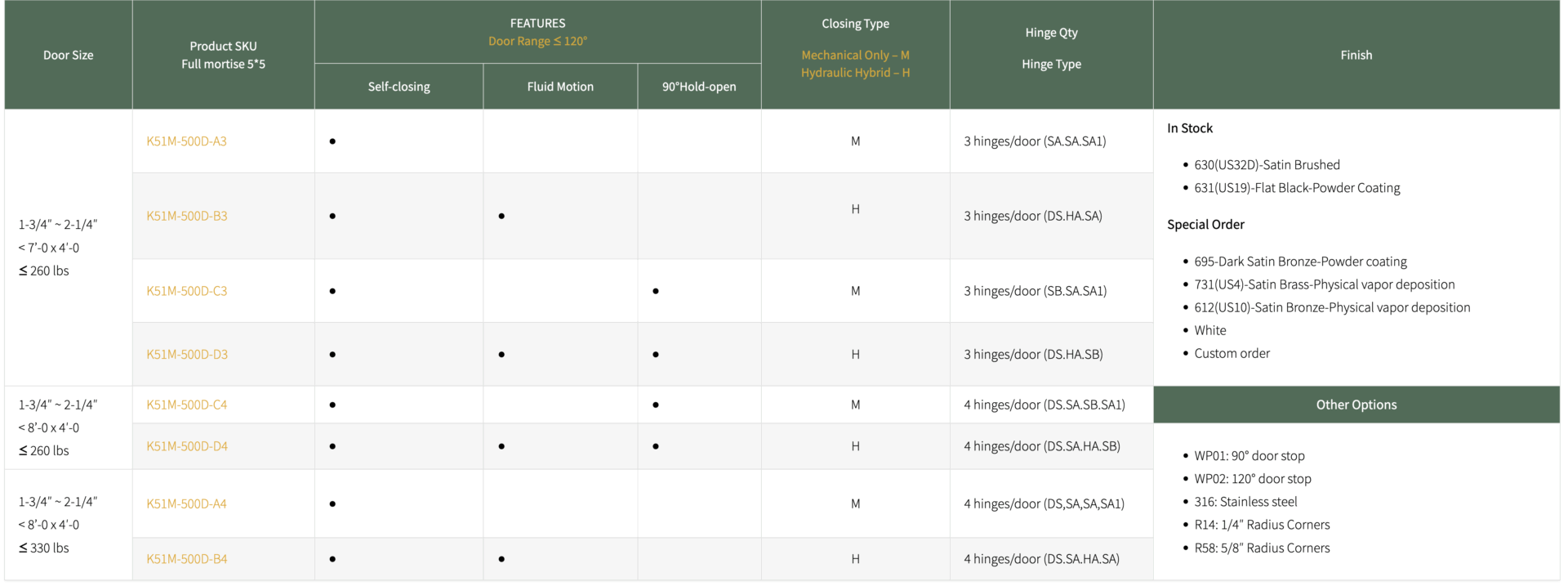

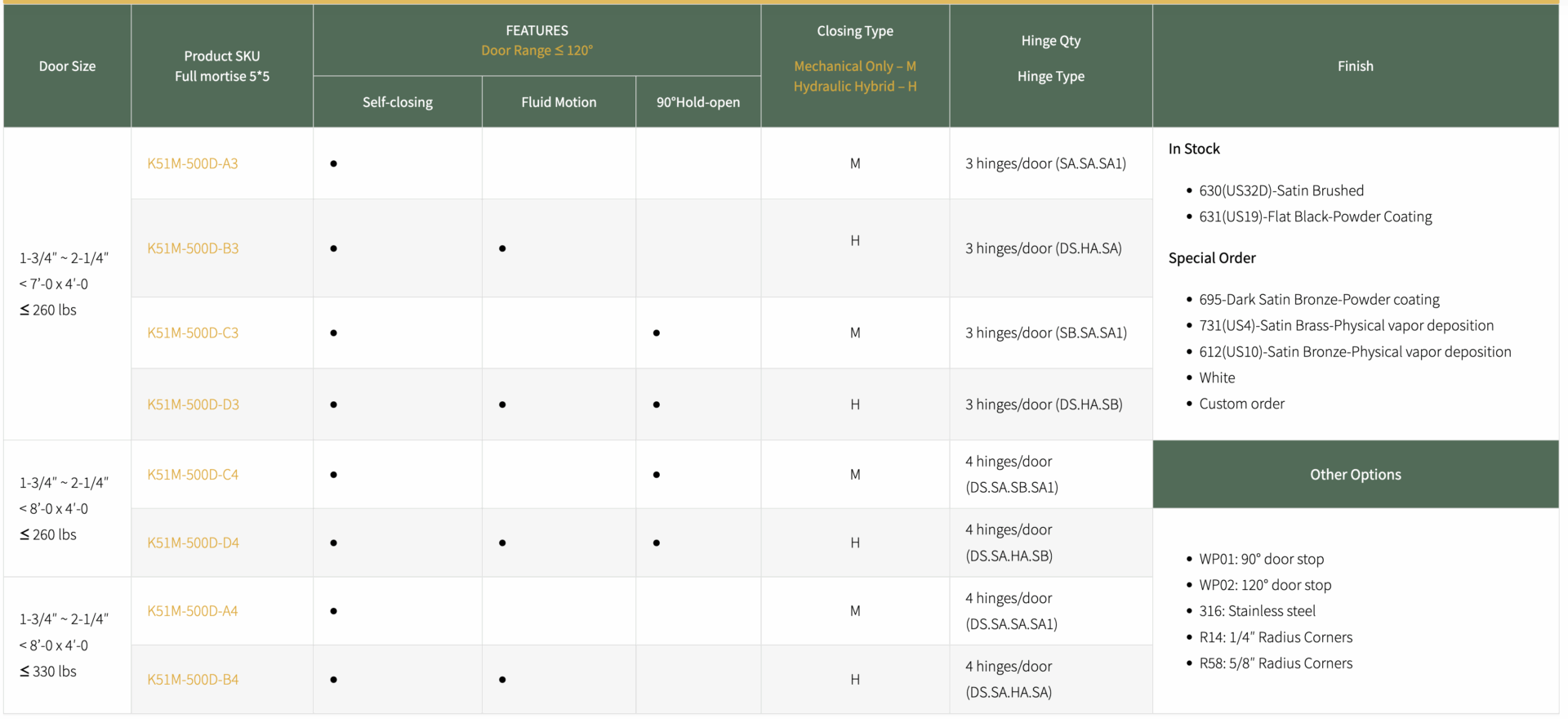

| Door Size | Product SKU Full mortise 5*5 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| 1-3/4″ ~ 2-1/4″ < 7’-0 x 4′-0 ≤ 260 lbs |
K51M-500D-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | Stocking
US32D-630-Satin Stainless Steel Special Order US10B-695-Dark Satin Bronze – Powder coating on SST
|
||
| K51M-500D-B3 | ● | ● |
H |
3 hinges/door (DS.HA.SA1) | |||
| K51M-500D-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| K51M-500D-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| 1-3/4″ ~ 2-1/4″ < 8’-0 x 4′-0 ≤ 260 lbs |
K51M-500D-C4 | ● | ● | M | 4 hinges/door (SA.SB.SA.SA1) | ||
| K51M-500D-D4 | ● | ● | ● | H | 4 hinges/door (DS.SB.HA.SA1) | ||
| 1-3/4″ ~ 2-1/4″ < 8’-0 x 4′-0 ≤ 330 lbs |
K51M-500D-A4 | ● | M | 4 hinges/door (DS,SA,SA,SA1) | |||
| K51M-500D-B4 | ● | ● | H | 4 hinges/door (DS.SA.HA.SA1) | |||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
US STANDARD
1. Specification
| Hinge Type | DIM (H x W) | BHMA# | Door thickness | Model# | Gage | Options |
|---|---|---|---|---|---|---|
| Full Mortise | 4″ x 4″ | A40M | 1-3/8″ | K51M–400 |
0.130″ |
STANDARD FINISHES US32D-630-Satin BrushedMATCHING FINISHES USL1-631-Matte Black US10B-640-Oil Rubbed Bronze US4-619-Satin Brass CustomCORNERS Square 1/4R radius 1/5R radius |
| 4-1/2″ x 4-1/2″ | A45M | 1-3/4″ | K51M-450 |
0.134″ |
||
| 5″ x 5″ | A50M | 1-3/4″~2-1/2″ | K51M-500 |
0.146″ |
||
| 5″ x 5″ | A50B | 1-3/4″~2-1/2″ | K51M-500D |
0.190″ |
||
| 6″ x 6″ | A60M | 1-3/4″~2-1/2″ | K51M-600 |
0.160″ |
||
| Swing Clear | 4-1/2″ x 4-1/2″ | A45M5 | 1-3/4″ | K51L-SWRH-450 |
0.134″ |
|
| 5″ x 4-1/2″ | n/a | 1-3/4″ | K51L-SWRH-500 |
0.146″ |
2. Configuration
| Door Size | Product SKU Full mortise 4.5*4.5 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| 1-3/4″ < 7’-0 x 4′-0 ≤ 260 lbs |
K51M-450-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | Stocking
US32D-630-Satin Stainless Steel Special Order US10B-695-Dark Satin Bronze – Powder coating on SST |
||
| K51M-450-B3 | ● | ● |
H |
3 hinges/door (DS.HA.SA1) | |||
| K51M-450-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| K51M-450-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| 1-3/4″ < 8’-0 x 4′-0 ≤ 260 lbs |
K51M-450-C4 | ● | ● | M | 4 hinges/door (SA.SB.SA.SA1) | ||
| K51M-450-D4 | ● | ● | ● | H | 4 hinges/door (DS.SB.HA.SA1) | ||
| 1-3/4″ < 8’-0 x 4′-0 ≤ 330 lbs |
K51M-450-A4 | ● | M | 4 hinges/door (DS,SA,SA,SA1) | |||
| K51M-450-B4 | ● | ● | H | 4 hinges/door (DS.SA.HA.SA1) | |||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
| Door Size | Product SKU Full mortise 4*4 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90° Hold-open | |||||
| 1-3/8″ < 7’-0 x 4′-0 ≤ 260 lbs |
K51M-400-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | Stocking
US32D-630-Satin Stainless Steel Special Order US10B-695-Dark Satin Bronze – Powder coating on SST |
||
| K51M-400-B3 | ● | ● |
H |
3 hinges/door (DS.HA.SA1) | |||
| K51M-400-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| K51M-400-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| 1-3/8″ < 8’-0 x 4′-0 ≤ 260 lbs |
K51M-400-C4 | ● | ● | M | 4 hinges/door (SA.SB.SA.SA1) | ||
| K51M-400-D4 | ● | ● | ● | H | 4 hinges/door (DS.SB.HA.SA1) | ||
| 1-3/8″ < 8’-0 x 4′-0 ≤ 330 lbs |
K51M-400-A4 | ● | M | 4 hinges/door (DS,SA,SA,SA1) | |||
| K51M-400-B4 | ● | ● | H | 4 hinges/door (DS.SA.HA.SA1) | |||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
| Door Size | Product SKU Full mortise 5*5 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| 1-3/4″ ~ 2-1/4″ < 7’-0 x 4′-0 ≤ 260 lbs |
K51M-500-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | Stocking
US32D-630-Satin Stainless Steel Special Order US10B-695-Dark Satin Bronze – Powder coating on SST |
||
| K51M-500-B3 | ● | ● |
H |
3 hinges/door (DS.HA.SA1) | |||
| K51M-500-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| K51M-500-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| 1-3/4″ ~ 2-1/4″ < 8’-0 x 4′-0 ≤ 260 lbs |
K51M-500-C4 | ● | ● | M | 4 hinges/door (SA.SB.SA.SA1) | ||
| K51M-500-D4 | ● | ● | ● | H | 4 hinges/door (DS.SB.HA.SA1) | ||
| 1-3/4″ ~ 2-1/4″ < 8’-0 x 4′-0 ≤ 330 lbs |
K51M-500-A4 | ● | M | 4 hinges/door (DS,SA,SA,SA1) | |||
| K51M-500-B4 | ● | ● | H | 4 hinges/door (DS.SA.HA.SA1) | |||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
| Door Size | Product SKU Full mortise 5*5 |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| 1-3/4″ ~ 2-1/4″ < 7’-0 x 4′-0 ≤ 260 lbs |
K51M-500D-A3 | ● | M | 3 hinges/door (SA.SA.SA1) | Stocking
US32D-630-Satin Stainless Steel Special Order US10B-695-Dark Satin Bronze – Powder coating on SST |
||
| K51M-500D-B3 | ● | ● |
H |
3 hinges/door (DS.HA.SA1) | |||
| K51M-500D-C3 | ● | ● | M | 3 hinges/door (SB.SA.SA1) | |||
| K51M-500D-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| 1-3/4″ ~ 2-1/4″ < 8’-0 x 4′-0 ≤ 260 lbs |
K51M-500D-C4 | ● | ● | M | 4 hinges/door (SA.SB.SA.SA1) | ||
| K51M-500D-D4 | ● | ● | ● | H | 4 hinges/door (DS.SB.HA.SA1) | ||
| 1-3/4″ ~ 2-1/4″ < 8’-0 x 4′-0 ≤ 330 lbs |
K51M-500D-A4 | ● | M | 4 hinges/door (DS,SA,SA,SA1) | |||
| K51M-500D-B4 | ● | ● | H | 4 hinges/door (DS.SA.HA.SA1) | |||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
Specification
OTHER COUNTRIES
| Model | DIM | Door Thickness | Gauge | Finish | Door Spec |
Self-closing Combination |
Self-closing & Hold-open Combination |
|---|---|---|---|---|---|---|---|
| K51M-640 | 6″ x 4″ (H*W) | 35-45 mm | 4.1 mm | Satin Brushed
Polished Golden Black |
≤ 70kg <1800 x 1250 mm |
( DS, HA ) = ( Top, Bottom) ( SA, SA1 ) =( Top, Bottom) |
( SB, HS ) = ( Top, Bottom) |
| K51M-645 | 6″ x 4.5″ (H*W) | 40-50 mm | |||||
| K51M-650 | 6″ x 5″ (H*W) | 45-55 mm | ≤ 120kg <2200 x 1250 mm |
( DS, HA, SA1 ) = (Top, Middle, Bottom) ( SA, SA, SA1 ) = (Top, Middle, Bottom) |
( SB, SA, HS ) = (Top, Middle, Bottom) ( SB, SA, SA1 ) = (Top, Middle, Bottom) |
||
| K51M-655 | 6″ x 5.5″ (H*W) | 50-60 mm | |||||
| K51M-660 | 6″ x 6″ (H*W) | 55-65 mm |
Specification and Configuration
US STANDARD
1. Specification
2. Configuration
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
Comparison With Door Closer
Comparison With Door Closer
| Waterson Self-closing hinge | Traditional door closer | |
|---|---|---|
| Closer Location | Side of door. Installs easily like regular hinges |
Top of door. Requires additional installation space |
| Aesthetics | Elegant and minimal visual intrusion |
Bulky and significant visual intrusion |
| Opening Force | Effortless |
Requires more effort |
| Outdoor Use | Yes, highly weather-resistant |
Closing arm susceptible to rust |
| Interior Use | Less likely to be broken or vandalized |
Closing arm susceptible to breakage and vandalism |
| Fire Resistance | UL-Listed 3 hours |
Various fire-rating levels |
| Durability | 1 million cycle test certified |
Various cycle test levels |
| Total Cost | Low installation & maintenance expense |
High installation & maintenance expense |
