Self Closing Glass Door Hinges
Choose Waterson Self Closing Glass Door Hinges for all of your frameless glass door needs. An attractive and innovative closing solution, Waterson glass hinges provide a clean and modern appearance by eliminating unnecessary metal frame hardware commonly used on floor closers. Plus, our glass door hinges ensure that you avoid expensive ground spring concrete installation while eliminating possible rust. At the same time, compared to the time-consuming work associated with fixing traditional floor closers, Waterson glass door hinges can be easily installed and maintained within 30 minutes.
Self Closing Glass Door Hinges
Choose Waterson Self Closing Glass Door Hinges for all of your frameless glass door needs. An attractive and innovative closing solution, Waterson glass door hinges provide a clean and modern appearance by eliminating unnecessary metal frame hardware commonly used on floor closers. Plus, our glass door hinges ensure that you avoid expensive ground spring concrete installation, while eliminating possible rust. At the same time, compared to the time-consuming work associated with fixing traditional floor closers, Waterson glass door hinges can be easily installed and maintained within 30 minutes.
How to Order
Applications:
Features
- Stringent quality control
- Reliable Product warranty
- Trackable serial number
- Direct application to glass
- Black gasket for robust friction
- Keep glass firmly from Slipping
- Teflon-coated hinge support:
1. Low friction and high abrasion resistance
2. Absorb shock/loading pressure with soft closing glass door hinges
3. Keep glass safe from cracking
- Special adjusting bolt
- allows adjustment of closed position for ±1°
Features
- Stringent quality control
- Reliable Product warranty
- Trackable serial number
- Direct application to glass
- Black gasket for robust friction
- Keep glass firmly from Slipping
- Teflon-coated hinge support:
1. Low friction and high abrasion resistance
2. Absorb shock/loading pressure with soft closing glass door hinges
3. Keep glass safe from cracking
- Special adjusting bolt
- allows adjustment of closed position for ±1°

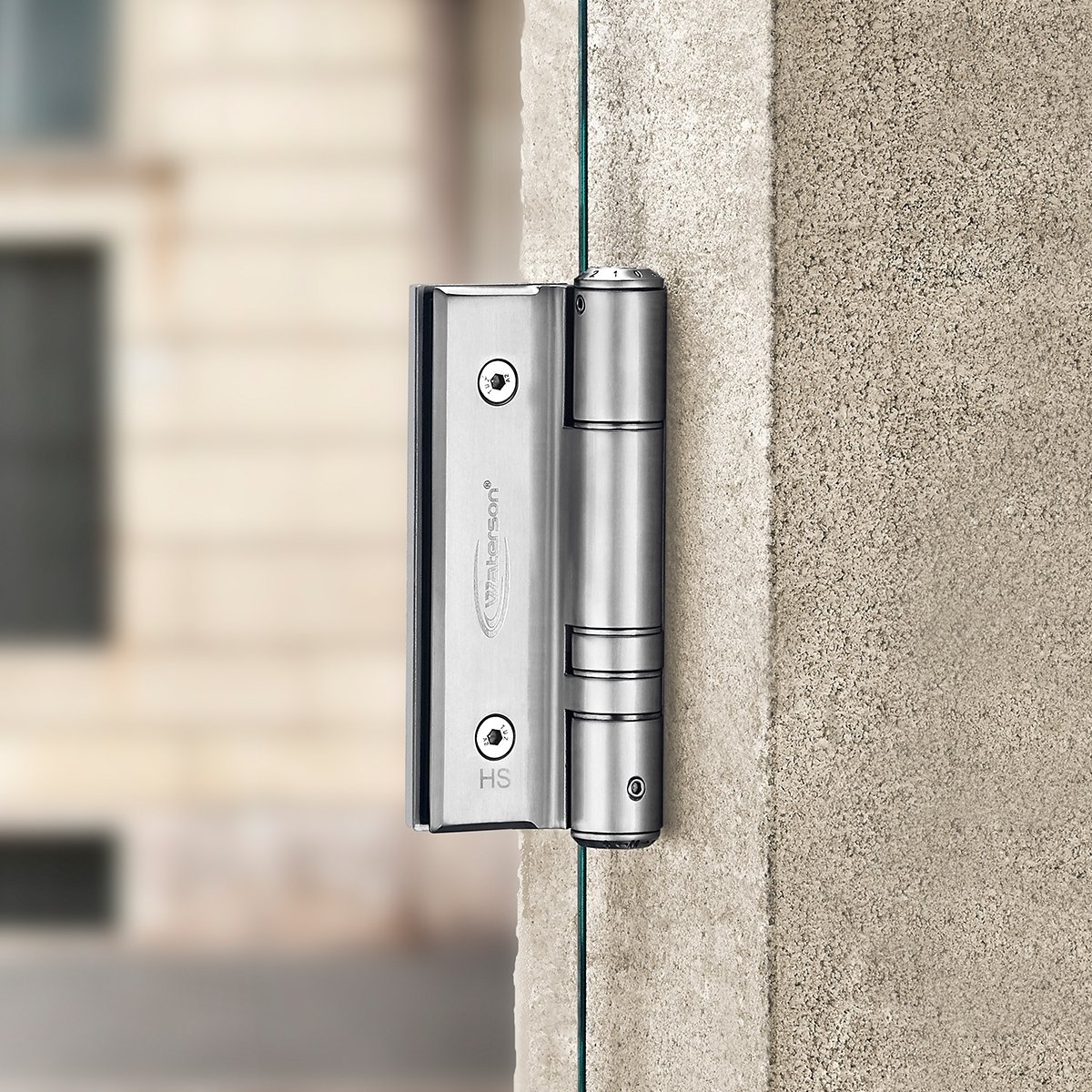

Glass to Wall Door Hinges / Partition – K51GWL
One side attaches to frameless glass, and the other side installs on a wall or partition. This model is a delicate solution for an office building. With simply pre-drilled glass, a glass door can self-closing with controlled speed without installing floor spring in the ground. K51GWL –wall thickness must be at least be 3.8 cm. Waterson self and soft closing glass door hinge is an in-swing & non-handed design.
Glass to Wall Door Hinges /
Partition – K51GWL
One side attaches to frameless glass, and the other side installs on a wall or partition. This model is a delicate solution for an office building. With simply pre-drilled glass, a glass door can self-closing with controlled speed without installing floor spring in the ground. K51GWL –wall thickness must be at least be 3.8 cm. Waterson self and soft closing glass door hinge is an in-swing & non-handed design.

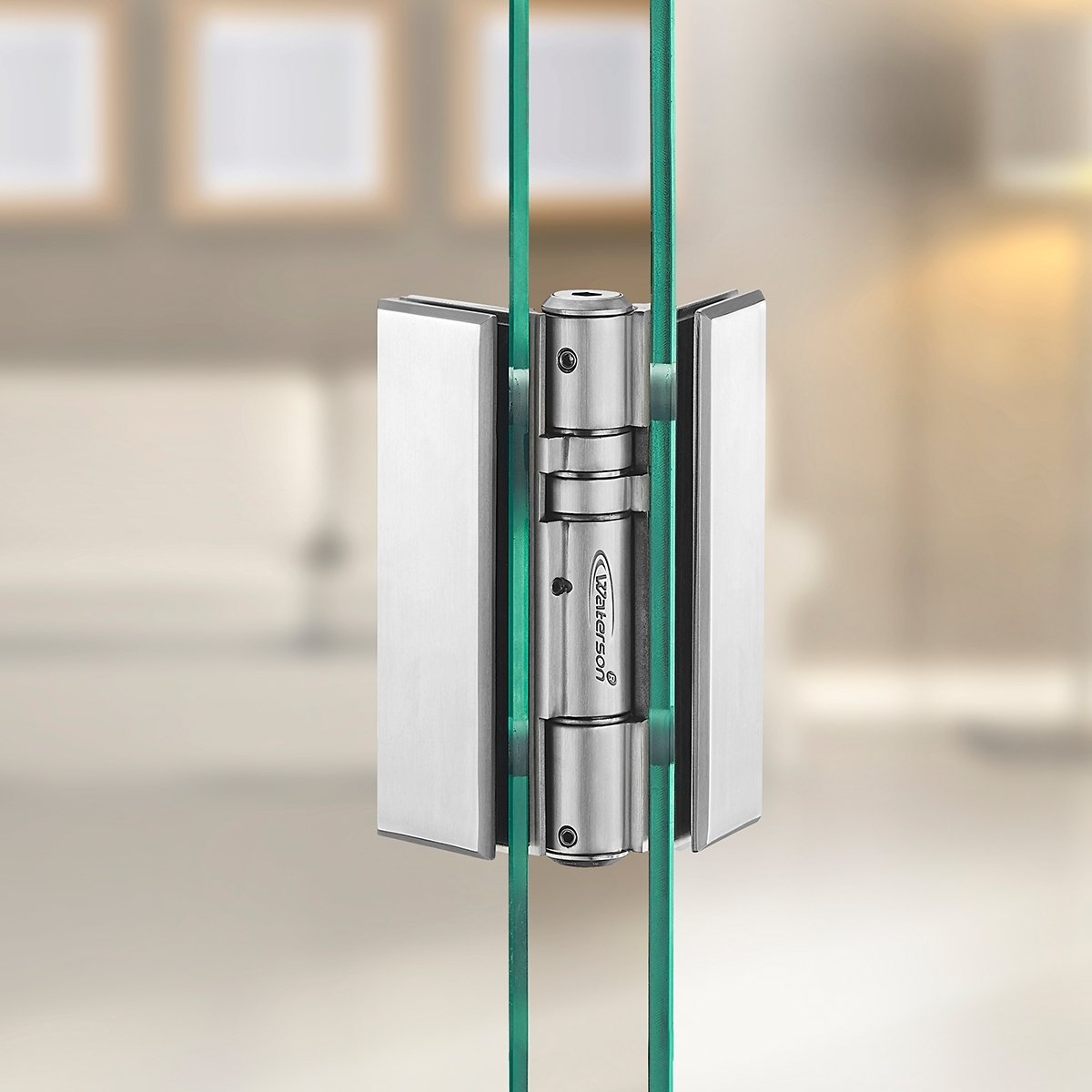

Glass to Glass Door Hinges – K51GG
Designed for Glass to Glass scenario. Waterson glass door hinge is one of the few hardware in the world with a capacity to clamp glass panels firmly. Constructed by investment casting, this hinge is endowed with superior loading capacity and structural strength. With these hinges, you can enjoy the self-closing solution and save the hassle of drilling/cutting the floor or attaching the metal frame to your glass door. Waterson self and soft closing glass door hinge is an in-swing & non-handed design.
Glass to Glass Door Hinges – K51GG
Designed for Glass to Glass scenario. Waterson hinge is one of the few hardware in the world with a capacity to clamp glass panels firmly. Constructed by investment casting, this hinge is endowed with superior loading capacity and structural strength. With these hinges, you can enjoy the self-closing solution and save the hassle of drilling/cutting the floor or attaching the metal frame to your glass door. Waterson self and soft closing glass door hinge is an in-swing & non-handed design.

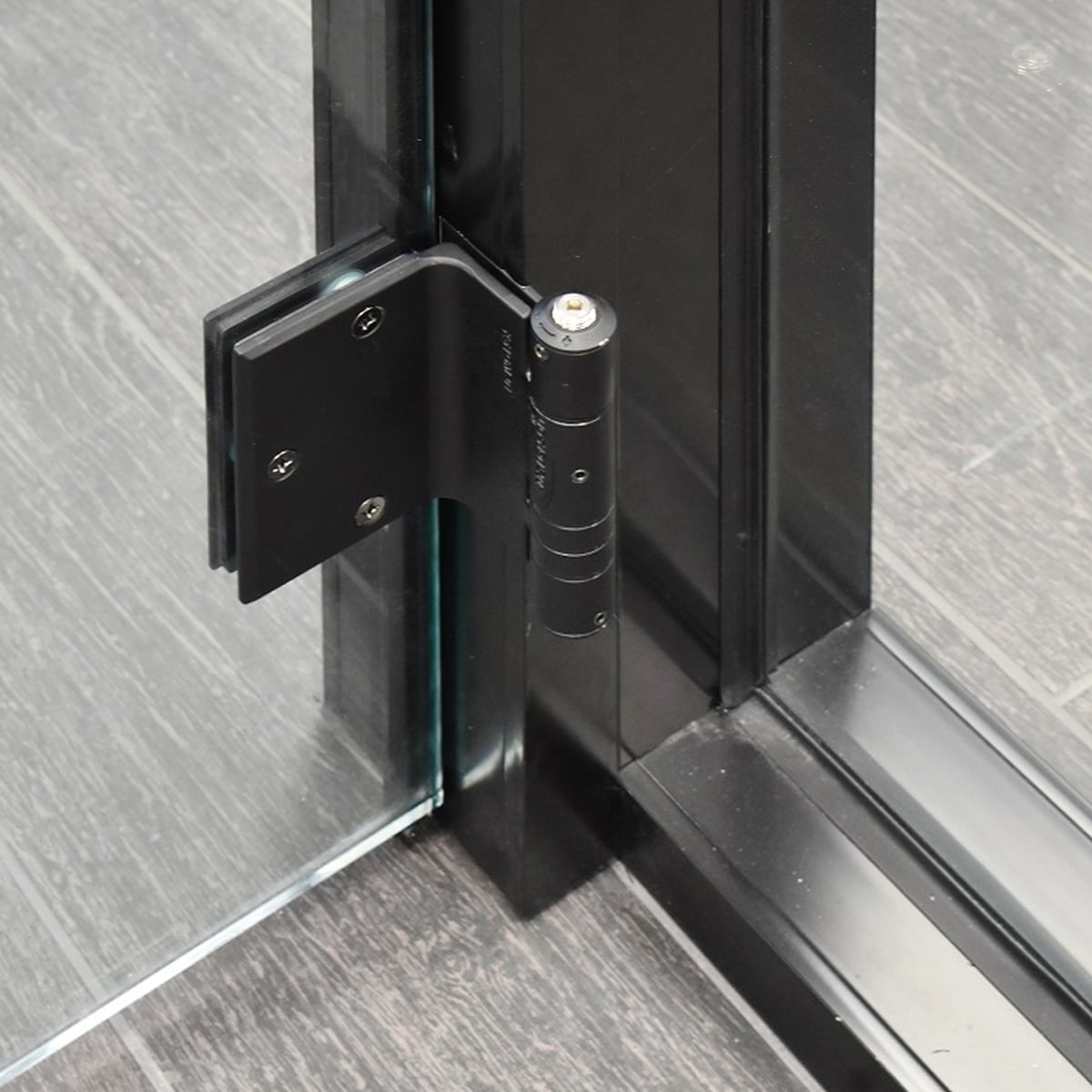

Glass to Frame Door Hinges 4.5″ x 4.5″ – K51GM
One side attaches to glass, and the other sides install to the regular 4.5 x 4.5 template frame. This model can be a wonderful solution for glass door retrofit. The special adapter design can seamlessly connect to an existing door frame. Enjoy your new glass door without installation chaos. Waterson self and soft closing glass door hinge is an in-swing & non-handed design.
Glass to Frame Door Hinges 4.5″ x 4.5″ – K51GM
One side attaches to glass, and the other sides install to the regular 4.5 x 4.5 template frame. This model can be a wonderful solution for glass door retrofit. The special adapter design can seamlessly connect to an existing door frame. Enjoy your new glass door without installation chaos. Waterson self and soft closing glass door hinge is an in-swing & non-handed design.
Configuration

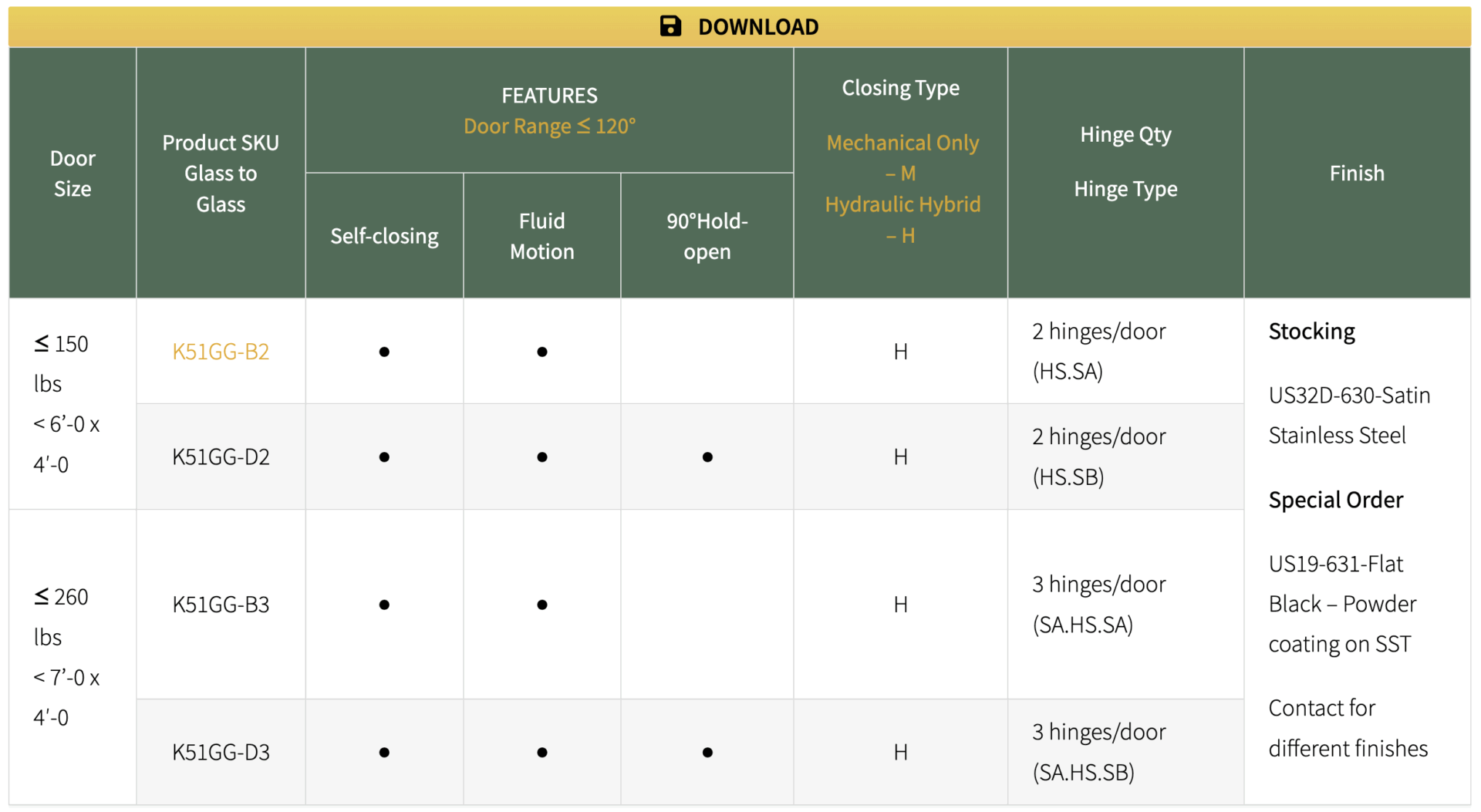

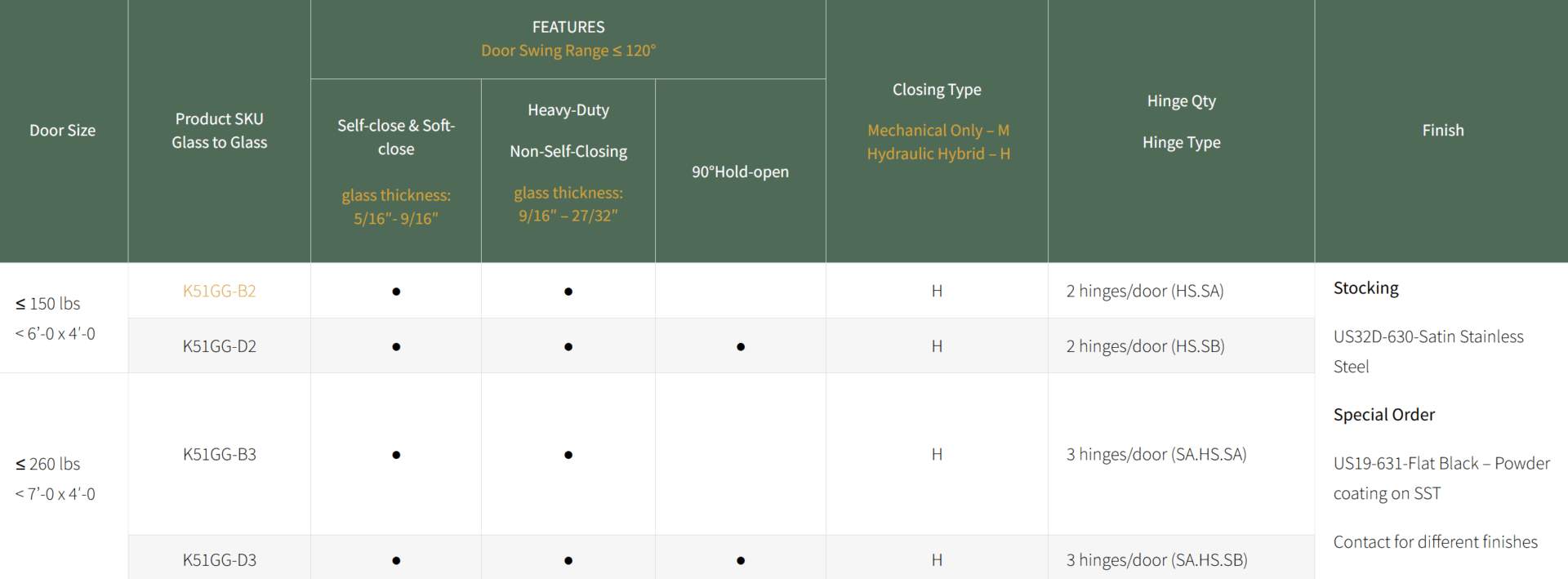

| Door Size | Product SKU Glass to Glass |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| ≤ 150 lbs < 6’-0 x 4′-0 |
K51GG-B2 | ● | ● | H | 2 hinges/door (HS.SA) | Stocking
US32D-630-Satin Stainless Steel Special Order US19-631-Flat Black – Powder coating on SST Contact for different finishes |
|
| K51GG-D2 | ● | ● | ● | H | 2 hinges/door (HS.SB) | ||
| ≤ 260 lbs < 7’-0 x 4′-0 |
K51GG-B3 | ● | ● | H | 3 hinges/door (SA.HS.SA1) | ||
| K51GG-D3 | ● | ● | ● | H | 3 hinges/door (SA.HS.SB) | ||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.

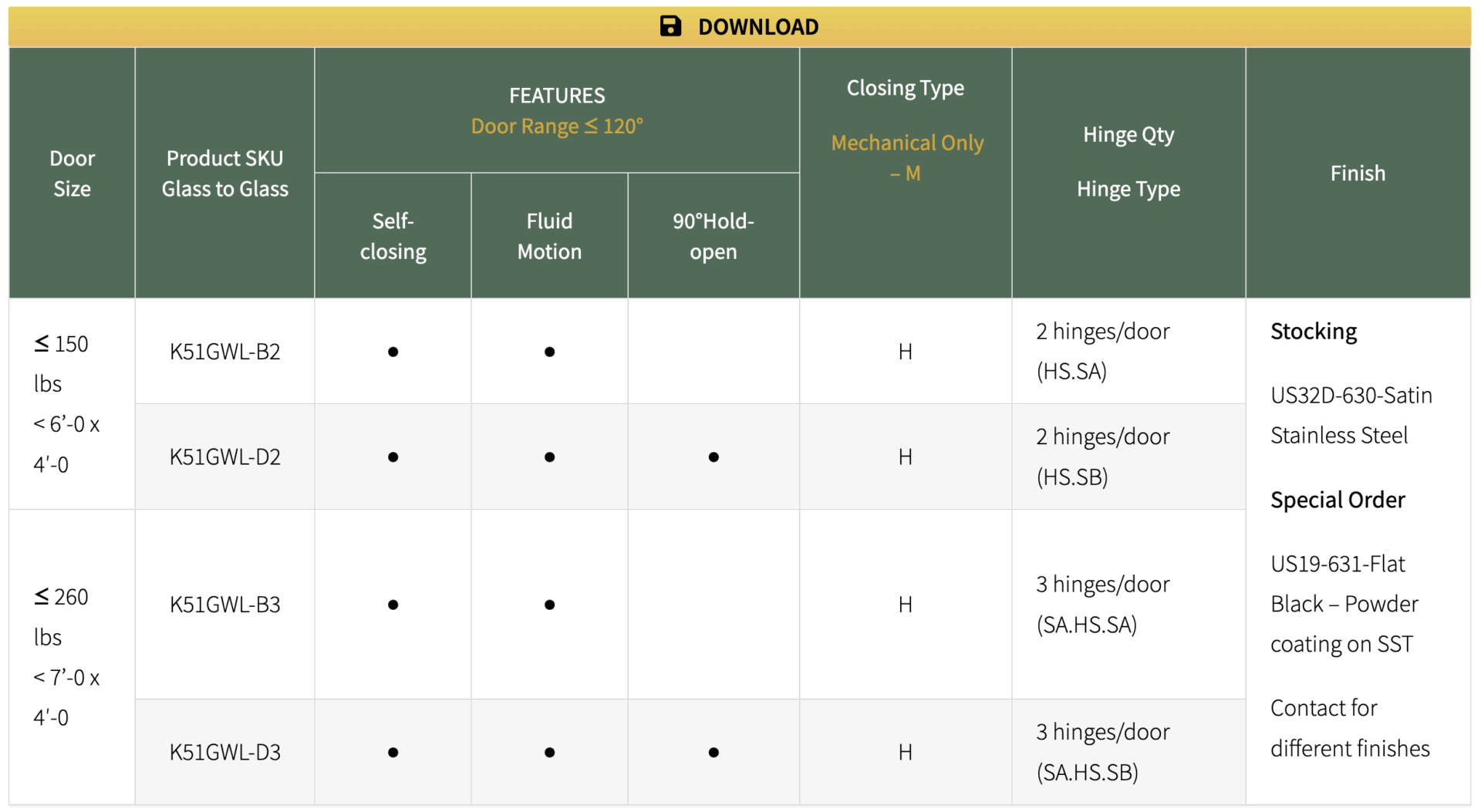

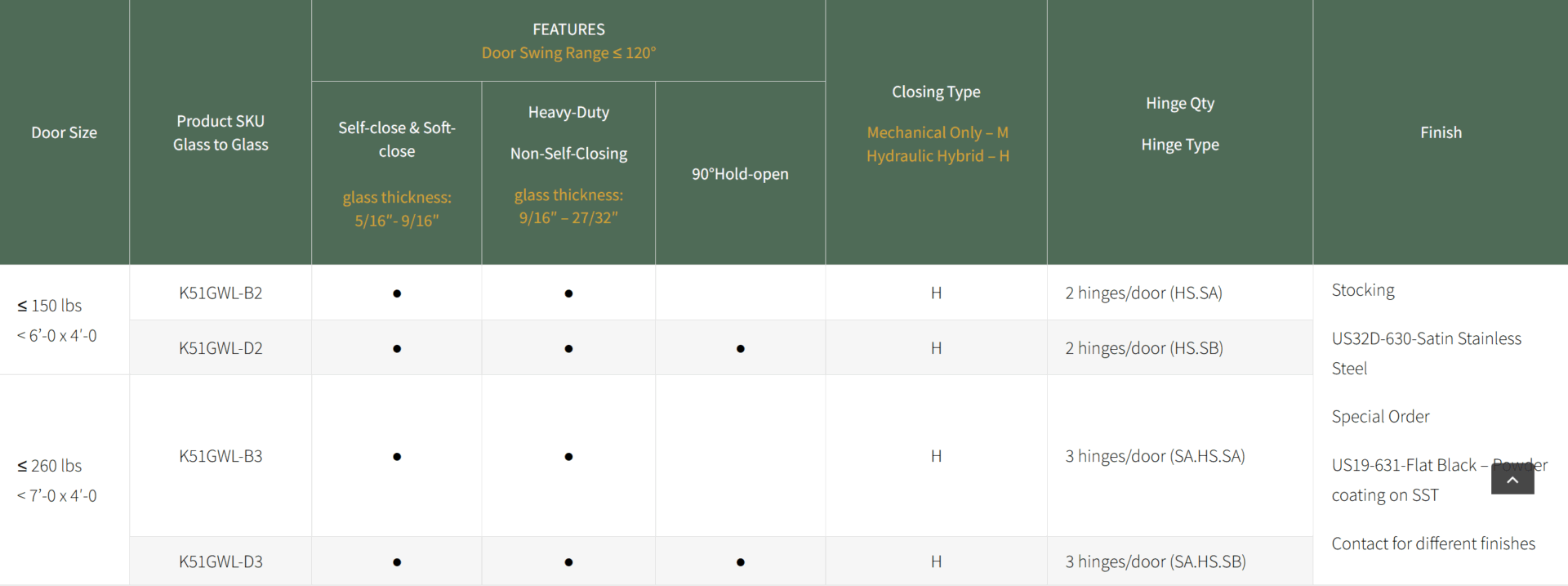

| Door Size | Product SKU Glass to Glass |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| ≤ 150 lbs < 6’-0 x 4′-0 |
K51GWL-B2 | ● | ● | H | 2 hinges/door (HS.SA) | Stocking
US32D-630-Satin Stainless Steel Special Order US19-631-Flat Black – Powder coating on SST Contact for different finishes |
|
| K51GWL-D2 | ● | ● | ● | H | 2 hinges/door (HS.SB) | ||
| ≤ 260 lbs < 7’-0 x 4′-0 |
K51GWL-B3 | ● | ● | H | 3 hinges/door (SA.HS.SA1) | ||
| K51GWL-D3 | ● | ● | ● | H | 3 hinges/door (SA.HS.SB) | ||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.

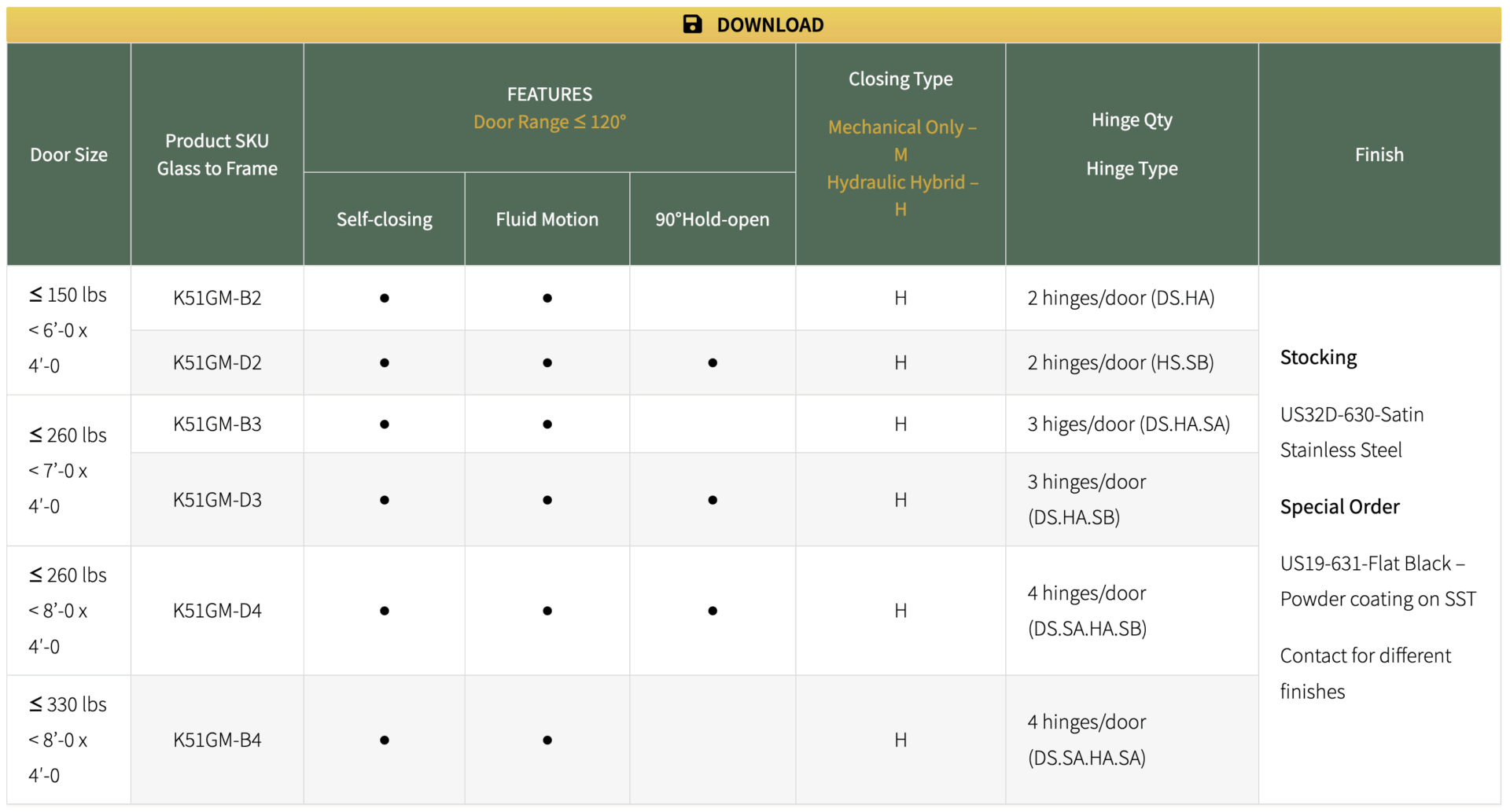

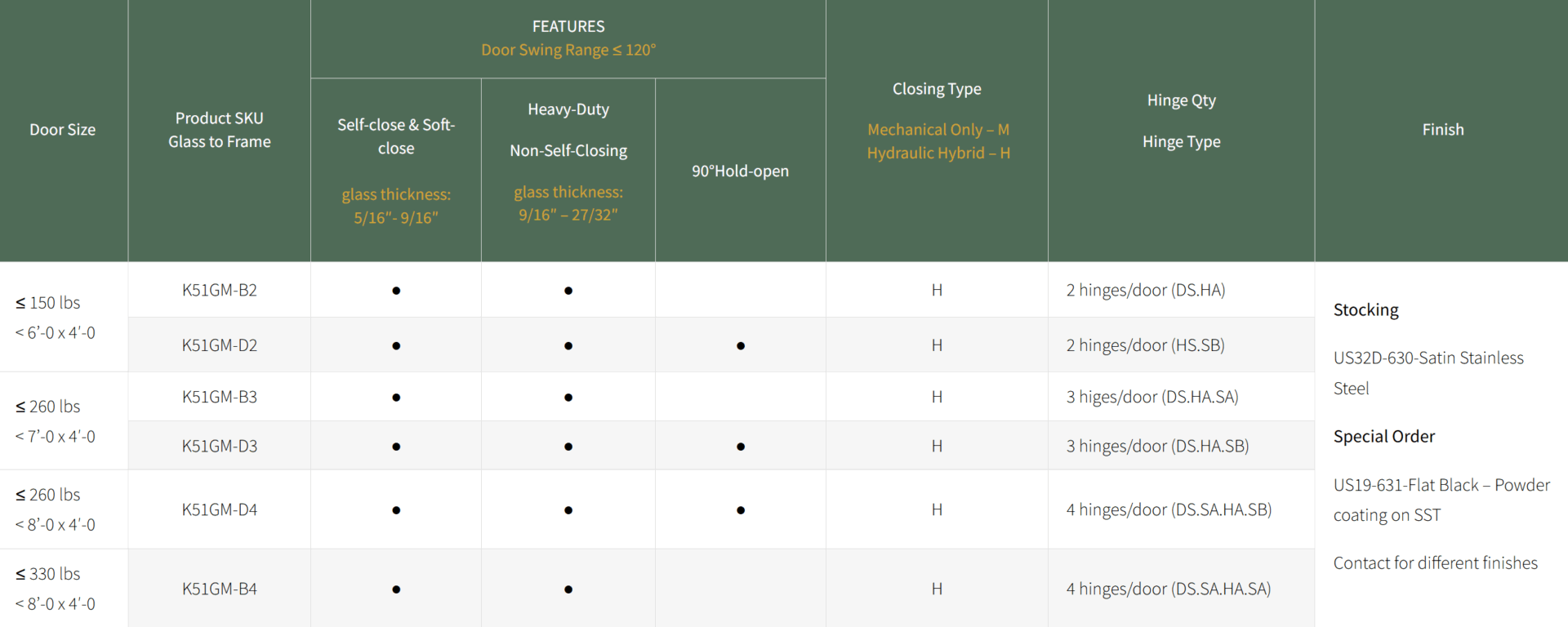

| Door Size | Product SKU Glass to Frame |
FEATURES Door Range ≤ 120° |
Closing Type
Mechanical Only – M |
Hinge Qty
Hinge Type |
Finish | ||
|---|---|---|---|---|---|---|---|
| Self-closing | Fluid Motion | 90°Hold-open | |||||
| ≤ 150 lbs < 6’-0 x 4′-0 |
K51GM-B2 | ● | ● | H | 2 hinges/door (DS.HA) | Stocking
US32D-630-Satin Stainless Steel Special Order US19-631-Flat Black – Powder coating on SST Contact for different finishes |
|
| K51GM-D2 | ● | ● | ● | H | 2 hinges/door (HS.SB) | ||
| ≤ 260 lbs < 7’-0 x 4′-0 |
K51GM-B3 | ● | ● | H | 3 higes/door (DS.HA.SA1) | ||
| K51GM-D3 | ● | ● | ● | H | 3 hinges/door (DS.HA.SB) | ||
| ≤ 260 lbs < 8’-0 x 4′-0 |
K51GM-D4 | ● | ● | ● | H | 4 hinges/door (DS.HA.SB.SA1) | |
| ≤ 330 lbs < 8’-0 x 4′-0 |
K51GM-B4 | ● | ● | H | 4 hinges/door (DS.HA.SA.SA1) | ||
1. We provide additional door stop ( at 90°) features for all models. Email to request a quotation.
2. Learn more about Waterson hinge design (SA,SA1,SB,…)
3. Learn more about mechanical or hydraulic hybrid closing types, or watch video
4. Please contact us directly concerning doors over the above specifications.
Configuration
K51GG- Glass to Glass
K51GWL- Glass to Wall
K51GM- Glass to Frame
Self Closing Glass Door Hinges Comparison with Floor Spring
| Waterson Self-closing Glass Door Hinge | Traditional Floor Spring | |
|---|---|---|
| Closer Location | Side of door. Installs easily like regular hinges |
Cut and drilled into the floor. Greater effort. |
| Opening Force | Effortless |
Requires more effort |
| Sustainability | Maintains structural quality over time |
Susceptible to rust |
| Cost | Low installation & maintenance expense |
High installation & maintenance expense |
| Durability | 1 million cycle test certified |
Various cycle test levels |
Self Closing Glass Door Hinges Comparison with Floor Spring
Comparison with floor spring hinge
