Project Description
Previously consumers typically chose “floor springs” as frameless glass doors hardware due to a dearth of other options. While floor springs generally work well and provide self-closing features, they do require a significant installation effort when retrofitting an existing doorway. Besides, humidity and moisture can pose a real problem for floor spring function and longevity.
Why Do Floor Springs Fail in Humid Bathrooms?

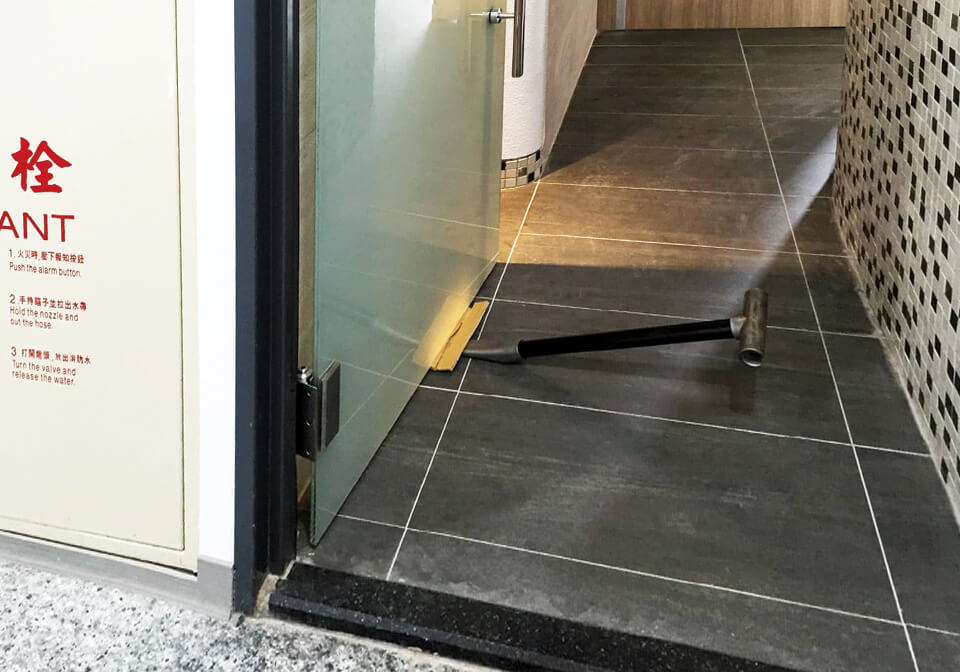

Environments like the bathroom shown in the video are inevitably humid due to cleaning and excessive water evaporation. The floor spring’s embedded ground hinges are prone to rust as a result of this excess moisture. Rust ultimately leads to poor floor spring function that can easily result in loss of the self-closing feature.
Common Solution to the Humid Place
- Use Rust-Resistant Materials: Opt for stainless steel or corrosion-resistant floor springs.
- Seal the Housing: Apply waterproof sealing around the embedded hinge to block moisture.
- Improve Ventilation: Enhance airflow in the bathroom to reduce humidity levels.
- Switch to Surface-Mounted Closers: Avoid in-ground installations by using overhead or wall-mounted closers.
However, why do we have to implement so many different solutions if there’s a simpler, more effective option available? A single upgrade could address rust, installation hassle, and long-term durability—all in one go.
A Rustproof Solution for Your Glass Door
Waterson glass-to-wall hinges provide an all-in-one solution that ensures functionality and durability. Offering an anti-slamming and soft-close mechanism with these supporting features:
- Self-Closing Mechanism: Automatically closes the door for enhanced safety and hands-free convenience.
- Soft Closing: Protect the door and frame from sudden impacts to prevent breaking the glass with controlled closure.
- Adjustable Tension: Fine-tune opening and closing speeds to match your specific preferences.
- 316 Stainless Steel: Exceptional durability, corrosion resistance, and long-lasting performance even in harsh environments.
- Heavy-Duty: Supports heavy glass doors—3 hinges hold up to 260 lbs; 4 hinges up to 440 lbs.
- Easy Installation: Mounts directly onto the wall—no need for floor embedding. Simply drill holes in the glass per Waterson’s specifications.
- Elegant Finishes: Complements modern architectural designs, suitable for commercial and luxury residential spaces.
These features are an innovative option for various glass door applications. Therefore, Waterson Hinges has been trusted by many clients from across countries to provide self-closing hinges, such as for meeting room glass door, toilet partitions, and lift glass door.
No, properly designed glass-to-wall hinges do not cause the glass door to crack during installation — if:
- The glass is pre-drilled accurately according to the hinge manufacturer’s hole specifications.
- Tempered or laminated safety glass is used, which is designed to handle stress from hardware.
- Installation is done carefully without overtightening screws or applying uneven pressure.
- High-quality gaskets (like Waterson’s non-asbestos soft gaskets) are used to cushion the glass.
To install glass-to-wall hinges, the wall must be at least 1-1/2″ (38mm) thick, and they should meet the following minimum dimensions:
- 6′-0″ x 4′-0″ (≤ 150 lbs) – requires 2 hinges.
- 7′-0″ x 4′-0″ (≤ 260 lbs) – requires 3 hinges.
- Beyond 7’-0” (> 260 lbs) – contact us for the best recommendation.
Waterson Heavy Duty Glass Door Closer Hinges Hardware
Waterson Glass Door Hinges combine an overhead closer and hinge into one attractive component with optional hold-open and door stop features. These hinges are ideal for commercial openings, gates, and glass doors. These closer hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson closer hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being suitable for both interior and all-weather exterior openings. See all our features.
Request For Information
Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
