Hinges for Round Pipe: 3 Best Ways to Install

“Can self-closing hinges be attached to a circular post? Or does it need to be bent?”

That’s a great question—and one we hear often from professionals working with pipe gate hinges on heavy duty projects. If you’ve ever dealt with gate hinges for round pipe, you know the main challenge is getting a secure, long-lasting fit on a curved surface.

The good news? You’ve got several proven installation methods, each with its own advantages.



But First, What is a Pipe Gate Hinge

Pipe gate hinges—also known as round post gate hinges—are hardware designed specifically for mounting gates onto circular posts. Unlike flat-surface hinges, they’re built to accommodate the curve of a pipe, ensuring a secure fit and smooth operation. They’re common in chain link fences, farm gates, and industrial enclosures where round posts are standard.

The right hinge design is critical for strength, alignment, and long-term durability. However, to achieve that desire, do you know how to install round pipe gate hinges properly?

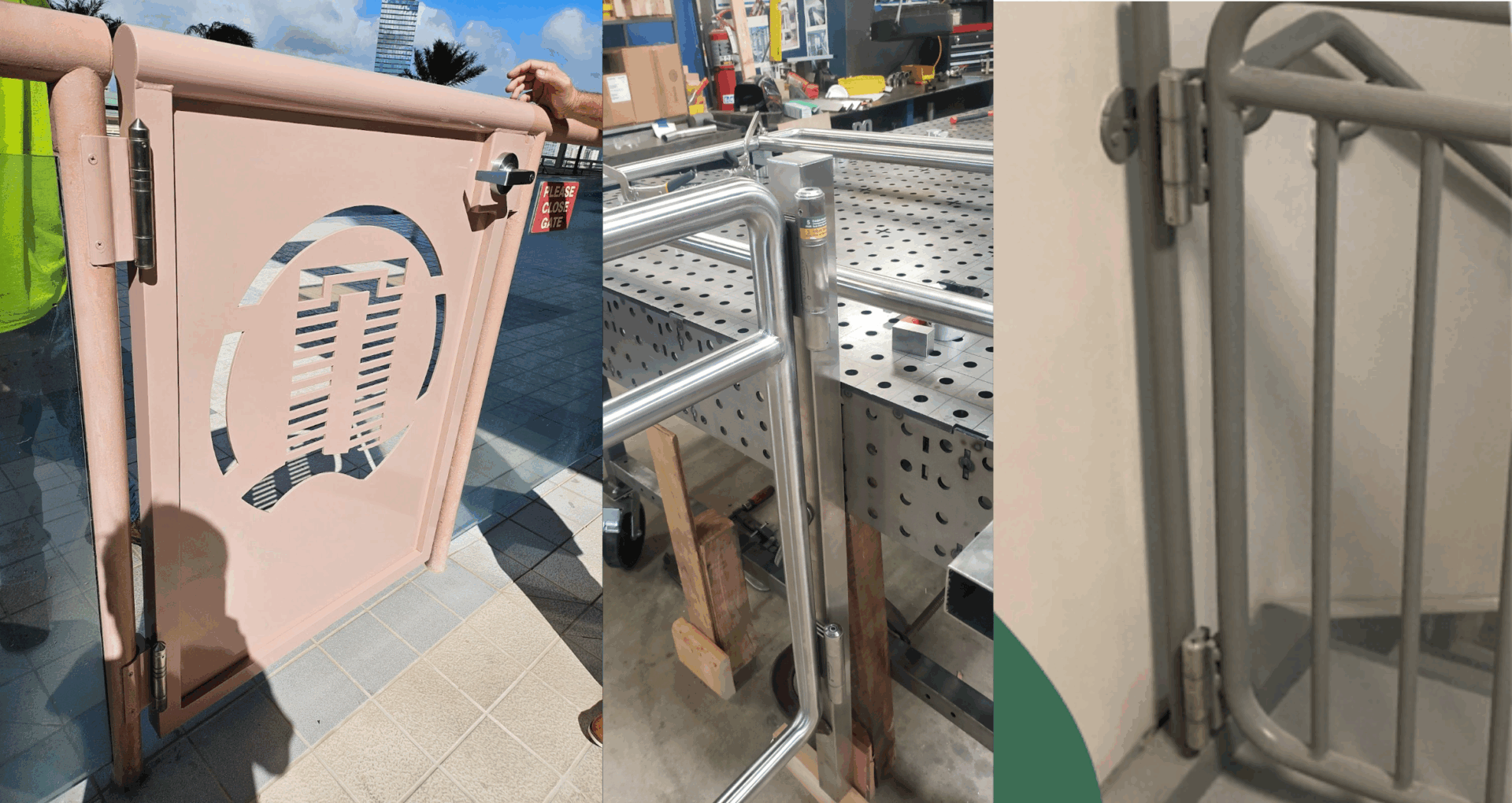

How to Install Round Pipe Gate Hinges

1. Weld a Flat Plate to the Round Post

For heavy-duty applications, welding a flat plate directly onto the round post creates a perfect mounting surface. This method is rock-solid—ideal for gates under constant use or carrying substantial weight. Once welded, the plate provides a flat, stable base for accurate hinge alignment. It’s the go-to choice when strength and longevity are top priorities. For more details, please check the round post gate hinges application here.

Best for: High-traffic commercial gates, pool gates, or security barriers.

Tip: Ensure the plate is thick enough to handle hinge loads and welded along its full perimeter for maximum strength.



2. Use a Round Post Mounting Bracket

If welding isn’t possible, a round post bracket is the next best choice. This bracket wraps around the pipe and gives you a solid, pre-made flat area to mount your hinges for round pipe. It’s clean, fast to install, and avoids any permanent modification to the post—perfect for retrofits or leased properties.

Best for: Projects where welding is not an option or where a removable setup is needed.

Tip: Choose a bracket size that matches your pipe diameter to avoid movement under load.



3. Custom-Fit Plates and Bolt-On Installation

When neither welding nor a pre-made bracket works, fabricating a custom plate and bolting it to the post is a flexible solution. The plate can be slightly contoured to the pipe’s curve, ensuring better contact and stability. This hybrid method is strong enough for medium-duty pipe gate hinges and keeps installation adaptable.

Best for: Indoor safety gates, medium-load gates, chain link gate hinges, and custom metalwork projects.

Tip: Use high-grade fasteners and backing plates inside the post if possible for extra holding strength.

Bridging the Square to Round Pipe Design

While heavy duty gate hinges are often associated with square post installations, the same performance can be achieved on round posts with the right approach. As our case studies show, Waterson heavy-duty pipe gate hinges adapt seamlessly to both shapes with these outstanding features:

• Stainless Steel: Made from premium 304 & 316 stainless steel for corrosion resistance and long-lasting durability in both indoor and outdoor environments.
• Fire Rated: Certified for up to 3-hour UL-listed applications for added safety compliance.
• Tension Adjustment: Equipped with a numerical panel for accurate spring tension control, allowing fine-tuned closing speed and force.
• Hold Open (Optional): Combines spring hinge and door closer functions with an optional hold-open feature available upon request.
• Cycle Durability: Tested to ANSI/BHMA A156.17 Grade 1; 1.000.000 cycles for proven performance under heavy use.
• Longevity Warranty: Demonstrated resistance to wear after over three years of continuous use in harsh seaside environments.
• ADA Compliant: Meets ADA standards for opening force (< 5 lb), closing speed (≥ 5 seconds), and vertical clearance.
• Heavy Duty: Supports gates up to 6-8 ft or more and 260 lb above per 3-4 hinge set, ensuring stability for substantial loads.
• PVD Finish: Available in finishes such as Satin Stainless Steel, Flat Black, Satin Brass, and Dark Satin Bronze to match or enhance gate aesthetics.

Whether you’re working on a security gate, pool enclosure, or industrial barrier, the correct installation method ensures the same durability, alignment, and closing precision you expect from a square post setup—now available for round posts too. Check our Catalog here.

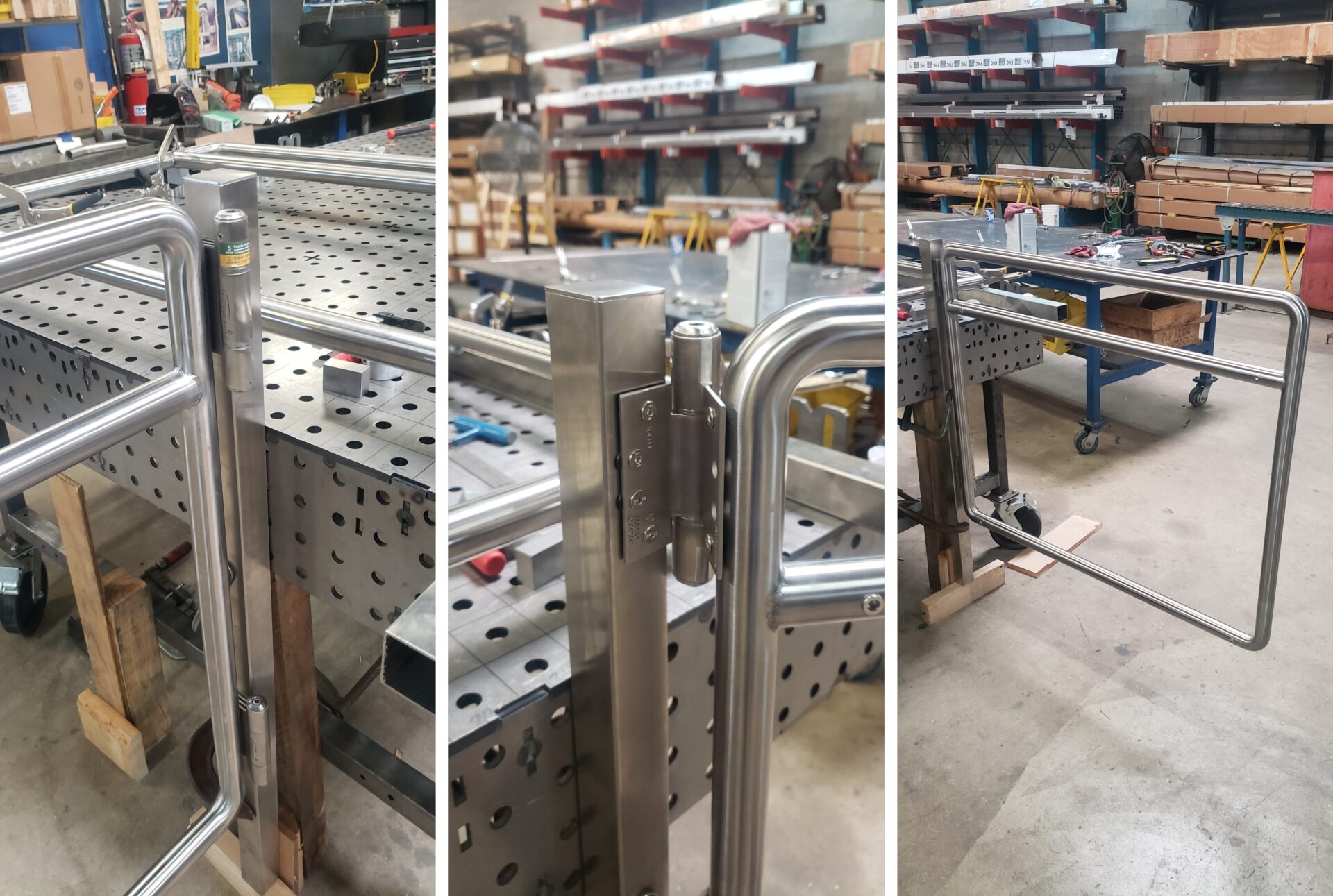

Waterson Heavy Duty Pipe Gate Hinges

Waterson heavy duty gate hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Information

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
