Solving The ADA Door Handle Height Conundrum

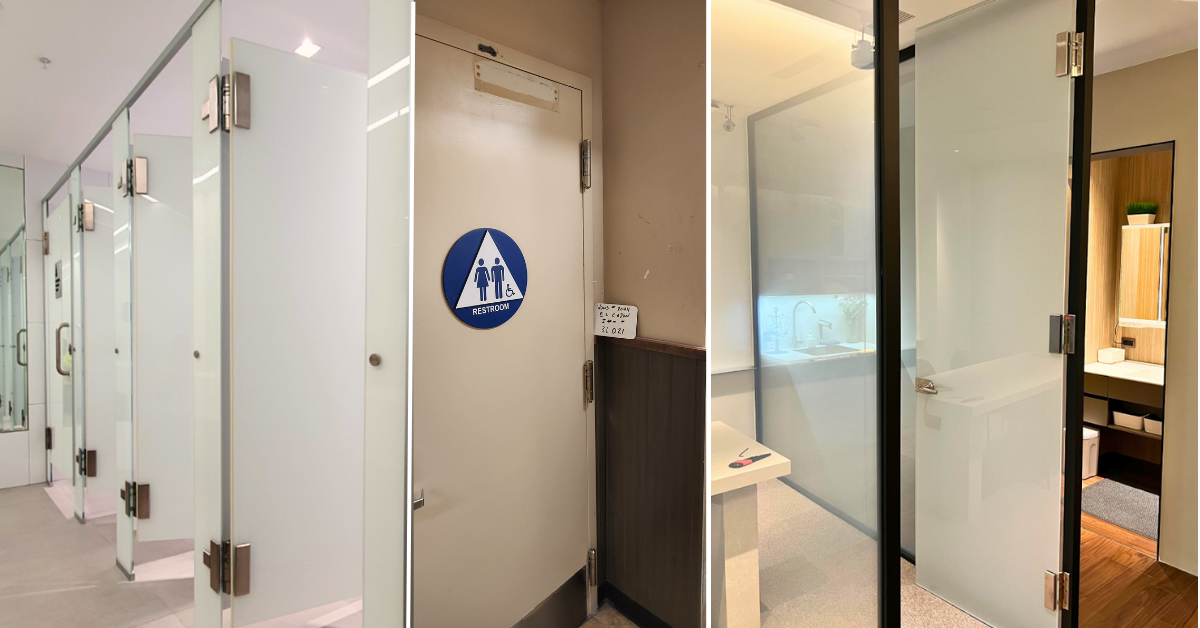

Commercial partitions — restrooms, shower rooms, and fitting rooms — are easy to overlook. Most of us never think twice about how they open or close. But for people with disabilities, every detail matters — from handle placement to closing speed — because accessibility is built on consistency.

ADA Door Handle Height Requirements

The Americans with Disabilities Act (ADA) provides a number of door and gate hardware requirements. With regards to ADA door handles, the code states that they should:

1. Allow one-hand operation.
2. Not require tight grasping, pinching, or twisting of the wrist.
3. Hand-activated door hardware shall be centered between 30-44 inches above the floor.
4. The door handle height should be tall enough to accommodate a through-hand movement.
5. Door pulls are required on both sides near the latch.

Source: U.S. Access Board, Compartment Doors

In practice, this means handle positioning and alignment are critical. Yet many manufacturers don’t plan for back-to-back handles during production. Installers often end up drilling oversized holes to align bolts, leaving visible gaps and weakening the door’s surface.

That’s why precise hardware placement is not just a matter of looks — it directly affects accessibility, durability, and long-term use.

Looking ahead for more ADA details? Go further with ADA Door Closer Requirements here.

What Are the Other ADA Door Requirements

The ADA required the accessible for everyone, including people with disabilities. Here are some key requirements for shower room doors and hinges:

1. ADA Door Opening Angle

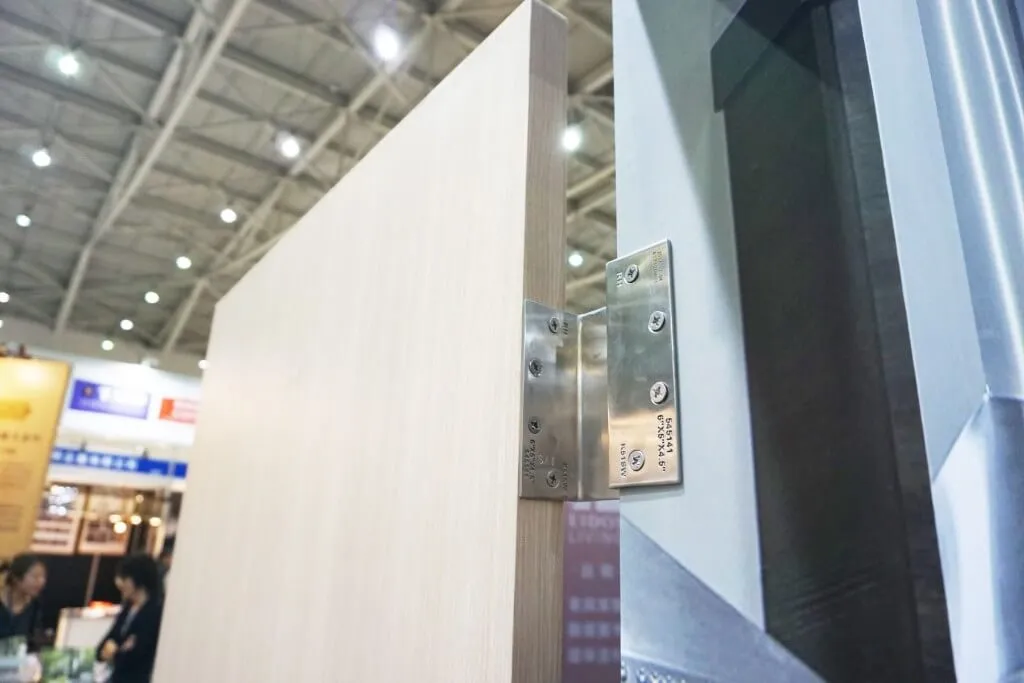

• Minimum angle: Doors must open to at least 90 degrees to provide the required minimum 32″ clear opening. Offset or swing‑clear hinges can help achieve this width.
• Certain butt hinges or surface-mounted closers the clear opening may fail to provide the effective opening width. Offset or swing-clear hinges may be required to meet this.

2. Transfer‑type Shower Entries

• Special ADA shower compartments (with built-in seats) require a 36″ clear inside dimension and 36″ wide entry.

3. Clear Width Requirement

• Doors must provide at least 32 inches of clear opening when measured between the face of the door and the opposite stop
• This is especially relevant for in-swinging doors or doors with thick hinges or closers that may reduce usable space.

5. Opening Force

• Interior hinged doors must require no more than 5 pounds of force to open (except for fire doors).
• Some hinge types or poorly adjusted closers can cause excessive resistance and violate this rule.

6. Door Closing Speed

• It must take at least 5 seconds to move from a 90° open position to 12° before closing completely. This allows time for people with mobility limitations to pass through safely.

From the ADA key requirements stated, choosing the shower room door hardware turns out to be more complicated. But, Waterson spring loaded hinges are the solution for ADA shower room doors with many advanced features.

Check this article for more detailed understanding about the ADA door requirements.

When ADA Door Hinges Do More Than Just Meet Code

Waterson can provide back-to-back ADA door handles to solve these installation and aesthetic problems. Our door closer hinges also satisfy Advisory 404.2.9 Door and Gate Opening Force with these three variables:

1. Opening force — to keep below 5 lbs.
2. Closing speed — to achieve ≥ 5 sec movement from 90° to 12°.
3. Latch engagement — to ensure closure without slam.



In addition, Waterson ADA spring door hinges also integrate with these outstanding features:

• Stainless Steel: 304 and 316 stainless steel for corrosion resistant marine/exterior use.
• ANSI/BHMA A156.1: 1,000,000 cycles tested. Built to handle oversized doors beyond 260 lbs.
• Self Closing: Prevents sudden impact, protecting both frame and mirror.
• 90° Hold Open: Essential for usability, delivered reliably.
• Concealed Design: Panels inside, mirror outside—the hinges remain invisible.
• Custom Finish: Polished Satin/Black/Brass/Bronze tailored to the interior scheme.
• Adjustable Tension: Fine-tuned for smooth swing and user comfort.
• Installation: No bulky arms or brackets to disrupt the design.
• Fire & Code Ready: UL-listed for 3-hr fire doors; NFPA 80 standard.
• Warranty: Indoor is from 5-10 years; Outdoor is from 3-10 years

Waterson Heavy Duty ADA Door Hinges

Waterson spring loaded ADA door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
