Aluminum Closer Hinges

Waterson Self-Closing Aluminum hinges are ideal for concealed, interior and half doors of all kinds, as well as providing a suitable closing force for wood and lightweight metal doors under 75 kg (160 lbs).  They are very easy to install, adjust and maintain. Made from extrusion aluminum, this hinge looks great in any indoor environment and is a great cost-saving solution.

, Aluminum Closer Hinges
  • Non-Fire Rated
  • Soft Close Spring Hinge
  • Residential Applications
  • Good to the Eye
  • Easy Installation
  • UL Certified Mechanical Structure
  • Overcome Air Pressure Problem in Confined Space
  • Replacement for the Traditional Door Closer

CATALOG

SPECIFICATION

TEMPLATE

CASE STUDY

With Waterson Hinge, Life is Even Easier!

, Aluminum Closer Hinges
  • Keep kitchen order away
  • Hygiene controlled
, Aluminum Closer Hinges
  • Cover up all the mess
  • Looks neat
, Aluminum Closer Hinges
  • Guard home security
  • Privacy kept
, Aluminum Closer Hinges
  • Property guarded
  • Expensive belongings guarded

W41K- Compatible With Your Current Doors; Seamless Replacement For Your Hinge!

No need to consider the thickness of hinge leaves or gap sizes of door and frames.
Simply install and enjoy the self-closing convenience right away.

, Aluminum Closer Hinges
, Aluminum Closer Hinges

Before

, Aluminum Closer Hinges
, Aluminum Closer Hinges

After

W41M – US Standard

Aluminum Mortise Hinge

ModelFull Name
Door Thickness
 W41M-400
4*4” (H*W)
Self-closing-
Aluminum Mortise hinge-4*4”
40~45 mm
W41M-450
4.5*4.5” (H*W)
Self-closing-
Aluminum Mortise hinge-4.5*4.5”
45~50 mm
, Aluminum Closer Hinges

W41K – Other Countries

Aluminum Interfold Hinge

ModelFull Name
Door Thickness
W41KSelf-closing-
Aluminum Interfold hinge-
Non-mortise
40~50 mm
Retrofit
 W41KSelf-closing-
Aluminum Interfold hinge-
Mortise on frame
40~50 mm
, Aluminum Closer Hinges

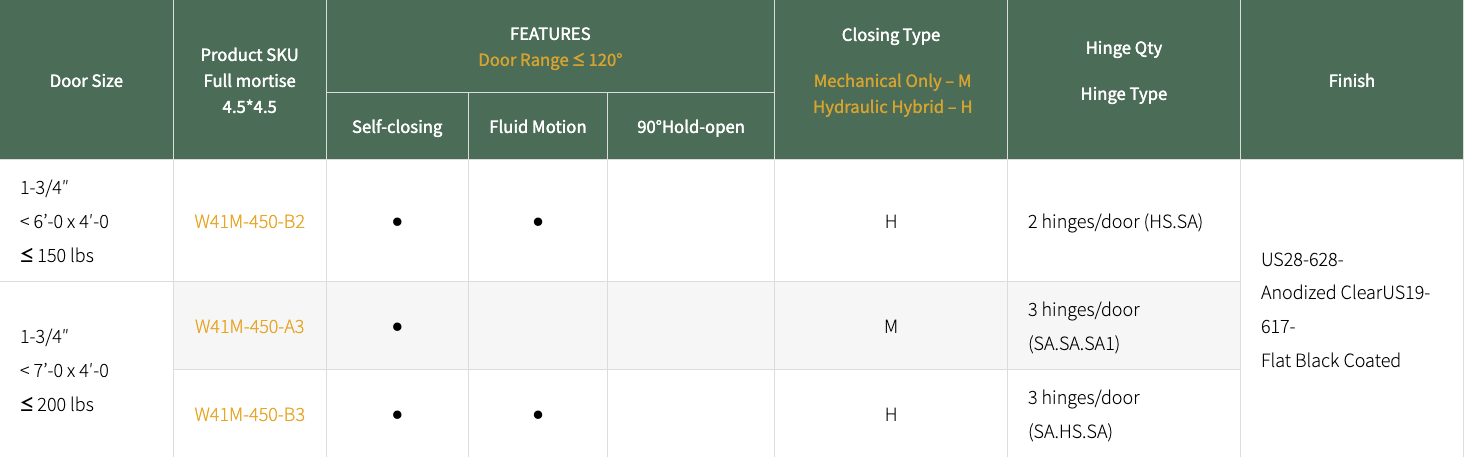

Configuration

W41M – US STANDARD

Door InfoModel#Self-closingFluid Motion

– door open ≤ 120°
– temperature > 32°F

Hold-openClosing Tyoe

– Mechanical(M)
– Hydraulic Hybrid(H)

Qty of HingeFinish
1-3/8″
W41M-450-A2M2 hinges/door (SA.SA1)US28-628-
Anodized ClearUS19-617-
Flat Black Coated
W41M-450-B2H2 hinges/door (DS.HA)
W41M-450-D2H2 hinges/door (SB.HS)
1-3/4″
W41M-450-A3M3 hinges/door (SA.SA.SA1)
W41M-450-B3H3 hinges/door (DS.HA.SA1)
W41M-450-C3M3 hinges/door (SB.SA.SA1)
W41M-450-D3H3 hinges/door (DS.HA.SB)

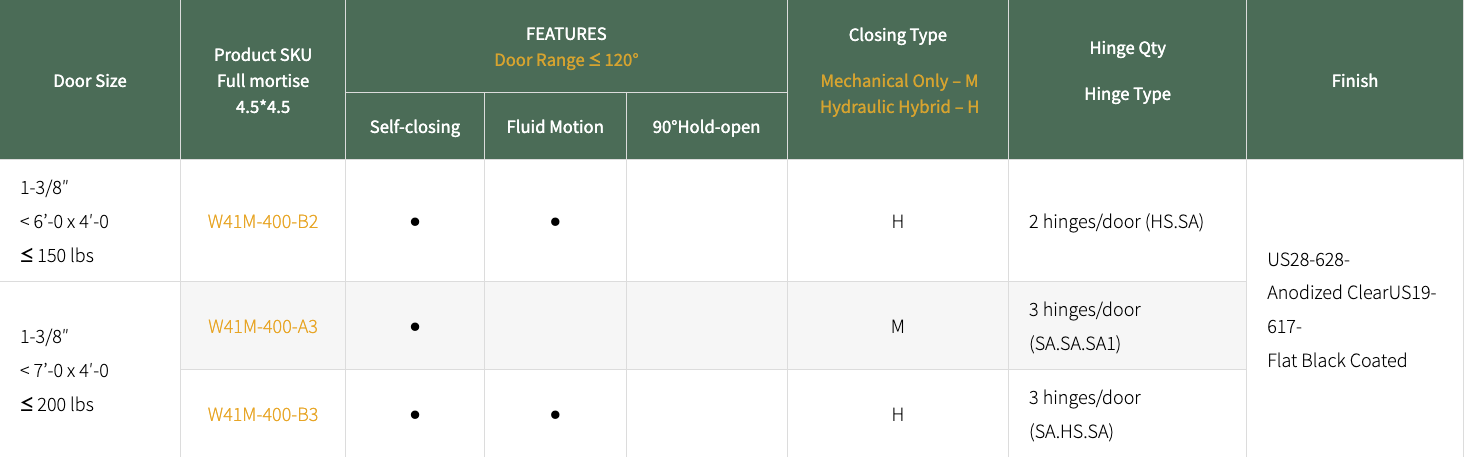

Door InfoModel#Self-closing

Fluid Motion

– door open ≤ 120°
– temperature > 32°F

Hold-open

Closing Tyoe

– Mechanical(M)
– Hydraulic Hybrid(H)

Qty of HingeFinish
1-3/8″
≤ 150 lbs
W41M-400-A2  M2 hinges/door (SA.SA1)US28-628-
Anodized ClearUS19-617-
Flat Black Coated
W41M-400-B2 H2 hinges/door (DS.HA)
W41M-400-D2H2 hinges/door (SB.HS)
1-3/8″
≤ 200 lbs
W41M-400-A3  M3 hinges/door (SA.SA.SA1)
W41M-400-B3 H3 hinges/door (DS.HA.SA1)
W41M-400-C3 M3 hinges/door (SB.SA.SA1)
W41M-400-D3H3 hinges/door (DS.HA.SB)

Quick Tips For Installing Interfold Hinge – W41K

Waterson Aluminum Flush Hinge is non-handed. No need for mortise and grooving. Lightening-fast installation.
After these 3 tips, you will have wonderful self-closing hereafter:

1. Major leaf for Frame, minor leaf for door
, Aluminum Closer Hinges
2. Use only Waterson screws
, Aluminum Closer Hinges
3. No mortise/grooving needed
, Aluminum Closer Hinges
