Hide Your Smoke with Self Closing Concealed Door Hinges

Project Description

“How do I get a lounge or VIP room door to close on its own, seal quietly against smoke and sound, and show no hardware at all?”

A cigar lounge, VIP room, or luxury suite needs a door that closes on its own, seals quietly against smoke and sound, and shows no hardware. Waterson builds the closer into the hinge, so the door self-closes and self-latches with nothing mounted overhead and no oil to leak.

Why most self closing concealed door hinges fail in a sealed, upscale room

A VIP cigar lounge needs to stay locked for more than luxury. Smoke seeping into shared space is a health hazard, and privacy, noise isolation, and smoke isolation are the baseline for a room like this. That calls for a self closing concealed door hinge that conceals its hardware and closes the door every time. However, standard commercial closers fall down on five points.

• The room fights the door. Lounge windows are sealed, so every closing pushes trapped air against higher outside pressure. A weak closer stalls and the door never latches.
• Hardware ruins the look. Upscale interiors demand minimal visual interference and a sleek, contemporary metallic finish. An overhead arm breaks the room.
• An open door defeats the lock. These rooms use an electromagnetic lock. If the door does not return fully closed on its own, the lock never engages and the space is not secure.
• Hydraulic closers leak. Traditional quiet closers rely on fluid that can leak, causing unstable closing speeds and unsightly stains on the door and nearby surfaces.
• Corrosion and squeak. Closers are prone to rust, which stops proper function, detracts from the interior, and introduces squeaks that cheapen the experience.

What if there is a self closing  stainless steel door hinge that can answer all five concerns, with no arm, no floor spring, and no oil to leak.

How to Hide Your Smoke with Waterson Self Closing Concealed Door Hinge

Equipped with a high-capacity spring and a patented hybrid mechanism, the Waterson closer hinge delivers quiet, concealed, self-closing performance in one component.self closing concealed door hinges​

• Robust closing power. A high-capacity spring drives the door shut against sealed-room air pressure, certified by UL 3-hour fire rating and ANSI A156.17 Grade 1.
• Smooth operation. Lubricant between the washers keeps the swing smooth and silent through the whole travel.
• Adjustable speed. Seven speed settings let the installer tune closing and latching precisely to the door and the room.
• Concealed, contemporary look. A metallic PVD finish gives minimal visual interference, including a gold or satin bronze look for high-end interiors.
• Self-closing and self-latching. The door returns to a locked, airtight state on its own, so the electromagnetic lock always engages without anyone touching it.
• Hybrid, no-leak mechanism. A patented system combines spring power with a hydraulic buffer to give stable closing speeds and eliminate oil leaks, with no periodic re-adjustment.
• Durability. Type 304 or 316 stainless steel with a special sealing technique resists rust, squeak, and environmental wear.

How Waterson Concealed Door Hinge Mechanism Works

Each Waterson set is built from two or three closer hinges, and each hinge carries two of five functions on opposite ends of the barrel: spring power, swing speed, latch speed, hydraulic buffer, and hold-open. Combining the six hinge types below produces a purely mechanical, hydraulic hybrid, mechanical plus hold-open, or hydraulic plus hold-open system.

For a quiet lounge door, the hydraulic hybrid configurations (using HA or HS) give the smoothest, most controlled soft-close. A purely mechanical set uses two SA and one SA1 hinge. Adjustment uses a visual numerical tension panel and 3mm and 5mm hex wrenches, so settings are precise and repeatable.

Product Range and Catalog

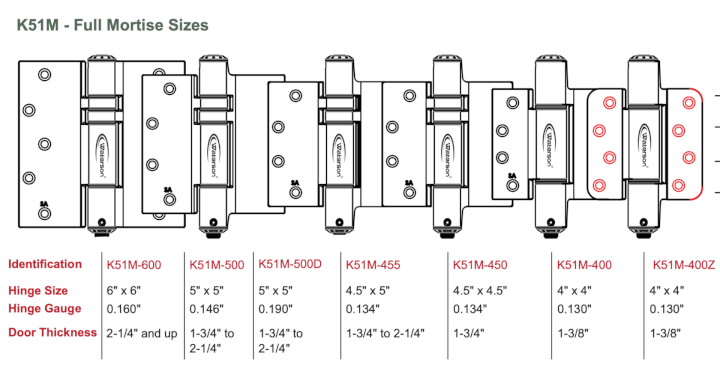

The commercial line is the K51M stainless steel series. A typical 7-foot door uses three active hinges. Match a door to a set below.

Each size comes in mechanical (A) or hydraulic hybrid (B) closing, with optional hold-open (C, D), in 2, 3, or 4 hinge sets for doors up to 330 lbs. Example: K51M-500-B3 is a hydraulic hybrid, 3-hinge set for a 5-inch door, the quiet soft-close choice for a lounge. Check Waterson Self Closing Concealed Door Hinges Catalog here.

How Waterson Door Hinges Compare to a Traditional Door Closer

Certifications and compliance

• UL Listed and 3-hour fire rated for use on fire-rated doors.
• ANSI/BHMA A156.17 Grade 1, the door closer performance standard.
• Compliant with ADA opening force (as low as 5 lbs) and door clearance.
• Non-handed and made from Type 304 or 316 stainless steel.
• ISO certified manufacturing, with SGS reporting and a UL certificate on file



Waterson Fire Rated Self Closing Concealed Door Hinges for Smoking Rooms

Waterson Fire Rated Door Hinges combine an overhead closer and hinge into one attractive component with optional hold-open and door stop features. These hinges are ideal for commercial openings, gates, and glass doors. The closer hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson closer hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being suitable for both interior and all-weather exterior openings. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Information

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
