Hydraulic Self Closing Hinges: How They Work & How to Choose

A self-closing door solves one problem and often creates another. Spring tension pulls the door shut, but without speed control it can swing back hard, slam the frame, pinch fingers and wear out hardware. Hydraulic self-closing hinges fix this by pairing spring closing force with hydraulic damping, so the door always closes fully, quietly and at a safe speed.

What Are Hydraulic Self Closing Hinges?

Hydraulic self-closing hinges are door hinges that do two jobs at once: they return the door to the closed position automatically, and they use oil resistance to control how fast it gets there. Because the hinges themselves do the work of a door closer, there is no arm or closer body mounted on the door head.

A hydraulic self-closing system depends on two functions working together:

• Closing force (spring): A torsion spring inside the hinge barrel pulls the door shut every time it is released.
• Hydraulic damping (oil): Sealed oil inside a hydraulic hinge resists the spring, slowing the door so it closes smoothly instead of slamming.

Spring force alone closes the door but cannot control speed. Hydraulic damping alone controls speed but cannot close the door. Only the combination gives you a true hydraulic self-closing door.

How a Waterson Hydraulic Self Closing Hinge Set Works

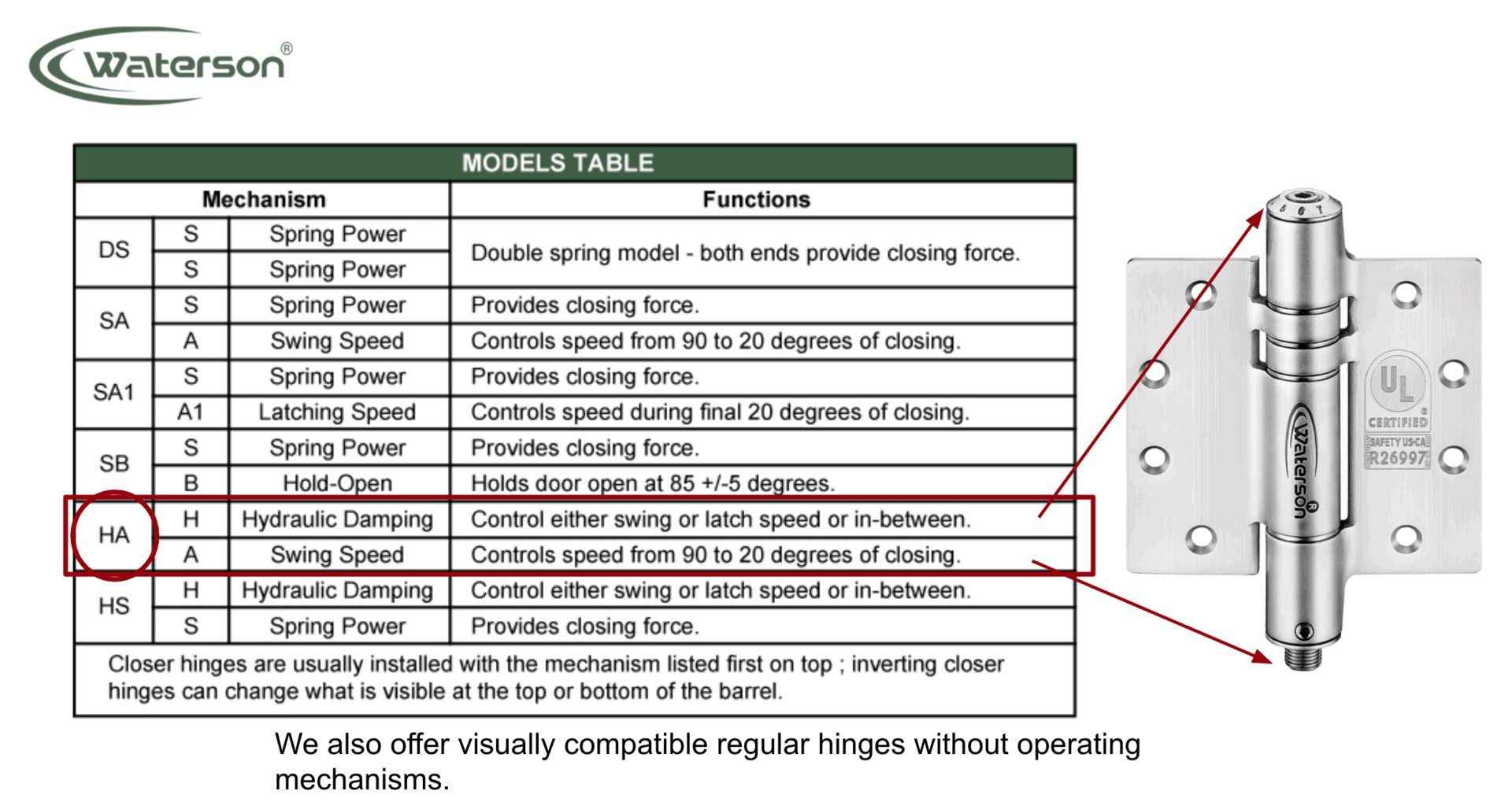

Instead of forcing every function into one oversized hinge, Waterson hinges work as a set, which splits the work across a matched set of 2 to 4 hinges. Each hinge in the set has one specific job, and together they replace a conventional hinge set plus an overhead closer. A Hydraulic Hybrid set typically combines:

• DS (Double closing force): The main power source that pulls the door shut.
• SA (Closing force + swing speed adjustment): Adds closing force and lets you fine-tune swing speed.

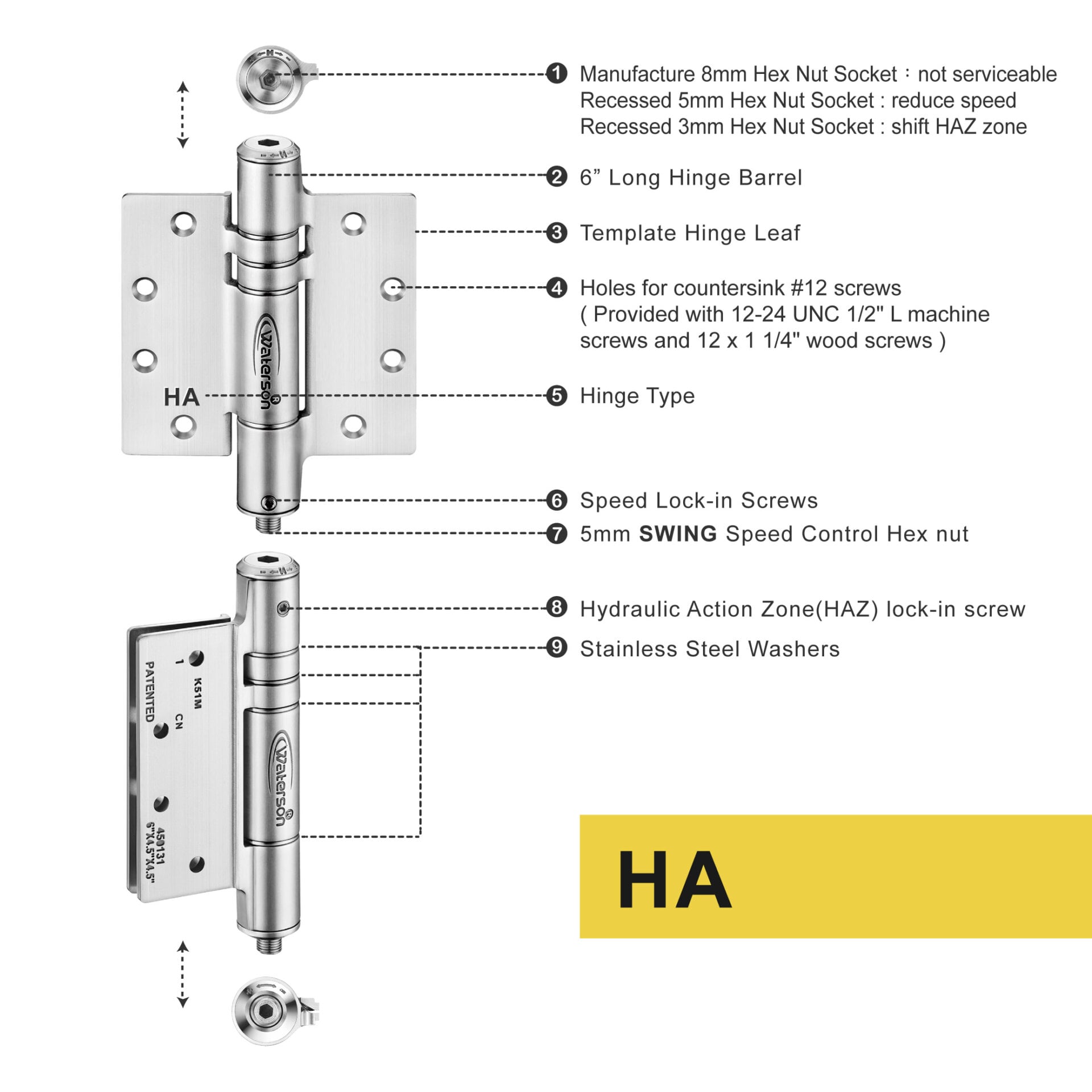

• HA (Hydraulic damping + swing speed adjustment): The soft close hydraulic hinge in the set, which uses oil damping to slow the door and prevent slamming.

For example, a standard 3-hinge hybrid set is DS + HA + SA: the spring hinges close the door, and the HA hinge controls the closing speed. Waterson’s catalog describes mechanical sets as heavy duty and hydraulic sets as a softer close, so the hybrid set is the right choice wherever a gentle, quiet close matters.

How to Choose the Right Hydraulic Self Closing Hinge Set

Waterson offers two hydraulic set types. Set B (Hydraulic Hybrid) is UL listed for fire-rated doors. Set D (Hydraulic + Hold Open) adds an SB hinge so the door can stay open, and is intended for non-fire-rated doors. Choose by door size and weight:

Then match the hinge size to your door thickness:

• 1-3/8″ or 1-3/4″ residential doors: K51M-400 (4″ x 4″)
• 1-3/4″ commercial doors: K51M-450 (4.5″ x 4.5″) or swing clear K51L-SWRH-450
• 1-3/4″ to 2-1/4″ doors: K51M-500D (5″ x 5″) or swing clear K51L-SWRH-545
• 2-1/4″ and thicker doors: K51M-600 (6″ x 6″)

Your order code combines the series, size and set. For example, K51M-450-B3 is a full mortise, 4.5″ x 4.5″, 3-hinge fire-rated Hydraulic Hybrid set for a 1-3/4″ commercial door up to 260 lbs. For doors beyond these specifications, contact Waterson directly.

Hydraulic Self-Closing Hinges vs Standard Hinges vs Overhead Closers

Standard hinges only carry the door, so they cannot close it on their own. To make a door self-closing, you either add an overhead closer or replace the standard hinges with hydraulic self-closing hinges. Here is how the three options compare:

A hydraulic self-closing hinge set gives you the clean look of standard hinges with the controlled close of an overhead closer, in one piece of hardware. Read the full hydraulic door closer vs spring hinge comparison here.

A hydraulic hybrid set gives you the clean look of a hinge-only door with the controlled close of a hydraulic closer. Read the full hydraulic door closer vs spring hinge comparison here.

Why Choose Waterson Hydraulic Self-Closing Hinges?

• Proven durability: Tested to ANSI/BHMA A156.17 Grade 1, passing 1,000,000 cycles.
• No oil leaks: Patented hydraulic designs are sealed and do not leak oil.
• Fire-rated: UL listed (R26997) for use on fire-rated doors, including commercial 3-hour fire doors. Follow NFPA 80 for the number of hinges required.
• ADA ready: Adjustable to meet ADA requirements, including the 5 lbs opening force limit.
• Non-handed: Works on both left-hand and right-hand doors.
• Fits standard templates: Mounts in standard hinge preparations for swinging doors and gates, so no extra machining is needed.
• Corrosion resistant: Type 304 stainless steel as standard, with 316 marine grade and a weather-resistant cap (MP) available for exterior and wet areas.
• Hold open and door stop options: Choose a Set D for hold open, and add a 90° (WP01) or 120° (WP02) barrel-mounted door stop.
• Five standard finishes: Satin stainless (US32D), flat black (US19), dark satin bronze (695), satin brass (US4), with custom finishes on request.

Where to Use Hydraulic Self-Closing Hinges

• Commercial and fire-rated doors: Offices, hotels, stairwells and corridors where doors must close and latch every time, without the noise of a slam. Use a Set B.
• House-to-garage doors: Many local codes require a self-closing fire-rated door between the garage and living space. A hydraulic hybrid set closes it reliably while protecting fingers and frames.
• Accessible entrances: Swing clear K51L hinges increase the clear width of the doorway, improving accessibility and allowing wider equipment to pass.

Go further with a case study of Waterson hydraulic soft closing hinges here.

How to Install and Adjust Hydraulic Self-Closing Hinges

Before you start, prepare these tools:

• 3mm and 5mm hex wrenches (included in the Waterson hinge set)
• Spreader bar (included with the DS hinge)
• Phillips screwdriver

Install each hinge in the position shown on your set’s instruction sheet, then adjust in two steps: set the closing force on the spring hinges first, so the door closes and latches fully, then adjust the HA hinge to fine-tune the closing speed. If you add door stops, note that a 2-hinge set requires one door stop, while a 3 or 4-hinge set requires two.

Read the full Waterson Adjustment Instructions for step-by-step guidance.

Frequently Asked Questions about Hydraulic Self-Closing Hinges

Request For Quote

Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
