Fire Rated Door Hinges for Hotels and Commercial Openings

Project Description

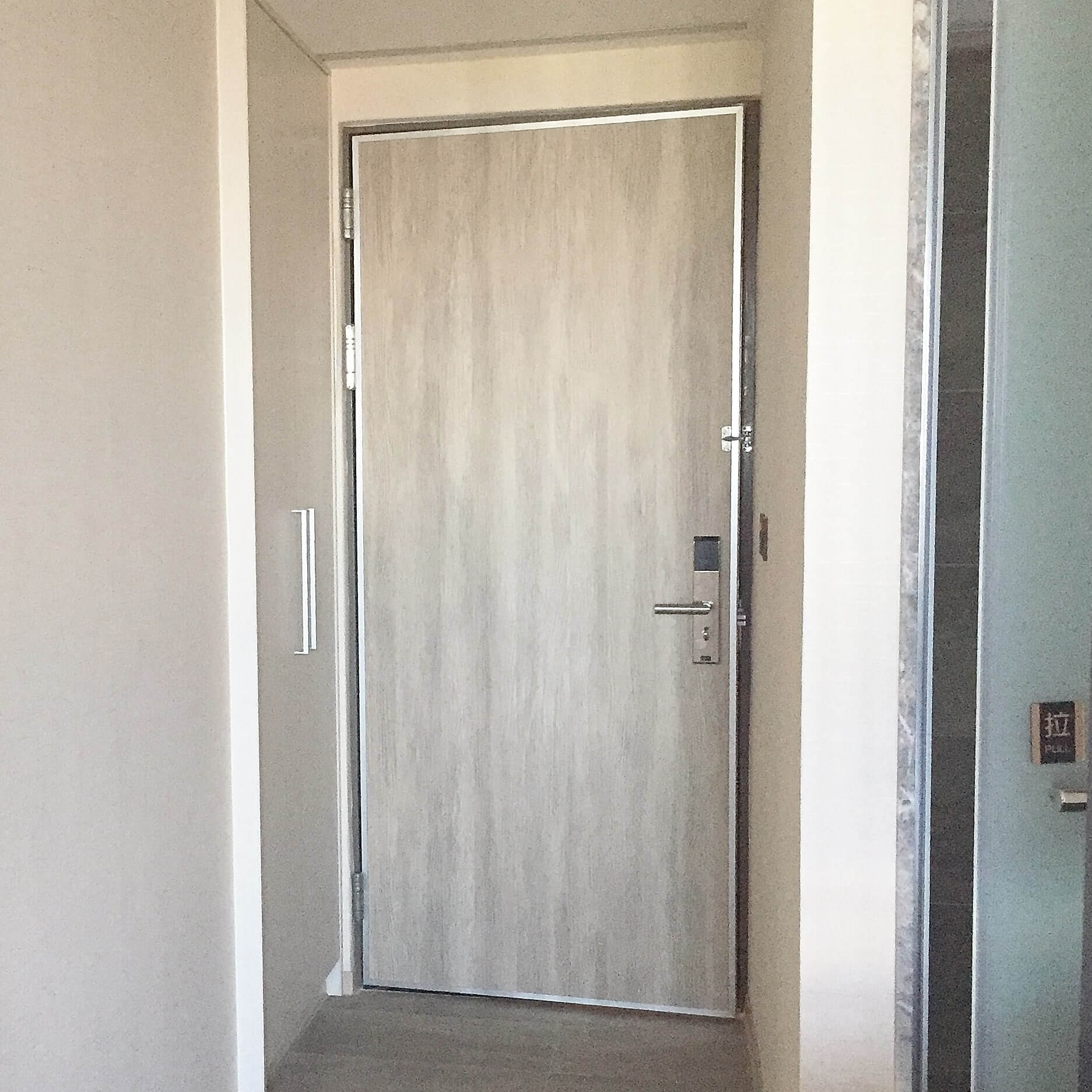

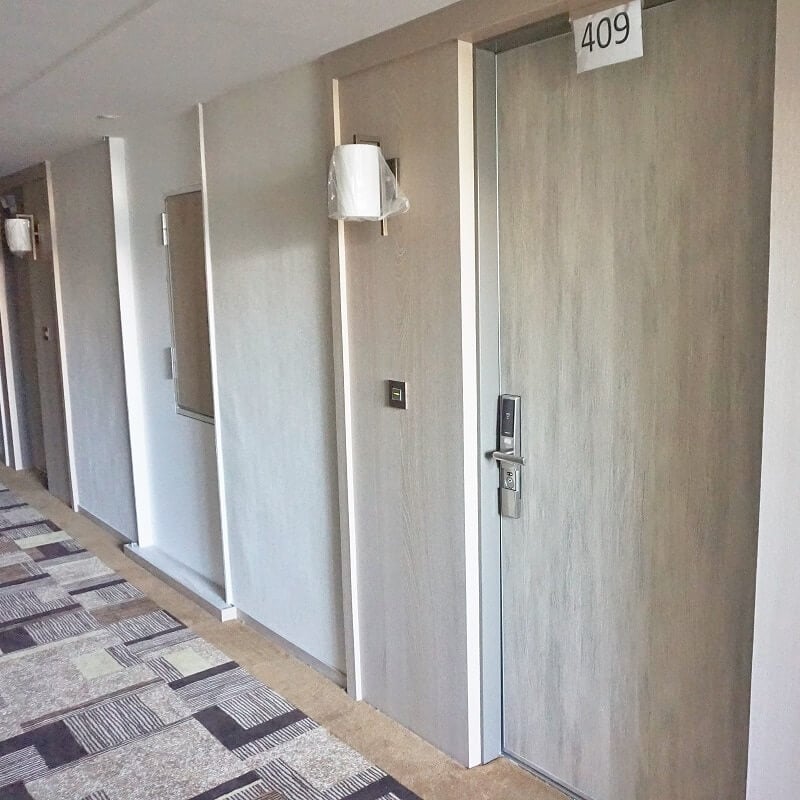

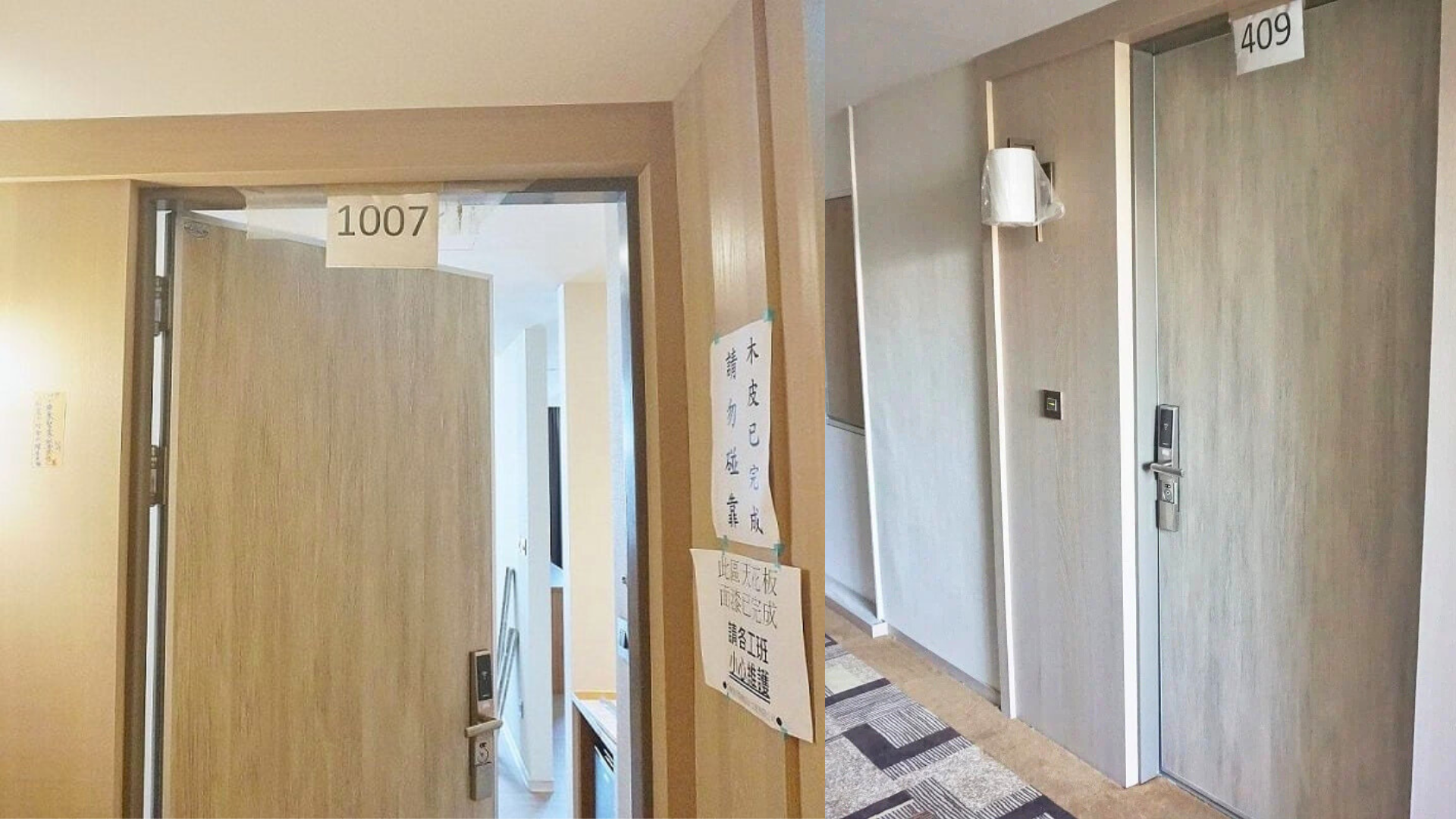

Every hotel opening has to do three jobs at once: close reliably for fire safety, stay quiet for guest comfort, and look clean enough to match the interior design. A traditional overhead closer or a floor spring forces you to trade one of those away. Waterson replaces the whole overhead closer with a self-closing hinge that carries the closing force inside the knuckle, so a fire rated hotel door closes on its own with nothing mounted above it.

Why Hotels Move Away From Overhead Closers and Floor Springs

An overhead door closer works, but the arm and body sit on top of the door and break the clean look designers want. A floor spring hides the mechanism, but drilling the floor for every single room is slow and expensive across a whole property. On top of that, hotel doors are weather-stripped for sound and smoke sealing, and those strips (plus carpet drag at the threshold) add resistance the closer has to overcome. If the closing force is not strong enough, the door does not latch, and a fire rated door that does not latch is not doing its job.

Waterson’s self-closing hinge solves all of it with one component. The closing force is built into the hinge, it installs in the standard hinge mortise with no floor drilling and no overhead hardware, and the spring tension is adjustable so it can push through the resistance from strips and carpet while still meeting ADA opening force.



The 7 Features That Matter for Hotel Doors

Waterson closer hinges are built around seven engineered features. Here is what each one means for a hotel or commercial project.

Visual Precision

A patented numerical panel on the hinge lets the installer dial in an exact closing force by number. Because tension from multiple hinges is cumulative, you can tune a heavy weather-stripped door to close firmly without guesswork, and re-tune it later if the door behavior changes.

Speed Control

Three separate speed zones let you slow the door through the swing and prevent slamming. For a hotel corridor at night, that means doors that latch securely without the bang that wakes guests in the next room.

Low Force Opening

Doors open with as little as 5 lbs of force regardless of weight. That keeps openings ADA-friendly and comfortable for elderly guests and children, where a conventional closer often feels heavy.

Weather Resistant

The hinge is stainless steel, so it holds up around pool decks, spa areas, seaside resorts, and other humid or corrosive environments where a closer arm would rust.

Hold Open

The hinge can hold a door open at 90 degrees, then self-close once pushed past that point. Useful for housekeeping and move-in, though note this feature is not used on fire-rated openings, where the door must always self-close.

Door Stop

A discreet built-in stop can catch the door at a set angle so the handle does not hit an adjacent wall or door. It removes the need for ugly wall-mounted or floor stops in guest rooms.

Heavy Duty

The hinges are investment-cast and cycle-tested to one million cycles, so they hold consistent closing performance on high-traffic doors over years of use.

Waterson Hinges Product Range and Catalog

Waterson’s commercial fire rated line is the K51M stainless steel series. A typical 7-foot hotel door uses three active hinges to form the closing system. Sizes and specs below.

K51M Specification

Configuration Options

Each size comes in Mechanical (M) or Hydraulic Hybrid (H) closing, with or without 90 degree hold-open, in 2, 3, or 4 hinge sets depending on door size and weight (up to 330 lbs). For example, on a 4″ x 4″ door:

• K51M-400-A3 — self-closing, mechanical, 3 hinges/door
• K51M-400-B3 — self-closing plus fluid motion (hydraulic hybrid), 3 hinges/door
• K51M-400-C3 — self-closing plus 90 degree hold-open, mechanical, 3 hinges/door
• K51M-400-D3 — self-closing, fluid motion and hold-open, 3 hinges/door

Standard finishes: Satin Stainless Steel (US32D-630) and Flat Black (US19-631) are in stock. Dark Satin Bronze (US10B-695), Satin Brass (US4-731), Satin Bronze (US10), White, and custom finishes are available on special order. Corner options: square, 1/4R radius, 5/8R radius.

How to Read a Waterson Model Number

Every K51 part number is built from a few codes, so a specifier can read the exact configuration off the label:

• Material: K51 = Type 304 stainless steel (standard)
• Size: 400 = 4″ x 4″, 450 = 4.5″ x 4.5″, 455 = 4.5″ x 5″, 500 / 500D = 5″ x 5″, 545 = 5″ x 4.5″, 600 = 6″ x 6″
• Style: M = Full Mortise (non-handed), MP = Full Mortise with weather-resistant cap, L-SWRH = Swing Clear (reversible)
• Function model: A = purely mechanical, B = hydraulic hybrid, C = mechanical plus hold-open, D = hydraulic plus hold-open
• Hinges per set: 2, 3, or 4

Inside a set, each hinge does a distinct job: DS (double closing force), SA (closing force plus swing speed), SA1 (closing force plus latch speed), SB (closing force plus hold-open), HA (hydraulic damping plus swing speed), HS (hydraulic damping plus closing force).

Options: WP01 (90 degree door stop), WP02 (120 degree door stop), 316 (marine grade stainless for coastal and pool environments), 14R and 58R (radius corners).

For a seaside resort or pool-deck opening, specify the MP weather-resistant cap or 316 marine grade so the hinge holds up in salt and humidity where a conventional closer arm would corrode.

How It Compares to a Traditional Door Closer

Certifications and Compliance

Waterson closer hinges are made from Type 304 stainless steel and are:

• UL Listed and 3-hour fire rated for use on fire-rated doors. Follow NFPA 80 for the number of hinges required on a fire door.
• Conform to ANSI/BHMA A156.7 (the standard for template hinge dimensions)
• Compliant with ADA and ICC A117.1 for opening force (as low as 5 lbs) and door clearance
• Non-handed, so one part fits left- or right-hand openings and simplifies ordering
• ISO certified manufacturing, with SGS test reporting and a UL certificate on file

Every door needs a door stop where used: a two-hinge set requires one door stop, and a three or four-hinge set requires two. Regular door operation covers 0 to 120 degrees.

Case Study: Hard Rock Hotel & Casino, Las Vegas

Hard Rock Las Vegas is a landmark rebuild of the former Mirage site on the Strip, a 42-story, 660-foot guitar-shaped tower with 675 rooms and suites, opening Q4 2027. Across 700 doors, the team needed reliable, code-compliant self-closing: a 4-hinge-per-door setup, a built-in 90-degree door stop, fire rating compliance, and a satin bronze finish, all vetted through sample and mock-up review.

After testing, the specification team selected Waterson’s K51M-450-A4 in US10 satin bronze with the WP01 90-degree door stop. The all-in-one design removes overhead closers, keeps the look clean, and stands up to a high-traffic hospitality environment, making it the natural fit for a 700-door rollout at this scale.

Waterson Commercial Fire Rated Door Hinges for Hotels

Waterson Fire Rated Self Closing Door Hinges combine an overhead closer and hinge into one attractive component with optional hold-open and door-stop features. Waterson hinges are ideal for commercial openings, gates, and glass doors. These closer hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson closer hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being suitable for both interior and all-weather exterior openings. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.
