8ft Interior Door: Meeting Fire Safety with Self Closing Hinges

Spec writers are frequently challenged to source fire-rated, self-closing door hardware that fits their projects. To help, NFPA 80 provides Table 6.4.3.1, which lists the most common applications of hinges, spring hinges, and pivots. It is a useful guide for self-closing hinges up to 7 ft. For an 8 ft interior door, however, the standard directs the spec writer to consult the hardware manufacturer directly. That gap is exactly where many tall-door projects stall.

Why an 8ft Door Is Different

An 8 ft (96 in) door carries more leaf weight over a longer vertical span, so hinge quantity, size, and placement all matter more than on a standard 7 ft opening. A few principles apply:

• Hinge count: Four hinges are the accepted standard for an 8 ft door, following the general rule of one hinge for every 30 in of height. NFPA 80 reinforces this for fire-rated assemblies, calling for four hinges on doors in the 8 to 10 ft range. A fifth hinge may be added for exceptionally heavy or wide leaves.
• Hinge size: 4 in or 4.5 in hinges provide the structural leverage a tall door needs. A 3.5 in residential hinge lacks the width to control an 8 ft span.
• Load distribution: Spacing the four hinges correctly keeps the leaf from sagging or warping over time. On a fire door this is critical, because edge clearances must stay within NFPA 80 limits.

For a fire-rated 8 ft door, none of this is optional. If the leaf sags and the gap opens beyond code, the assembly no longer contains smoke and fire the way it was rated to.

How Waterson Qualifies Its Hinges for 8ft Doors

At Waterson, we test our heavy-duty closer hinges specifically on an 8 ft interior door. Our test door is fitted with four heavy-duty self-closing hinges, matching the four-hinge requirement, and is evaluated against ANSI/BHMA A156.17 for minimum closing force, cycle life, and vertical and lateral wear. We work directly with UL to keep our testing process aligned with the standard. The result is straightforward: Waterson self-closing hinges hold performance well beyond one million cycles, so they remain a reliable, durable, and effective fire-rated, self-closing solution for 8 ft interior doors.

Certifications and Compliance

• ADA Compliant: opening force under 5 lbs, closing speed over 5 seconds
• UL Listed: meets NFPA 80 3-hour fire-rated code
• UL Tested: 4.5 in hinge tested for fire-rated doors up to 8 ft
• ANSI/BHMA A156.17: Grade One, one million cycle test
• ANSI/BHMA A156.7: standard hinge template

Capacity for Tall Doors

The K51M-450 (4.5 in x 4.5 in) full-mortise closer hinge, supplied as a four-hinge set, supports interior doors up to 8 ft tall and 4 ft wide, weighing up to 330 lbs, while holding a 3-hour fire rating. Because the closer is built into the hinge, there is no overhead arm adding torque to a door that is already tall and heavy. The result is less torsion on the leaf and a cleaner, unobtrusive look.

Project Details

• Block 216 Ritz Carlton, Portland, USA
• Quantity: 132 doors (8 ft)
• Waterson solution: K51M-450-A4, Polished Stainless Steel (4.5 in x 4.5 in, four-hinge mechanical set)
• Distributor: S & S Hardware Co., Inc., El Segundo, CA, USA
• Awarded: February 2023
• Application note: To satisfy a code exception, the project removed the surface-mounted closers and specified Waterson closer hinges in their place, consolidating the overhead closer and the hinge into a single component.

Frequently Asked Questions

How many hinges does an 8 ft door need?
Four. NFPA 80 calls for four hinges on fire-rated doors in the 8 to 10 ft range, and four is the accepted standard for tall doors in general. A fifth can be added for a very heavy or wide leaf.

Is the K51M-450 rated for fire doors?
Yes. It is UL listed for 3-hour fire-rated doors and conforms to ANSI/BHMA A156.17 Grade One, tested to one million cycles.

Does it meet ADA?
Yes. Opening force is adjustable to under 5 lbs and closing speed to over 5 seconds, satisfying ADA requirements.

Can it handle a heavy solid-wood 8 ft door?
The 4.5 in x 4.5 in set supports doors up to 8 ft x 4 ft and up to 330 lbs. For anything beyond that, contact Waterson directly.

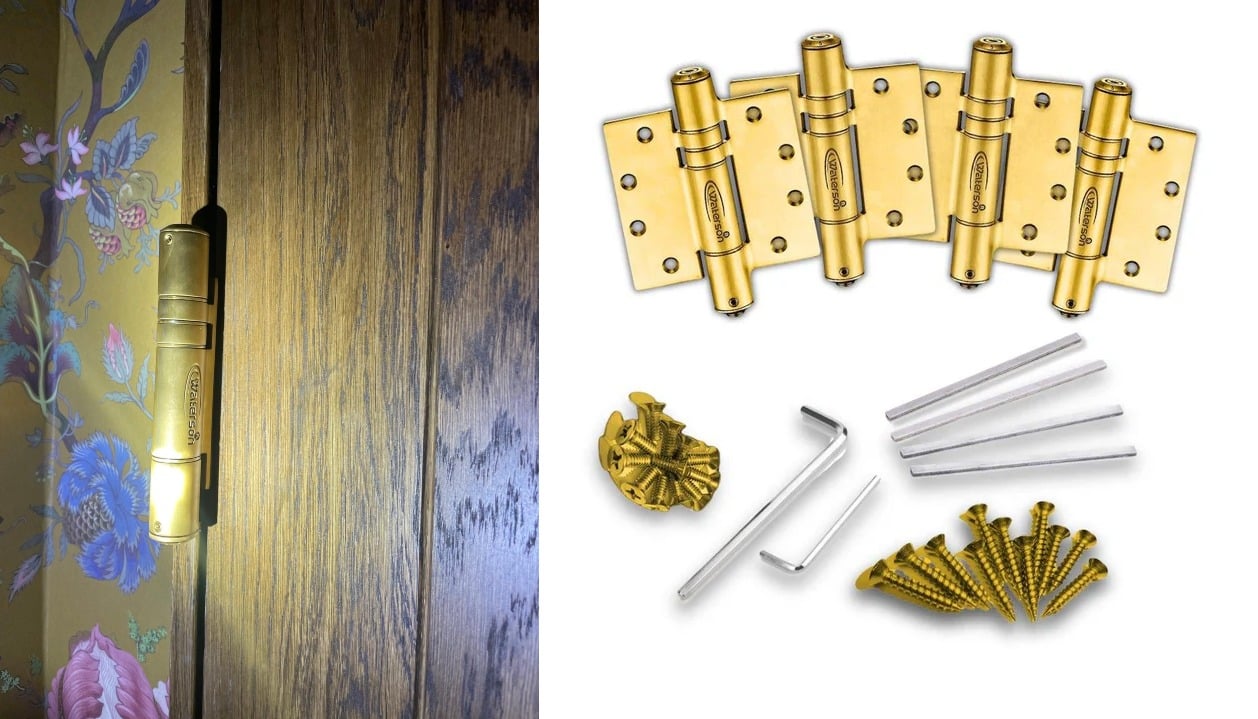

Waterson Fire Rated Self Closing 8ft Door Hinges

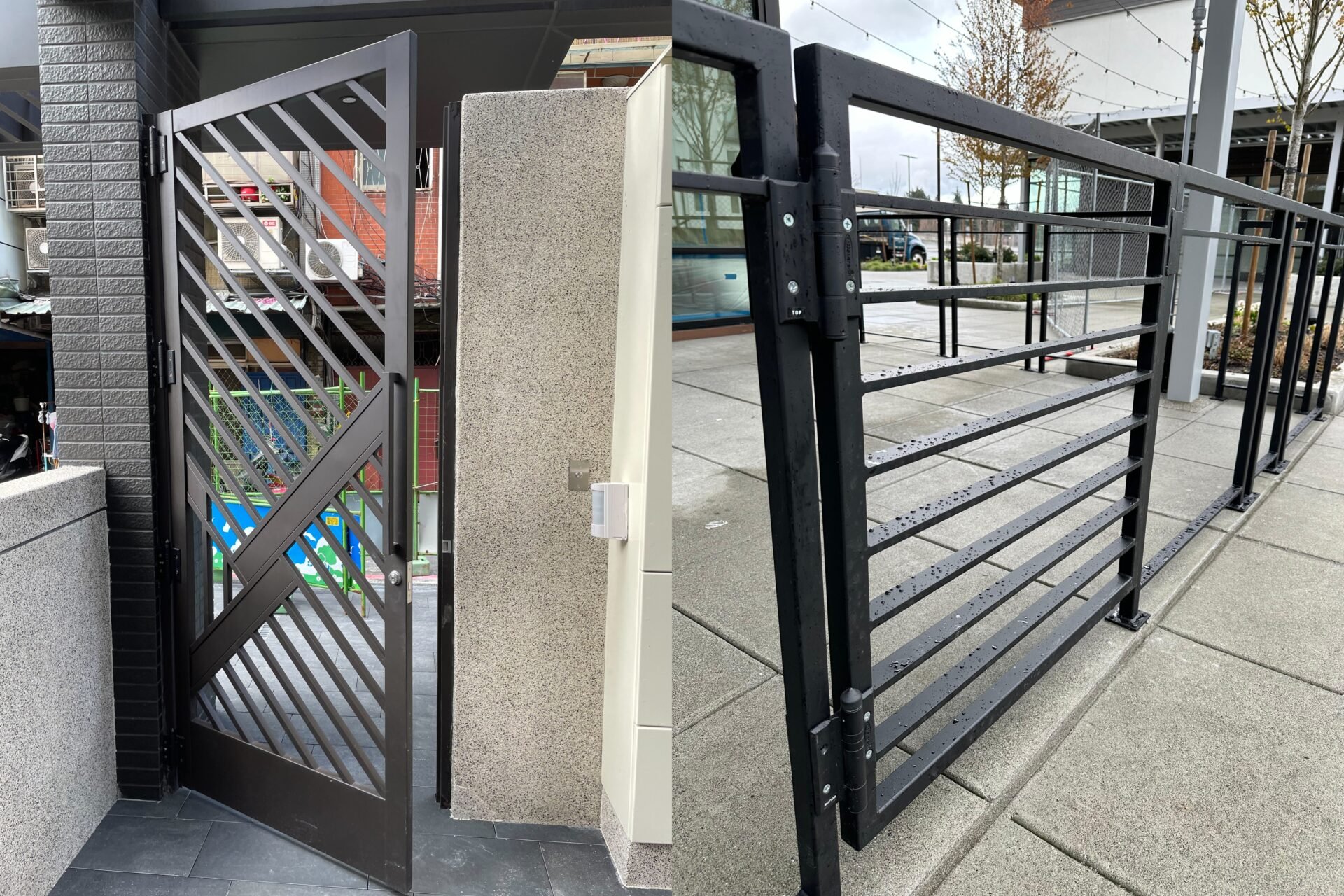

Waterson Self Closing Door Hinges combine an overhead hinge into one attractive component with optional hold-open and door stop features. These hinges are ideal for commercial openings, gates, and glass doors. The hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being suitable for both interior and all-weather exterior openings. See all our features.

Request For Information

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
