ACCO Management Co. & Waterson Hinges: A 208 Entry Door Fire Code Compliance Retrofit at Palo Alto Plaza

Project Snapshot



With only two months on the clock, ACCO had no time to experiment. They needed something already proven. Faced with the requirement to upgrade all 208 doors, ACCO didn’t waste time issuing bids or evaluating new vendors. They chose Waterson immediately. But how could the decision come so quickly?

What is the Challenge ACCO Faces with the Palo Alto Plaza Project?

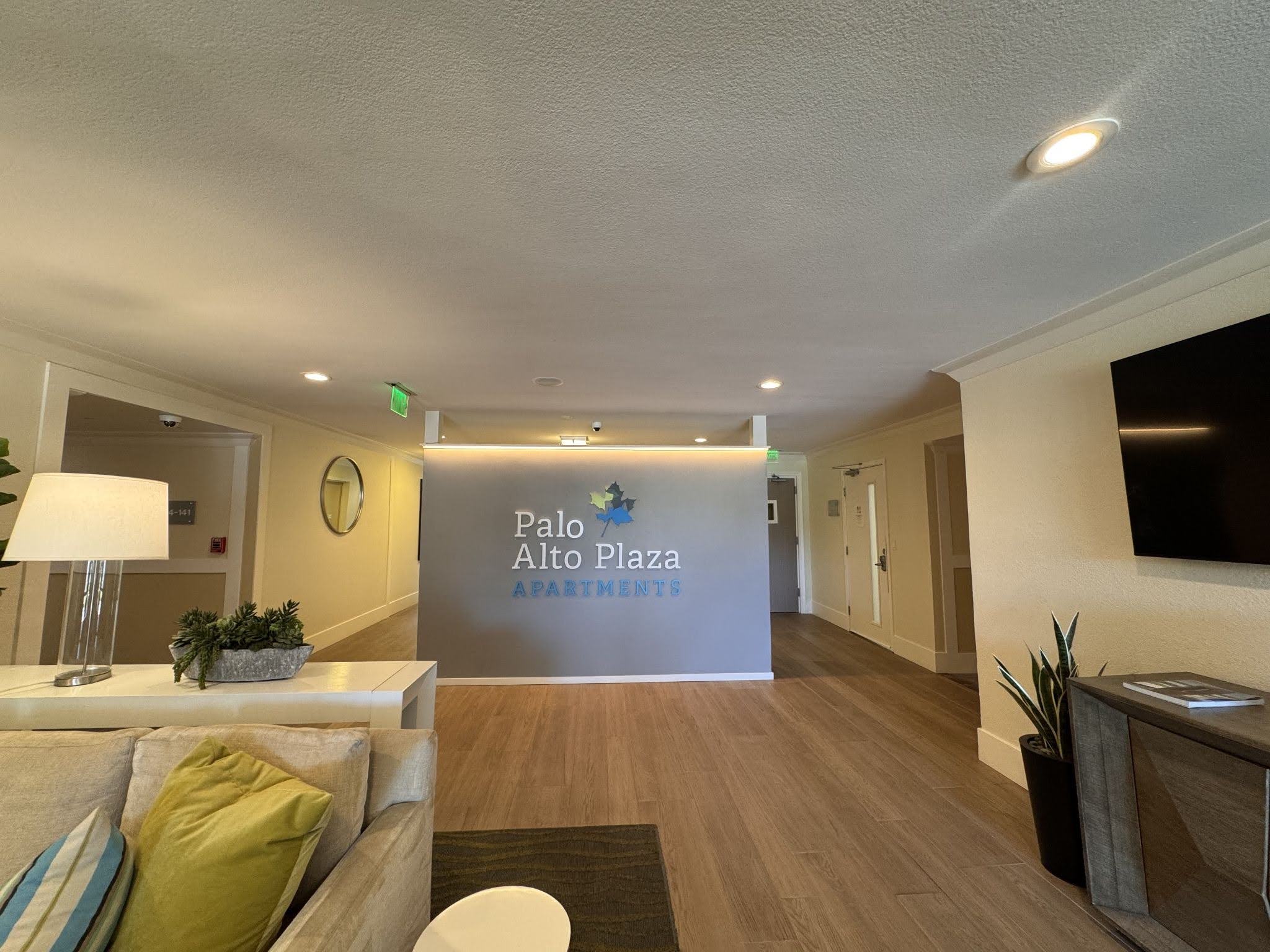

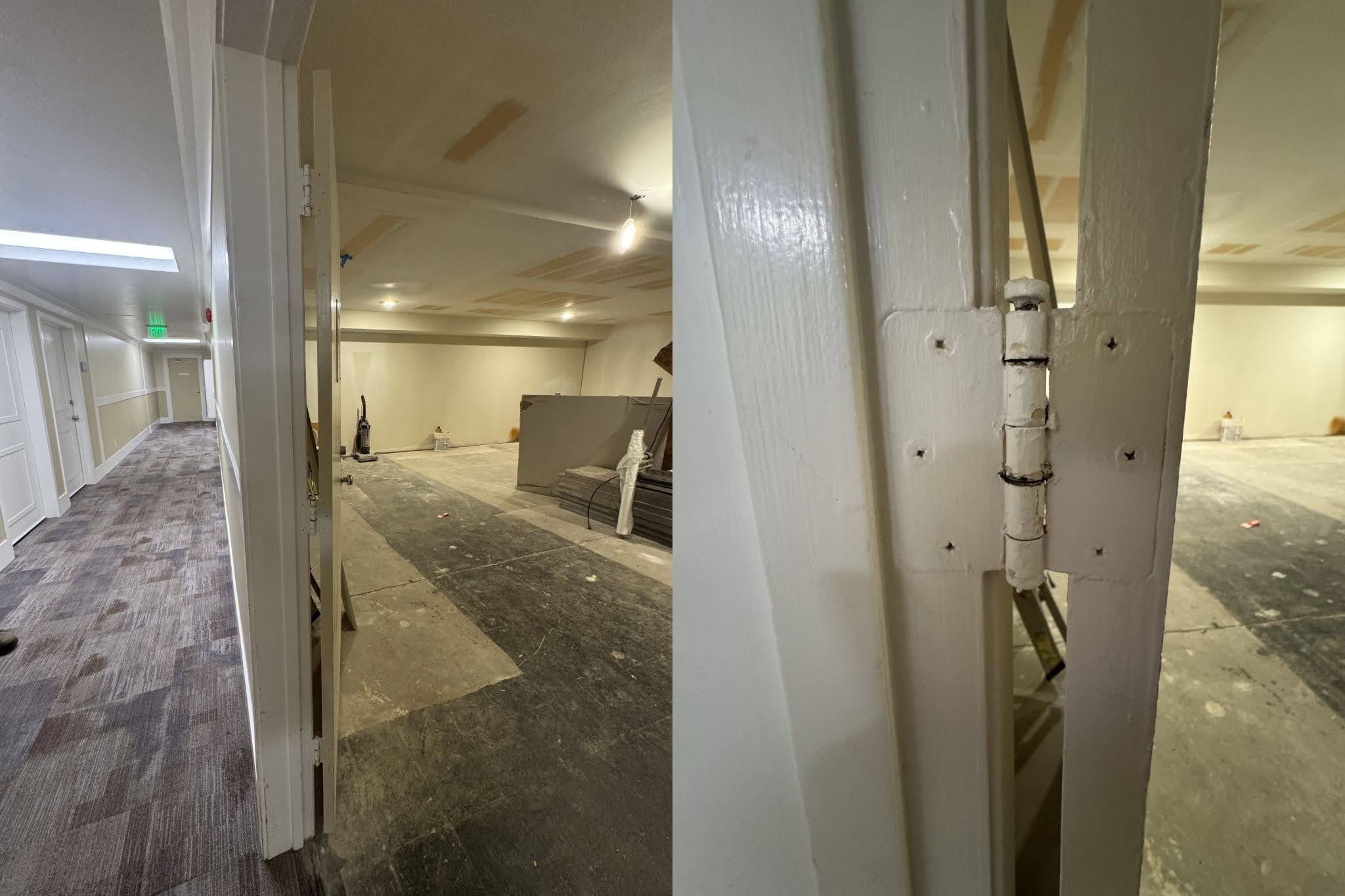

Built in 1964, Palo Alto Plaza is a 208-unit, 3-story gated apartment community in Mountain View, CA. The building was originally equipped with passive hinges that no longer met current fire code requirements for self-closing apartment entry doors. After a risk assessment, ACCO’s insurance carrier required all 208 unit entry doors to be upgraded within just two months as a condition of continued coverage.

1. California’s Strict Fire Code Standards

The challenge was further complicated by California’s stricter code standards, which require not only self-closing performance but also controlled closing speed and accessibility compliance, making standard spring hinges insufficient.

“Our insurance company required us to upgrade all apartment entry doors to self-closing. That was the condition for coverage. We knew this was coming eventually — it was time to act.”

— ACCO Management Co.



2. Low Ceiling Corridors

Palo Alto Plaza’s 1960s-era corridors have lower ceiling heights than modern construction. Therefore, traditional overhead door closers, which require a mounted arm and bracket at the door header, could not be applied without compromising the space. The mechanism simply doesn’t fit cleanly in low-ceiling environments. Beyond the physical constraint, the exposed hardware adds visual clutter and creates a sense of compression in already compact hallways.

How Waterson Hinges Became the First and Only Selection for ACCO?

Faced with a two-month compliance deadline and 208 doors to retrofit, ACCO needed a solution they already knew would perform. The team didn’t hesitate, because Waterson Hinge was the answer.

Turns Out, Waterson Had Already Proven Itself at ACCO’s TWO50 Downtown (2023)

ACCO had previously installed Waterson K51M hinges at TWO50 Downtown Apartment in San Mateo back in 2023. The product had been running across the entire property for nearly three years, with zero maintenance calls and zero resident complaints. No adjustments. No service visits. Nothing.

That kind of track record speaks louder than any spec sheet.

Unlike traditional overhead closers, Waterson Hinge integrates the closing mechanism entirely within the hinge barrel: no exposed arm, no bracket. This design makes Waterson Hinges the only viable fit for Palo Alto Plaza’s low-ceiling corridors, where a conventional closer simply had no room to operate.

In a multi-family environment, that matters. Residents routinely hang bags, signs, and equipment from exposed closer arms, slowly wearing down the hydraulic tension and triggering repeat service calls. With Waterson, there’s nothing to hang from, and nothing to break.

“Everyone hangs things from the door closer arm. You end up adjusting it over and over again. With the Waterson hinge, there’s nothing to hang from. After almost three years at TWO50, not one maintenance call. That’s what we need here.”

— ACCO Management Co.



What Product Waterson Offers for this Current Palo Alto Plaza Project?

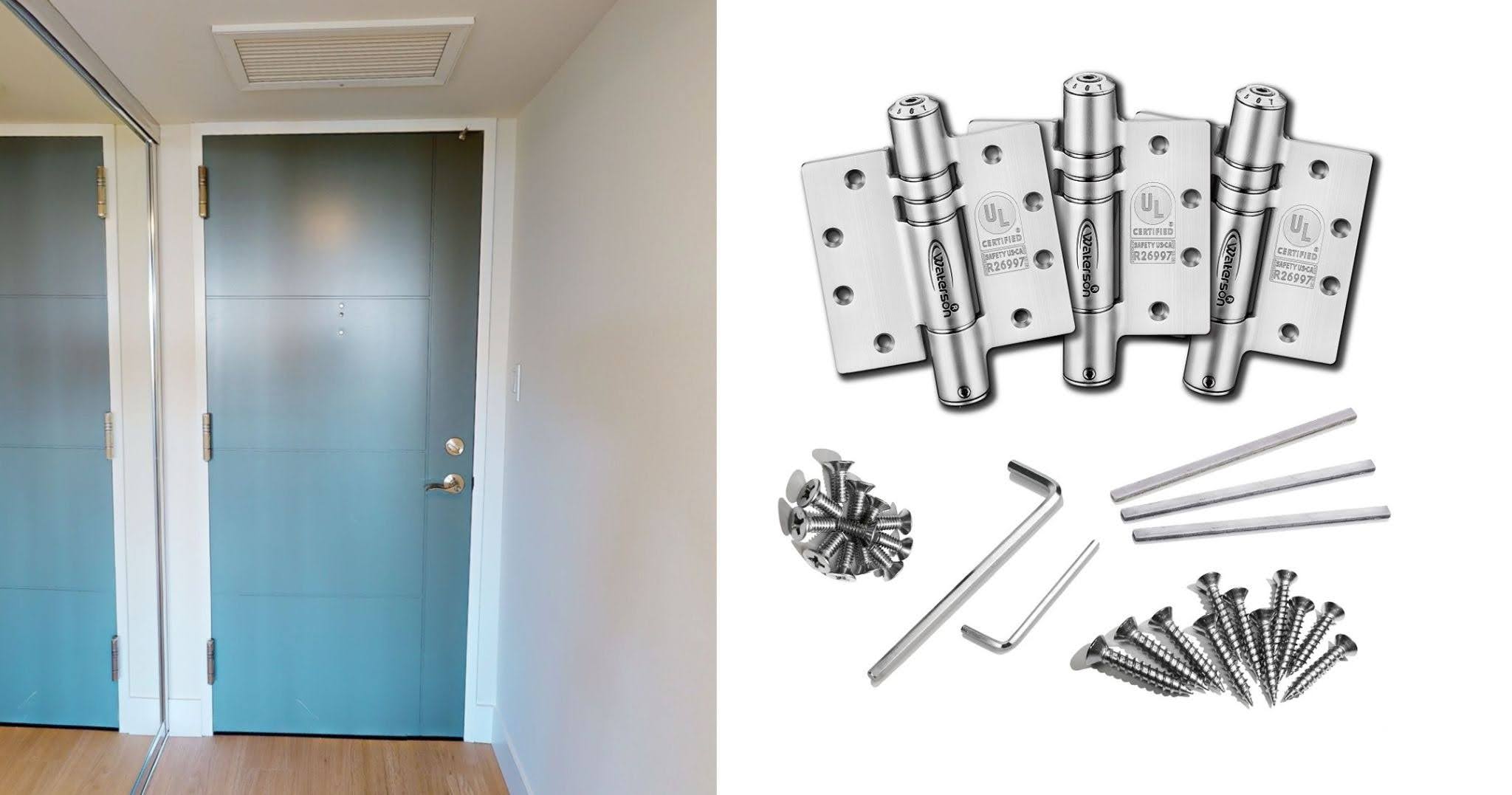

ACCO chose the Waterson K51M-450-A3: An Adjustable Self-Closing Fire-Rated Door Hinges

Waterson K51M-450-A3 self-closing door hinge had nearly three years to prove its worth in a real multi-family environment with TWO50 Downtown. Zero maintenance calls. Zero resident complaints. Zero adjustments. For ACCO, that track record is strong evidence that it was the deciding factor when Palo Alto Plaza needed a solution fast.

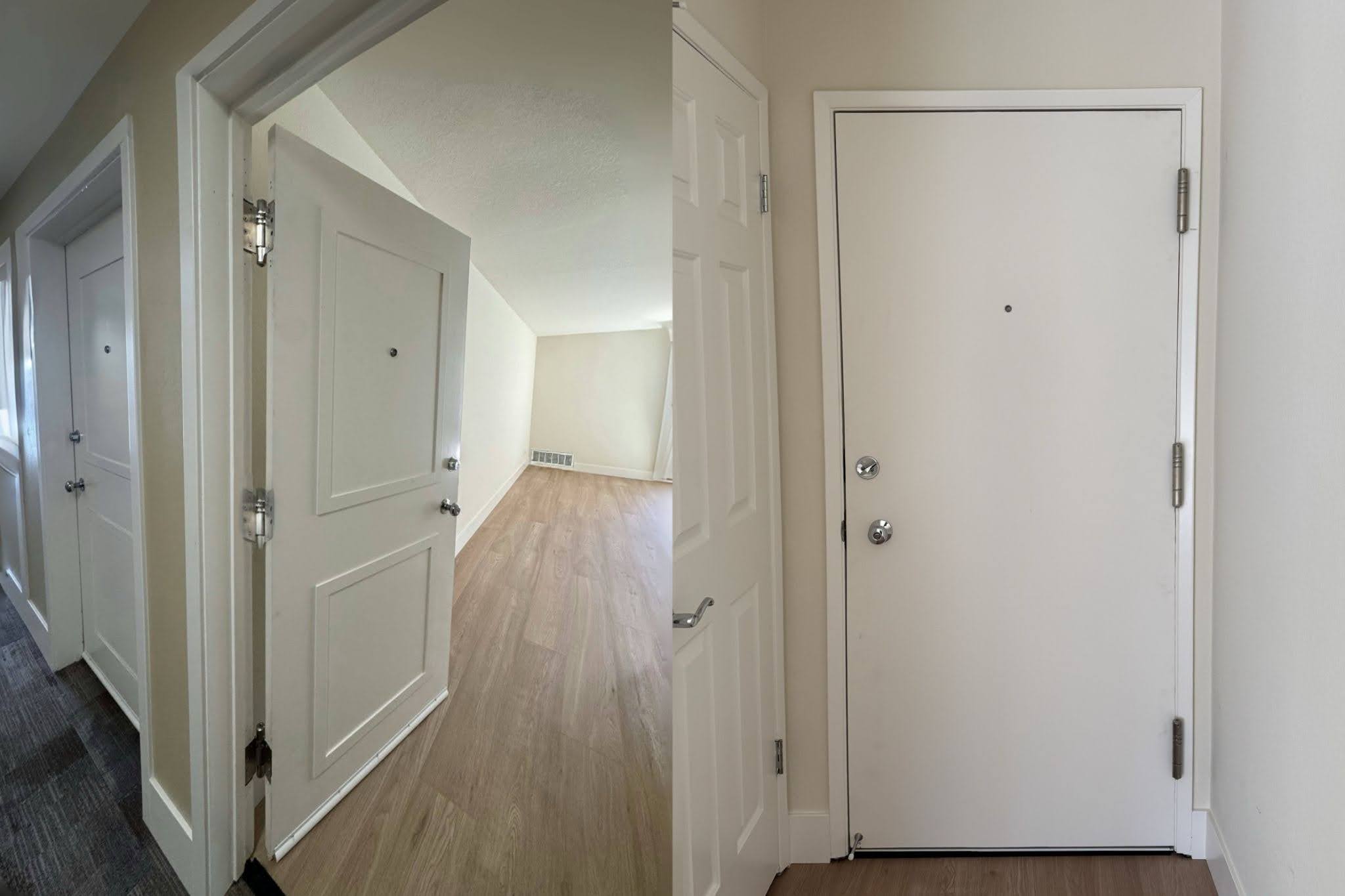

What the K51M-450-A3 Delivered for the Palo Alto Plaza Project Includes:

ACCO Management’s return to Waterson for Palo Alto Plaza reflects a calculation that experienced property operators make regularly: the product that costs less to maintain over ten years is worth more than the product that costs less to purchase today.

“The upfront work is harder — we’re routing every frame. But we know what we’re getting on the back end. Almost three years at TWO50 with no maintenance calls. That’s the investment decision.”

— ACCO Management Co.

Waterson Self Closing Fire Rated Door Hinges

Waterson self closing fire door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all  our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
