How to Remove a Door Hinge Pin: A Step by Step Guide

Whether you’re taking down a door for painting, fixing a squeak, or clearing space for a large piece of furniture, removing the hinge pins is usually the fastest approach. Done correctly, it takes under five minutes. Done wrong, you can bend the hinge knuckles, scratch the trim, or drop a heavy door on your foot.

This guide covers the right tools, the correct sequence, how to handle stuck or painted-over pins, and what to do if your pins won’t budge at all.

What You’ll Need for Removing Door Hinge Pin

1. Hammer
2. Nail punch or nail set (preferred) — or a large flathead screwdriver
3. Penetrating oil (WD-40 or PB Blaster) for stuck pins
4. A wedge or folded towel to support the door
5. A helper for heavy doors

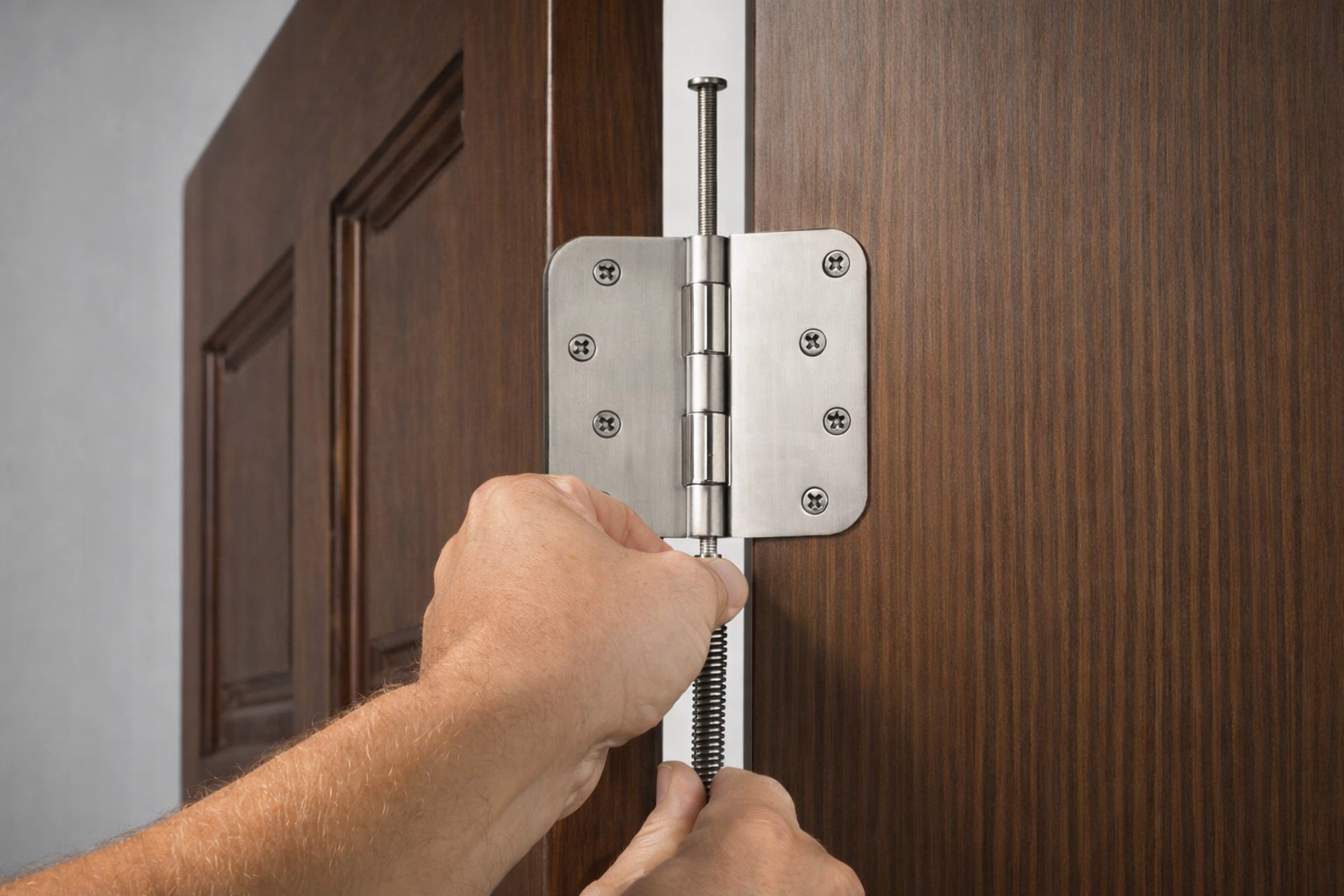

How to Remove a Door Hinge Pin

Remove a hinge pin contain 5 steps:

• Gather Tools: Ensure you have a hammer, nail punch, and screwdriver for prying.
• Support the Door: Use books or have another person hold the door steady.
• Force the Pin Up: Use a nail punch and hammer to gently tap the hinge pin upwards, using increasing force.
• Nudge the Pin Loose: Once the pin is partially out, pry it further with an old screwdriver, then pull it out by hand.
• Remove the Door: With all pins removed, carefully take the door down with the help of another person if possible.

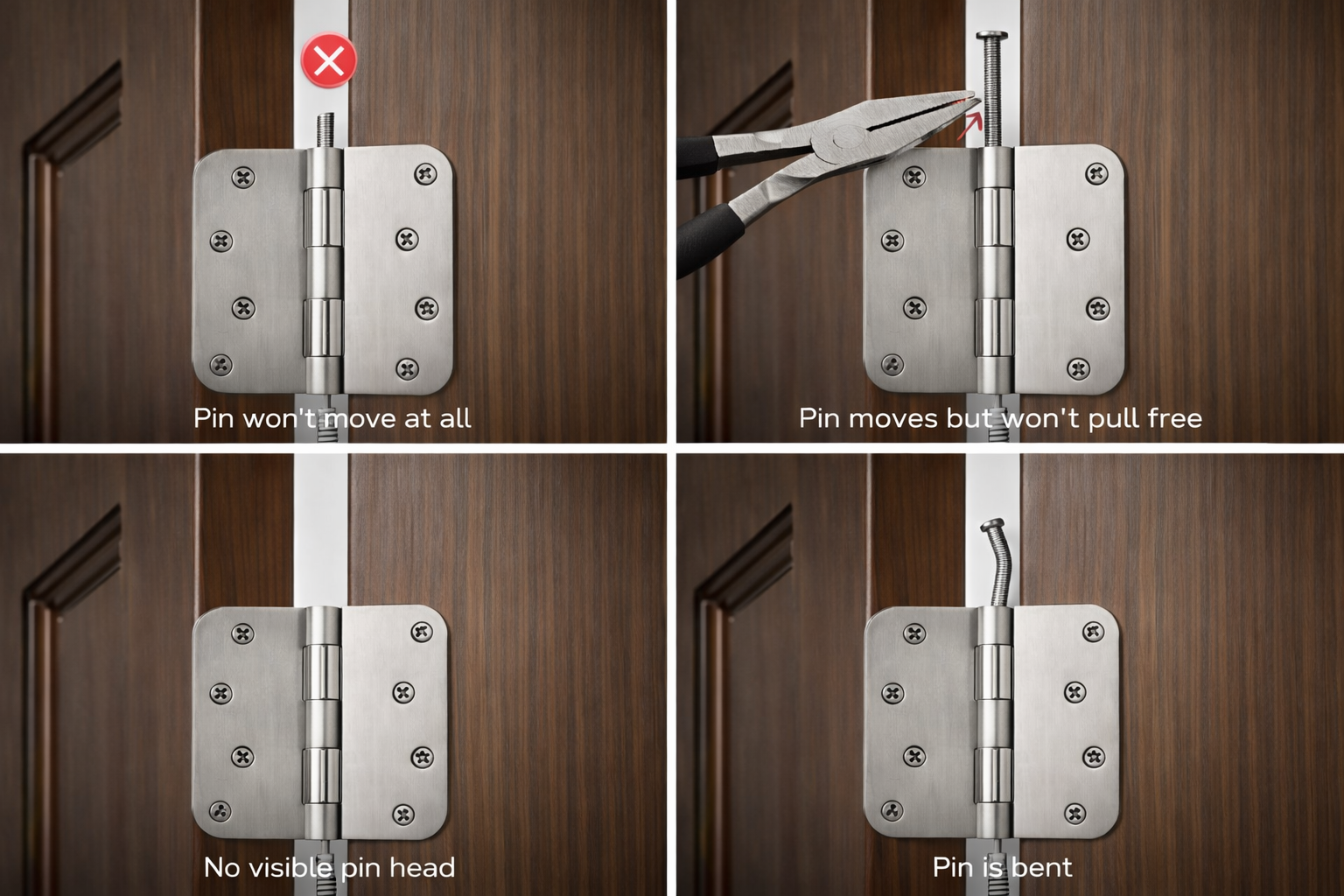

Why Won’t My Door Hinge Pin Come Out?

Most stuck pins come down to one of four causes

• Pin won’t move at all: Paint or rust is usually the culprit. Apply penetrating oil (WD-40 or PB Blaster) at both ends of the barrel, wait 5–10 minutes, then try again.
• Pin moves but won’t pull free: Hinge knuckles may be slightly misaligned or paint has built up inside the barrel. Try rotating the pin with pliers as you pull — the twist usually breaks it loose.
• No visible pin head: You likely have a non-removable pin (NRP) hinge, intentionally designed so the pin can’t be extracted. See the section below.
• Pin is bent: The hinge is worn and needs full replacement. Forcing a bent pin risks cracking the knuckles.

If none of these fixes work, the hinge itself is likely the problem, not the pin.

Is Removing Door Hinge Pin the Only Option?

No, removing door hinge pin isn’t the only option for some alignment issues. There are indeed hinges designed specifically to address your needs – maintaining door function without removing the pin. These are called non-removable pin door hinges.

What is Non Removable Pin Door Hinges

Non-removable pin door hinges, also known as NRP hinges, provide a secure and highly beneficial solution for doors with non removing pin function. By securely enclosing the hinge pins within the barrel, they significantly increase resistance against break-ins. Additionally, non-removable pin hinges allow for adjustments without completely detaching the door. This can be a huge time-saver, especially for minor adjustments.

This hinge type is well-suited for both interior and exterior door applications, including exterior door hinges non removable pin, where their added security and adjustability features can be particularly valuable.

Learn more about how to adjust door closer hinge here.

NRP Door Hinge Meets Stainless Steel

Unlike removable door hinge pin that wear down with use, NRP stainless steel hinges imply many outstanding features:

• Long-Lasting Durability: Non-removable door hinge pins in stainless steel material resist wear and require less maintenance.
• Reduced Maintenance: NRP stainless steel hinges diminish the need for frequent replacements and upkeep.
• Rust Proof Hinges: Specially designed to withstand harsh weather conditions, offering superior protection.
• Heavy Load: Capable of supporting up to 260 lbs, suitable for large and heavy doors.
• Ideal Dimensions: Perfect for doors measuring 1 ¾” thick, 3’-9” wide, and 8’-0” tall.
• Security and Protection: Provides excellent security and safety for doors.

Waterson Non Removable Pin Door Hinges

Waterson self closing NRP door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Information

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
