Stainless Steel Self Closing & Soft Close Hinges
Combining door closers, spring hinges and an optional hold open feature into one attractive & unobtrusive component.
Waterson Stainless Steel Self Closing & Soft Close Hinges
Combining door closers, spring hinges and an optional hold open feature into one attractive & unobtrusive component.
Aesthetically Pleasing | Precision Function
Waterson stainless steel self closing door hinges are easily adjustable to meet ADA & ICC A117.1 requirements for opening force and closing speed, as well as being UL-listed for 3-hour fire rated doors. Our hinges are quiet, secure, and suitable for interior and exterior openings, including some of the harshest environments.
| Code Compliance |
✓ ADA Compliance
<5 lbs force & 5 secs closing time
✓ US Listed
NFPA 3 hrs fire-rared code
✓ ANSI/BHMA A156.17
Grade 1, one million cycles test
| Product Feature |
✓ Self Closing
Fluid and efficient motion.
✓ Soft Closing
Anti-slamming for smooth and quiet closing
✓ Hold Open
Stops doors at 85-90 degrees
Aesthetically Pleasing | Precision Function
Waterson stainless steel self closing door hinges are easily adjustable to meet ADA & ICC A117.1 requirements for opening force and closing speed, as well as being UL-listed for 3-hour fire rated doors. Our hinges are quiet, secure, and suitable for interior and exterior openings, including some of the harshest environments.
| Code Compliance |
✓ ADA Compliance
<5 lbs force & 5 secs closing time
✓ US Listed
NFPA 3 hrs fire-rared code
✓ ANSI/BHMA A156.17
Grade 1, one million cycles test
| Product Feature |
✓ Self Closing
Fluid and efficient motion.
✓ Soft Closing
Anti-slamming for smooth and quiet closing
✓ Hold Open
Stops doors at 85-90 degrees
Self Close and Soft Close Serve Two Different Jobs
Self close means the door always ends up shut, with no hand force needed. Required on fire doors, pool and safety gates, and any opening that must not stay open. Waterson offers two types of self closing:
- Mechanical (Set A, C): A spring and mechanical speed control close the door at the speed you set.
- Hydraulic Hybrid (Set B, D): The same mechanical system plus hydraulic damping, so the door also closes softly and absorbs wind or hard pushes.
Soft close means the door never slams. Wind or a hard push is absorbed, so the door slows down instead of banging.
Unlike a basic spring hinge, every Waterson self closing set pairs the spring with speed control, so it does both.
Specifying for a project?
Get a quote, request a sample to test on your door, or talk to our team about sizes, finishes and code requirements. We reply within 12 hours.
Set A: Purely Mechanical
✓ Fire rated
✓ Same speed in every season
✓ Opens up to 180°
✓ 10 year warranty
Set B: Hydraulic Hybrid
✓ Fire rated
✓ Absorbs wind and hard pushes
✓ Quietest self closing set
✓ 3 year warranty
Set C: Mechanical + Hold Open
✓ Holds open at 90°
✓ Hold open can be switched off
✓ Same speed in every season
✓ 10 year warranty
Set D: Hydraulic + Hold Open
✓ Self closes softly
✓ Holds open at 90°
✓ Absorbs wind and hard pushes
✓ 3 year warranty

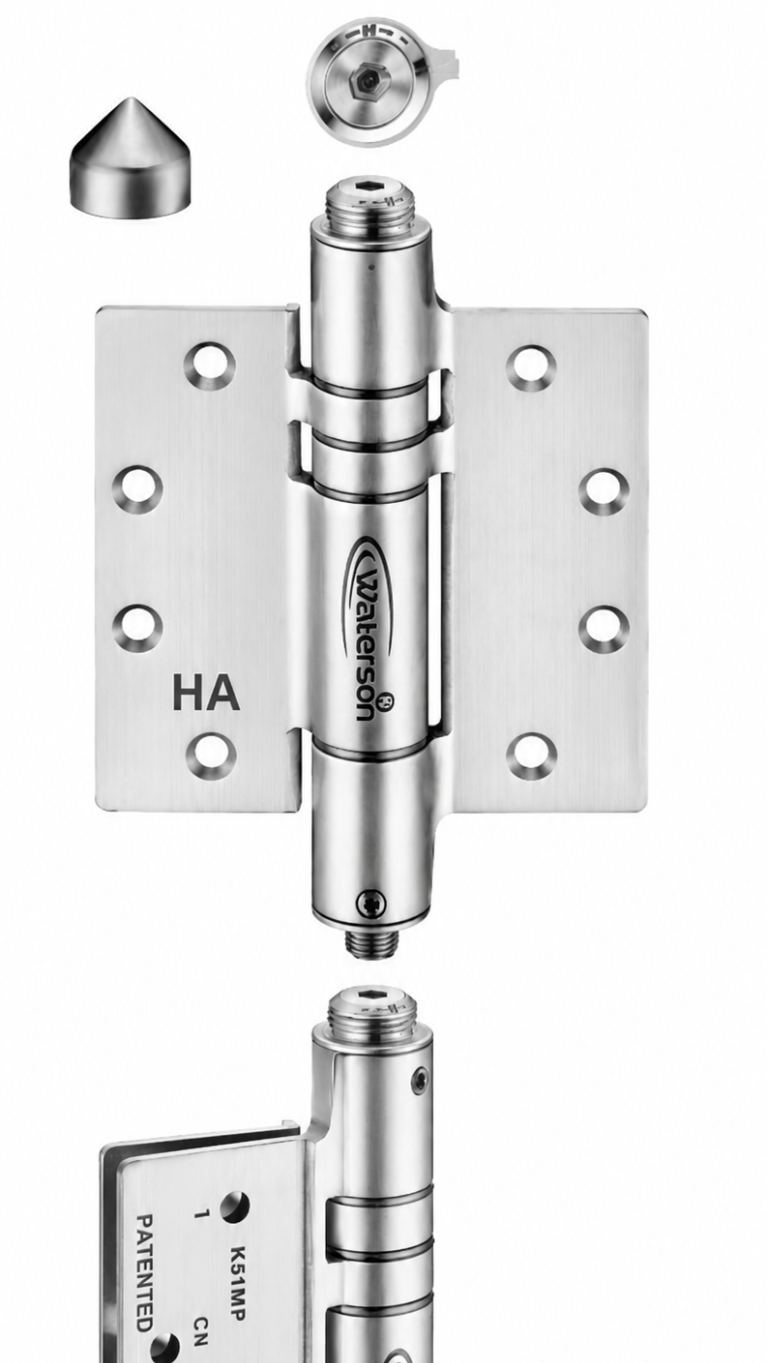

HA: Soft Close Only
✓ Slow closing
✓ No self closing
✓ Works with your other hinges
✓ Sold as a single hinge
Built to Fit Almost Any Door Application
Waterson Self Closing and Soft Closing Door Hinges are built in a wide range of sizes, finishes and options. Whether it is a light residential entry or a heavy commercial fire door, there is a Waterson set that fits the opening, matches the hardware around it, and carries the door’s weight. Pick the function you need, then match it to your door:
|
Sizes & Finishes 4″, 4-1/2″, 5″ (heavy duty and custom) and 6″ sizes, in satin stainless, flat black, dark bronze, satin brass, satin bronze, white or custom finishes. |
Door Height & Weight Fits 6, 7 and 8 ft doors, carrying 150 up to 330 lbs depending on the set. |
|
Door Types Residential to heavy commercial, interior, exterior and fire rated doors. |
Options Square or radius corners, standard or zigzag screws, 304 or 316 marine grade stainless, 90° or 120° door stops. |
Applications

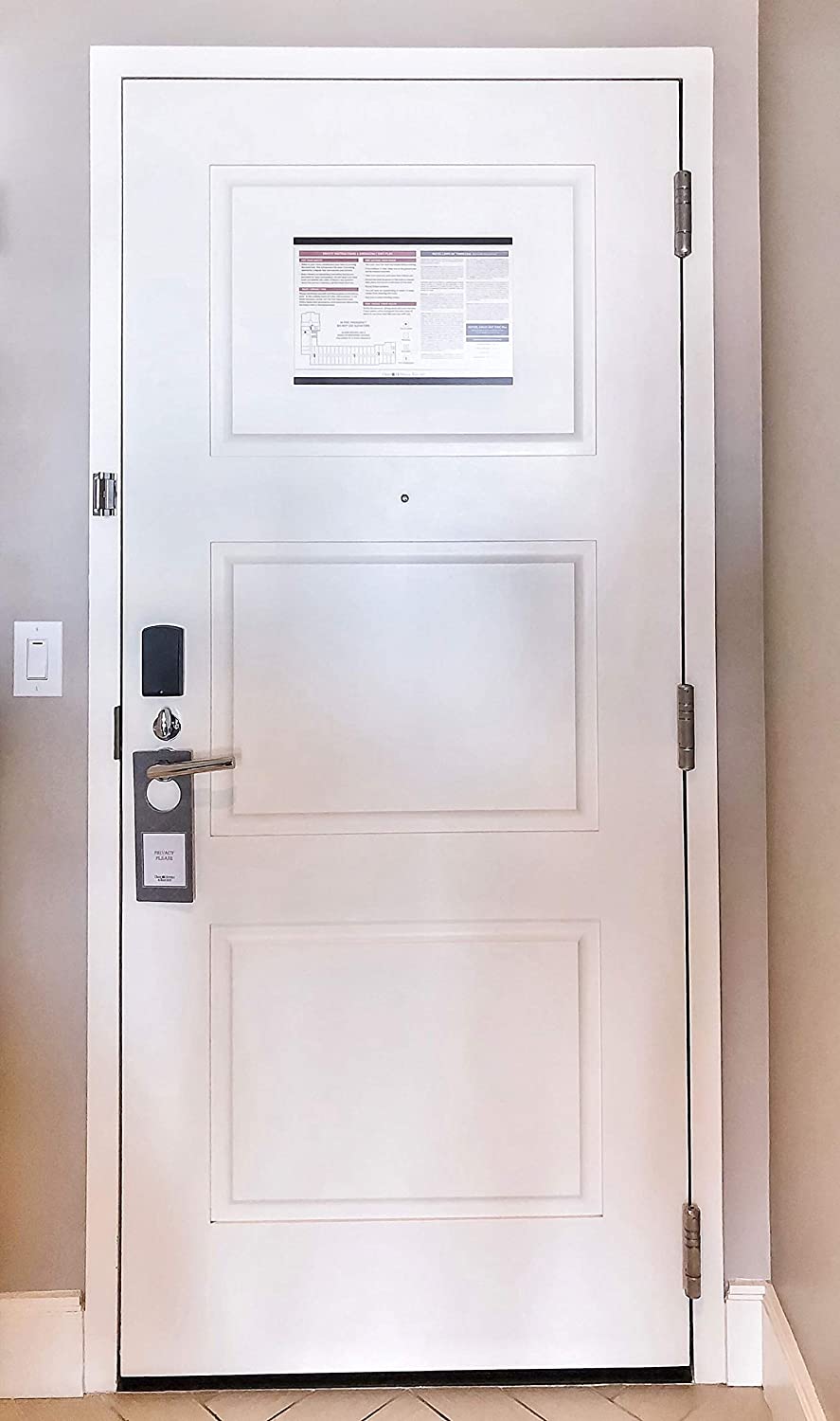

Many commercial buildings like hotels, banks, retails, and more choose Waterson self closing door hinges for durability, elegance, and eco-friendliness.
Applications
Many commercial buildings like hotels, banks, retails, and more choose Waterson self closing door hinges for durability, elegance, and eco-friendliness.
Applications
Many commercial buildings like hotels, banks, retails, and more choose Waterson self closing door hinges for durability, elegance, and eco-friendliness.
Have a project like these?
Tell us your door type, size and weight. Our team will recommend the right Waterson set and reply within 12 hours.
Go Deeper
Let us introduce you to our closer hinge features, function and finish options.
Comparison With Door Closer
| Waterson Self-closing hinge | Traditional door closer | |
|---|---|---|
| Closer Location | Side of door. Installs easily like regular hinges |
Top of door. Requires additional installation space |
| Aesthetics | Elegant and minimal visual intrusion |
Bulky and significant visual intrusion |
| Opening Force | Effortless |
Requires more effort |
| Outdoor Use | Yes, highly weather-resistant |
Closing arm susceptible to rust |
| Interior Use | Less likely to be broken or vandalized |
Closing arm susceptible to breakage and vandalism |
| Fire Resistance | UL-Listed 3 hours |
Various fire-rating levels |
| Durability | 1 million cycle test certified |
Various cycle test levels |
| Total Cost | Low installation & maintenance expense |
High installation & maintenance expense |
Connect With Us Today – Reply Within 12 Hours
Not sure which set or size you need? Send your door height, width and weight, and our team will recommend the right Waterson hinge.
Or call +1 (770) 343-2788
Just a heads up, Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Thank you!
