Why Commercial Glass Door Closer Hinges Fail in High Traffic Buildings

Commercial glass door hinges are built to perform, but even well-made hardware has its limits when subjected to the demands of high-traffic environments. In buildings where doors cycle hundreds or thousands of times daily, failure is a matter of when, not if, and understanding why it happens is the first step toward preventing it.

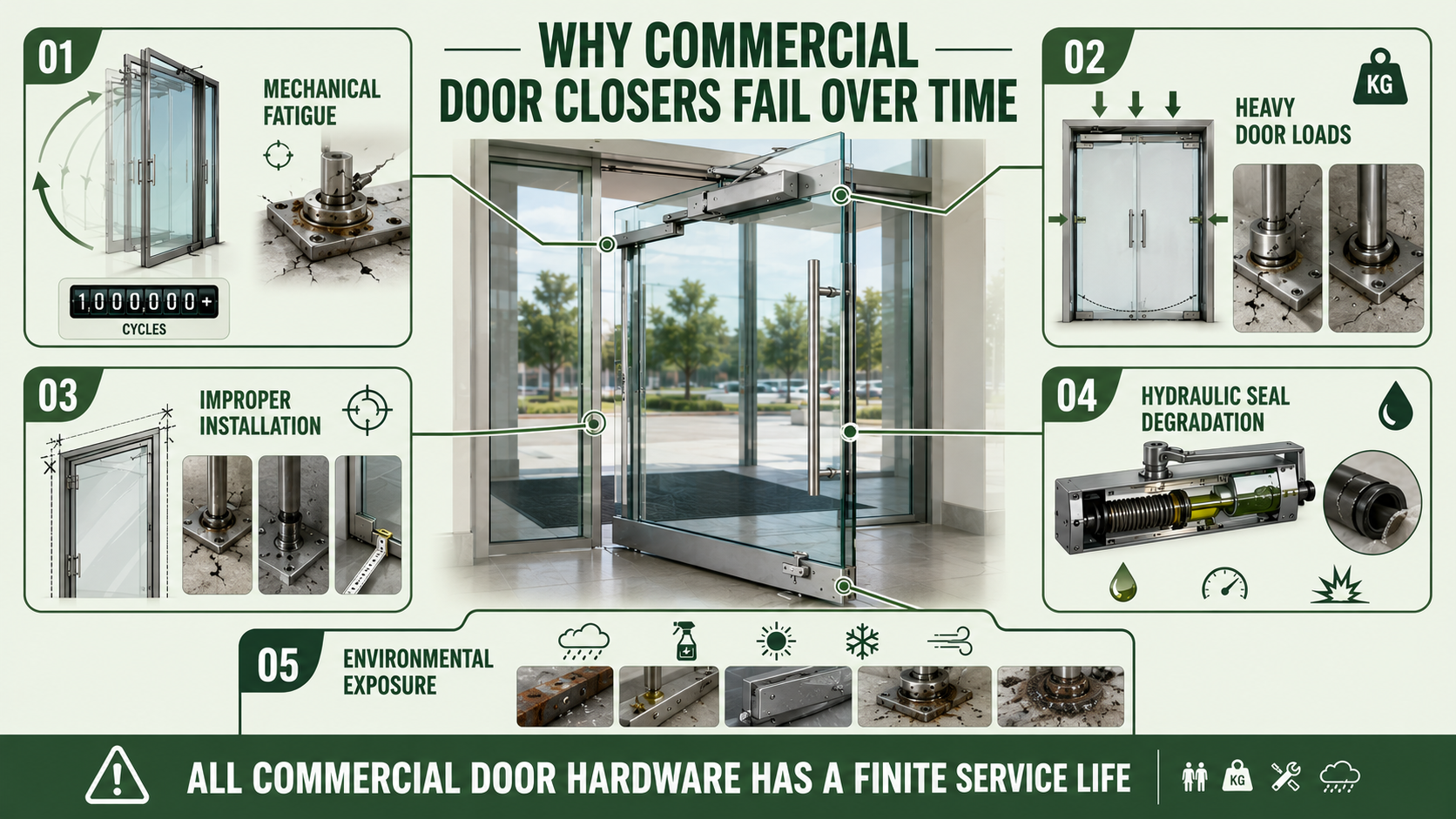

What Factors Make Commercial Glass Door Closer Hinges Fail in High Traffic Buildings?

High-traffic environments place relentless, compounding stress on door hardware that most residential or light-commercial products are simply not designed to handle. The following failure factors are the most common culprits across retail, hospitality, healthcare, and institutional buildings.

1. Mechanical Fatigue from Extreme Cycle Counts

Every open-and-close cycle stresses springs, pivots, seals, and fasteners. In busy retail, hospital, or airport entrances, doors can cycle hundreds to thousands of times daily. Over time, this steady accumulation of stress causes components to loosen, crack, or wear beyond acceptable tolerances. No mechanical system survives indefinite cycling without eventually reaching its fatigue limit.

2. Heavy Door Loads

Frameless commercial glass doors are significantly heavier than typical interior doors. This weight creates large bending and torsional forces at every pivot and hinge point. If the hardware is undersized for the actual door weight, width, or thickness, these forces exceed design limits quickly, accelerating wear and causing premature sagging or deformation.

3. Improper Installation and Undersized Hardware

A hinge rated for a low-traffic office lobby will fail rapidly on a hospital main entrance. Common installation mistakes include wrong spindle positioning, poor floor prep, inadequate anchoring, and incorrect clearances. Even high-quality hardware will fail early when installed out of specification or mismatched to the application.

4. Hydraulic Seal and Fluid Degradation

Most commercial closers rely on hydraulic damping to control door speed. Seals age and harden, especially under temperature swings. Once seals fail, fluid leaks out, and the closer loses speed control entirely, causing slamming or uncontrolled swinging that then shock-loads every other component in the system.

5. Environmental Degradation

Entry doors face moisture, cleaning chemicals, corrosion, temperature extremes, and airborne debris. These factors degrade seals, corrode metal components, contaminate hydraulic fluid, and weaken mounting anchor points. Exterior entrances are particularly vulnerable because they combine maximum traffic with maximum environmental exposure.

How Waterson Self Closing Commercial Glass Door Hinges Address These Failure Points

Waterson self-closing glass door hinges are investment-cast solutions built from 304 and 316 stainless steel, engineered to meet the highest standards of performance, compliance, and longevity. Waterson glass hinges provide a clean and modern appearance by eliminating unnecessary metal frame hardware commonly used on floor closers. Plus, Waterson glass door hinges let you avoid expensive floor spring concrete installation while reducing the risk of rust.

Key features that directly counter the failure modes described above:

• Teflon-coated hinge support: For low friction, high abrasion resistance, and shock/load absorption, helping protect the glass from cracking under high-cycle stress
• Black gasket design: For robust friction that keeps glass firmly in place and prevents slipping under load
• Direct application to glass: With no metal frame required, reducing stress concentration points
• Special adjusting bolt: Allows fine-tuning of the closed position within plus or minus 1 degree, correcting minor misalignment before it becomes a failure
• Soft Closing: Smooth, controlled motion that prevents abrupt impact and protects panels
• Adjustable tension and closing speed: Tension is set on a numbered panel and speed is tuned with a standard hex wrench, with no floor access needed
• 304 and 316 stainless steel: For long-term corrosion resistance in both indoor and outdoor environments
• Investment casting manufacturing: For superior structural strength and loading capacity
• 3-Year Warranty: Backed by reliable product coverage and service

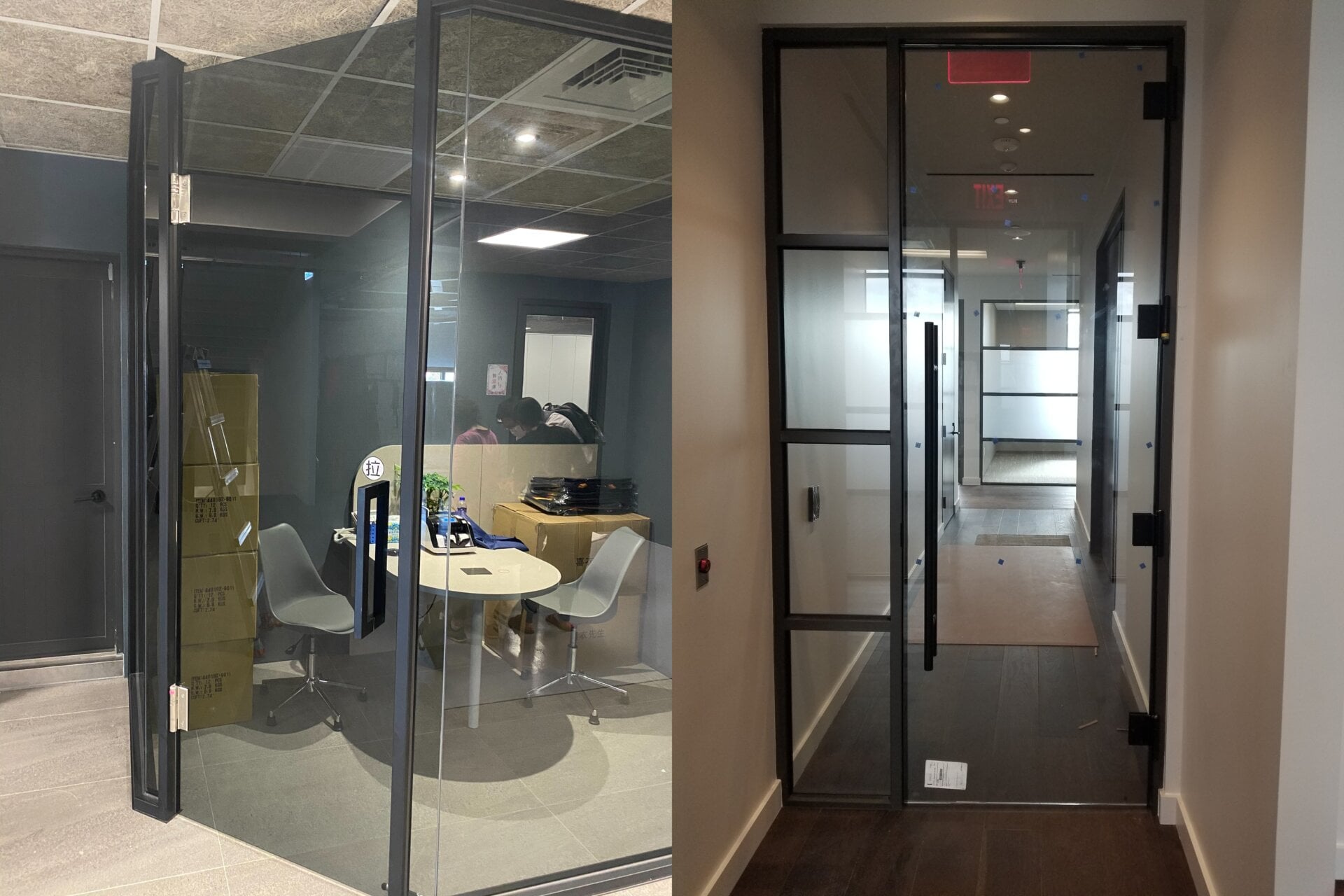

What Are the 3 Main Types of Self-Closing Glass Door Hinges?

Waterson’s K51G series covers the three primary installation scenarios found in commercial buildings:

1. Glass to Glass (K51GG)

Designed for glass-to-glass configurations, this hinge clamps glass panels firmly on both sides. Built by investment casting, it delivers superior loading capacity and structural strength. It eliminates the need for floor drilling or metal frames, making it ideal for open-plan offices, hotel lobbies, and modern retail environments.

2. Glass to Wall (K51GWL)

One side attaches to frameless glass while the other installs on a wall or partition. This model is a practical solution for office buildings where a self-closing door is needed without installing a floor spring. Wall thickness must be at least 3.8 cm (1-1/2″). It features an in-swing, non-handed design for flexible installation.

3. Glass to Frame (K51GM)

One side attaches to glass and the other connects to a standard 4.5 x 4.5 template frame. This model is an excellent retrofit solution for existing door frames, with a special adapter design that connects to the frame without modifying it.

How to Match Hinge to Glass Thickness and Door Weight

Choosing the right hinge type is step one. Step two is making sure the hinge set can handle your specific glass size and weight. Here is how the K51G series maps to door dimensions:

The hinge set also operates in two modes depending on glass thickness: 5/16″ to 9/16″ glass activates self-closing mode, while glass over 9/16″ up to 27/32″ switches to heavy-duty non-self-closing mode.

Waterson Commercial Glass Door Hinges vs. Traditional Floor Spring

Many glass door installations still default to floor springs, partly out of habit and partly because they have been the standard for decades. But the comparison is increasingly one-sided.

Floor springs require cutting and drilling into the finished floor, which adds labor cost and risk to the slab. They are also susceptible to rust in outdoor or high-moisture environments. Our commercial glass door hinges install like standard hinges with no floor work required, and the 316 stainless steel option handles outdoor exposure without degradation.

Built for the Thousandth Swing, Not Just the First

Commercial glass door hinges rarely fail from a single event. They wear out from thousands of daily cycles, doors heavier than the hardware was sized for, installations that drift out of spec, and moisture that slowly works its way into seals and anchors. The fix starts at specification: match the hinge type to the opening, size the set to the real door weight, choose 316 stainless steel for exterior or wet entrances, and keep the closing mechanism in the hinge instead of in the floor. With investment-cast construction, protective gaskets, and field adjustment that one person can handle at the door, Waterson glass door hinges are built to keep a busy entrance closing smoothly long after opening day.

Send your door size, glass thickness, weight, and expected daily traffic through a quote request, and our team will confirm the right hinge set for your entrance.
