Full Lite Entry Door Hinges: Stop Slams, Save Glass, and Meet ADA in One

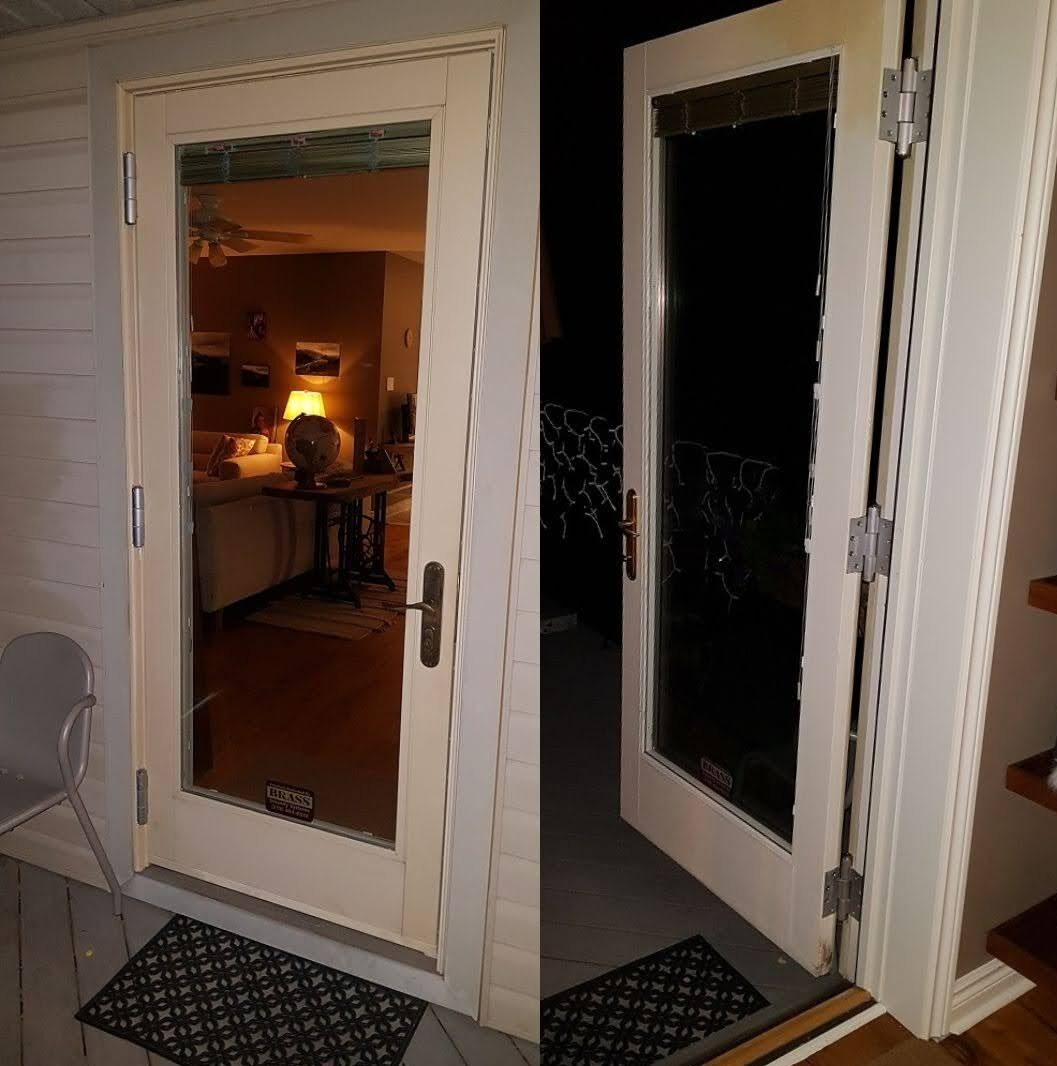

“We have two pairs of full lite entry doors functioning as an ‘airlock’ door between our foyer, garage, porch, and front entrance. We currently have soft spring hinges; the dogs can bounce them open, and if allowed to close from wide open, they slam and suffer damage. I want to replace them with soft-close hinges.”

A spring hinge seems like the logical starting point. Until the door slams, the glass stresses, and the callbacks start. Here’s why full lite entry doors demand a fundamentally different approach, and what to spec instead.

Why Full Lite Entry Doors Can’t Rely on Standard Spring Hinges

A full lite entry door is not a standard slab. The glass panel makes up the vast majority of the surface area, framed by narrow stiles, often just 2″–4″ wide. That shifts the center of gravity away from the hinge barrel and concentrates rotational stress on every cycle.

Standard spring hinges apply a fixed, constant closing force. On a full lite door, that creates a conflict with no clean resolution:

• Low spring tension → dogs bounce the door open; wind holds it open; the door won’t latch reliably.
• High spring tension → the door slams from wide open, stressing the glass, damaging the frame, and violating ADA opening force limits (≤5 lbf, ICC A117.1 §404.2.9).

Do Full Lite Entry Doors Need Special Hinges?

Yes. Here’s exactly what can go wrong without the right hardware:

01: Glass stress and edge cracking  A slamming full lite door transmits shock through the entire glass lite. Repeated impact accelerates micro-fracturing at the glass edges: the same edges constrained by narrow stiles with minimal flex.

02: Frame and weatherstripping damage Each uncontrolled closure drives the door into the stop at full momentum. Over time, this damages the weatherstripping seal: defeating the thermal performance of the airlock vestibule entirely.

03: ADA non-compliance Cranking spring tension to prevent slamming pushes opening force above the 5 lbf threshold. Accessible entry doors on a path of travel must comply. Over-tensioned spring hinges routinely fail this.

04: Inconsistent closure in a double-door configuration In a paired vestibule setup, both doors must reliably close and latch in sequence. Standard spring hinges provide no speed control: the active and inactive leaves compete rather than coordinate.

Is There a Difference Between Indoor and Outdoor Hinges?

Yes. And in a vestibule airlock application, this distinction is critical.

Even though the doors are between interior spaces, at least one pair sits directly adjacent to the building envelope. That means humidity cycling, temperature swings, and salt air or coastal moisture exposure.

Material requirements for this application:

• Zinc-plated steel: corrodes within 3–7 years at the building envelope. Not appropriate.
• Aluminum: corrosion-resistant, but insufficient mass for controlled closing on a heavy glass door.
• Grade 304 stainless steel: the correct baseline for any full lite door at or near the exterior. Not an upgrade but the minimum spec.

Code requirements that apply:

Standard	Requirement
ADA / ICC A117.1 §404.2.9	Opening force ≤5 lbf (interior); ≤8.5 lbf (exterior)
ANSI/BHMA A156.17 Grade 1	1,000,000-cycle rating as the commercial door hinge minimum
NFPA 80 / UL listing	Required if the vestibule sits on a fire-rated egress path
ANSI/BHMA A156.7	Standard hinge template to verify edge distance on narrow full lite stiles

What Features to Look for in Full Lite Entry Door Hinges

Not every self-closing hinge solves this problem. For a full lite entry door, especially in a double vestibule configuration, every one of these boxes must be checked:

1. Hydraulic soft-close deceleration: Hydraulic damping controls closing speed through fluid resistance, absorbing the kinetic energy of a door swung wide open before it reaches the stop.
2. Three-zone speed control:Independently adjustable swing speed, deceleration zone, and latch speed.
3. ADA-compliant low opening force. The hydraulic mechanism must achieve ≤5 lbf on the pull while still closing reliably. This is what standard spring hinges cannot do.
4. Visual tension adjustment: A numbered tension panel makes field calibration repeatable. Critical when four doors across two vestibules need to behave consistently.
5. Stainless steel construction, investment-cast: Grade 304 SS minimum for the building envelope. Investment casting (not stamped) for structural integrity under the rotational load of a heavy glass door.
6. Hold-open at 90°: stops the door in position without floor stops or wall bumpers. Essential for high-traffic vestibule entries.
7. No overhead arm & mounts within standard hinge mortise. Full lite stiles are too narrow for an overhead closer arm without structural reinforcement. The entire closing mechanism must be contained within the hinge barrel.

When the Elite Soft Close Hinges for Full Lite Entry Doors Step In

The Waterson self-closing and soft-closing door hinge is one of the elite products that consolidates every requirement above into a single, field-adjustable hinge without surface-mounted hardware. No overhead arms, and no compromising the glass sightline.

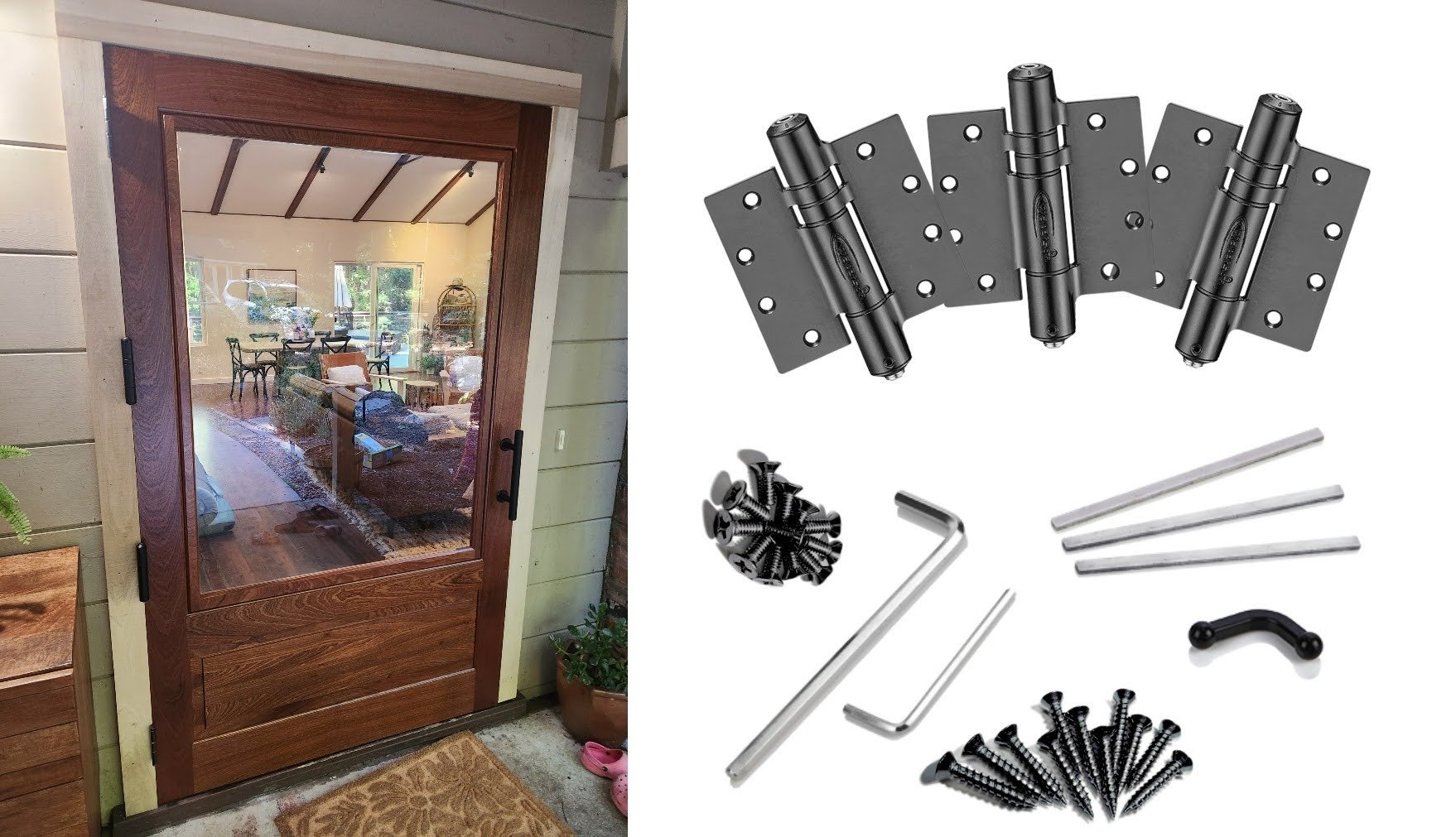

Waterson Self & Soft Closing Full Lite Entry Door Hinges

Waterson full lite entry door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
