Full Mortise vs Non-Mortise Hinge: What is The Difference

When choosing door hinges, you need to understand the difference between full mortise and non-mortise hinges—especially if you’re concerned with durability, aesthetics, and application suitability. For example, a fire-rated steel door in a commercial building requires far more hinge support than a cabinet door in a residential kitchen.

So, what exactly are full mortise and non-mortise hinges—and which one is right for your application?

What Is a Full Mortise Hinge?

A full mortise hinge is a type of hinge where one leaf is installed into a cutout (mortise) on the edge of the door and the other into the door frame. This creates a flush, clean installation where the hinge is partially concealed when the door is closed.
Full mortise hinges are known for:

• High load-bearing capacity
• Superior strength and durability
• Professional, sleek appearance

They’re ideal for heavy doors, fire-rated applications, and high-traffic environments like commercial buildings or industrial facilities.

And What Is a Non-Mortise Hinge?

A non-mortise hinge is surface-mounted, meaning both leaves are screwed directly onto the surface of the door and the frame—no cutting required.
This non-mortise hinge type is best suited for:

• Lightweight interior doors
• Quick installations or retrofits
• Situations where aesthetics are not a top priority

While easier to install, non-mortise hinges generally offer lower strength and less long-term security.

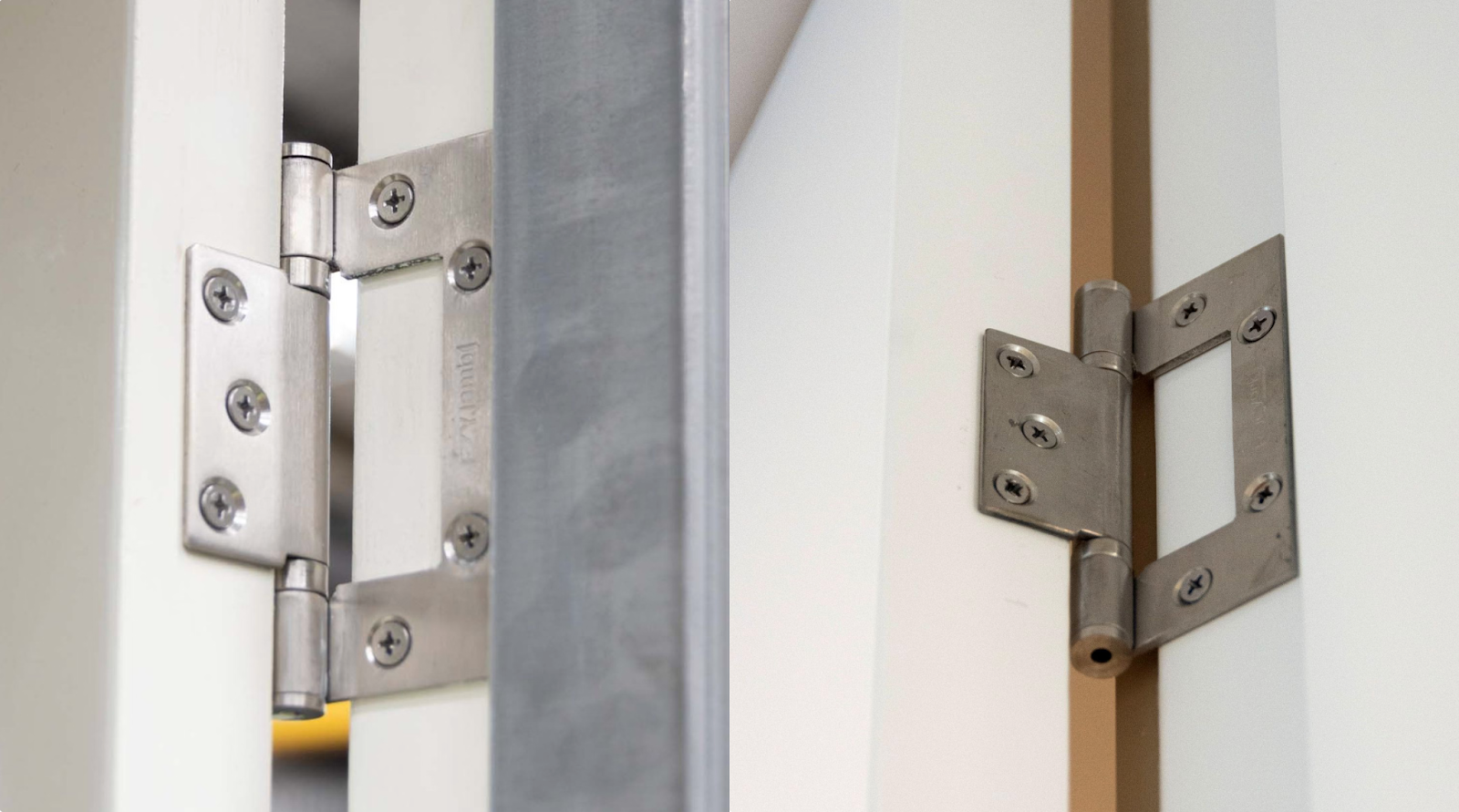

Credit on ARCHIPRO – RocYork® Herline Non Mortise Hinges

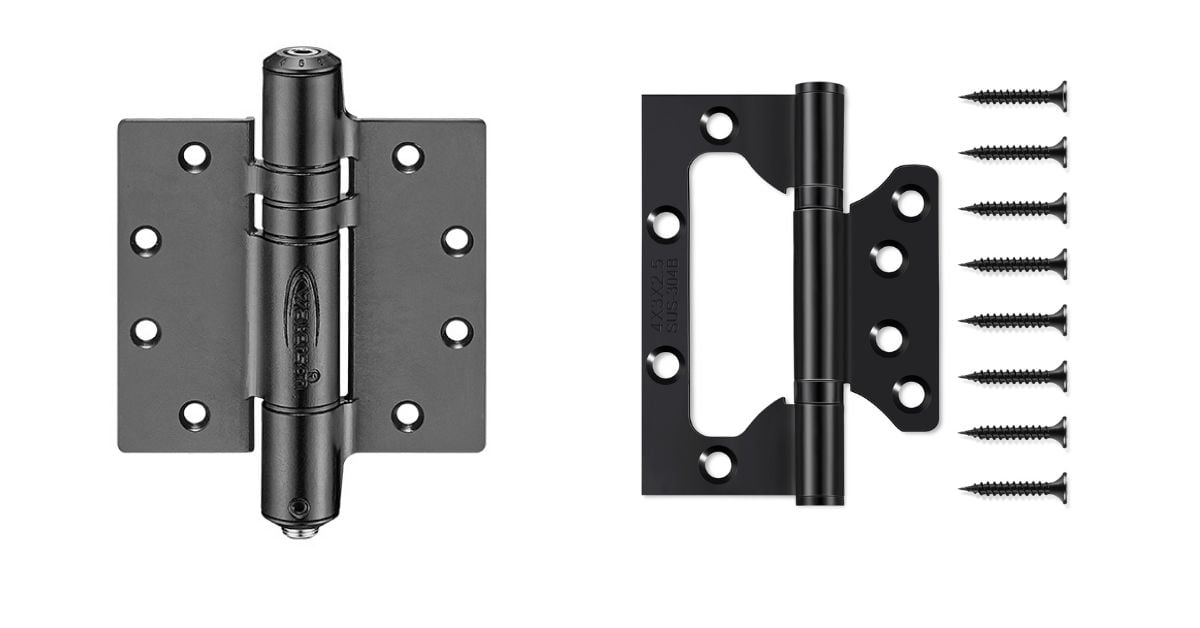

Full Mortise vs Non-mortise Hinge: Which Type Should You Choose?

Each application needs a different hinge type. Therefore, choosing the wrong hinge can lead to sagging doors, loose screws, or even failed inspections. How do you know which type works best for your setup, especially if you’re dealing with a heavy entry door or just upgrading a bedroom closet? Below is a clear, side-by-side breakdown to help you figure out which hinge fits your project.

To sum up, if you are applying hinges to a fire rated, high traffic, or heavy duty door, you should use a full mortise hinge for its strength, code compliance, and flush finish.
On the other hand, a lightweight door like a closet, cabinet, or basic interior door only need non-mortise hinges without the need for mortising.

Why Full Mortise Hinges Better Perform Across All Projects

As building standards evolve and door systems become more performance-driven, full mortise hinges remain the top choice for residential, commercial, and industrial applications. Their ability to support heavy doors, comply with safety codes, and provide a clean, flush appearance makes them the preferred solution in architectural hardware specifications and large-scale construction projects alike.

Best Full Mortise Ball Bearing Hinges Solution

What sets Waterson’s full mortise ball bearing hinges apart is the perfect blend of strength, control, and durability—all within a clean, flush-mounted design. These heavy duty adjustable hinges are engineered to meet the demands of commercial, residential, and fire-rated applications.

• Self Closing: The full mortise adjustable spring hinge offers built-in spring tension for smooth, automatic closing without the need for external closers.
• Ball Bearing Design: Ensures smooth, quiet door operation and reduces long-term wear, ideal for frequent use.
• High Load Capacity: A three hinge set can support up to 260 lbs, and four hinge set can carry 330 lbs.
• Fire Rated: Certified to UL list 3-hour fire rating, compliant with commercial fire safety standards.
• ADA Compliant: Supports low opening force and smooth closing, helping doors comply with ADA accessibility standards.
• Flush Mount Aesthetic: Clean, concealed look thanks to the full mortise design—preferred by architects and contractors.
• Tension Adjustability: Built-in numerical adjuster allows for precise spring tension control without removing the hinge.

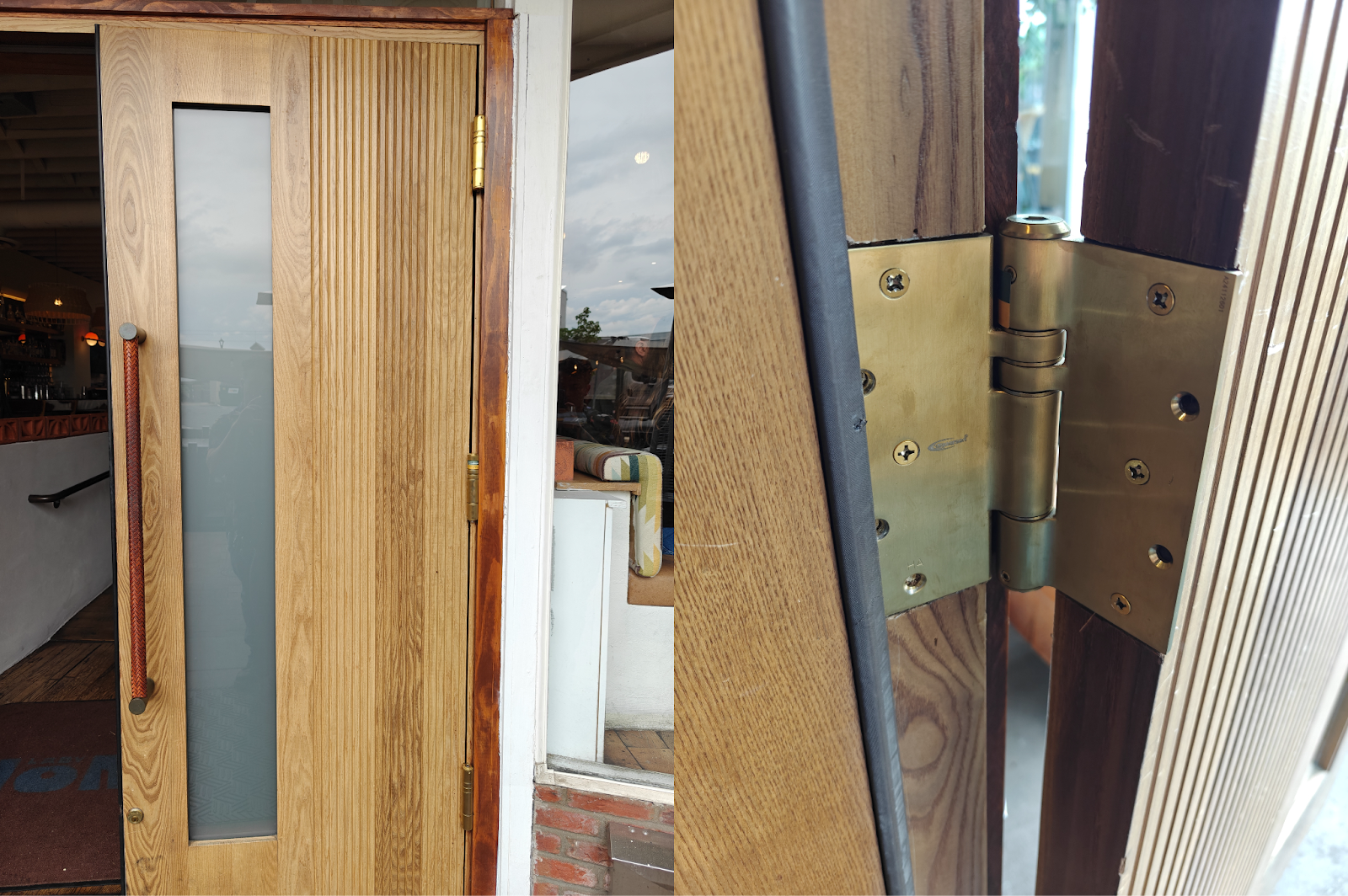

Waterson Full Mortise Ball Bearing Hinges

Waterson full mortise ball bearing hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
