When you specify hardware for a project, hinge selection is never cosmetic. It’s structural, environmental, and code-driven.
Recently, we received a common but critical question from a contractor:
“I want to apply a solid wood door as my front door. It would be inswing, but of course it’s exposed outside. So what hinge type would I need? Interior or exterior door?”
That question reflects a deeper issue: exposure defines the hinge requirement, not swing direction. So what is the difference between interior and exterior door hinges? And how can we define the right hinge type? Let’s break it down properly here.
Are Exterior and Interior Door Hinges the Same?
No. Interior and exterior door hinges differ in material durability, load capacity, thickness, corrosion resistance, and security features to match door weight and environmental exposure.
Exterior hinges are typically designed with consideration for:
- UV exposure
- Humidity and rain
- Temperature fluctuation
- Forced-entry risk
Interior hinges are generally specified for:
- Smooth operation
- Reduced noise
- Lower load capacity
- Cost efficiency
Interior and exterior door hinges are not identical, but the distinction is not marketing-driven but application-driven. Therefore, selection should follow door thickness, weight, and exposure, not simply whether the door swings inside or outside.
What’s the Main Difference Between Interior and Exterior Door Hinges?
Below is a contractor-level comparison based on standard architectural hinge templates (4″ and above).
| Feature | Interior Door | Exterior Door |
|---|---|---|
| Common Size | 4″ x 4″ (for 1-3/8″ doors) | 4.5″ x 4.5″ or larger (for 1-3/4″ doors) |
| Door Thickness Fit | Typically 1-3/8″ | 1-3/4″ standard; thicker custom doors |
| Material | Steel, brass, zinc-plated steel | Stainless steel 304 / 316, heavy-duty alloys |
| Corrosion Resistance | Minimal protection | Designed for moisture, coastal, and temperature exposure |
| Leaf Thickness | Lighter gauge | Thicker gauge for structural load |
| Pin Type | Standard removable pin | Often non-removable pin (NRP) for security |
| Load Capacity | Standard removable pin | Often non-removable pin (NRP) for security |
| Weather Exposure | Climate-controlled only | Direct or indirect exposure |
| Security Role | Not security-critical | Part of entry door security assembly |
| Maintenance Expectation | Low-cycle residential use | High-cycle, long-term structural reliability |
| Typical Applications | Bedrooms, offices, and interior passages | Commercial door, front entry, back door, patio, exterior access |
Because of these demands, exterior doors require reliable exterior self closing door hinges designed to maintain consistent closing performance under daily use and environmental stress.

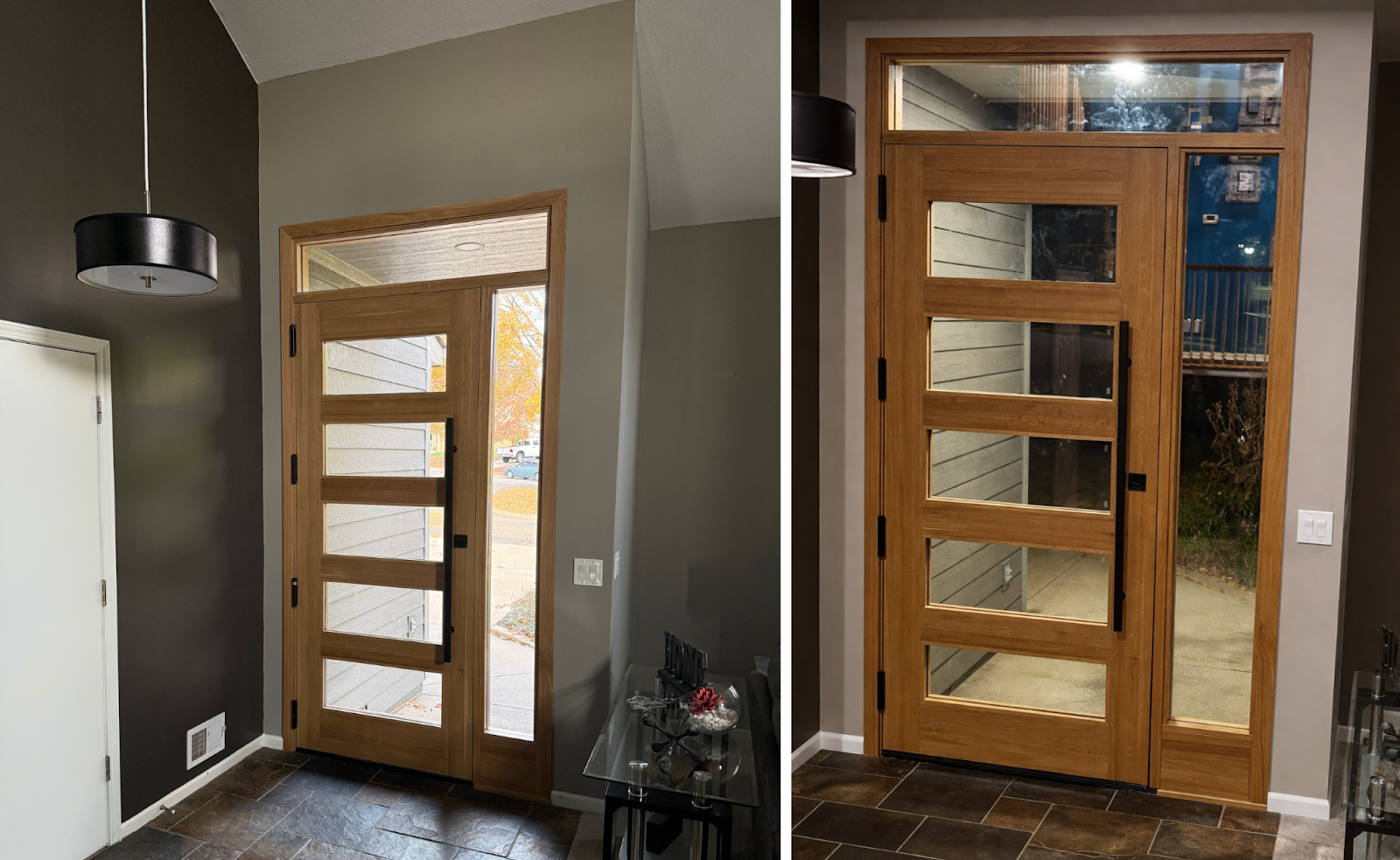

So, What Type of Door Is That Solid Wood Inswing Front Door?
In the case above, because the door is installed at the front entry and exposed to outdoor conditions, even just partially, it must be treated as an exterior opening. Using interior hinges would compromise long-term structural stability, corrosion resistance, and overall lifecycle performance.

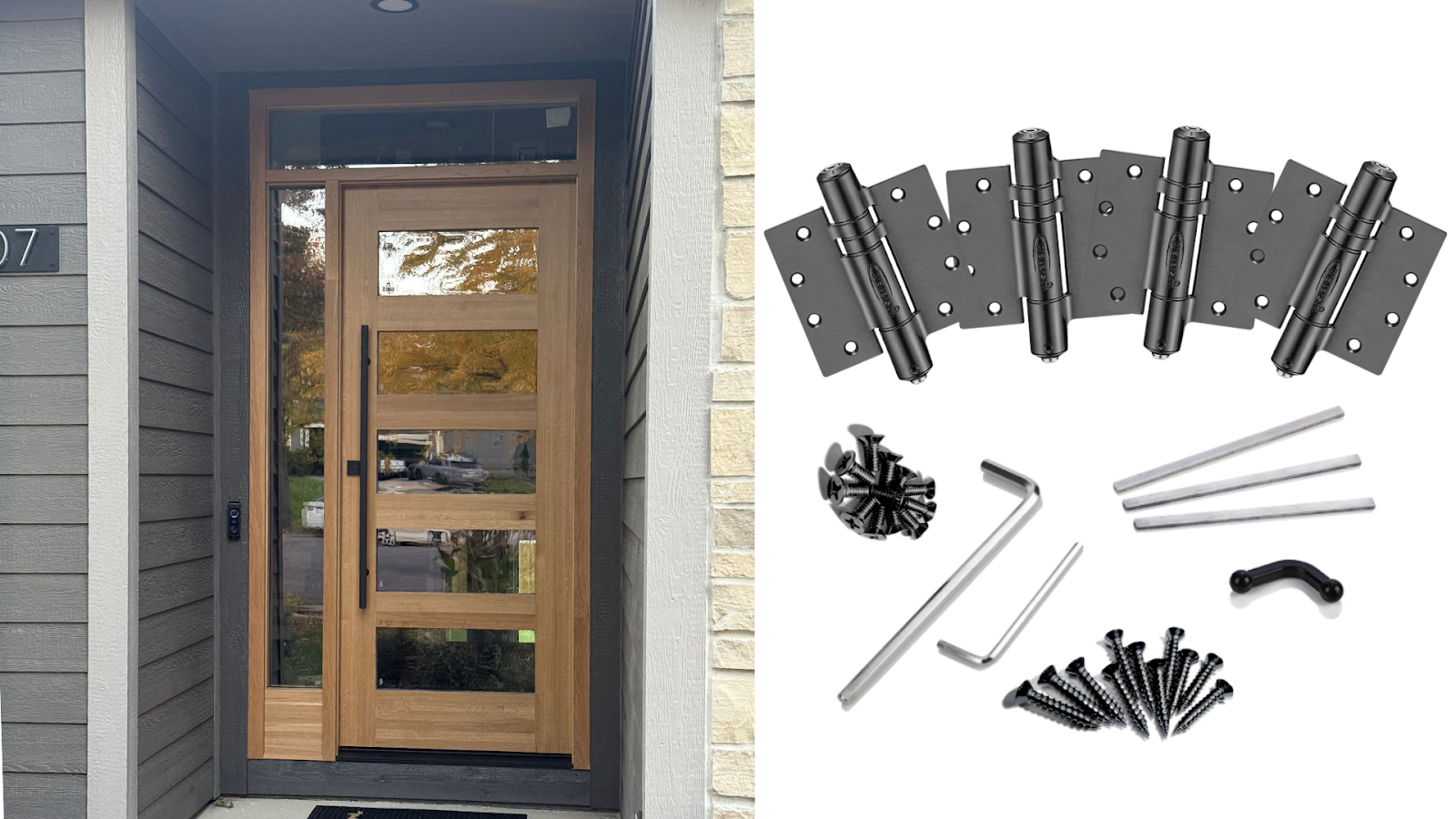

For a typical 1-3/4″ thick solid wood front door (commonly 80″–96″ in height), specifications should reflect exterior-grade standards:
Minimum hinge size: 4.5″ x 4.5″ template
- Material: Stainless steel 304 (standard exterior) or 316 (coastal/high humidity)
- Pin configuration: Non-removable pin (NRP) if outswing for security compliance
- Leaf thickness: Heavy-duty gauge suitable for entry door weight
- Load capacity: Rated for solid core or solid wood construction
Anything smaller than 4.5″ or specified as interior-rated hardware may initially function—but it will shorten service life, increase maintenance frequency, and introduce avoidable performance risk at the entry point of the building.
Can Any Spring Door Hinges Be Used for Both Interior and Exterior?
If a project falls within a transitional exposure condition, hinge selection should prioritize material durability and load classification rather than interior/exterior labeling alone.
Waterson spring hinges are manufactured in stainless steel 304 and 316, allowing specification for both interior-controlled and exterior-exposed environments when sized appropriately. The determining factors remain door weight, thickness, frequency of use, and environmental exposure, not the hinge mechanism itself.
The Importance of Adjustable Self Closing Hinges Exterior Door
The performance of self closing door hinges on exterior doors also depends on proper adjustment. Without the ability to fine-tune closing force, even quality hardware may not latch consistently.
Adjustable self-closing hinges allow tension to be set according to the condition. Ensuring a secure latch without excessive opening force, especially in high-traffic or wind-exposed areas.
- Stainless Steel: 304 (standard) / 316 (weather-resistant option)
- Construction: full-mortise spring closer, heavy-duty
- ADA Compliance: ≤ 5 lbs opening force; ≥ 5 seconds closing time; maintains accessible swing clearance
- Hold Open: Adjustable mechanical hold-open at approximately 85°–90°
- Fire Rated: Meet NFPA 80 requirements, used on fire-rated door assemblies
- Cycle Performance: 1,000,000-cycle tested (ANSI/BHMA Grade 1 equivalent)
- Adjustability: Numerical tension adjuster with multi-stage speed control
- Closing Performance: Smooth self-closing with controlled soft-close action
- Door Fit: Available in multiple sizes, templates, and radius preparations
- Primary Use: Daily convenience where a controlled hold-open improves traffic flow
- Typical Applications: Offices, retail stores, hospitality spaces, interior passages
- Ideal Use Case: High-traffic interiors requiring temporary hold-open without surface-mounted hardware
- Warranty: 10 years for mechanical, 3 years for hydraulic.
Code Note: Fire-rated self-closing and hold-open configurations are separate; hold-open not permitted on rated doors.
How to Install Waterson Hinges on an Interior or Exterior Door
Waterson Hinge Installation follows standard full-mortise hinge preparation and must match the specified template size. Proper alignment of the hinge barrel and accurate mortise depth are critical to ensure smooth hold-open engagement and consistent closing control.
Fasteners must match door and frame material (wood or hollow metal), and hinge quantity must comply with door height and weight specifications.
How to Adjust Tension on an Interior or Exterior Door Hinges
If you’re evaluating how to adjust the tension on door hinge, adjustment is done via the numerical tension dial and brake screw. Tension levels (N to 7) control closing force, while brake adjustment refines speed control and soft-close behavior.
Adjustment should be incremental and tested under real swing conditions. Over-tightening does not create a friction hinge; it modifies closing behavior within ADA limits.
Waterson Exterior Door Self Closing Hinges
Waterson interior and exterior door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.
In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.
Request For Quote
Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
