“I’d like to order a set of these for my Anderson patio door hinges. Our discussion is below. Winds are getting heavy and I need something to slow down the door in the wind. Will this do it? It has 4″ hinges with 5/8 radius corners.”
Getting the wrong patio door hinges means a door that won’t seal, won’t close properly, or slowly damages its frame. This guide covers what to look for, how to replace them yourself, and which self-closing upgrade works, backed by real installation experience.
What Is a Patio Door Hinge?
A patio door hinge is a mortise hinge built to the precise tolerances of patio door frames. These doors typically use 4″ x 4″ hinges with 5/8″ radius corners, conforming to BHMA (Builders Hardware Manufacturers Association) standards for universal template compatibility.
Patio door hinges carry more load than interior hinges:
the doors are heavier, weather-exposed, and used more forcefully. A quality hinge must resist corrosion, handle thermal expansion, and hold its seal over years of use. The Waterson K51M series integrates hydraulic soft-close directly inside the barrel, so no separate closer is needed.
How To Identify the Hinge Type on Your Patio Door
Confirm your door’s specifications before ordering. Three things to check:
- Measure the hinge leaf
Open the door and measure top to bottom. Patio doors typically use a 4″ x 4″ hinge leaf — the width of each plate, not the combined open width. - Check the corner radius
Patio doors commonly use 5/8″ (0.625″) radius corners. If the corners are square, you have a different configuration. A small ruler or radius gauge will confirm this quickly. - Check mortise depth and barrel clearance
Critical when upgrading to a hydraulic hinge. Waterson requires a minimum 0.56″ clearance on the frame side. Measure this before purchasing.
Unsure if a hydraulic hinge will fit? Photograph the hinge area and frame clearance. Waterson’s support team will confirm compatibility before you order.Waterson’s 4″ x 4″ / 5/8R template matches the standard Anderson patio door mortise exactly; designed to drop in without re-routing.
Can You Replace Patio Door Hinges Yourself?
- Remove the door
Pop out hinge pins bottom-up with a helper holding the door. Lay it flat on a padded surface to protect the glass. - Prepare the mortise
Remove existing spacers entirely. The hydraulic barrel is deeper — chisel the door-side mortise slightly to bring the leaf flush. Plan for this upfront to avoid trial and error. - Install and test
Mount frame-side leaves first, re-hang the door, attach door-side leaves. Adjust closing speed with the allen wrench valves before final tightening.
Here’s what a verified customer said after installing Waterson hinges on their patio door:
The fit is achievable with planning. Remove spacers beforehand, except for light mortise work on the door side, and the second install is much faster.
So, What Is That Chosen Patio Door Hinges?
For heavy patio doors exposed to wind, a standard spring hinge isn’t sufficient. The right choice is a 5/8 radius hydraulic hybrid closer hinge, combining spring tension with hydraulic resistance to control the full closing arc.
The Waterson K51M-400-B3-58R is the recommended option for this application: sized to match the 4″ x 4″ / 5/8R template exactly.
Why Waterson Hydraulic 5/8 Radius Door Hinges Work for the Patio Door
Waterson’s K51M-58R series uses a BHMA-standard template that fits the existing patio door mortise without frame modification. Beyond the fit, here are the features that make it the right choice:
- Hydraulic door hinges: Built-in oil damper controls the full closing arc, no slamming even in heavy wind.
- Wind resistance: Hydraulic resistance counteracts wind force, preventing the door from slamming open or shut.
- Adjustable closing speed: Two independent valves, top for sweep speed and bottom for latch speed, adjustable without removing the door.
- BHMA-standard template: 4″ x 4″ / 5/8R footprint matches the standard patio door mortise for a drop-in upgrade.
- Stainless steel: Grade 304 stainless steel resists corrosion from moisture and weather on exterior doors.
- All-in-one design: Hinge and closer in one unit, no overhead arm, no separate rail, no visible hardware added.
- Heavy-duty: Built for commercial high-traffic use, handles the weight and frequency of a main-entry patio door.
- ADA compliant: Meets ADA standards for closing force and sweep speed, low opening force, gentle close.
How To Install Waterson Hinges on a Patio Door
After that, here is the step-by-step guide to installing our Waterson spring hinges for patio doors:
- Remove the door and existing hinges
Take the door off the frame and lay it flat. Remove all existing hinges and spacers — Waterson hinges do not use shim spacers. - Deepen the door-side mortise
Chisel the mortise on the door edge so the hinge leaf sits flush. This is the step most first-timers miss — plan for it before re-hanging the door. - Mount frame-side leaves first
Install frame-side leaves into existing screw holes. The BHMA template aligns with the original hole pattern. - Re-hang the door
With a helper, position the door and attach the door-side leaves. Check the full swing arc before fully tightening screws. - Adjust and test
Tune sweep speed (top valve) and latch speed (bottom valve) with two Allen wrenches. Clockwise slows, counterclockwise speeds up. Test several times before final tightening.

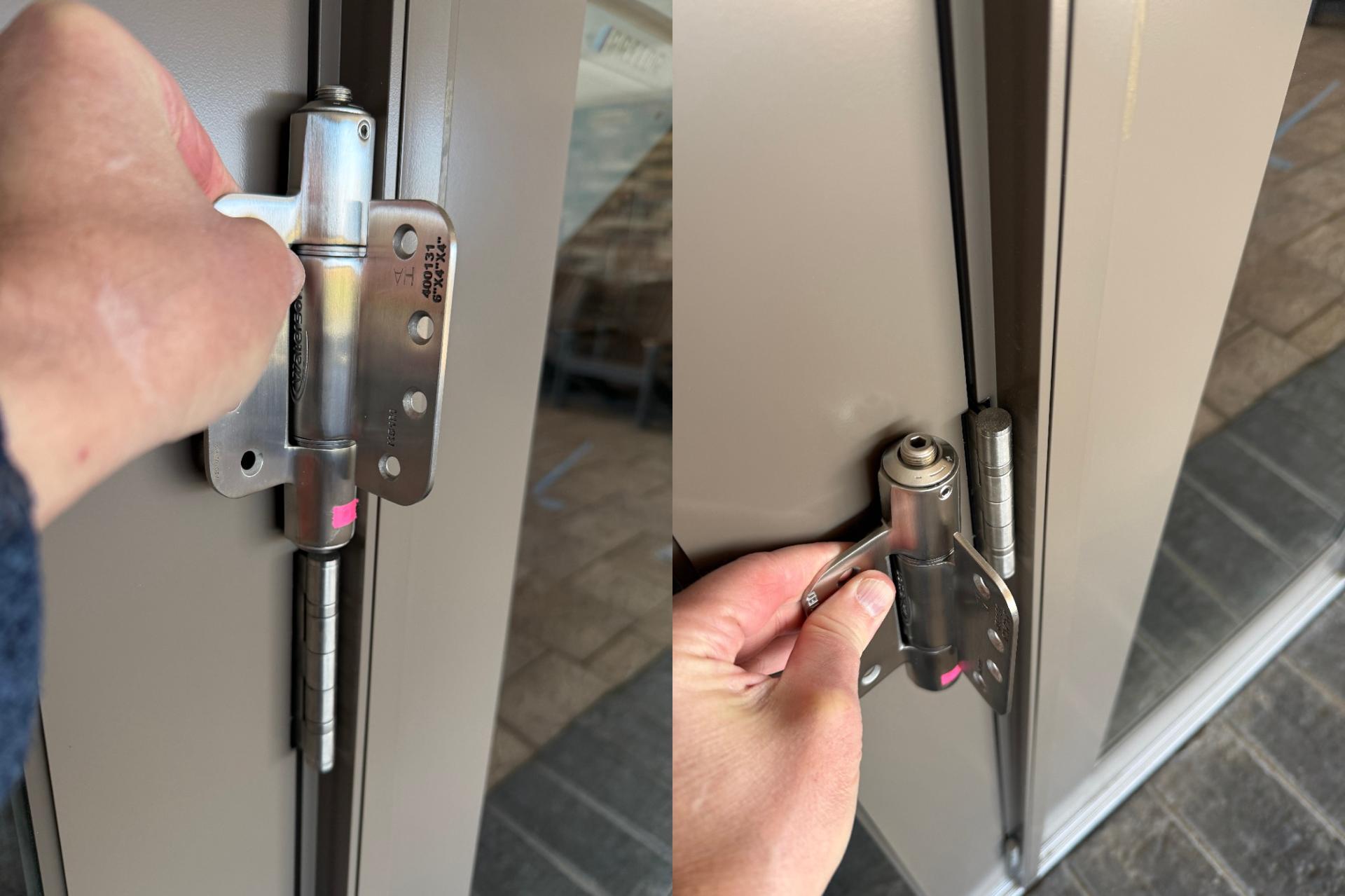

How To Adjust Waterson Patio Door Hinges
Waterson hinges are adjusted in place with the door still hung, no disassembly needed. Two Allen wrench valves on the barrel face control closing behavior independently.
Controls door movement from fully open to approximately 15–20 degrees before latch. Set slower for wind-exposed doors to prevent hard impact on the frame.
Controls the final closing motion into the latch. Set slightly faster to ensure reliable engagement in adverse conditions.
- Find your set code: Check your hinge model (K51M, K51SWRH, K51P, K51L, K51GG). All follow the same adjustment process under codes A, B, C, or D.
- Adjust the top valve (sweep speed): Controls closing speed from fully open to near-latch. Turn clockwise to slow, counterclockwise to speed up.
- Adjust the bottom valve (latch speed): Controls the final motion into the latch. Set slightly faster for reliable engagement.
- Test and repeat: Open the door to 90° and release. Adjust in quarter-turn increments until the result is consistent.

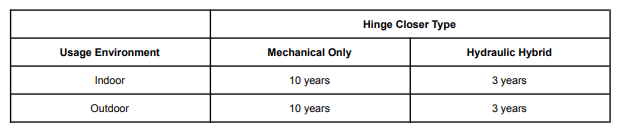

What Is the Warranty for Waterson Patio Door Hinges
Waterson Spring Loaded Door Hinge warranty covers 10 years for Mechanical Hinges and 3 years for Hydraulic Hinges, and includes:
- Covers defects in materials and workmanship
- Applies to mechanical and hydraulic components
- Specific terms listed by product at watersonusa.com/warranty
Not covered: damage from shipment, improper handling, storage, accident, impact, abuse, or misuse.
Waterson Stainless Steel 5/8 Radius Patio Door Hinges
Waterson 5/8 radius spring loaded door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.
In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.
