Is Spring Piano Hinge Strong Enough for Your Door?

Piano hinges, also known as continuous hinges, offer notable durability and are a mainstay in applications requiring frequent door usage. Their stainless steel build provides significant load-bearing capacity, vital for doors that endure constant use. However, for heavier doors and high-traffic commercial settings, heavy-duty self-closing spring hinges offer a stronger fusion of strength, compliance, and aesthetic appeal.



Stainless Steel Piano Hinges: What They Do Well

Traditional stainless steel piano hinges are remarkably resilient to temperature changes. High-grade stainless steel such as 304, 316, and marine grade 316L ensures resistance to scaling at elevated temperatures and maintains toughness at cryogenically low temperatures. This versatility makes them suitable for various environmental conditions.

Despite these functional advantages, the large size of piano hinges can pose challenges where design aesthetics matter. Their prominent appearance may clash with modern, minimalist designs. Additionally, their fixed tension and bulk can limit effective door operation, especially in public and commercial settings with heavy daily traffic.

Elevating Aesthetics and Functionality

Waterson’s heavy-duty stainless steel door hinges stand out in terms of both aesthetics and functionality. While retaining the durability and temperature-resistant features of traditional piano hinges, they excel in design and elegance.

Addressing Innovative Features with Waterson Hinges:

• Load-Bearing Capacity: Waterson hinges efficiently support significant loads – three hinges can bear over 260 lbs, and four hinges up to 440 lbs.
• Corrosion Resistance: Exceptionally durable, Waterson hinges excel in harsh environments, surpassing ASTM B117 and A156.7 standards in salt spray tests for over 200 hours.
• Standards Compliance: Adhering to ANSI/BHMA A156.17 standards, these hinges meet strict quality and safety benchmarks.
• Elegant PVD Finish: Offering small-batch customization, Waterson hinges come in various marine-grade finishes with options for powder coating or PVD processes.
• Installation and Maintenance: Easy to install and maintain, Waterson hinges are versatile for doors like commercial fire-rated doors, gates, and frameless glass doors.

Go further on how to install self closing hinges here.

Disclaimer: Waterson does not manufacture or sell piano hinges. The comparison above is provided for informational purposes. Waterson specializes in heavy-duty self-closing spring hinges, which serve similar applications as piano hinges but are engineered for heavier doors, wider commercial use, and stricter compliance requirements.

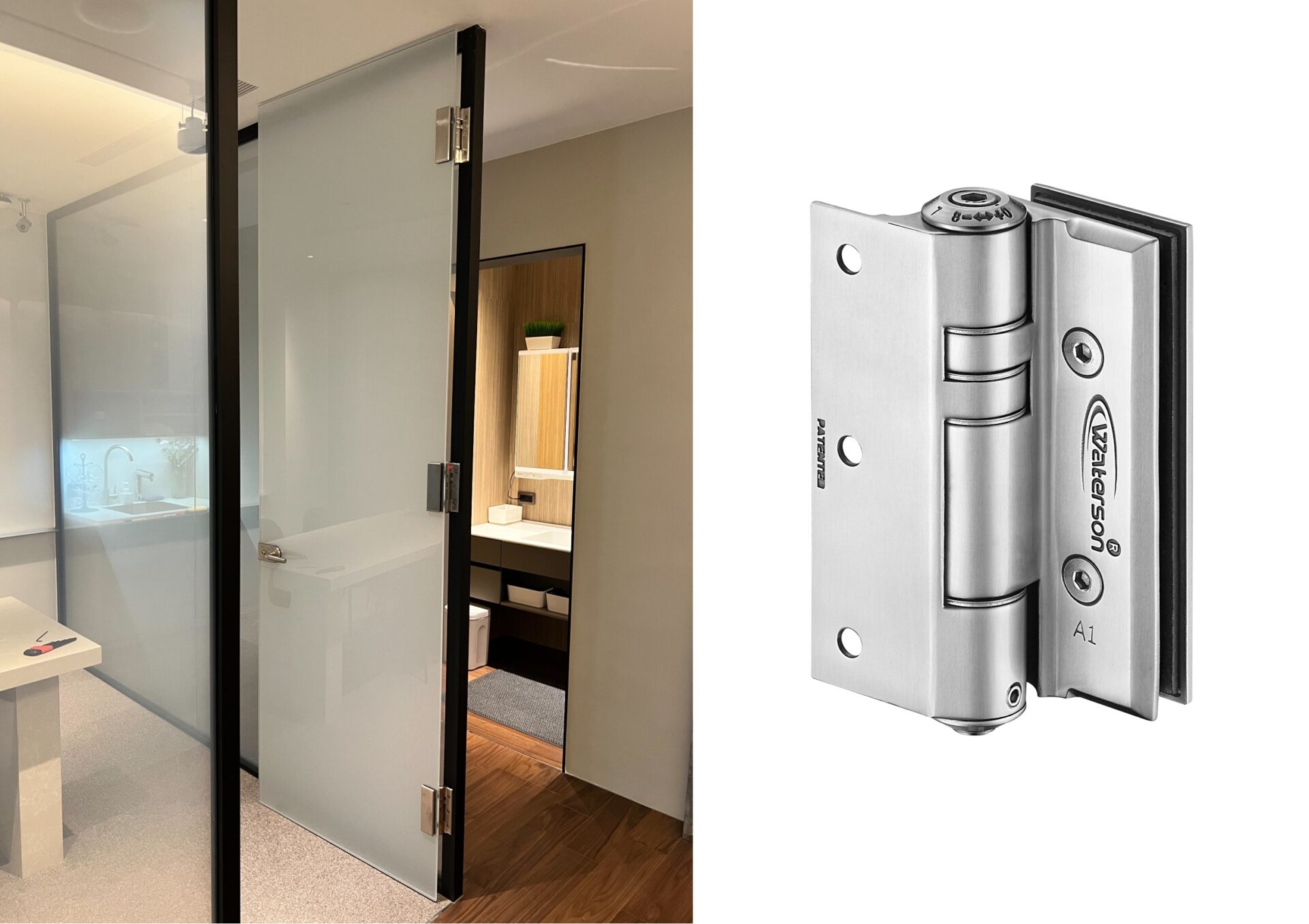

Waterson Heavy Duty Stainless Steel Door Hinges

Waterson heavy duty stainless steel door hinge combines an overhead closer and hinge into one attractive component with optional hold-open and door-stop features. These hinges are ideal for commercial openings, gates, and glass doors. These closer hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson closer hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being one of the best door hinges for both interior and all-weather exterior openings. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Information

Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
