“I bought these to replace standard 4 inch hinges, which, when open are 4 inches wide x 4 high. The Waterson hinges are 4 5/16 inches wide x 4 high. This means the door was shifted towards the strike plate side by at least a quarter inch. That meant the door hit the outside of the frame.

I couldn’t simply deepen the mortise on the hinge side because I didn’t have enough gap on that side to pull the door over without the door binding against the frame…there was no clearance. I would have had to shave the door down substantially and adjust all of the latching hardware. Since this is a custom door with a custom edge, I chose not shave all of that edge off.”

Why Does Waterson Self Closing Hinge Shift the Door Toward the Strike Plate?

The mortise template on a Waterson 4×4 matches a standard 4×4 butt hinge. Both leaves drop into the same cutout. What differs is the barrel diameter sitting on the hinge line. A thicker barrel moves the pivot axis further off the door and frame faces, and that relocated pivot carries the door leaf toward the latch side as it hangs.

Here is the sequence the reviewer described, in order:

  • The thicker barrel sets the door roughly a quarter inch closer to the strike jamb.
  • The strike edge now contacts the frame instead of the strike side gap.
  • Deepening the mortise to pull the door back only works if the strike side has room to receive it. On a tight custom door, that room does not exist.

On this hardware, the barrel diameter (not the leaf size) sets your door hinge decision.

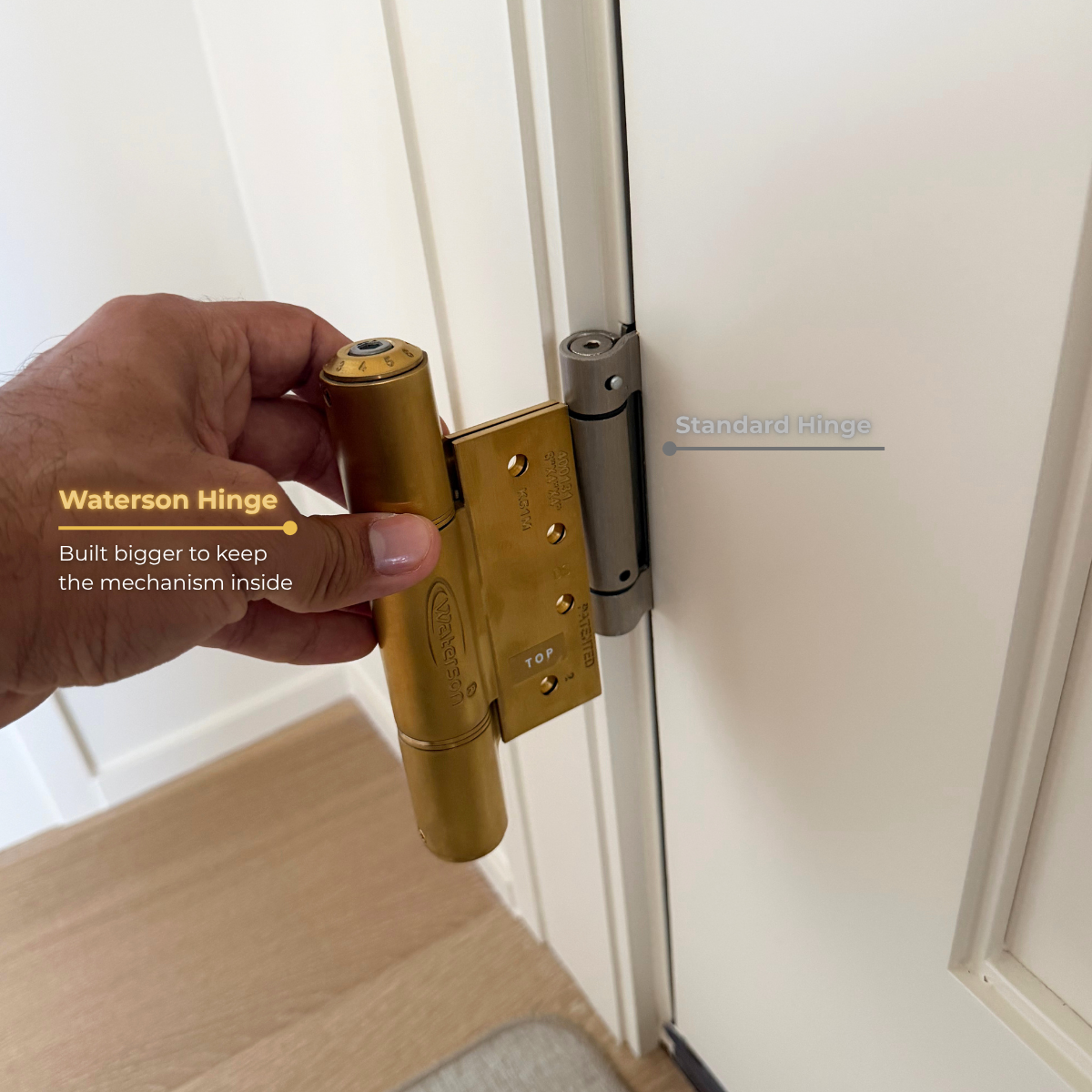

Waterson Hinge Barrel vs Standard Hinge Barrel

Why Is a Waterson Barrel Thicker Than a Standard Butt Hinge?

A standard butt hinge barrel holds one thing, a pin. A Waterson barrel is a working assembly. Everything a surface closer would normally bolt to the face of the door is instead packed inside that cylinder, so more function on the inside means more diameter on the outside.

Component inside the barrel Standard butt hinge Waterson closer barrel
Hinge pin Yes Yes
Spring tension mechanism No Yes, numerically adjustable
Closing speed control No Yes, mechanical or hydraulic
Hold open detent No Optional on some of the models

When you gain an overhead closer, a spring hinge, an optional hold open, and a stop in one mortised unit, you have to pay for this oversized barrel diameter. It is the same reason a surface closer body is bulky. The mechanism has to live somewhere, and here it lives in the barrel.

waterson-hinge-mechanical-vs-hydraulic

What Are Your Options When the Door Gap Is Too Tight for a Self Closing Hinge?

Before committing, measure the strike side gap with the door in its current hung position. That number, not the leaf size, tells you whether the opening can absorb a thicker barrel. From there you have two real paths.

Path 1: Recover the clearance

  • Deepen the hinge side mortise so the leaf sits further in. Works only when the strike side has room to let the door travel back.
  • Use the steel shims included in the hinge set to fine tune the door to frame gap. Good for small corrections, not for a full quarter inch.
  • Plane the strike edge and reset the latch, strike, and any edge hardware. Effective, but it removes material from a finished edge and adds real labor.

Path 2: Change the hinge option. Waterson is not your solution for this

  • On a custom, high value, or shaped edge door, shaving is usually the wrong answer. The reviewer above made the correct call by returning the product rather than cutting into a custom edge.
  • For an opening with essentially zero clearance, a barrel integrated closer hinge may not be the right tool. A concealed or surface closer, or a hinge with different offset geometry, can be the better fit.

We would rather tell you this hinge is wrong for one specific opening than sell you a return and a ruined door.

Which Waterson Features Earn Their Keep on a Tight Clearance Custom Door?

Assume the opening can take the barrel. Here is what a Waterson unit brings to a custom interior door, with a straight note on which features decide this specific job and which are simply nice to have.

The two features that decide the job are barrel diameter and adjustability. Fire rating and finish do not help if the door will not close against the frame.



Waterson Commerical & Residential Stainless Steel Self Closing Door Hinges

Waterson Self Closing Door Hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
