Watching a wine cellar glass door slam shut is never a good sign, especially in a space meant to feel calm and refined. Over time, that repeated impact raises concerns about the door, the hardware, and the wine inside.
“I should have chosen a higher-quality hinge from the start. The door looked perfect at first, but now it closes with a loud bang every time.”
Glass cellar doors are thick, heavy, and often used by guests. That means the hinge needs to do more than just close the door. It needs to control movement, prevent slamming, support the weight of the glass, and hold the door open when needed.
What wine cellar glass door hinges can handle heavy weight without slamming, in high-traffic use, and stay hold open when needed?
Why Wine Cellar Glass Doors Require Specialized Hardware
Wine cellars are highly controlled environments. They typically need to maintain a temperature of 12–14°C (54–57°F) and a humidity level of 50–70%, so the hardware in place has to do a lot more than just look pretty.
- Thermal Control: Metal hinges act as “heat bridges,” pulling warmth into the cellar. When cold metal hits warm air, it “sweats” (condensation), leading to mold, rust, and wood rot. Specialized glass door hinges use thermal breaks to stop this moisture and keep the area dry.
- Weight Support: Insulated cellar glass is heavy. Heavy-duty glass hinges act as a reinforced foundation, preventing the door from sagging so the door stays perfectly straight, even in high traffic, and is easy to open for years.
- Seal Integrity: Even a 1mm shift creates a “chimney effect” where cold air escapes the bottom, and warm air enters the top. This forces the cooling unit to run non-stop, causing system burnout. Specialized hinges maintain the alignment needed for an airtight seal, keeping wine quality.
Even the best seals won’t work if the door is left ajar. A properly controlled self-closing glass door hinges are needed to ensure the door fully returns to its sealed position after every use. They help maintain consistent temperature and humidity levels inside the wine cellar.
Oleodynamic (Hydraulic) Hinges: Why It’s Perfect for Glass Wine Cellar Doors
An oleodynamic hinge for glass, also known as glass door hydraulic hinges, is designed to control the movement of a door, rather than simply pulling it closed. Instead of relying only on spring force, it regulates how fast and how smoothly the door closes through internal resistance and damping mechanisms. This allows the door to slow down gradually near the end of its swing, preventing sudden impact or slamming.
The specialized damping eliminates forceful closing. Wine cellar glass doors with hydraulic hinges move smoothly without slamming, ensuring controlled closing and long-term reliability for glass wine cellar doors.
Upgrade Functionality: High Traffic Durability and Hold Open Feature
Your cellar door works harder than it looks. Whether it’s a party night or a quick weeknight grab. Standard hinges often fail under that constant pressure, leading to sagging and misalignment. That’s why using hinges tested for high-traffic cycles is essential.
Additionally, there are times when you’re restocking your collection or pulling out multiple bottles at the same time. It’s frustrating to manually fight a self-closing door every time your hands are full. In moments like this, a hold-open feature is the solution. It keeps the door securely in place (typically at 90° or 120°) until you’re ready to close it.

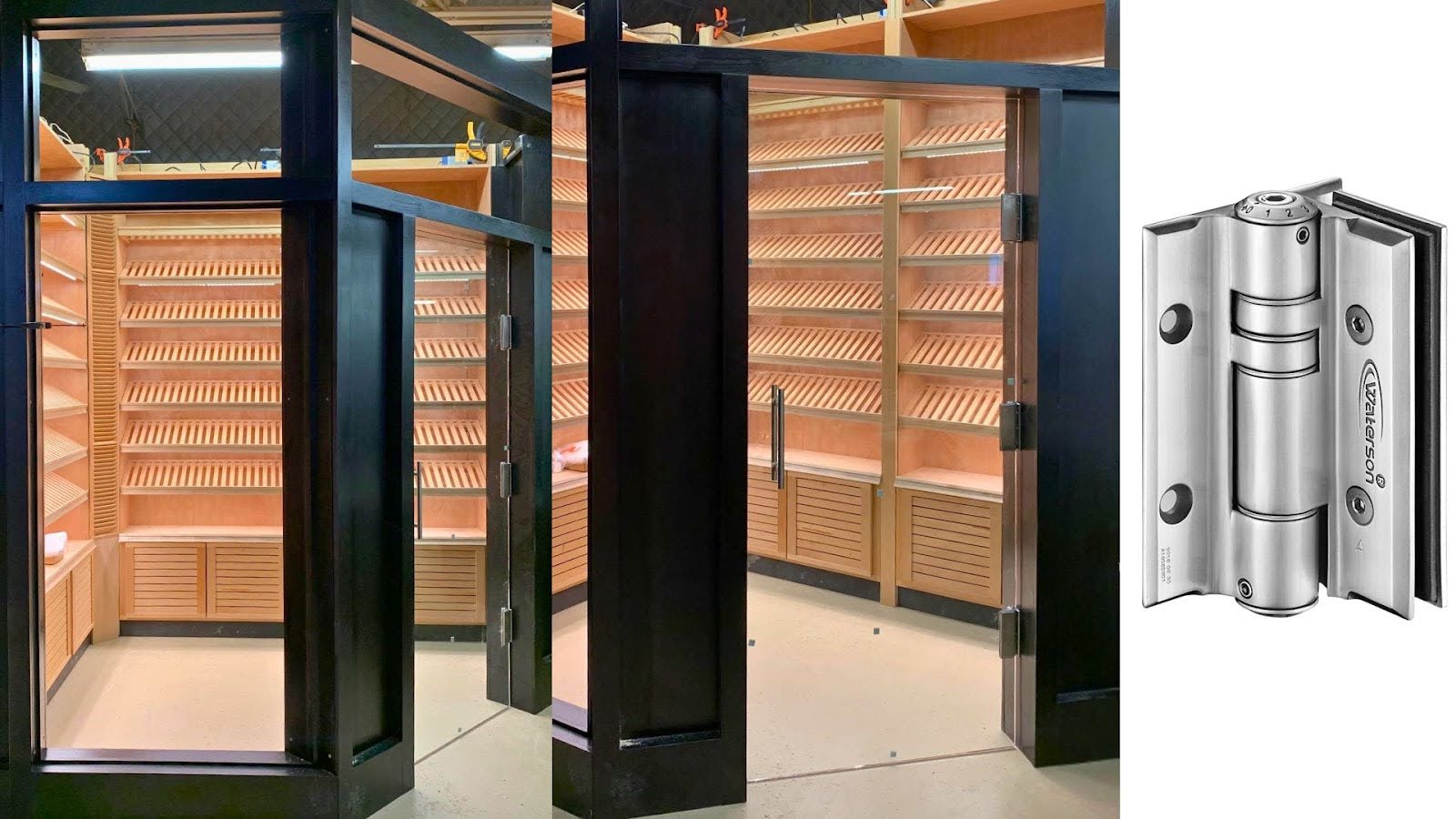

Wine Cellar Glass Door Case in Aspen
A private club in Aspen required interior wine cabinet doors that combined functionality and elegance. Standing at 9 feet tall with insulated glass, the doors featured hydraulic hinges that provided the perfect balance of strength and sealing capability. To complement the custom patina of the doors, the hinge finish was carefully matched with the overall design.
Hydraulic Hinges for Glass Doors: Wine Cellar Solution
Waterson hydraulic soft close hinges are a game-changer for wine cellar glass doors, offering precision and durability that standard hinges can’t match:
- Soft Closing: Controlled and anti slam closure with a hydraulic damper to slow down door movement towards the end. Ensures soft and quiet door closing
- Tight Sealing: Maintain consistent contact with the frame to ensure a firm close that prevents gaps and air leakage, preserving temperature and humidity.
- Stainless Steel: Built in 304 or 316 SST for high durability and corrosion resistance in moisture- or salt-exposed environments
- Heavy Weight Capability: Three hinges support up to 260 lbs; four hinges up to 330 lbs.
- Hold Open: hold-open door closer keeps the door at 90° or 120° so it doesn’t drift closed, improving work flow and ADA Compliance.
- ANSI/BHMA A156.17 Grade 1: Proven durability with over 1,000,000 cycles, guaranteed to function in high-stress and high-traffic conditions.
- Easy Installation and adjustable: follow Waterson’s step by step guide. Designed with a numerical panel that allows users to adjust easily.
- Wide Application: Performs reliably in wine cabinets, sauna glass doors, shower doors, office meeting pods, frameless glass gates, and many more.
Elegant Styling Options for Aesthetic Wine Cellar
Glass door hydraulic hinges don’t just improve the function of your wine cellar; they also contribute to the overall design. Choosing hinges that match other hardware, like handles or racks, creates a polished and cohesive look. Minimalist hinge designs can highlight the glass door as a design feature, while concealed hinge options create a clean, modern appearance by keeping hardware hidden. Together, these choices help create a wine cellar that feels balanced and well designed.

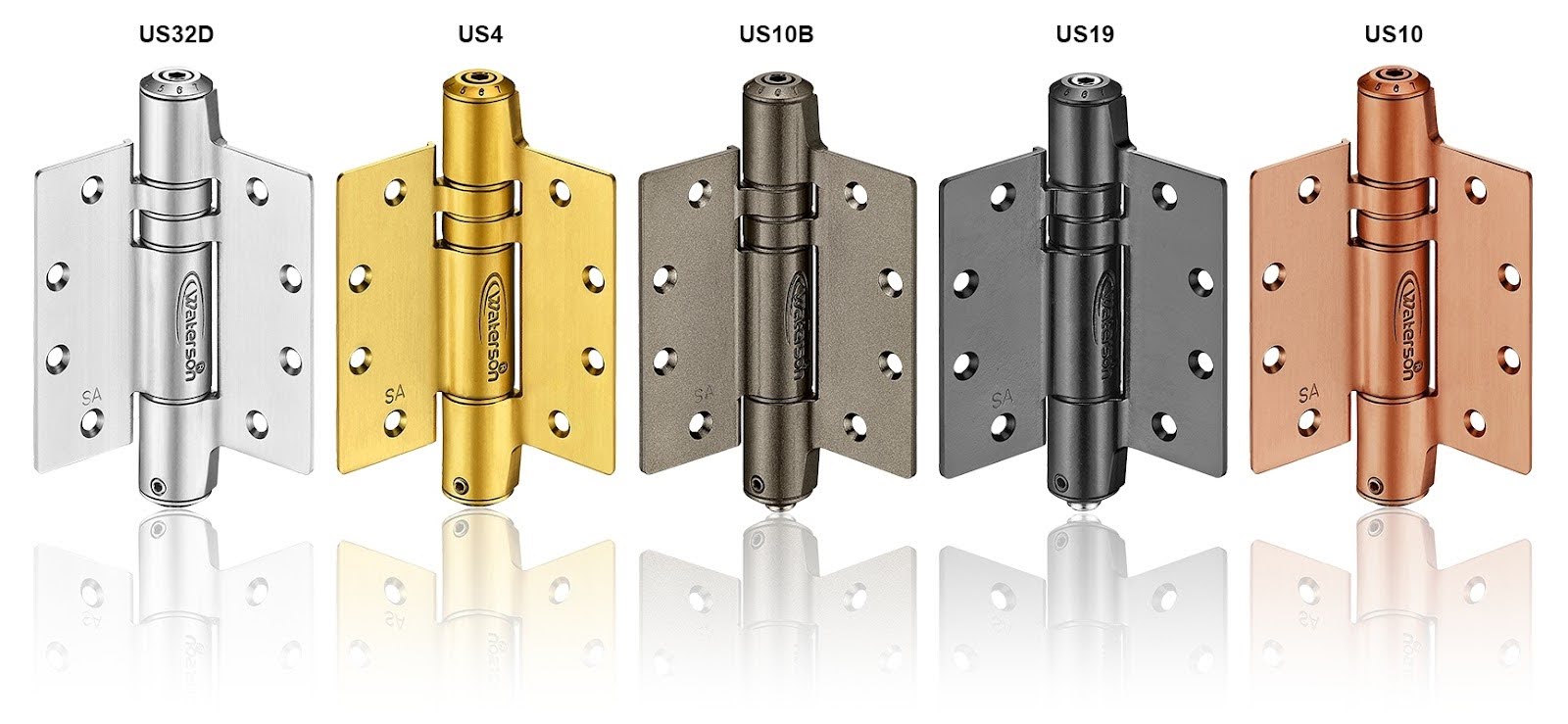

Waterson offers a range of glass door hinge finishes to enhance the overall appearance of your wine cellar. Black glass hinge create a refined and elegant look, while brass finishes add a sense of sophistication. Custom finish options are also available to meet specific requirements.

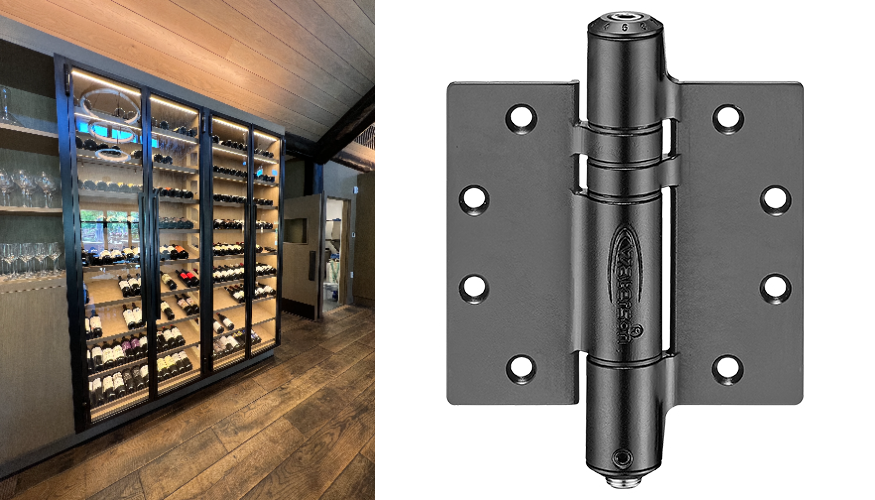

Waterson Anti Slam Wine Cellar Glass Door Hinges
Waterson wine cellar glass door hinges combine an overhead closer and hinge into one attractive component with optional hold-open and door-stop features. These hinges are ideal for commercial openings, gates, and glass doors. The hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson soft close door hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being suitable for both interior and all-weather exterior openings. See all our features.
In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.
Request For Quote
Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
