“Hi, we’re closing out a commercial lot and the spec calls for self closing hinges on the entry gates. These are customized metal gates: a welded 2×2 steel frame with chain-link infill, 4′-0″ wide by 3′-6″ tall, around 200 lbs each. I’m not locked into a hinge style yet, so I’m open to what you recommend.”

The chain link infill is the detail that stands out in this inquiry, but it is not the one that decides the hinge. What decides it is the frame and the post. A welded 2×2 square steel frame at around 200 lbs is a heavy metal gate, and that is exactly the kind of opening Waterson self closing gate hinges are built for. The one question left to answer is what the gate hangs from.

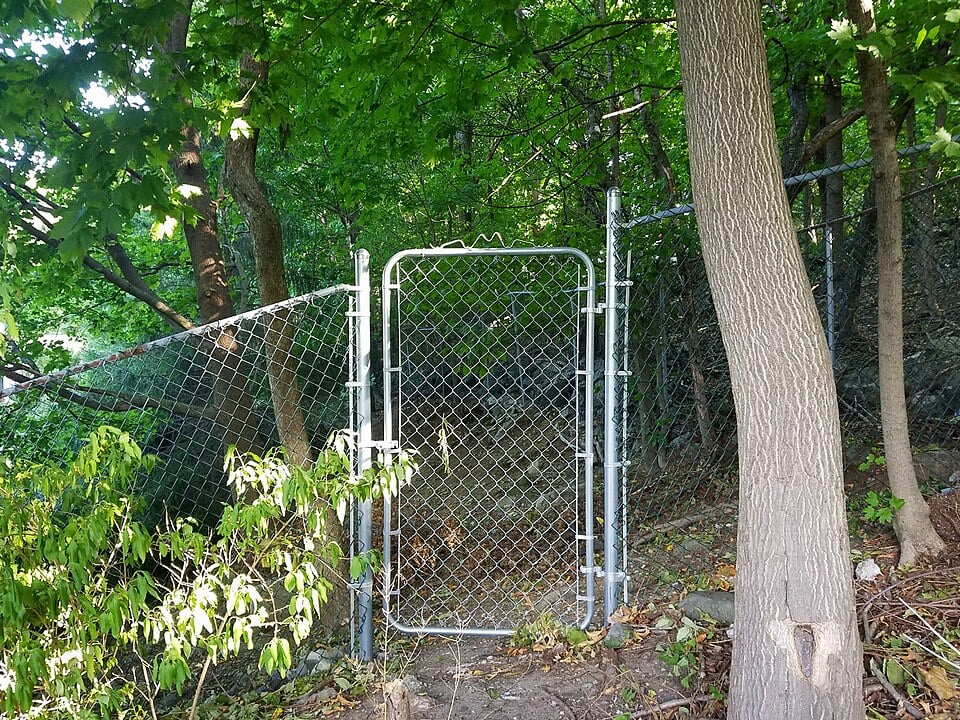

chain link gate wikimedia

Does Chain Link Infill Rule Out a Self Closing Hinge?

No. The hinge never touches the chain link fabric. It mounts to the gate’s hinge stile and to the post, so what matters is the shape and strength of those two members. A welded 2×2 square steel frame gives the hinge leaf the flat, rigid face it needs, and at around 200 lbs, the gate carries enough mass for a self closing hinge to control properly.

Here is how this gate maps to Waterson’s sizing:

  • Size: 4′-0″ wide by 3′-6″ tall sits within the 7′ x 4′ limit of a three-hinge set.
  • Weight: around 200 lbs is above the 150 lb limit of a two-hinge set, so a three-hinge set rated up to 260 lbs is the right choice.
  • Height: at 42″, the leaf is short, so space the three hinges evenly along the stile and confirm the spacing against the hinge drawings before welding or drilling.

For a square post, a full surface set such as the K51P-500-A3 clamps to the post with a back plate, while the K51PS screw-on version suits frames where the leaves will be welded or fastened directly.

What If the Gate Hangs on a Round Chain Link Post?

This is the one condition that changes the answer. Standard chain link swing gates hang on round tubular posts, usually 2-3/8 in. to 4 in. OD terminal posts set in concrete. There is no flat face and no square section anywhere on that assembly. Traditional chain link fence gate hinges solve this with a male/female fork or a wrap-around collar that grips the round pipe and pivots on a pintle.

Waterson’s K51 gate hinge line is engineered the opposite way. Every mounting style (full surface with back plate, full surface screw-on, butt style between posts, and side mount) is designed to fasten to 2 in., 3 in. and 4 in. steel square posts or a flat plane. The clamping and screw geometry needs that flat, rigid bearing surface to transfer the closing torque. Drop that same hinge against a 4 in. round pipe and the back plate contacts on a single tangent line instead of a full face, so there is nothing to torque against.

If your hinge-side posts are round, the practical fix is to switch the hinge-side post to square steel tube, or to have your fabricator add a flat mounting surface to the post. Send us photos and dimensions of the post, and our team will confirm what works before anything is cut.

round post gate hinges

Why the Standard Chain Link Hinge Gap Does Not Work for a Self Closing Barrel

Standard chain link gates are built with a deliberately large standoff between the gate upright and the post. That gap exists so the fork hinge collars can wrap the pipe and the leaf can swing a full 180 degrees. A self closing barrel hinge cannot span that distance, because the closing mechanism only works inside a controlled gap window. On a custom gate like this one, set the gap between the frame and the post to the K51 gap drawings instead.

Standard chain link gate hinge Waterson K51 self closing hinge
Post shape Round pipe, 2-3/8 in. to 4 in. OD Square steel post, 2 in. / 3 in. / 4 in., or flat plane
Hinge to post gap Wide standoff (roughly 3 in. to 4 in.) to clear the collar Narrow, defined min/max gap per the K51 gap drawings
Pivot method Fork/collar rotating on a pintle Spring and cam barrel inside a fixed leaf span
Best gate match Light chain link frame on round posts Heavy square tube or solid metal frame on square posts

Why Is a Lightweight Chain Link Gate a Different Story?

The gate in this inquiry is heavy, but many chain link gates are not, and that weight gap is the other reason standard chain link openings need different hardware. Waterson heavy duty hinges start at a 4 in. x 4 in. size and are tuned for gates from 40 lbs up to 150 lbs (under 6 ft x 3 ft) and up to 260 lbs (under 7 ft x 4 ft). A typical fabric-on-tube chain link leaf weighs a fraction of that. Here is where it breaks down:

  • The self closing torque is calibrated for a heavy, rigid leaf. On a 25 lb to 40 lb chain link frame, that force profile is wrong for the mass it is moving, so speed and latch behavior cannot be dialed in the way the product is designed to be.
  • The fastening loads are built for solid stock. A 1-3/8 in. chain link tube wall is thin, so surface screws or clamp pressure sized for a metal gate will deform or crush the tube instead of holding.
  • The leaf geometry does not match. A standard chain link frame gives you a round pipe stile, not the square edge and flat face the hinge leaf is cut to sit against.

A welded 2×2 square steel frame at 200 lbs avoids all three problems, which is why the infill alone does not decide the hinge.

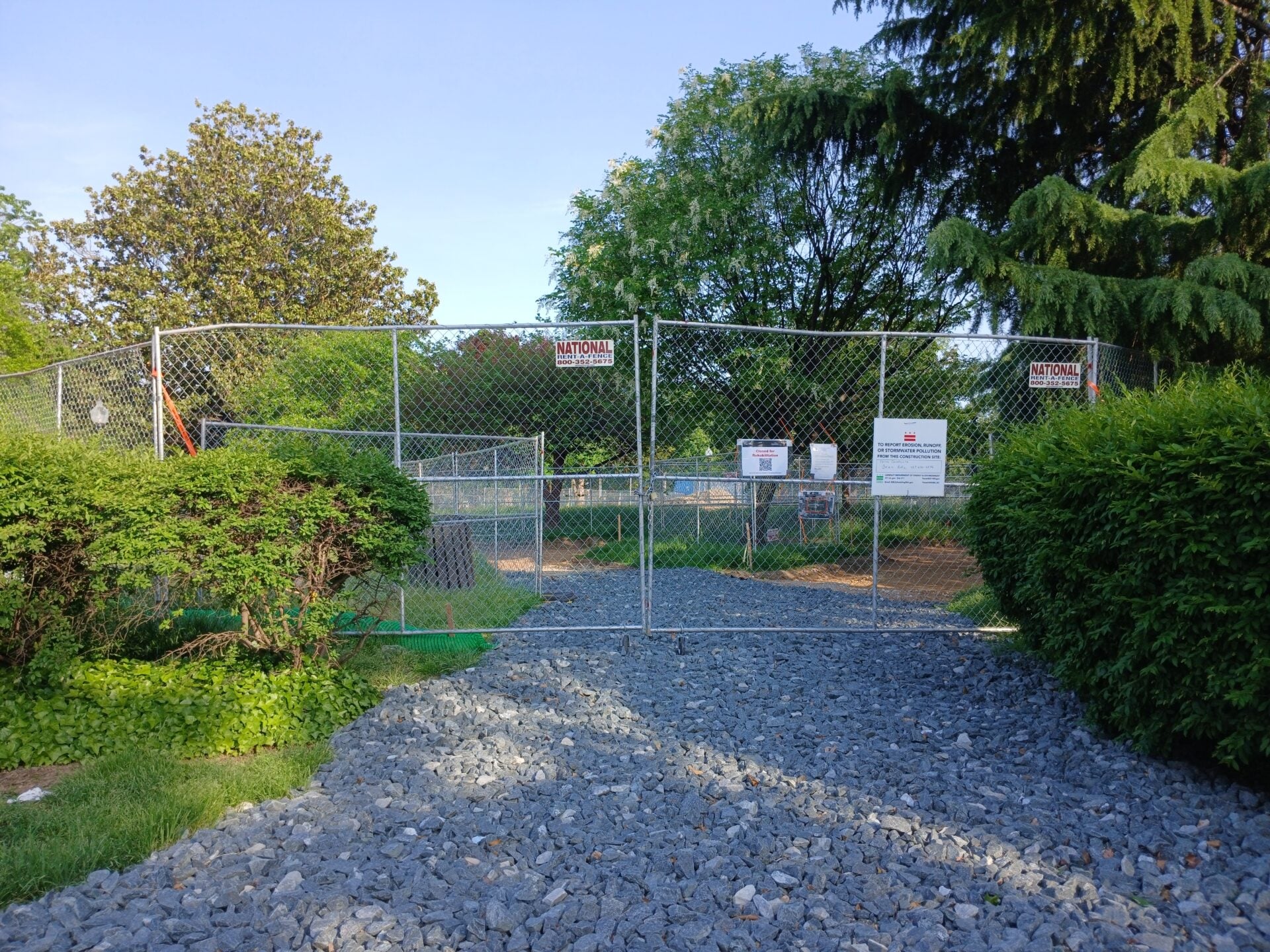

Chain_link_gate wikimedia

What Do Waterson Stainless Steel Hinges Deliver on a Heavy Metal Gate?

On a square frame metal gate, the full feature set does exactly what a commercial entry gate needs:

Which Gates on a Commercial Lot Are a Good Fit for Waterson?

Use this quick check for every gate on the project:

Opening type Good fit for Waterson?
Welded square tube frame with chain link infill, on a square post Yes, size the set by weight
Welded square tube frame on a round post Yes, once the hinge side has a square post or flat mounting surface
Standard light chain link gate, round post and thin tube No, use round post chain link hardware
Pool or safety gate needing controlled self close and latch Yes
Gate over 260 lbs or outside standard spec Contact Waterson for a custom quote

iron gates

Judge the Gate by Its Frame, Not Its Infill

Chain link infill can make a gate look like standard fence hardware territory, but a welded 2×2 square steel frame at 200 lbs is a heavy commercial metal gate. For this opening, a three-hinge Waterson set rated up to 260 lbs covers the weight with margin, the square frame gives the hinge leaf a solid face, and the self closing and hold open functions meet the spec without a separate closer. The only variable left is the post: square posts are ready as they are, while round chain link posts need a square post or a flat mounting surface on the hinge side.

Send your gate weight, frame size, post shape and size, and site conditions through a quote request, and our team will confirm the right mounting style and hinge set for every gate on the lot.

Frequently Asked Questions


Three. A two-hinge Waterson set is rated up to 150 lbs, so a 200 lb gate needs a three-hinge set rated up to 260 lbs. Weight decides the count here even though the gate is short, because the hinges have to carry and close the full mass of the leaf.

Not directly. Waterson gate hinges need a flat, rigid mounting face to transfer the closing force, and a round pipe only gives them a single line of contact. Switch the hinge-side post to square steel tube, or have your fabricator add a flat mounting surface, then size the hinge set to the gate as usual.

It is not a good match. Waterson hinges are designed for gates from about 40 lbs and up, so a very light leaf will not let you tune the closing speed and latch properly. Thin chain link tubing can also crush under the hinge fasteners. For light chain link gates, a spring or gravity hinge made for round pipe is the better choice.

Either can work. The K51P full surface hinge clamps to the post with a back plate, so no welding is needed. If you prefer to weld, hang and adjust the gate first, then use short spot welds with cooling time between each one, so heat does not reach the closing mechanism inside the barrel.

Yes. The hinges close the gate on their own from any open position, and the adjustable speed and tension let you drive the gate firmly into its latch. Pair the hinge set with a self-latching gate latch, then test the gate from several open positions before final sign-off.
