Glass to Glass Shower Door Hinges: What Stops Slipping Issues

“I’m having an issue with glass-to-glass shower door hinges slipping in my steam shower and sauna. Everything is aligned and tight at room temperature, but once I heat up the sauna or run the steam, the door slowly sags and the hinges start slipping on both glass panels.

We replaced the hinges and tried high-temperature gaskets and shims, but the issue returns after heating. Is this a gasket issue or hinge thermal movement? Can anyone help me?”

Slipping and failing hinges are a serious problem for steam shower and sauna owners. Imagine when the heat rises and your muscles are relaxed, enjoying the relief of a steam shower, then suddenly, bang! The glass door shifts or stars falling. The moment can quickly turn a relaxing moment into a worrying one. It becomes a reminder that the right hardware choices matter in these demanding environments.

So, what could be the cause behind this? And how to choose the right glass to glass shower door hinges to solve it?

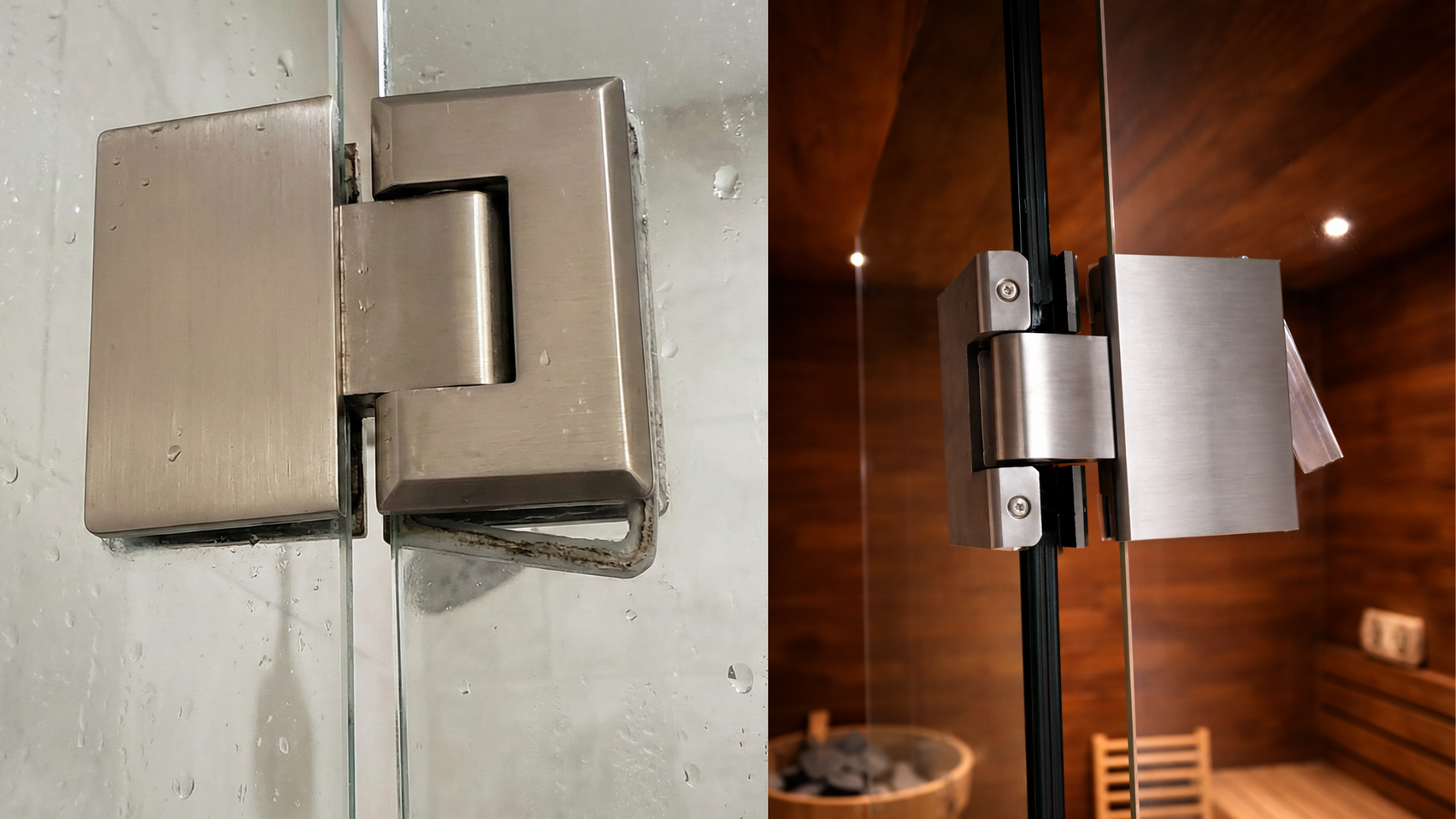

Why Slipping Happens in Glass to Glass Shower Door Hinges?

When a room heats up and glass to glass hinge starts to slip, it is a thermal and material behavior issue. At room temperature, the hinges appear secure because the clamping force and gasket friction are sufficient. However, once the sauna or steam shower is heated, several things happen simultaneously:

1. Loss of effective clamping force: When the hinge heats up, the metal expands just enough to loosen its grip on the glass, so the door slowly starts to slide down.
2. Gasket Softening and Compression: Heat and steam make the gaskets softer over time, which reduces friction and lets the glass slip.

Although the door’s weight stays the same, reduced clamping force from heat and gasket compression allows the door to sag and the hinges to slip over time. That said, the issue isn’t the installation, but how glass-to-glass hinges respond to heat and moisture.

So, What Glass Door Hinge Design Will Stop Slipping in Steam Room When Heat and Moisture are Unavoidable?

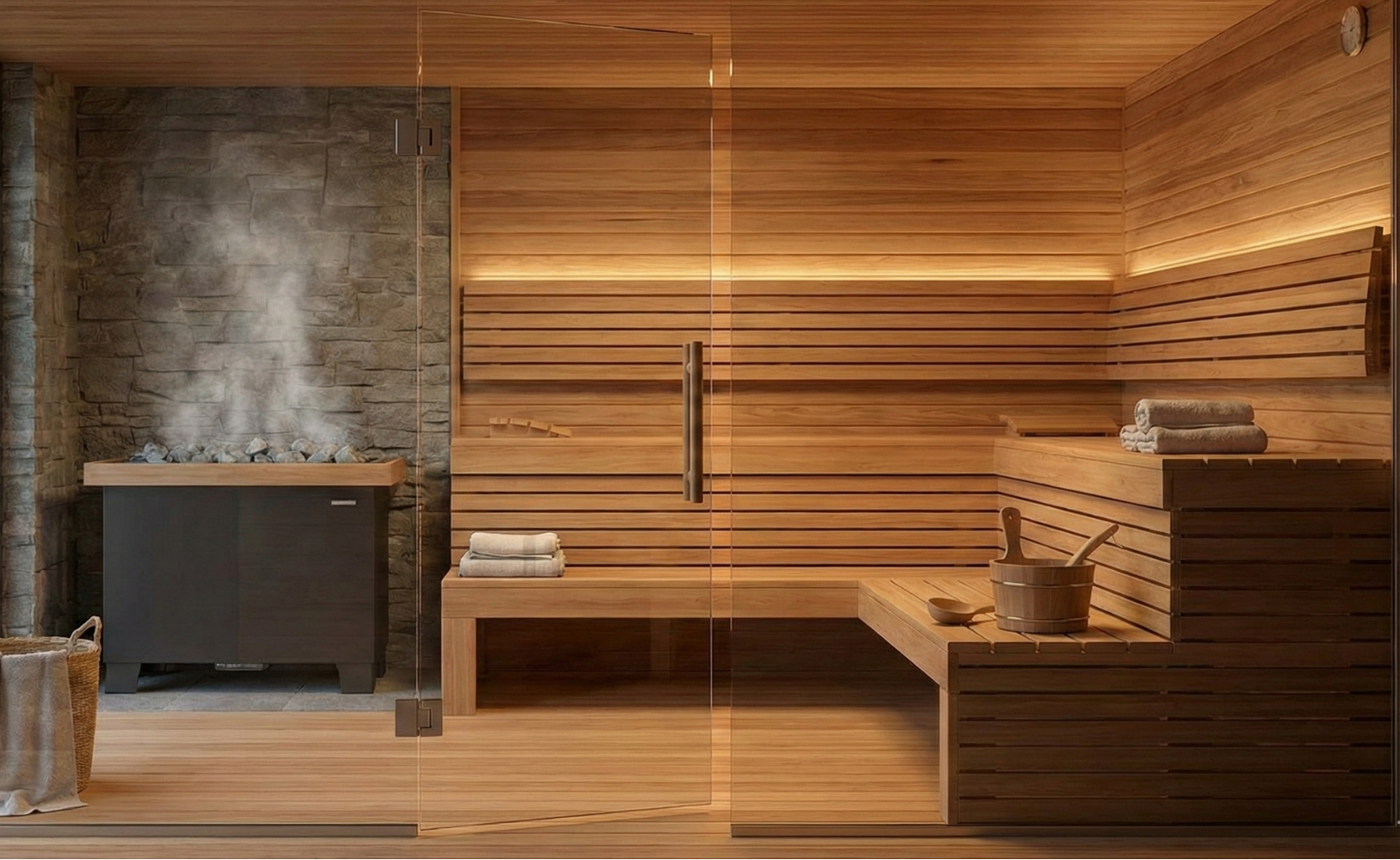

When a steam shower or sauna uses a frameless glass door, the hinges are attached directly to the glass. Since heat and steam will always soften gaskets over time, well-designed frameless glass hinges should spread clamping pressure over a larger area, so it does not rely only on gasket friction to hold the door in place. Moreover, glass door hinges that equip an internal use mechanical fastening inside the hinge body could help keep everything secure, which makes the glass door much less likely to slowly slip as the gaskets soften.

Thus, a well-designed glass to glass shower door hinge doesn’t just rely on friction; it also uses mechanical fastening and better load distribution to keep the door secure over time.

How Do Alignment and Adjustments Enhance Steam Shower Room Glass Door Performance?

While heat and moisture cause slipping, regular alignment checks and adjustments are essential to maintain proper door operation and compensate for thermal movement. Choosing easy-to-install and adjustable glass to glass shower door hinges helps prevent sag or misalignment in the long run.

The problem is that most standard glass door hinges are not designed with adjustment mechanisms. In high-temperature and humid environments like steam showers and saunas, the lack of adjustability limits owners from correcting door movements as condition changes.

Top Materials for Sauna and Steam Shower Door Hinge

Shower room and sauna door hinges are constantly exposed to moisture and heat. In the long-term, hinges that are not made from high-grade materials are vulnerable to rust and corrosion. Corrosion and rust are more than a matter of aesthetics, it also impacts on the hinge’s life. It increases friction, makes adjustments harder, and makes the hinge fail to perform.

Stop Slipping Glass to Glass Shower Door Hinges with Waterson

Waterson glass to glass shower door hinges are made of high-grade 316 stainless steel with integrated features to perform in high-moisture and temperature environments.

• Anti Slip: Teflon coating, reduces internal friction and wear inside the hinge, supporting smooth operation and long-term stability.
• Clamp on Glass Panels: The glass panels are directly secured with screws, which helps stop the door from slipping, even in the high heat of saunas and steam showers.
• 316 Stainless Steel: Durable, low maintenance, marine-grade
• Corrosion Resistance: Endure moisture surpassing ASTM B117 and A156.7 standards in salt spray tests for over 200 hours
• High Heat Resistance: Built to perform reliably in extreme sauna temperatures—can withstand up to 250°C without deforming, weakening, or losing alignment.
• Easy Installation: Simply drill holes in the glass per Waterson’s specifications.
• Adjustability: Designed with a numerical panel that allows users to adjust easily.
• Load Bearing Capacity: Three hinges support up to 260 lbs; four hinges up to 330 lbs.
• Self Closing and Soft Closing: Controlled and anti slam closure in sauna or steam shower room
• ADA Compliance: <5 lb opening force. >= 5 sec close time. Works seamlessly with over 34” wide door designs.
• Wide Application: Performs reliably in sauna glass doors, soft close shower doors, screen doors, wine cabinets, offices, and many more.

No Slipping Frameless Glass Door Hinges in Australia

Recently, Waterson glass to glass hinges were installed at the Trident Toilet Partition factory in Australia, using frameless laminated glass doors measuring 76″ × 29″ and 1/2″ thick. The decision to choose Waterson was based on a strong recommendation they received. Waterson has been trusted to provide self closing frameless glass door hinges for many projects. They are designed to ensure reliable glass door operation without worrying about slipping doors, slamming, or failing hinges.

Waterson Glass to Glass Shower Door Hinges

Waterson glass to glass shower door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
