Quick Answer
Choose a gate closer rated for the gate’s weight and size, with adjustable closing force and speed, stainless steel construction, and a mounting style that fits your posts. Waterson stainless steel closer hinges handle gates up to 150 lbs with two hinges and up to 260 lbs with three, in surface, butt, and side-mount styles.

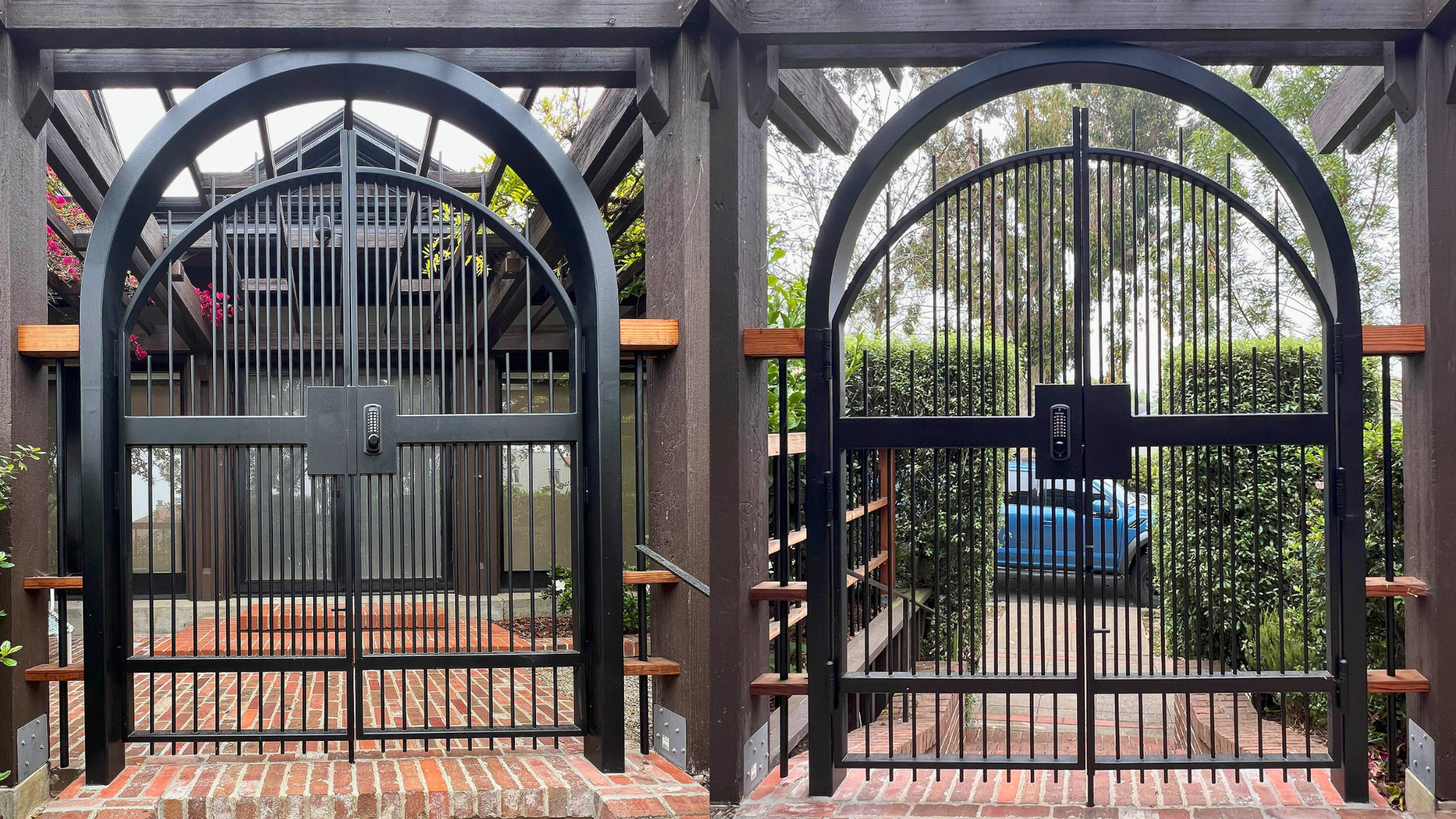

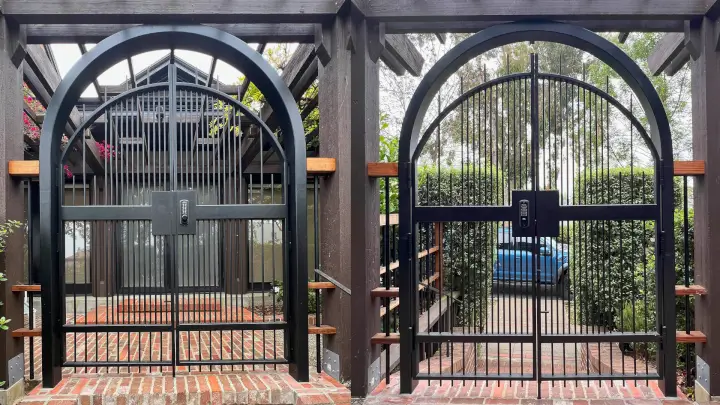

Iron gates are known for their strength, weight, and durability, providing a strong physical barrier while offering excellent aesthetics. They are commonly used in residential areas, schools, and industrial sites. To operate effectively and ensure safety, a strong and weatherproof gate closer is essential.
Traditional Gate Closer is Not the Answer
Common gate closers fall into three groups: basic spring hinges, which pull the gate shut with no speed control; surface-mounted hydraulic closers, which add an arm and can leak or lose damping in cold weather; and counterweight closers, which hang a weight on a chain and need clear space beside the post. On heavy iron gates, basic spring hinges tend to sag and slam, which is why closing force and speed both need to be adjustable.
5 Key Qualities for Iron Gate Closer:
- Self-Closing and Accessibility: Gates on an accessible route are treated like doors under ADA 2010. Closing speed must be controlled, and opening force limits for exterior gates are set by the local AHJ, so choose a closer you can adjust on site.
- Adjustability – Adjustable tension and closing speed ensure compliance with accessibility standards, extend hardware lifespan, and improve user experience.
- Anti Slam Feature – Prevents injuries and eliminates disruptive slamming sounds, creating a safer and quieter environment.
- Weather Resistant – To ensure longevity, the iron gate closer should be made of materials that resist moisture, UV exposure, and temperature fluctuations.
- Heavy Duty – The gate closer must support the full weight of an iron gate and endure long-term, frequent use without failing or deforming.
Is There Any Compact Solution of Iron Gates Closer?
Yes, Waterson iron gate closers are specially designed to provide all the essential features, even offering more advanced features as follows:
- Self closing feature: With a built-in spring mechanism, Waterson self closing iron gate closers ensure a controlled close every time, providing safety and peace of mind.
- Adjustable opening force: Tension can be set low enough to meet the AHJ’s accessibility requirements, allowing smooth gate operation in high-traffic areas.
- Adjustability: A numerical panel lets installers set the desired closing force for reliable closing and helps resolve misalignment.
- Load bearing capacity: Two hinges handle gates up to 150 lbs and 6′0″ x 4′0″; three hinges handle gates up to 260 lbs and 7′0″ x 4′0″.
- Durable, corrosion resistant material: Type 304 stainless steel standard, Type 316 optional for coastal sites where rust resistance matters most. Mechanical models carry a 10-year warranty, indoors or outdoors.
- Anti slam feature: Swing and latch speed control prevents slamming, protecting the gate, its frame, and the people using it. Contact Waterson before specifying for large gates exposed to strong wind gusts.
Which Waterson Gate Closer is the Right One for Your Iron Gate?
There are 4 main types of Waterson gate closer, each with their own specific functions.
- K51P: Full Surface Clamping Style – Outdoor gate hinge surface mounted on the metal gate square posts. Check out the current application for the PickleTile court project here.
- K51PS: Full Surface Screw-on Style – Outdoor gate hinge surface mounted on the metal gate square posts without back plate.
- K51MP: Butt Hinges Style – Outdoor gate hinge installed between metal gate square posts. Read about a major application in the BIM Group project in Vietnam.
- K51W (no cap) & K51WP (with cap): Side Mount Style – Outdoor gate hinge installed on uneven planes.
Check the Waterson Gate Hinges Catalog and Hinge Drawing here.
The best choice is a stainless steel closer rated for the gate’s weight, with adjustable closing force and speed. Waterson mechanical gate closer hinges handle gates up to 150 lbs and 6 ft x 4 ft with two hinges, and up to 260 lbs and 7 ft x 4 ft with three. Specify 316 stainless for coastal or pool locations.
It depends on how the gate meets the post. K51P clamps onto square tubing posts from 1 x 1 inch to 4 x 4 inch, K51PS screws on without a backing plate, K51MP mounts as a butt hinge between gate and post, and K51W or K51WP side-mounts where surfaces are uneven. Check the gap drawings before ordering K51P or K51MP.
For most heavy metal gates, an adjustable closer hinge is the most reliable. Basic spring hinges have no speed control and tend to slam. Surface hydraulic closers add an exposed arm and can lose damping in cold weather. Counterweight closers need space beside the post. Closer hinges combine spring force and mechanical speed control inside the barrel, with nothing exposed.
For heavy hollow metal doors, specify full mortise closer hinges rather than gate hinges. Waterson K51M 5 inch sets handle 1-3/4 to 2-1/4 inch doors up to 4 ft x 8 ft and 330 lbs, replace both the hinges and the overhead closer, and all-mechanical sets without hold-open are UL listed for fire doors up to 3 hours.
Not always. Waterson gate closer hinges install with the supplied fasteners and adjust with standard hex keys, following the installation guide for each mounting style. For heavy iron gates, a fence or gate installer is recommended, because the gate must be supported, aligned, and plumb before the hinges are tensioned and the latch is set.
Request For Quote
Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
Recent Post

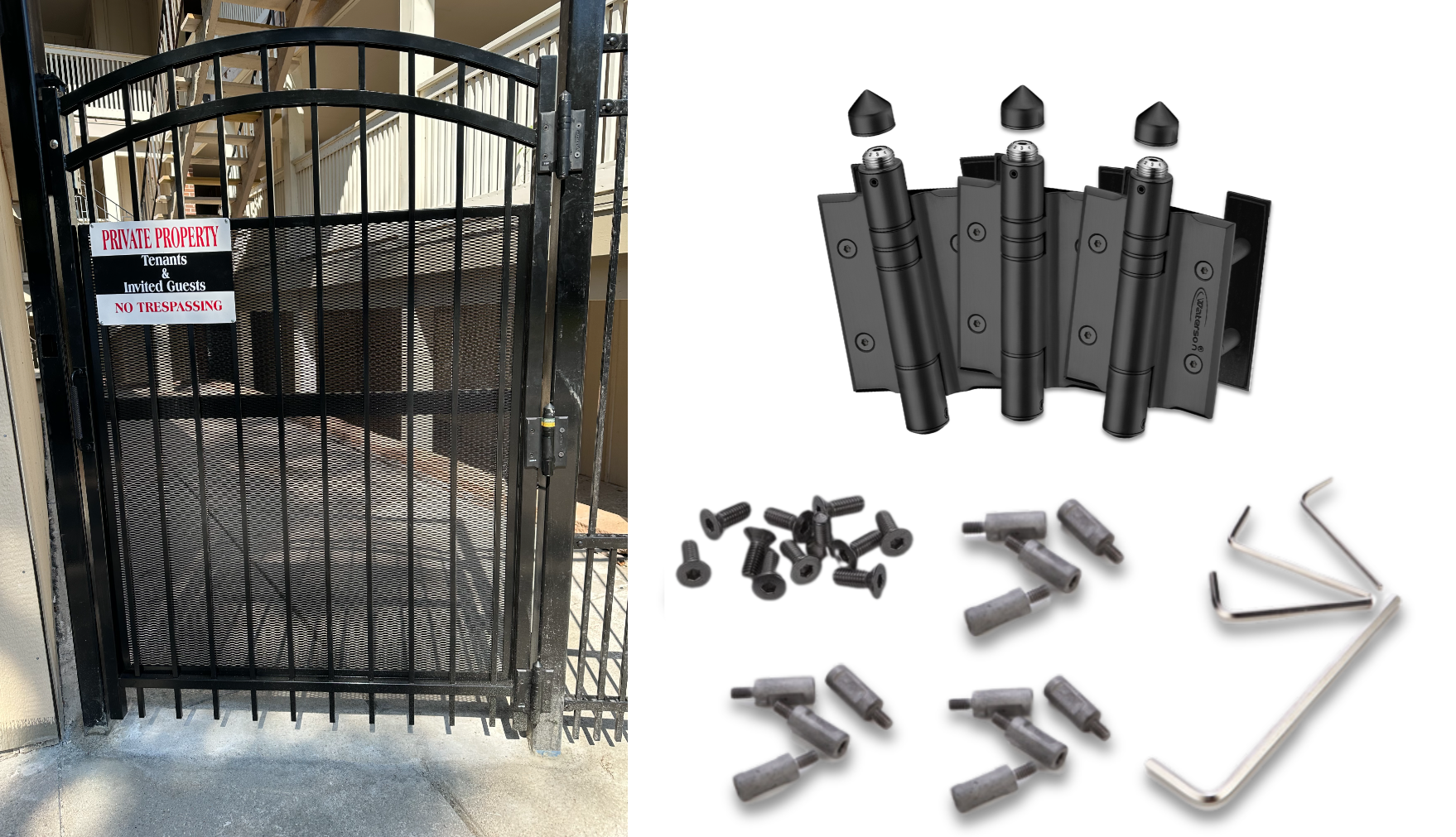

Which Self-Closing Gate Hinges Are Best for UK Commercial Exteriors?
