Mechanical Brake vs Hydraulic Brake: Key Differences Explained

Recently, during a customer visit, a facility manager asked a great question.
They were upgrading several doors in a mixed-use building and noticed that our self-closing hinges offer two braking options: mechanical brake and hydraulic brake.

“What’s the difference between mechanical and hydraulic braking? And when should I choose which?”

This is a common situation in real projects, especially when door environments vary — some doors are exposed to wind, while others are in quiet interior spaces. So here’s a clear breakdown you can use when selecting hinges.

Mechanical Brake vs. Hydraulic Brake for Door Hinges: Key Difference

1. Mechanical Brake

Once adjusted, the closing speed stays consistent and stable. It is highly durable and not affected by temperature or weather changes.

However, if someone slams the door or there is strong wind pressure, the braking force cannot instantly compensate. In those moments, the door may close faster than expected.

2. Hydraulic Brake

On the other hand, the hydraulic system automatically adjusts its resistance based on external forces.

So even if the door is slammed or the wind pushes harder, the hydraulic brake will increase resistance to maintain a smooth and quiet closing motion — preventing a sudden loud shut.

Adjustable Hydraulic Zone (Closing Angle Control)

Another advantage of the hydraulic brake is that the hydraulic damping zone is adjustable:

• When the hinge is set to full increase, hydraulic control mainly works in the 0°–20° range.
• When set to full decrease, the hydraulic effect shifts to 20°–40°, which is the final closing segment.

This flexibility lets you choose where the door slows down.

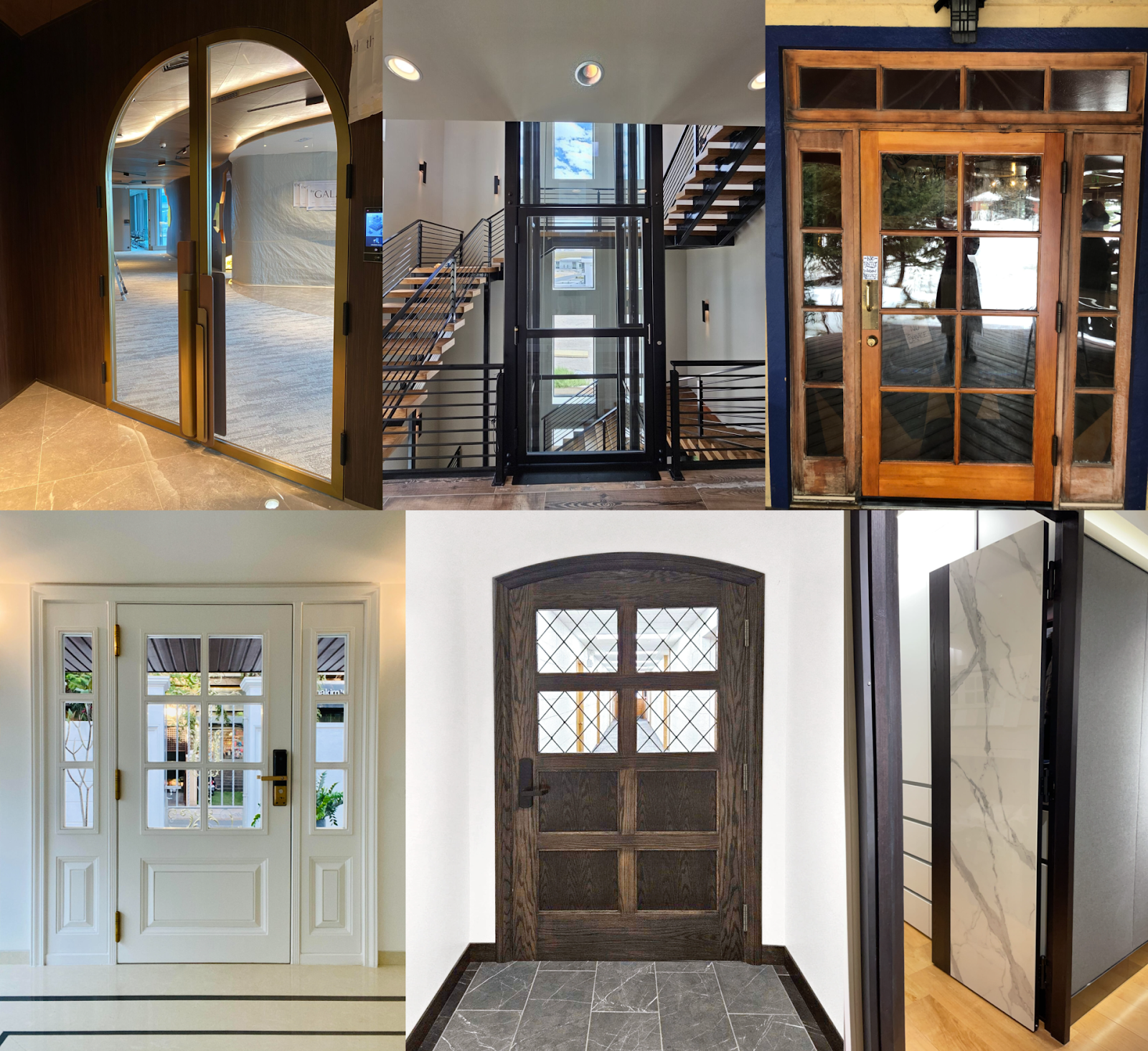

For example, glass doors, upscale interiors, offices, lounges, or hospitality spaces often require a soft, quiet final close to match the aesthetic and user experience. Adjusting the hydraulic zone to the final segment makes the door close smoothly, quietly, and elegantly.

Where Mechanical and Hydraulic Hinges Each Deliver Their Strength

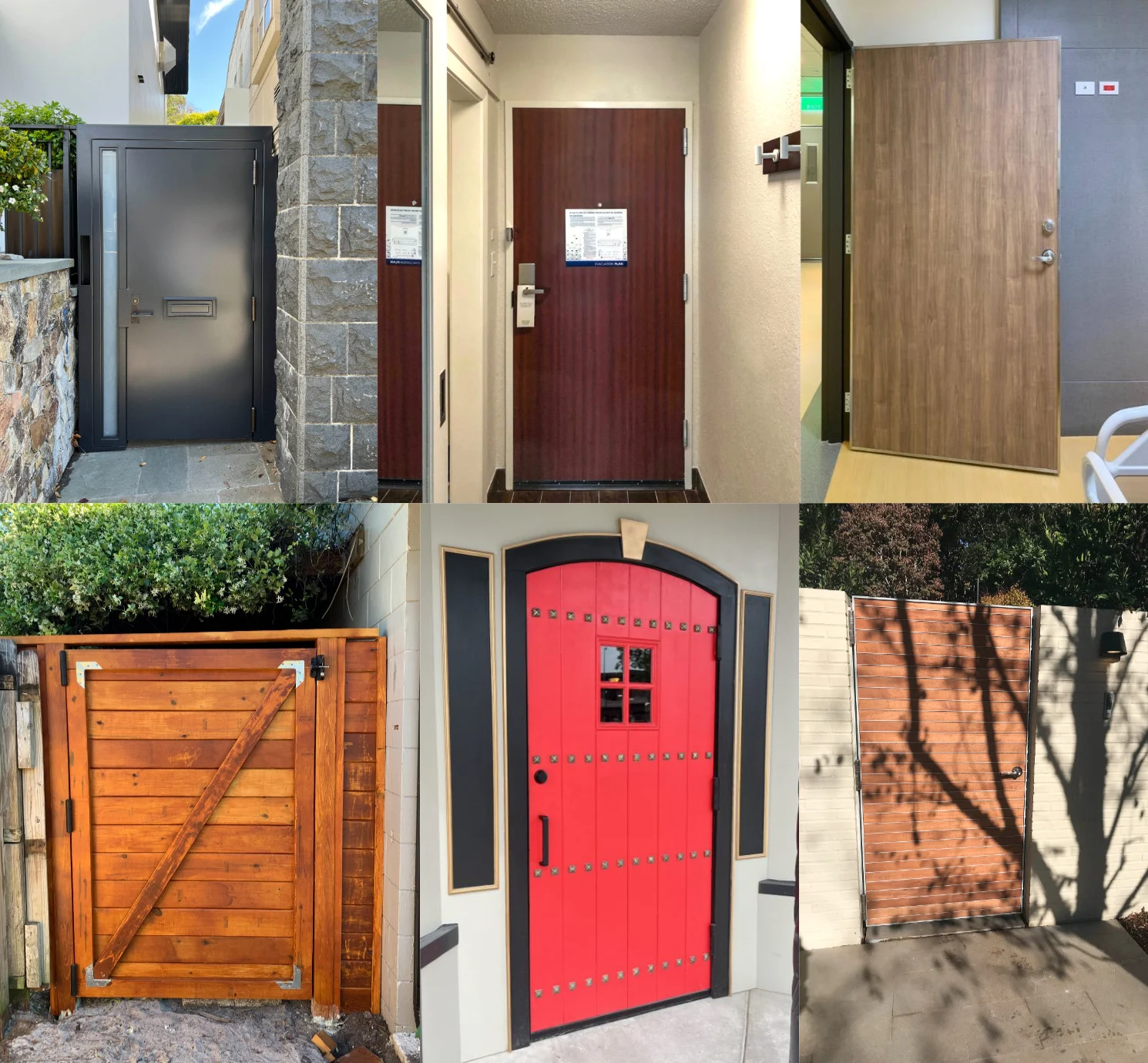

Each Waterson hinge type is engineered with a clear purpose. Mechanical self-closing hinges emphasize raw endurance and consistency, while hydraulic hybrid hinges deliver refined motion control and user comfort. Together, they cover the full performance spectrum of commercial and architectural applications.

Shared features of Waterson mechanical and hydraulic hinges include:

• 304/316 Stainless Steel: Long-term corrosion resistance in both interior and exterior use.
• Fire Rated: Certified for 3-hour UL fire doors, compliant with NFPA 80 standards.
• Accessibility: ADA Compliant with <5 lbs opening force plus 5 sec closing; ANSI/BHMA A156.17 Grade-1 with 1,000,000 cycles tested.
• Durability: Over 1,000,000 cycles tested to ANSI/BHMA A156.1 standards.
• Adjustable Tension & Speed: Numerical tension and speed control for fine calibration.
• Hold Open: Holds the door securely open at 85°–90°, then auto-releases with a light push or pull.
• Installation: Standard prep, retrofit-ready, no external closer required.

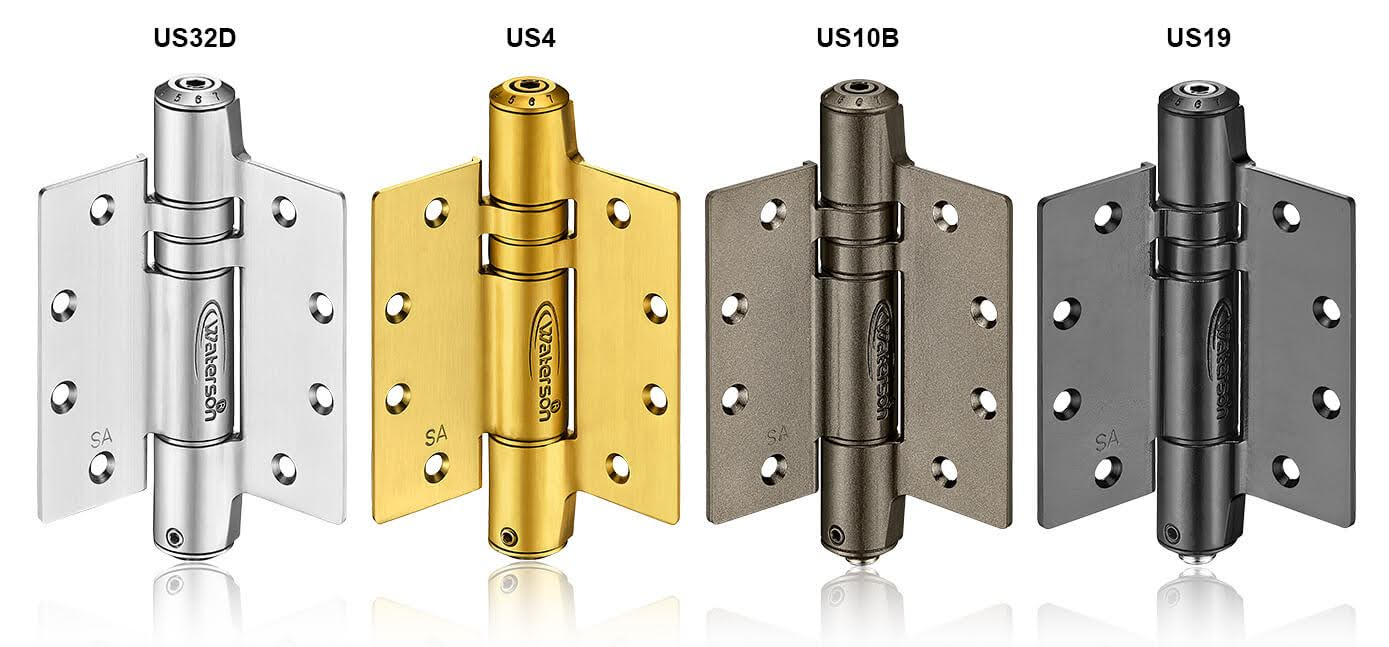

• Finish: Satin, Black, Brass, or Bronze to match design intent.
• Maintenance: Sealed, maintenance-free mechanism—no fluid leakage or frequent service needed.

How to Choose The Correct Mechanical and Hydraulic Hinges

Note:

• For tall or heavy doors, always opt for three hinges or more to prevent sagging and maintain self-closing consistency.
• For doors over 120” or beyond 440 lbs, contact Waterson technical support for a custom solution.

View the full Waterson Mechanical and Hydraulic Hinge Catalog here.

Waterson Heavy Duty Mechanical and Hydraulic Hinges

Waterson mechanical and hydraulic hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Information

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
