K51M vs K51MP: Which Stainless Steel Exterior Door Hinges Work Best for Your Shower or Exterior Door?

A customer comes to us with two door hinge requests: one for a heavy exterior door (24″W × 8’H × 1¾” thick) and a shower door mounted on a 4″ post (30″W × 5’H, under 2″ thick). Both need to hold up long-term in outdoor and wet conditions. No rust, no failures.Her questions were straightforward:

“What is K51M or K51MP exactly?
Why use K51M and not K51MP for exterior shower doors?
Is it correct that K51MP offers extra durability against corrosion and moisture?”

Many people also asked the same questions. And it’s time for us to break it down clearly, once and for all.

Common Misconception About Waterson Stainless Steel Exterior Door Hinges

“My understanding is the primary difference is K51MP is designed for outdoor/wet environments with a protective, weather-resistant screw-on cap, whereas the K51M is a standard interior, full-mortise hinge.”

Many customers also assume the model letter tells the whole story: K51MP is outdoor/wet use, and K51M is indoor only. This is NOT accurate!

What Does the “M” in K51M Mean?

The “M” stands for full mortise design. A mortise hinge is recessed into both the door edge and the door frame, sitting flush with the surface. This gives a cleaner look, stronger structural connection, and is the standard for commercial-grade stainless steel exterior door hinges on heavy doors and shower enclosures.

New to hinge types? Start with Full Mortise vs Non-Mortise Hinges here.

And What the “P” in K51MP Actually Means

The “P” refers to the exterior specialty in which Waterson Hinges have a protective weather cap over the mechanism. This weather cap offers enhanced external protection against dust and dirt, not corrosion resistance. A cap is not necessary for the mechanical model. It is an optional upgrade that adds a layer of physical shielding, not a waterproofing feature.

So, What Actually Determines Corrosion Resistance

The cap can help prevent dust and dirt buildup, but it does not determine corrosion resistance. The material, either 304 or 316 stainless steel, is the primary factor for outdoor and wet environments. This is the real decision when selecting stainless steel exterior door hinges.

304 stainless steel is the most widely used grade, offering solid corrosion resistance for general indoor and mild outdoor use. Meanwhile, 316 stainless steel adds molybdenum to the alloy, making it significantly more resistant to salt, chlorine, and harsh chemicals, the preferred choice for coastal, pool, and high-humidity environments.

Here are some key features to distinguish between SS304 and SS316 door hinges

When To Add the Weather Cap (K51MP)

The cap is an optional upgrade. If you want to elevate the appearance of your door or gate, Waterson weather caps come in several finishes and provide a polished, finished look. Consider it for dusty environments or when aesthetics matter, not as a corrosion solution.

In the End, Which Waterson Stainless Steel Exterior Door Hinge Model Should You Choose?

For an exterior door or shower door, 316 stainless steel is the key choice. The cap is optional, so select K51MP if you want it, K51M if you don’t.

Where Waterson Stainless Steel Exterior Door Hinges Stand Out

Beyond the material choice, Waterson stainless steel exterior door hinges are engineered with features that make them a long-term investment for any heavy-duty door application.

• Spring Loaded Self Closing: Automatically closes the door after every use, helping maintain controlled access and safety.
• Stainless Steel: Built in 304 or 316 SST, suitable for marine or high-humidity environments.
• ANSI/BHMA A156.17 Grade 1: Proven durability with over 1,000,000 cycles.
• Latch Verification: Provides sufficient closing force to ensure the door fully latches after closing.
• Hold Open: Allows doors to remain open at 90° or 120° when needed for workflow or access.
• Adjustable Tension Control: Numerical adjustment system enables precise tuning for different door weights.
• ADA Compliance: <5 lb opening force. >= 5 sec close time.
• Easy Installation: Check the spring hinges’ alignment and follow our step-by-step installation guidelines.

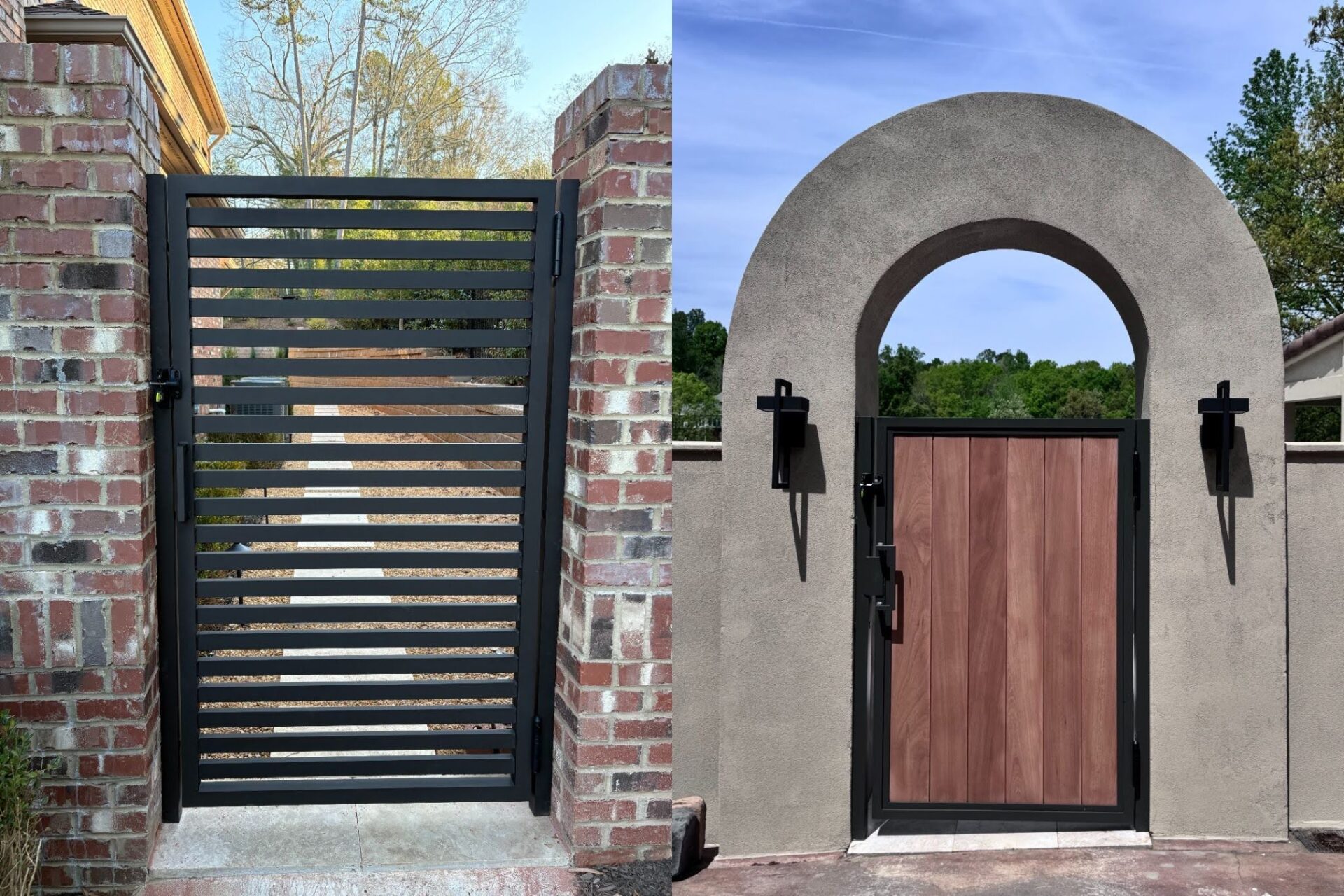

• Wide Application: Suitable for heavy fence doors, metal-frame doors, courtyard doors, garden doors, pool doors, pedestrian entry doors.
• Warranty: Backed by reliable coverage and service support. 10 years for mechanical, 3 years for hydraulic.

Waterson Stainless Steel Exterior Door Hinges

Waterson heavy duty exterior door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
