Glass Door Hinges Types: Which One Fit Your Application

Why do so many office glass doors start dragging or cracking after just a few months?

Often, it’s not the glass—it’s the hinge. The wrong hinge type can strain the panel, misalign the frame, and even lead to floor damage or shattered corners. Choosing the right glass door hinge isn’t about looks; it’s about keeping every door swing precise, safe, and lasting.

So, what are the main glass door hinge types — and which one ensures performance, durability, and compliance? Let’s find out!

How Many Types of Glass Door Hinges Does Waterson Provide

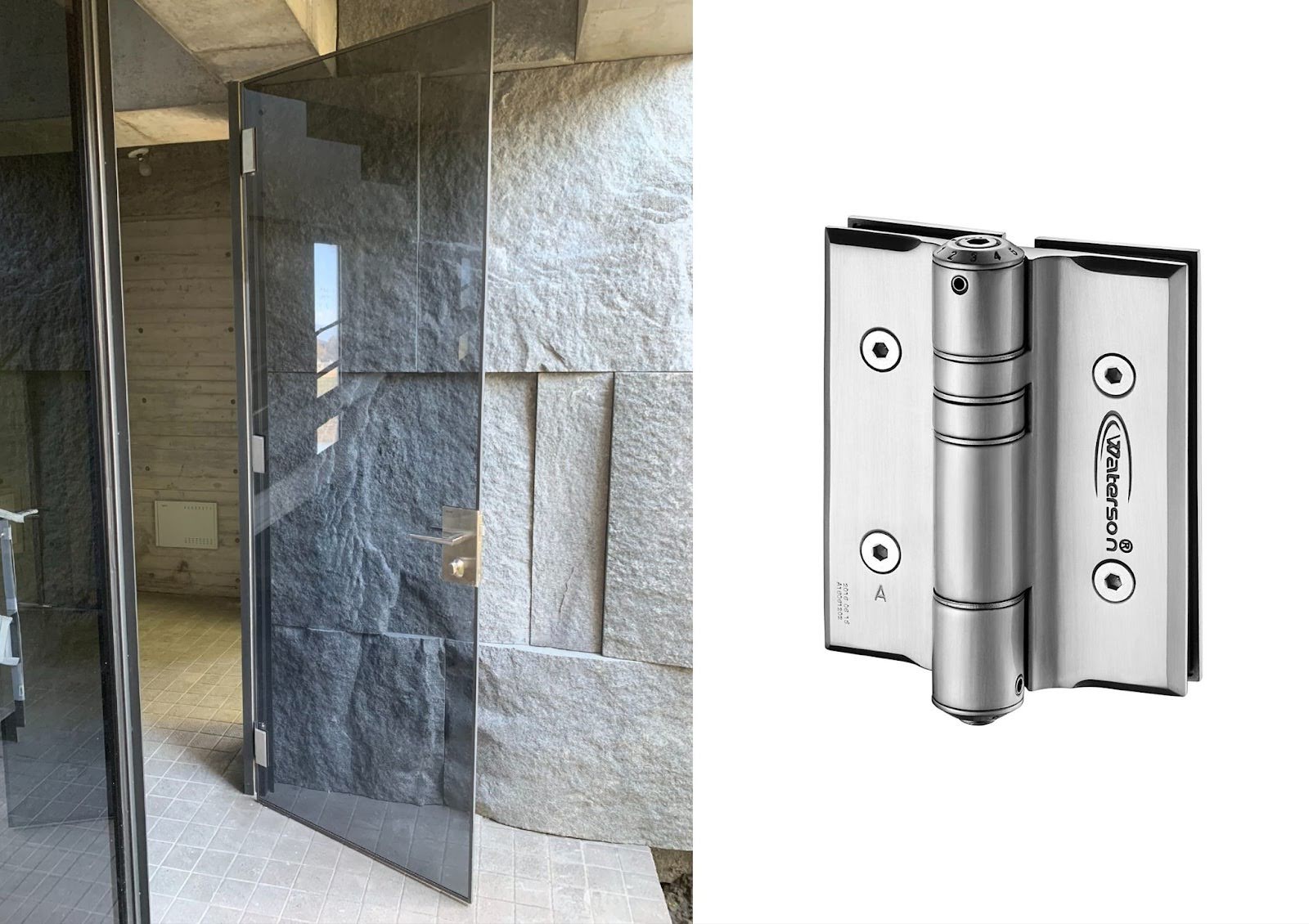

1. Glass to Glass Door Hinges – K51GG

Designed for connecting two adjacent glass panels, the K51GG provides a clean, frameless look with built-in self-closing or soft-closing control. Its hybrid spring-hydraulic system allows controlled closing without external floor closers.

Applications: Ideal for commercial glass environments

• Office partitions or commercial glass entrances
• Showrooms, hospitality spaces, and interior glass enclosures
• Ideal where transparency and seamless visual continuity are priorities

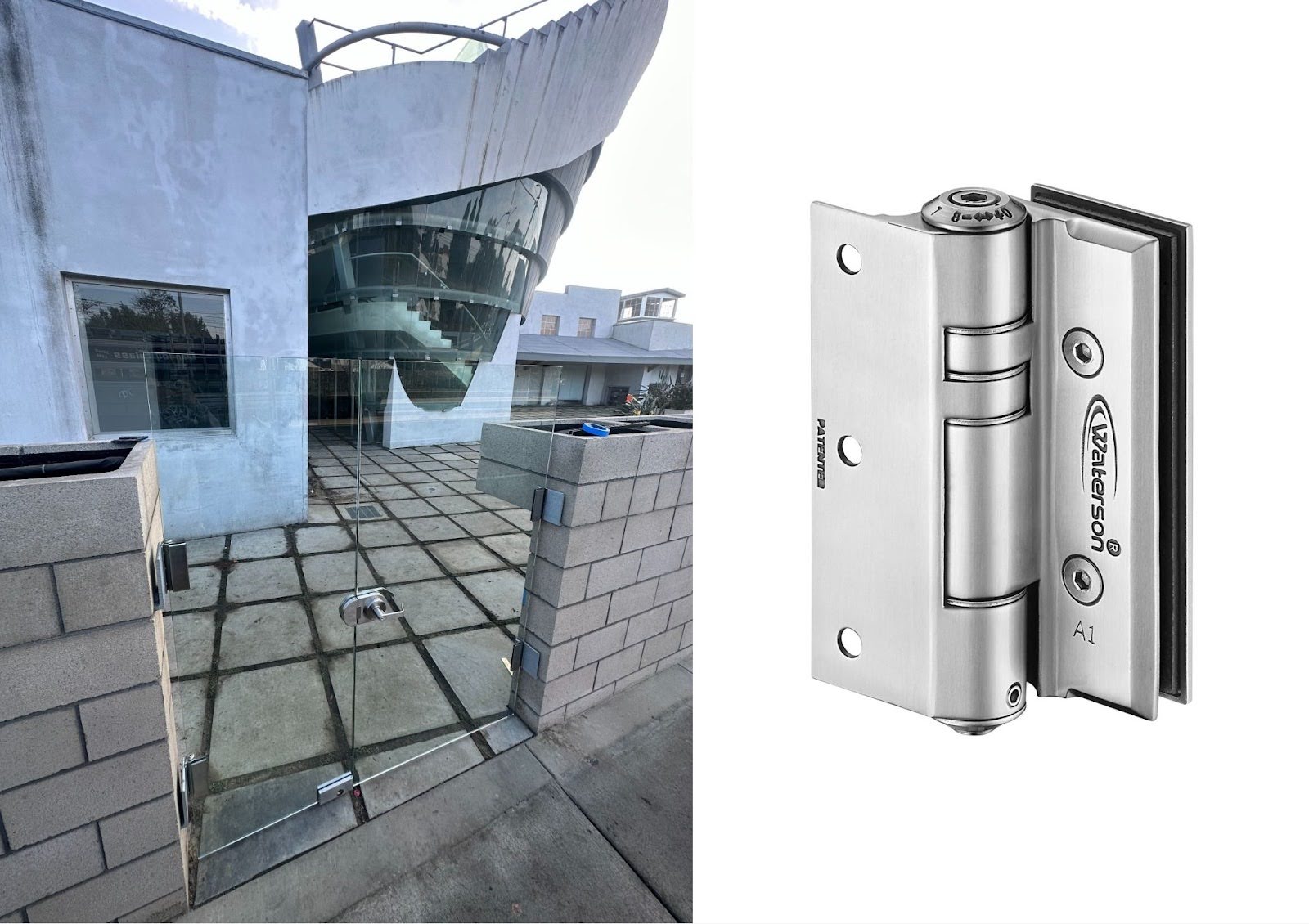

2. Glass to Wall Door Hinges – K51GWL

The K51GWL connects glass panels directly to solid surfaces such as concrete or metal frames. It offers an aesthetic self-closing function while maintaining a minimalist, modern look.

Applications: Mostly used for aesthetic self closing with modern glass

• Glass restroom, shower door, bathroom entrances, and corridor doors
• Commercial interiors with wall-mounted glass panels
• Ideal for projects prioritizing easy alignment and straightforward installation

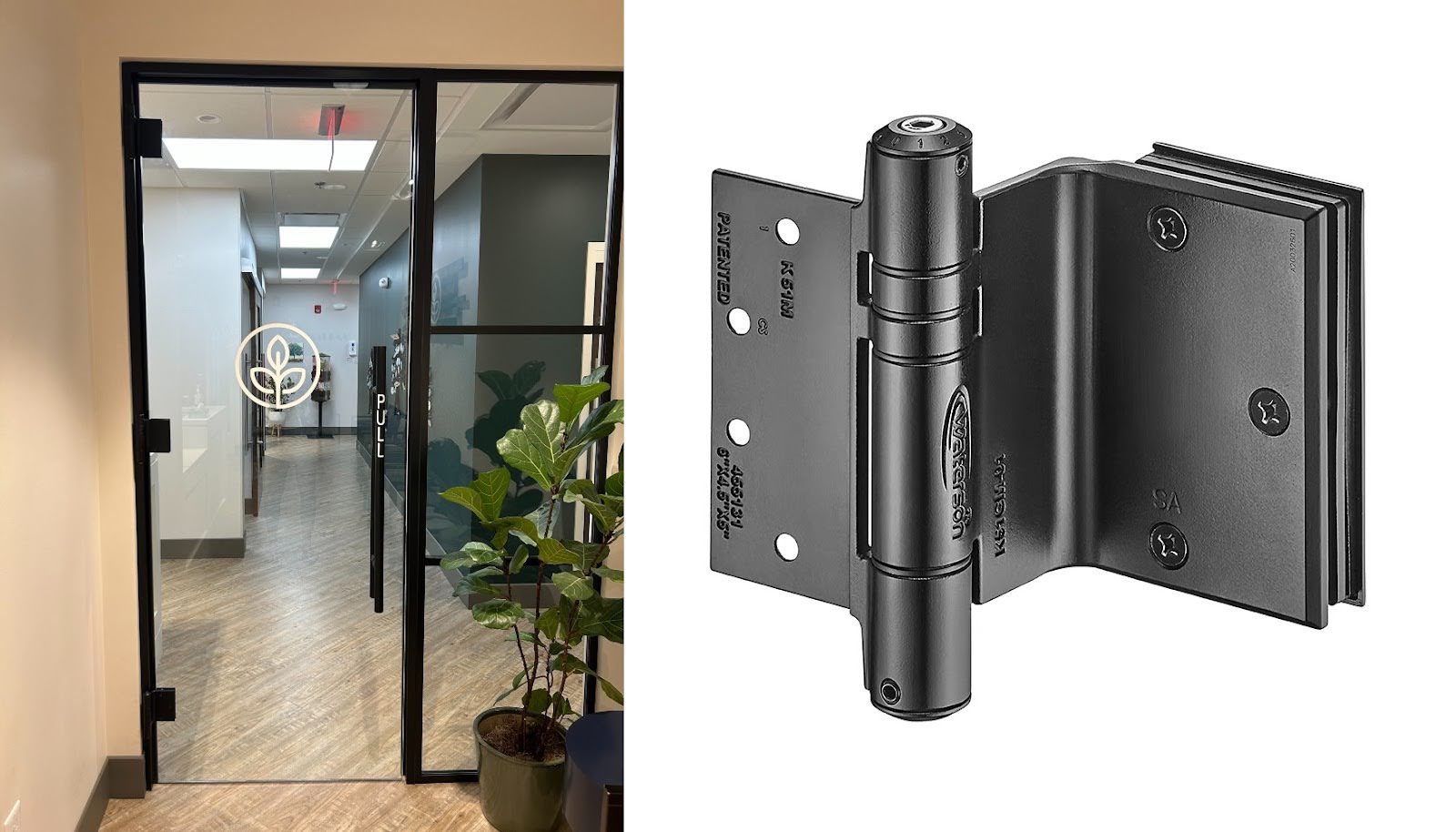

3. Glass to Frame Door Hinges – 4.5” × 4.5” – K51GM

K51GM bridges glass panels with existing metal or wooden frames. It’s a versatile replacement hinge that brings soft-closing control without modifying the door frame or cutting into the floor.

Applications: Easily replace standard wood/metal doors with glass

• Retrofitting framed glass doors in offices or residential projects
• Commercial buildings needing code-compliant self-closing glass systems
• Suitable for mixed-material doors — glass-to-aluminum, glass-to-steel, or glass-to-wood

What are Common Glass Door Hinges Heavy Duty Features

Waterson glass door hinges are engineered for demanding environments where safety and precision matter.

Core features include:

• Stringent quality control with serialized tracking for traceability
• Direct glass application using black gaskets to enhance friction and prevent slippage
• Teflon-coated hinge support for low friction and high abrasion resistance
• Soft-closing absorption that protects glass from impact or cracking
• Special adjusting bolt allowing ±1° fine-tuning for perfect alignment

In practice, these features mean installers can achieve accurate alignment faster, maintain a consistent closing speed, and protect the door from shock or edge stress — extending the hinge’s operational life and visual precision.

Glass Door Hinges vs Floor Spring



While floor springs remain common in large glass entrances, their installation requires core drilling and slab preparation. Waterson closer hinges achieve the same closing performance without breaking the floor — making them ideal for retrofits, upgrades, and modern frameless systems.

Ideal Glass Door Hinge Across Applications

Waterson glass door hinges combine precision mechanics with architectural flexibility, ensuring safe and efficient glass-door operation without the maintenance burden of traditional closers.

Key Performance Features:

• Soft Closing: Smooth, controlled motion that prevents abrupt impact and protects panels.
• Heavy-Weight Capability: Three hinges support up to 260 lbs; four hinges up to 330 lbs.
• Stainless Steel: 304 or 316 grade for long-term corrosion resistance indoors or outdoors.
• Aesthetic Integration: Eliminates floor drilling and keeps glass design uninterrupted.
• Adjustable Closing Speed: Three-stage numerical tension system for precise control.
• Low Opening Force: ADA-friendly performance for high-traffic commercial use.
• Hold-Open Options: 90°, 110°, 120°, 135°, and 180° configurations available.
• No Floor Cutting Required: Reduces labor, downtime, and risk to finished floors.
• 5-Year Warranty: Backed by reliable coverage and service support.

Waterson Heavy Duty Soft Closing Glass Door Hinges

Waterson soft closing glass door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Information

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
