Removable pin hinges are a popular choice for many doors due to their convenience and functionality. However, they are not without their problems. The convenience of removable pin hinges can be overshadowed by recurring issues such as looseness and squeaking. If ignored, these problems can lead to significant operational challenges and costly repairs to maintain normal door function.

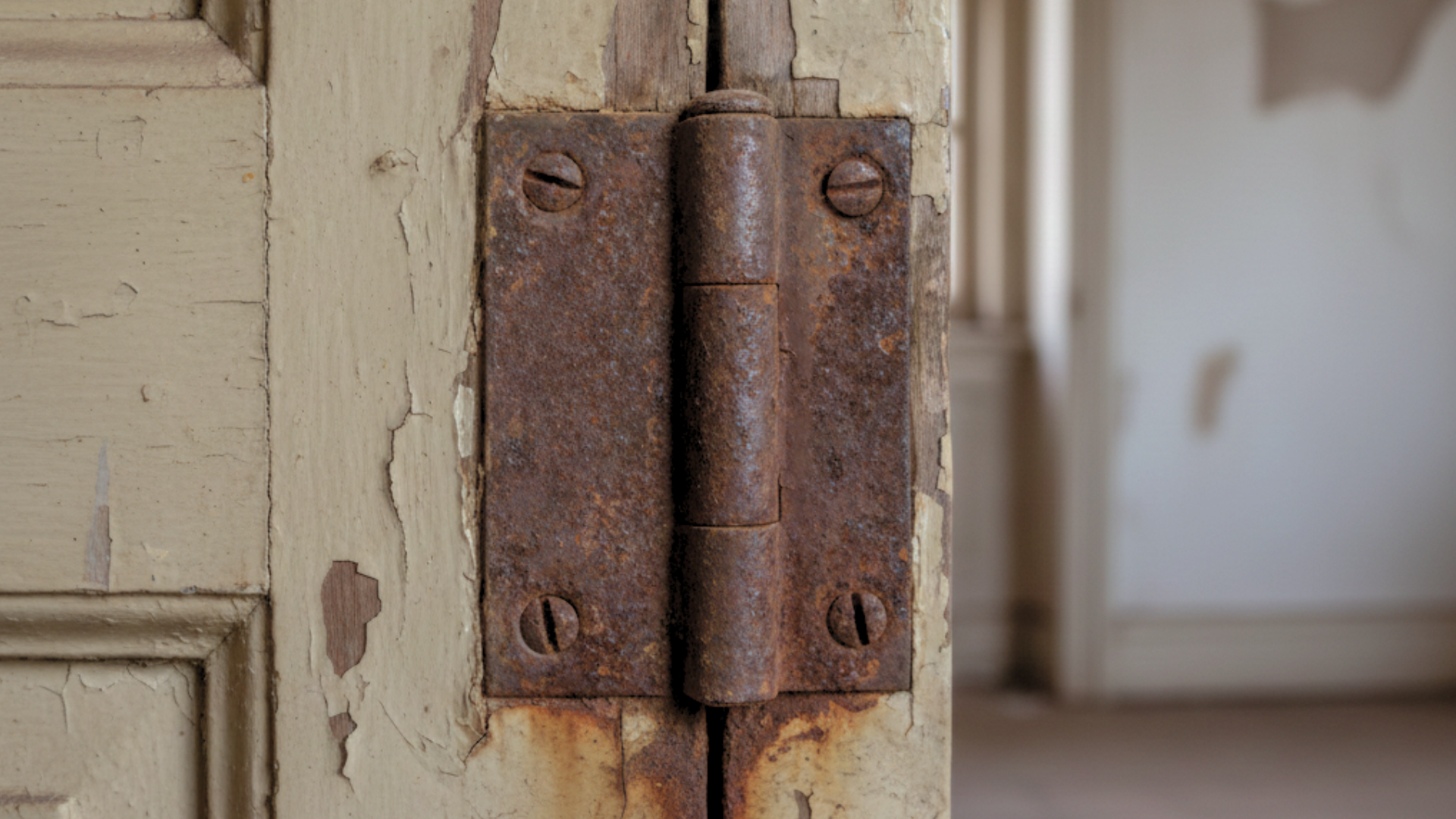

rusty removable pin hinges - Credit by FloydimusPrime

Credit By FloydimusPrime

Typical Challenges with Removable Pin Hinges

Loose and squeaky hinges are common problems that can hinder door functionality. These issues may arise from inherent flaws in the hinge design, such as inadequate material strength (e.g., flimsy metal, plastic), poor weight distribution (e.g., uneven load bearing), or difficulty in cleaning (e.g., narrow crevices, complex antique design). Additionally, hinges may not be designed to withstand heavy loads or frequent use, leading to premature wear and tear. If left unaddressed, these issues can lead to further damage and impair door operation.

Maintenance Tips for Longevity

Many suggestions and most used methods to solve the issues include:

  • Constant Adjustment: Regularly adjust the hinges to maintain optimal performance.
  • Regular Maintenance:
    • Check for Wear and Tear: Periodically inspect the hinges for signs of wear, rust, or damage.
    • Tighten Screws: Regularly check and tighten any loose screws.
  • Cleaning: Remove dirt and debris to prevent friction or damage.
  • Lubrication: Apply lubricating oil to the hinges every few months to keep them operating smoothly.
  • Avoiding Overload: Ensure the hinges are not bearing more weight than they are designed to support.

However, these methods can be time-consuming and costly. What if we can “proactively” prevent all these steps with the most efficient door hinges?

A Proactive Solution

Waterson heavy duty stainless steel pin hinges provides excellently foresighted the problems and maintenance effort by covering these outstanding features:

  • Stainless Steel: Made with 304 and 316 stainless steel to withstand the elements and heavy use.
  • Load Bearing Capacity: Waterson hinges efficiently support significant loads – three hinges can bear over 260 lbs, and four hinges up to 440 lbs.
  • Corrosion Resistance: Waterson hinges excel in harsh environments, surpassing ASTM B117 and A156.7 standards in salt spray tests for over 200 hours.
  • Fire Door Compliance: Adhering to ANSI/BHMA A156.17 standards, these hinges meet strict quality and safety benchmarks.
  • Anti Slamming & Soft Closing: Prevent doors from slamming shut and pose risks such as loose hinges or damage screws holding.
  • Adjustability: Features 3 adjustable setting speeds and buffering control over door closing speed.
  • Ideal Dimensions: Perfect for doors measuring 1 ¾” thick, 3’-9” wide, and 8’-0” tall.
  • Aesthetic: Elegant and minimal visual intrusion with PVD Finish.
  • Security and Protection: Provides excellent security and safety for doors.

Waterson stainless steel pin hinges

Is Waterson Hinges a Removable Pin Hinges?

Please note that Waterson Hinges are indeed non removable pin hinges (NRP hinges). The reason behind this design is besides the similar functions, NRP hinges significantly increase security and against break-ins. Additionally, non removable pin hinges allow for adjustments without completely detaching the door. This can be a huge time-saver, especially for minor adjustments.

Waterson non removable pin hinges

Q: How to tell if hinge pin is removable

To check if a hinge pin is removable, you can look at the knuckle. If you don’t see a hole with a set screw, the pin can be removed.

Q: How to install Waterson non removable pin hinges

Waterson hinges are very easy to install. You simply need the following three items:

  • 3mm and 5mm hex wrenches (included)
  • Spreader bar (included with double spring (DS) hinge)
  • Philips screwdriver

Since Waterson regularly offers a set of 3 hinges, We recommend that you install them based on the stickers affixed to each individual hinge (top, middle, and bottom). When installing the hinges, trace around the hinge, cut the mortise, and ensure the hinge pin is flush with the edge of the door frame.

For more insights about Waterson Hinges Installation, click here.

Q: How to remove hinge pin cap

Step 1: Identify the cap type. Threaded or push-in.
Step 2: Use the Right Tool:

  • Threaded: Unscrew with pliers or an allen wrench.
  • Push-in: Pry off with a flathead screwdriver.

Step 3: Lubricate if stuck. Apply PTFE spray if needed.
Step 4: Remove the pin cap. Tap out with a hammer and pin punch.

However, these steps can potentially damage the hinge visually and functionally. Waterson hinges, on the other hand, offer an adjustable hinge cap that can be included or excluded based on user preference. This feature provides greater flexibility and convenience for installation and maintenance, ensuring your doors function smoothly while meeting your specific requirements.

Waterson Non Removable Pin Hinges

Waterson Hinges combines an overhead closer and hinge into one attractive component with optional hold-open and door stop features. These hinges are ideal for commercial openings, gates, and glass doors. The hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson door closers meet NFPA 80 and are UL 3-hour fire-rated, as well as being one of the best door hinges for both interior and all-weather exterior openings. See all our features.

Request For Information

Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
