Quick Answer
A stainless steel spring hinge is a self-closing hinge with a torsion spring inside the barrel, so it swings the door and closes it without an overhead closer. Waterson offers mechanical models for heavy, high-traffic doors and hydraulic models for speed-controlled soft closing, in 304 or 316 stainless steel for interior and exterior openings.
Unlike traditional hinges, commercial stainless steel spring hinges combine the pivoting function of a door hinge with the closing force of a door closer—making them self-closing by design. Thanks to this built-in functionality, spring hinges are widely used across residential, commercial, and even industrial environments.
But what makes them so popular? And how can they enhance safety, convenience, and energy efficiency?
What Is a Stainless Steel Spring Hinge?
A stainless steel spring hinge is a hinge with a closing mechanism built into the barrel, so it pivots the door and pulls it shut on its own without a separate overhead closer. Made from 304 or 316 stainless steel, it holds up to heat, moisture, and heavy daily use, which is why it works on both interior and exterior doors.
In short, one part does the job of two: the hinge and the door closer. That keeps the doorway clean, the install simple, and the door reliably self-closing for fire safety and security.
| Mechanical spring hinge | Hydraulic spring hinge | |
|---|---|---|
| Best for | Heavy doors, high traffic | Softer, quieter close |
| Closing feel | Firm, spring-driven | Damped soft close |
| Fluid inside | None, zero leak | Built-in damper |
| Maintenance | Very low | Low |
How Many Spring Hinges Does a Door Need?
The count is driven by door height, following the ANSI standard.
- Doors up to 7 ft: 3 hinges
- Doors up to 8 ft: 4 hinges
Three Waterson hinges carry over 260 lb and four carry up to 440 lb, so the same count that satisfies the height rule also covers the weight of a heavy commercial or exterior door. See the configuration sheet for exact placement.
Why Do All Main Doors Should be Self Closing?
Self closing doors are essential in many settings to ensure safety, security, and code compliance. Here are the 3 key reasons:
Fire Safety
According to NY Daily News, doors left open during apartment fires allowed smoke and flames to spread quickly, endangering residents. To address this, the City Council has required landlords to install self closing doors by 2021.
Fire rated spring hinges are marked by agencies like UL or Intertek and must comply with standards such as NFPA 80 Fire Requirement, which governs the installation of fire doors and hardware.
Understand more about the fire rating classifications here.
Security
Self closing doors help prevent smoke leak when there is fire, unauthorized access, reducing the risk of theft, intrusion, or loss of personal belongings. They also ensure doors don’t remain open unintentionally, which is especially important in apartments where children or pets could wander off unnoticed.
Convenience
Sometimes residents may leave doors ajar—whether because they’re late for work or their hands are full with groceries. Self closing doors eliminate the need for manual closing, offering a simple and convenient solution that helps maintain both security and comfort.

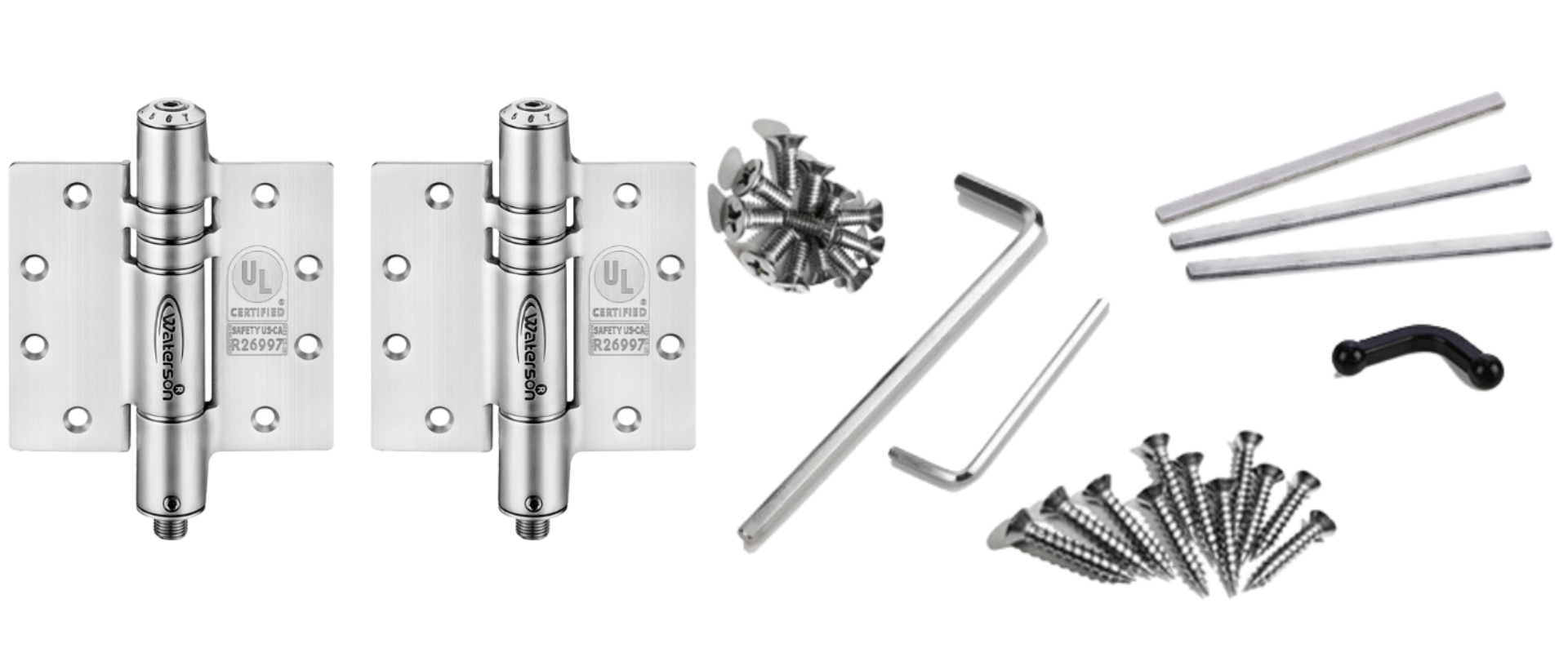

A Combined Solution: Waterson Stainless Steel Spring Hinges
Waterson stainless steel spring hinges offer more features than traditional spring hinges to ensure durability, adjustability, and easy installation.
Self Closing and Soft Closing
Waterson stainless steel spring hinges offered 2 options: self closing and soft closing hinges. The mechanical option is better for heavy doors and it has zero fluid hinges meaning zero leaks or maintenance issues. While, the hydraulic option includes a built-in damper for a smoother and softer door closure.
Additionally, to enhance security, Waterson stainless steel spring hinges feature non-removable pins. This ensures that doors not only close automatically but also cannot be tampered with by removing the hinge pins.
Reach out to our commercial stainless steel self closing door hinges now!
Fire Rated: NFPA and UL-List Compliance
Waterson self closing hinges are built with durable 304 and 316 stainless steel, known for their high melting point, strength, and weather resistance. Certified by 3 hours UL-list with NFPA standards, these hinges are designed to help prevent the spread of fire and smoke. Beyond that, our spring hinges not only meet essential fire rated door codes but also imply ADA compliant to fit with every user in residential, commercial, and industrial places.
Equip your door with Waterson fire rated door hinges now!
Easy Installation and Adjustments for both Interior and Exterior
While traditional hinges often lack in providing the functionality and durability, Waterson stainless steel spring hinges are engineered for both interior and exterior use. They deliver reliable performance in high traffic environments, ensuring long-term durability.
Each of Waterson stainless steel spring hinges are designed with a numerical panel that allows users to adjust to the desired closing force and ensures an effective door closing. This helps to resolve misalignment and is perfect for high traffic applications.
Waterson also provides a complete guide to help in the adjustment process.
| Features | Waterson Spring Hinges | Traditional Spring Hinges |
|---|---|---|
| Door Weights | Heavy-duty | Medium-Heavy |
| Usage Frequency | High | Low-Medium |
| Visual Tension Panel | O | X |
| Easy to Adjust | O | X |
| Self Closing Function | O | O |
| Speed Control | O | X |
| Interior Application | O | X |
| Exterior Application | O | X |
Where Waterson Spring Hinges Are Used
- Fire-rated hotel openings: At JW Marriott Marco Island Beach Resort in Florida, K51M self-closing hinges handled 357 fire-rated openings without overhead closers.
- Oversized doors: At The Benson Hotel & Faculty Club in Aurora, Colorado, 10-foot doors are carried by five self-closing hinges per door.
- Accessible public buildings: Brooklyn Public Library used Waterson hinges to get self-closing, ADA-compliant doors without overhead arms.
- Coastal and high-humidity sites: El Pescador Lodge & Villas in Belize chose 316 marine-grade hinges for rust resistance and quiet closing, and Solstice Sauna in Québec runs K51MP 316 hinges with weather caps on more than 30 sauna doors.
- Multifamily: At Sen̓áḵw in Vancouver, K51M and K51L swing-clear hinges provide closing and latching for 428 suite doors.
Browse more projects by building type in Waterson case studies.
How to Specify the Right Stainless Steel Spring Hinge for Your Project
A stainless steel spring hinge gives you a self-closing door without an overhead closer, using one piece of hardware that handles hinging, closing, and (on hydraulic models) speed control. To specify correctly, start with the door’s height and weight, choose mechanical or hydraulic based on traffic and closing behavior, select 304 or 316 for the environment, and confirm fire listing and ADA settings for the opening.
For architects, specifiers, contractors, and hardware professionals, you can request a quote, download spec sheets and CAD files, or talk to a Waterson product specialist about your project. Browse the full line of Waterson self-closing hinges.
Request For Quote
Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
