“Hello! I own a glass company close to Austin! I am needing a type of self closing, glass to wall, arched interior office door type hinges for a (35″x94″) door i am installing.. would the K51GWL be a sturdy enough hinge to support the door I am installing? thank you”
A standard door closer seems like the obvious answer, until you understand what an arch top frameless glass door actually demands from its hardware. The short answer: yes, the K51GWL works. Here’s exactly why, and how to spec it correctly.
Why Arch Top Frameless Glass Doors Cannot Use a Door Closer
The instinct makes sense: you want the door to close on its own, so you reach for an overhead door closer. But for an arch top frameless glass door, that solution simply does not work.
A conventional overhead door closer requires a solid frame at the top of the door. Frameless glass doors have no frame, and glass cannot be drilled or made load-bearing the way a door closer demands. Floor-spring closers face the same problem: the curved arch edge makes even patch fittings geometrically impossible.
The short answer
Door closers need a frame. Arch top frameless glass doors do not have one. The solution should mount directly to the glass and to the wall, combining hinge and closer into a single unit.
Why Arch Top Frameless Glass Doors Need Special Hinges But Not a Standard?
Arch top frameless glass doors are one of the most visually striking choices in modern commercial and office interior design. But that elegant curve at the top creates a hardware challenge that flat-top doors simply don’t have.
The arch shifts the center of gravity slightly and changes how the load is distributed across the mounting points. Without the right hinge, you risk:
So, What Features to Look for in a Glass to Wall Hinge
Not all glass door hinges are created equal. For an arch top frameless interior office door, you need a hinge that checks every one of these boxes:
1. Self-closing with hydraulic damping
A mechanical-only spring hinge will slam. A hydraulic hybrid hinge controls the closing speed through fluid resistance, giving you smooth, quiet operation every single time; critical for professional office environments.
2. Glass-to-wall mounting
Frameless arch top doors have no frame to attach to on the door side. You need a hinge where one arm clamps directly onto the glass panel and the other anchors securely into a solid wall or partition.
3. Sufficient weight capacity
Heavy glass, especially in larger sizes, can weigh 150 to 300+ lbs. Your hinge set must be rated to handle that load with headroom to spare. Never operate at the rated maximum.
4. Adjustable tension
Over time, environmental conditions, temperature changes, and settling can affect the closing force. A hinge with an adjustable tension panel lets you fine-tune performance without replacing anything.
5. ADA compliance
For any commercial or office interior, your door hardware must comply with ADA requirements for opening force (max 5 lbs), closing speed, and clearance. Always verify compliance before specifying.

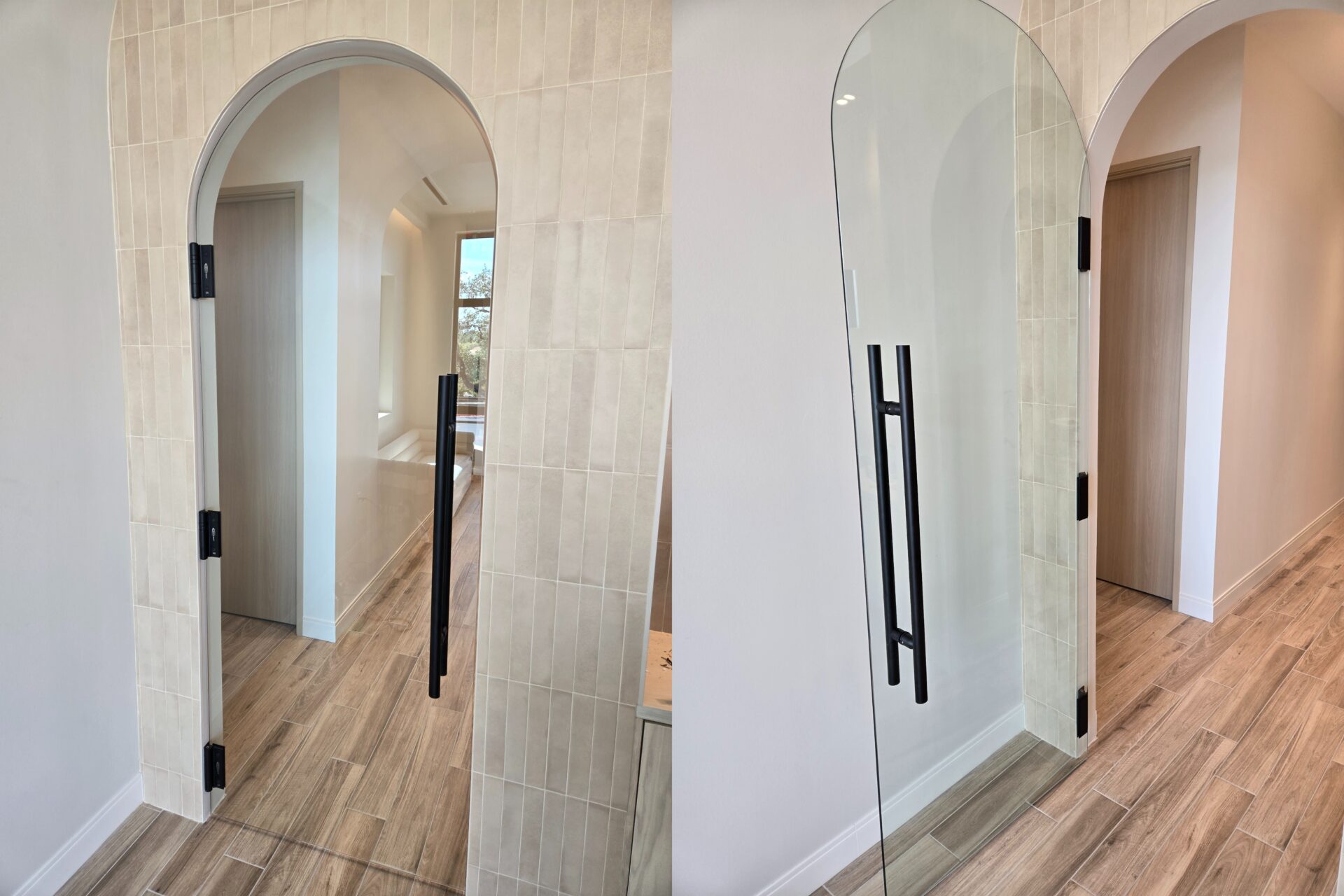

K51GWL: Glass to Wall Hinges for Arch Top Frameless Installations
After years of hands-on glass installation work, the Waterson K51GWL glass-to-wall hinge is confident to be the option reliably proven to perform on arch top frameless doors. Here’s why it stands apart.
Importantly, the K51GWL is designed to work as a set, not as individual units. Each hinge in the configuration serves a distinct role: the top hinge controls speed and damping, mid-hinges manage swing and load distribution, and the bottom hinge anchors tension and hold-open. This system-level engineering is what makes it reliable on arch top doors, where load distribution is more complex.
How Many Hinges Does Your Arch Top Door Need?
This is where many installations go wrong. The number of hinges is not just about the weight; it’s about control, stability, and longevity.
Hinge spacing for a 30″ × 88″ door
For a 30″ × 88″ (7’4″) arch top door, recommended hinge placement on the 4-hinge K51GWL set is approximately: top hinge at 7″ from top, upper-mid at 26″, lower-mid at 55″, and bottom at 80″ from the top of the door.
“I have used these hinges a few times, and they are the only ones I’ve found that work for an Arch Top Frame-less Door!”
Always consult the Waterson installation guide for your specific door dimensions. Send us your Request for Quote here.
How to Install Waterson Glass Door Hinges for Top Arch Frameless Door
Tools needed: 3mm and 5mm hex wrenches (included) and a Phillips screwdriver. Use the included tension crook to hold the hinge open while mounting.
- Step 1 : Measure your door
Confirm glass thickness is between 5/16″ and 1/2″. When unsure, send measurements to hinges@watersonusa.com before ordering. - Step 2 : Choose hinge count
Up to 6ft: 2 hinges. Up to 7ft: 3 hinges. Up to 8ft: 4 hinges. Never underspec on arch top doors. - Step 3 : Position and mount
Each hinge is labeled top, middle, and bottom. Install in that order. Wall substrate must be solid: concrete, steel stud with backing plate, or wood blocking, minimum 1.5″ wide. - Step 4 : Check swing, then adjust tension
Make sure the door swings freely before touching the tension. Then adjust the closing speed from the top hinge down as a system.
Yes. The K51GWL is one of the very few glass-to-wall hinges proven to work on arch top frameless doors. Its glass-clamp design accommodates non-rectangular panel shapes, and the 3 or 4-hinge configuration provides the stability that arch top doors require.
The K51GWL supports glass thicknesses from 5/16″ to 1/2″ (8mm to 12mm). For most interior office applications, 3/8″ tempered glass is the standard and is fully compatible.
Yes. The K51GWL hydraulic hybrid model meets all ADA requirements for self-closing doors, including maximum opening force (5 lbs), closing speed, and clearance requirements. Always verify compliance for your specific project jurisdiction.
Waterson K51GWL hinges are UL-certified with over 1,000,000 cycle testing. In a typical commercial office with moderate traffic, this equates to many years of reliable operation with minimal maintenance, primarily periodic tension adjustment.
Yes. The K51GWL includes an optional 90-degree hold-open function built into the hinge mechanism. No separate floor or overhead hold-open device is needed.
The suffix refers to the number of hinges in the set: D2 = 2 hinges (up to ~150 lbs), D3 = 3 hinges (up to 260 lbs), D4 = 4 hinges (up to 330 lbs). For arch top frameless office doors, D3 is recommended for most 7ft doors and D4 for doors up to 8ft.
Waterson Glass to Wall Hinges for Top Arch Frameless Door
Waterson self closing door hinges for elevator combine an overhead closer and hinge into one attractive component with optional hold-open and door-stop features. These hinges are ideal for commercial openings, gates, and glass doors. The hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson soft close door hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being suitable for both interior and all-weather exterior openings. See all our features.
In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.
