“Hi, I have a government defense application– I am looking for a spring loaded hinge that wants to hold open. I have a hinged door scenario where the lid is latched in place. Once the latch is released, I would prefer for the spring hinge to pop the lid open and stay open. Do you have any hinges that may work for this application?”
This is a recent request that came to Waterson Hinges. A lid that pops open and stays open is a different job from a door that closes itself. Both are spring driven, but the energy flows the opposite way, so the right hold-open lid hinge is not the same part as a self closing hinge. Here is how to spec the correct one.
Why Does a Lid That Pops Open and Stays Open Need the Opposite of a Self Closing Spring Hinge?
A self closing spring hinge stores energy so that the door returns to closed on its own. That is a precise, purpose built function, and it is exactly what you want on a swing door or gate that has to latch every time and meet fire and ADA requirements.
A pop open lid asks for the reverse. On latch release, the spring has to drive the lid away from closed and then keep it there. Same spring principle, opposite direction of work.
- Self closing hinge: energy released moves the leaf toward closed.
- Pop open lid hinge: energy released moves the leaf toward open, and something has to hold it there.
Neither is better than the other. They just function in different ways, so to match the tool with this request is a challenge.

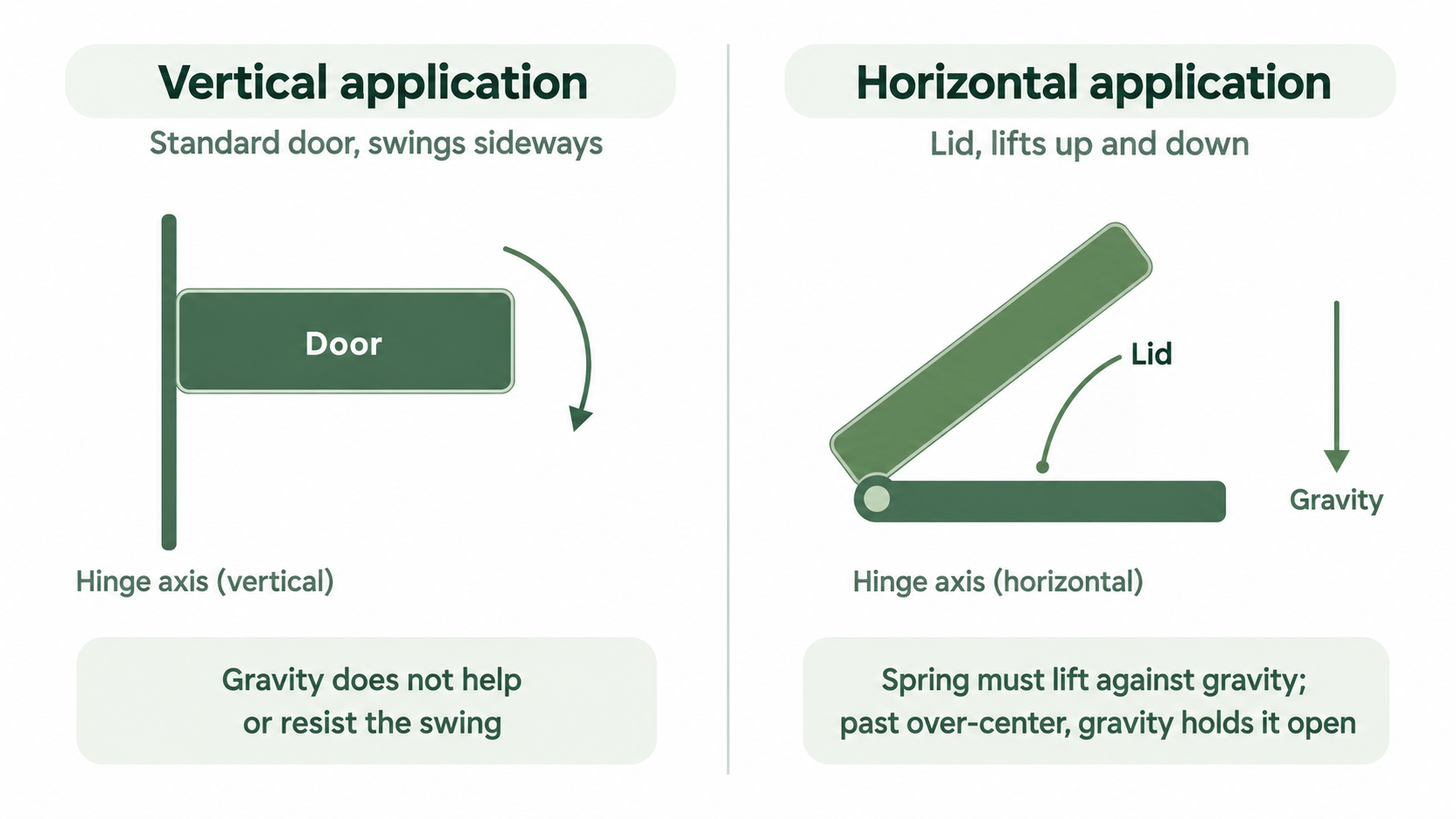

What Does “Stay Open” Actually Demand on a Horizontal Lid?
On a horizontal lid, gravity is the main character. The hinge axis runs horizontally, the lid swings up and down, and the mechanism has to win against the weight of the lid at every angle. That changes what “stay open” means depending on how far the lid travels.
| Open position | What is happening | What holds it open |
|---|---|---|
| Partway open | Gravity still pulls the lid closed | Spring torque or a detent must carry the full load |
| Near vertical | Gravity is nearly neutral | Small spring or friction margin holds position |
| Past over-center | Gravity now pulls the lid open | Geometry holds it, spring mainly controls the swing |
Spring torque has to be sized to the lid weight and its moment arm, and “stay open” is easiest and most reliable when the design lets the lid travel past the over-center point so gravity finishes the job.
Which Hinge Styles Deliver a True Hold Open Lid Hinge?
For a latched lid that must pop open and stay open, these are the styles worth evaluating, roughly in order of how commonly they solve this exact problem:
- Spring loaded torque hinge: Constant torque holds the lid at any angle and can be sized to lift the lid on release.
- Gas spring or gas strut: Popular on hatches and hoods, strong lift and firm hold open, though seals can lose charge over long service.
- Spring assist lid stay: A support arm that pushes the lid up and locks it open, common on enclosures and cabinetry.
- Over-center spring mechanism: Uses geometry so the lid snaps past a pivot and gravity holds it open.
- Detent or friction hinge: Holds at set positions, best combined with a spring when a positive pop open is required.
Where Does the Waterson Stainless Steel Spring Hinge Fit, If Not on Your Lid?
To be straight, Waterson does not build a hold open lid hinge, and a small latched lid falls outside our range. Our stainless steel spring hinge is engineered for a vertical, single-swing door function. If your project also includes swing doors or gates, this is where we add value:
- Stainless steel: Investment cast body with marine grade options for interior and all weather exterior openings.
- Self closing mechanism: Reliable spring return that latches the door every cycle, adjustable to ADA and ICC A117.1 opening force.
- Anti slam: Independent swing and latch speed so the door decelerates into the frame instead of banging it.
- Hold open: An optional hold open set that parks a swing door at a chosen angle when the code and application allow it.
- Door stop: A built in stop that removes the separate floor or wall device.
- Heavy duty: Investment cast construction tested past one million cycles.
- Fire rated: NFPA 80 compliant and UL 3 hour fire rated.
- Warranty: Ten years on mechanical models, three years on hydraulic hybrid models.
So for the lid in the request above, a spring loaded torque hinge or lid stay from an enclosure hardware specialist is the right call, and we would rather point you there than sell the wrong part. For the swing doors and gates on the same building, send us the door size, weight, material, and finish, and our specialist will match the set and quote it. Getting the right tool on the right opening is exactly the conversation we want to have.
Waterson Stainless Steel Self and Soft Closing Hinges
Waterson fire rated self closing hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.
In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.
Request For Quote
Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
