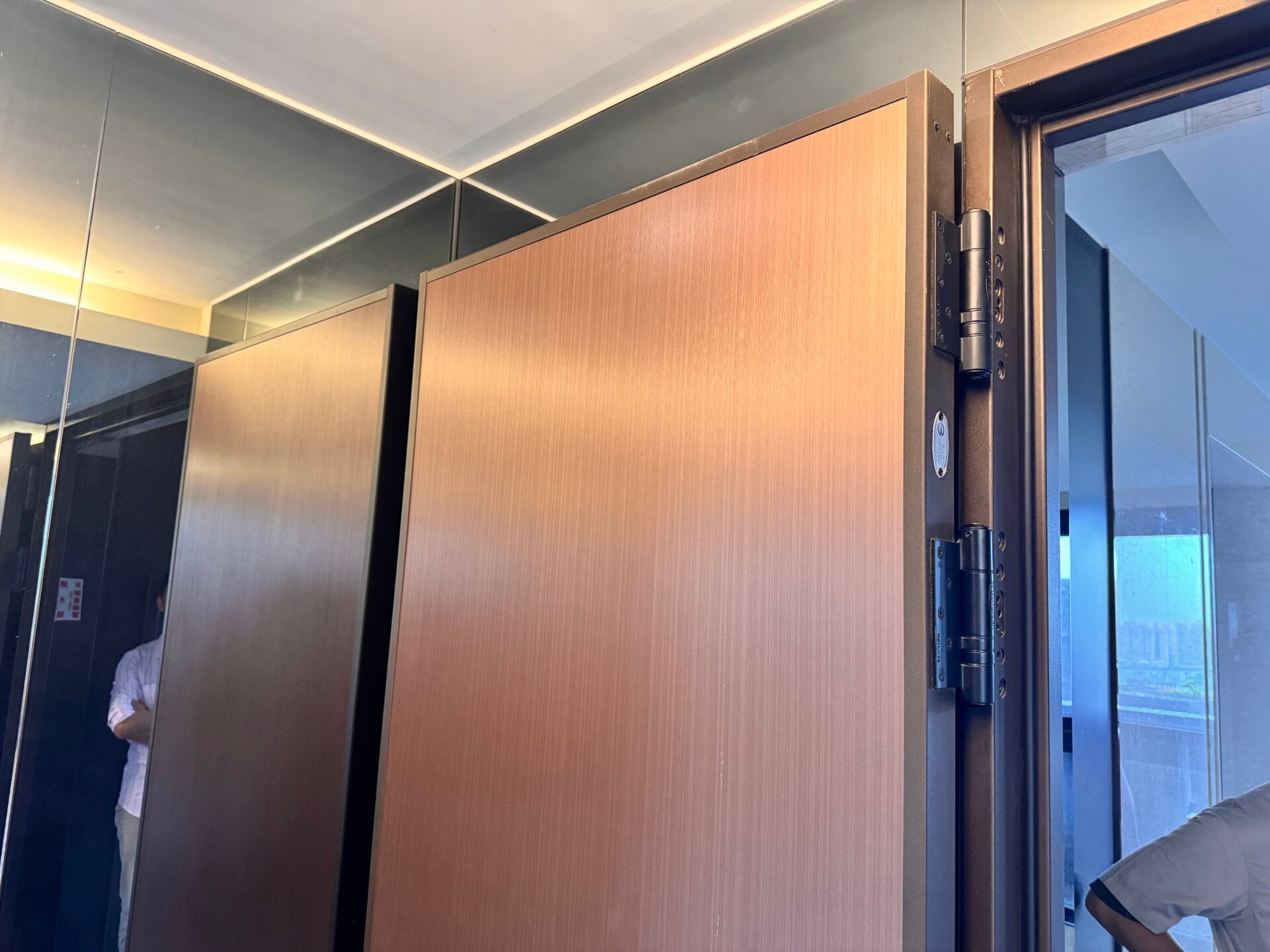

Can You Get a Fire Rated 180 Degree Opening on a Heavy Commercial Door

“I have a large commercial door, roughly 8 feet by 4 feet, 225 lbs, and 2-1/4 inches thick. I need it to swing a full 180 degrees, but I am concerned about whether that 180 degree opening will affect the fire rating on the assembly.”

That is one of the more loaded questions we field, because it packs weight, swing geometry, and code compliance into a single opening. It deserves a direct answer instead of a glossy spec sheet, so before we talk hinges, let us look at what a door of this size is actually asking of its hardware.

What Would a Large Heavy Commercial Door Need From These Commercial Hinges

You already know a 225 lbs leaf behaves nothing like a 90 lbs office door. At 8 feet tall and 4 feet wide, the moment arm working against your top hinge is long, and every cycle loads that pivot point. A door this size needs hinges that hold vertical alignment over thousands of cycles without sag, that carry the full leaf weight without relying on a floor closer or overhead arm, and that keep the latch and strike in consistent registration so the door still closes cleanly a year from now.

On a wide, tall, heavy leaf, three things tend to fail first: alignment drifts, the door starts to drop at the strike edge, and closing speed becomes unpredictable. The hinge you choose has to solve all three at once, not just carry the weight.

Why Is Self Closing With Hold Open Needed Here

On a large commercial opening, uncontrolled motion is the real hazard. A 225 pound door that swings free can slam, injure someone, or damage the frame. That is why self closing matters here: the door should return to the frame under controlled speed every time, without a separate closer eating up head clearance.

Hold open earns its place for a different reason. Crews move equipment, carts, and materials through openings like this, and they need the door to stay put at a working angle instead of fighting it. A hinge that offers both, controlled self closing plus stable hold open at intermediate angles, gives you a door that stays open when work demands it and closes securely when it does not. That combination is what makes a heavy leaf practical to live with day to day.

Does This Door Application Need Heavy Duty Use

At 225 lbs, this leaf sits above most standard commercial hinge ratings, which are built for lighter doors. Two things push the load higher:

• Width. At 4 feet wide, the center of mass sits far from the hinge line, so each knuckle takes more torque than a narrower door of the same weight.
• Height. The top hinge carries an outsized share of that load as the door sags toward the strike edge.

Standard duty hardware can hang a door like this, but it loosens, misaligns, and loses closing control faster under the constant load. Heavy duty construction keeps alignment and closing behavior stable across the service life. Confirm the load numbers against your own frame and anchoring before you commit.

For the door that described, 8 feet by 4 feet, 225 lbs, 2-1/4 inches thick, we would size this with our 5 inch heavy duty hinges. If the thickness changes to 1-3/4 inches, the selection stays the same.

So What Is the Honest Answer on a Fire Rated 180 Degree Opening

Waterson fire rated 180 opening door hinges can physically open to 180 degrees, but the optimal range is 0 to 120. Past 120, closing control and latch engagement fall off and constant full 180 use shortens service life, so we treat 120 as the practical maximum.

On code, two facts decide it:

• Our 3-hour UL fire rating was tested at 90 degree swing conditions.
• We cannot confirm whether 180 degrees keeps the fire rated assembly intact.

So a fire rated 180 degree opening is an assembly question, not a hinge question. Verify the swing with your Authority Having Jurisdiction (AHJ) and the door and frame manufacturer before you spec it. The AHJ signs off, not us.

Go further with Waterson 180 Opening Door Hinges here.

Is There a Good Solution for the Heavy 180 Opening Door with Fire Rated

Yes. For a heavy commercial leaf that needs controlled closing, dependable hold open, and heavy duty load capacity, Waterson self closing hold open door hinges are built for exactly this profile. They put the closing mechanism inside the hinge itself, so you get controlled self closing and stable hold open without an overhead closer or floor spring competing for space at the head.

We can give you a door that closes under control, holds where you need it, carries the full 225 lbs, and is UL fire rated at 90 degree swing. What we will not do is promise the fire rating past what was tested. That is the difference between a vendor and a partner.

How Does Waterson Fit an Opening This Size

Here is how the feature set maps to a door of this size and weight:

• Stainless Steel: Corrosion resistant construction suited to a high traffic commercial entry that has to look and perform the same after years of use.
• Door Stops: Built in stops help protect the frame and wall on a heavy leaf, so a 225 lbs door does not overswing into adjacent surfaces.
• Hold Open: Keeps the door parked at a working angle for moving equipment and materials through the opening, then releases on demand.
• Self Closing Mechanism: Returns a heavy leaf to the frame under controlled speed, no separate closer required, which keeps the head clean and the geometry simple.
• Heavy Duty: Sized with 5 inch hinges for the heavy leaf, engineered to hold alignment and closing behavior across a long service life.
• Anti Slam: Controls the final approach to the frame so a heavy door does not slam, protecting people, the latch, and the frame.
• Fire Rated: UL fire rated at 90 degree swing conditions.
• 3-10 Year Warranty: Backed for 3-10 years

For the full 180 degree swing, our practical guidance is to plan around a 0 to 120 degree working range, and to verify fire performance with your AHJ and door and frame manufacturer before you spec it. If you send us the frame details and anchoring, we can confirm the sizing and walk the swing question through with you.

Waterson Fire Rated Self Closing 180 Degree Opening Door Hinges

Waterson self closing door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
