“We are restoring a set of arched oak doors on an 1890s chapel. The clients want the doors to close on their own and land softly, but there is no flat head to hang an overhead closer. Is there a hinge that self closes and still looks right on a gothic door?”
On an arched gothic opening, the real question is not which decorative strap looks the most authentic. It is where the closing force can live once the head is curved and the floor is off limits. That single constraint is what makes gothic style door hinges harder to specify than any flat, square commercial opening.
What Should You Confirm Before You Spec Gothic Style Door Hinges?
Before anyone quotes you a closer, a floor box, or a hinge, the opening has to be qualified. On heavy timber leaves, a wrong assumption on any one of these points is what turns a clean restoration into a demolition job.
- Leaf material and weight? Solid oak or plank-and-batten gothic leaves commonly run 120 lbs to 400 lbs. The closing device has to be rated to the actual leaf, not a catalog average.
- Head shape at the frame? A true pointed or segmental arch has no flat soffit at the top corner where a closer body or arm bracket would sit square.
- Interior or exterior exposure? Church, gate, and courtyard doors see rain and salt, so finish and grade have to survive the environment.
- Fire or egress duty? Chapel, hall, and institutional openings are often rated, which rules out any closing method that cannot be listed.
- Finish to match? Almost every gothic program lands on black, so the functional hardware has to disappear into a black scheme.
Why Won’t an Overhead Closer Sit on an Arched Gothic Head?
An overhead closer needs a continuous flat surface: the body on the door and the arm on the frame soffit, or the reverse. On a pointed or segmental arch, the head rail curves away from the hinge stile, so the closer arm loses the square geometry it depends on and the body ends up fouling the arch trim. Even where a closer can be forced to fit, the boxy aluminum arm reads as modern and breaks the period line the client paid for. This is the first reason self closing is rarely offered on gothic leaves.
How Do Your Closing Options Compare on an Arched Gothic Door?
| Closing option | Fits an arched head? | Needs slab work? | Self and soft close? | Keeps a black period look? |
|---|---|---|---|---|
| Overhead closer | Rarely, arm fouls the arch | No | Yes | No, arm reads modern |
| Floor spring or closer | Yes, hidden below | Yes, cut the slab | Yes | Yes, but destructive to fit |
| Decorative strap hinge | Yes | No | No closing force | Yes |
| Concealed door hinge | Yes | No | Yes | Yes, black finish and custom leaf |
Can Decorative Strap Hinges Actually Self Close the Door?
- They carry no closing force. Traditional wrought iron straps are decorative and surface mounted, so nothing inside them pulls the leaf shut.
- They are sized for looks, not load. On a heavy timber leaf the real bearing work still falls to the butt hinges underneath the strap.
- Soft close is almost never available. A decorative strap that also dampens a heavy leaf through the final degrees is rare, which is exactly the gap on most gothic jobs.
The workable path is to let the strap stay decorative and put the closing and the soft close into the hinge itself.

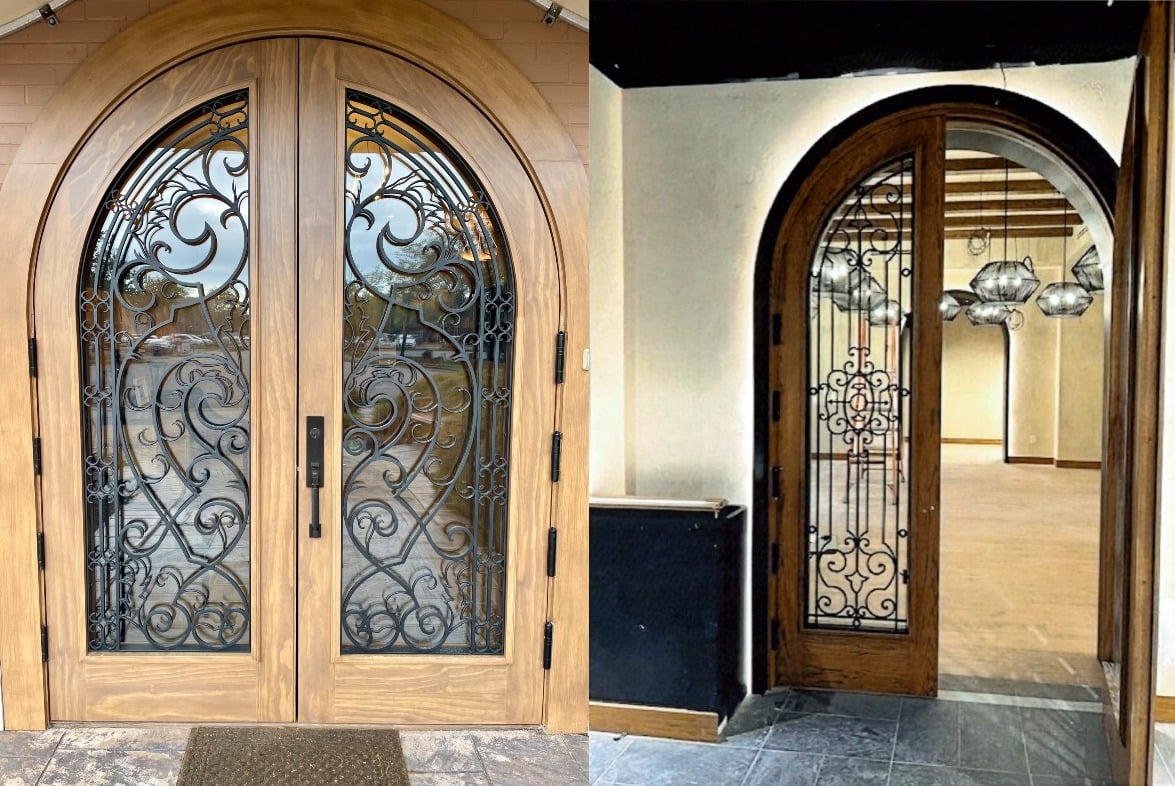

How Do Waterson Gothic Style Door Hinges Close From Inside the Barrel?
A Waterson closer hinge carries the entire closing mechanism inside the hinge barrel. There is no overhead arm to mount on a curved head and no box to cut into the slab. A hybrid spring and hydraulic system pulls the leaf from the open position and controls the latch speed from 20 degrees to 0 degrees, so a heavy arched door lands quietly instead of banging the stone.
Because the function is concealed, the decorative strap on the face can stay purely period correct while the hinge does the work. Used this way, Waterson closer hinges become the functional core of gothic style door hinges on an arched opening.
What Do You Get With a Waterson Self Closing Hinge on a Gothic Opening?
Adjusted to a heavy, arched, black gothic leaf, here is what the hinge brings to the opening:
- Stainless Steel: 304 and 316 grade for interior or all-weather exterior gothic openings, available in a black finish to match the scheme.
- Concealed Self Closing Mechanism: hybrid spring and hydraulic closing inside the barrel, with no overhead arm and no floor box.
- Anti Slam and Soft Close: an integrated hydraulic damper lands a heavy timber leaf softly through the final degrees.
- Hold Open: an 85 to 90 degree hold-open position for services, weddings, and loading.
- Door Stop: a built-in 90 or 120 degree stop where the arch or wall leaves no room for a floor stop.
- Heavy Duty: rated for leaves from 260 lbs to 440 lbs, sized to the real weight of a solid timber door.
- Fire Rated: UL 3-hour rated and NFPA 80 compliant for rated chapel, hall, and institutional openings.
- ADA Compliant: operates under 5 lbf opening force, so an accessible entrance stays compliant.
- Durable: ANSI/BHMA A156.17 Grade 1, cycle tested past 1,000,000 operations.
- Custom Leaf and Finish: as a direct manufacturer, Waterson can tailor leaf shape and finish, so the hardware coordinates with a black gothic program.
- Warranty: indoor coverage from 5 to 10 years.

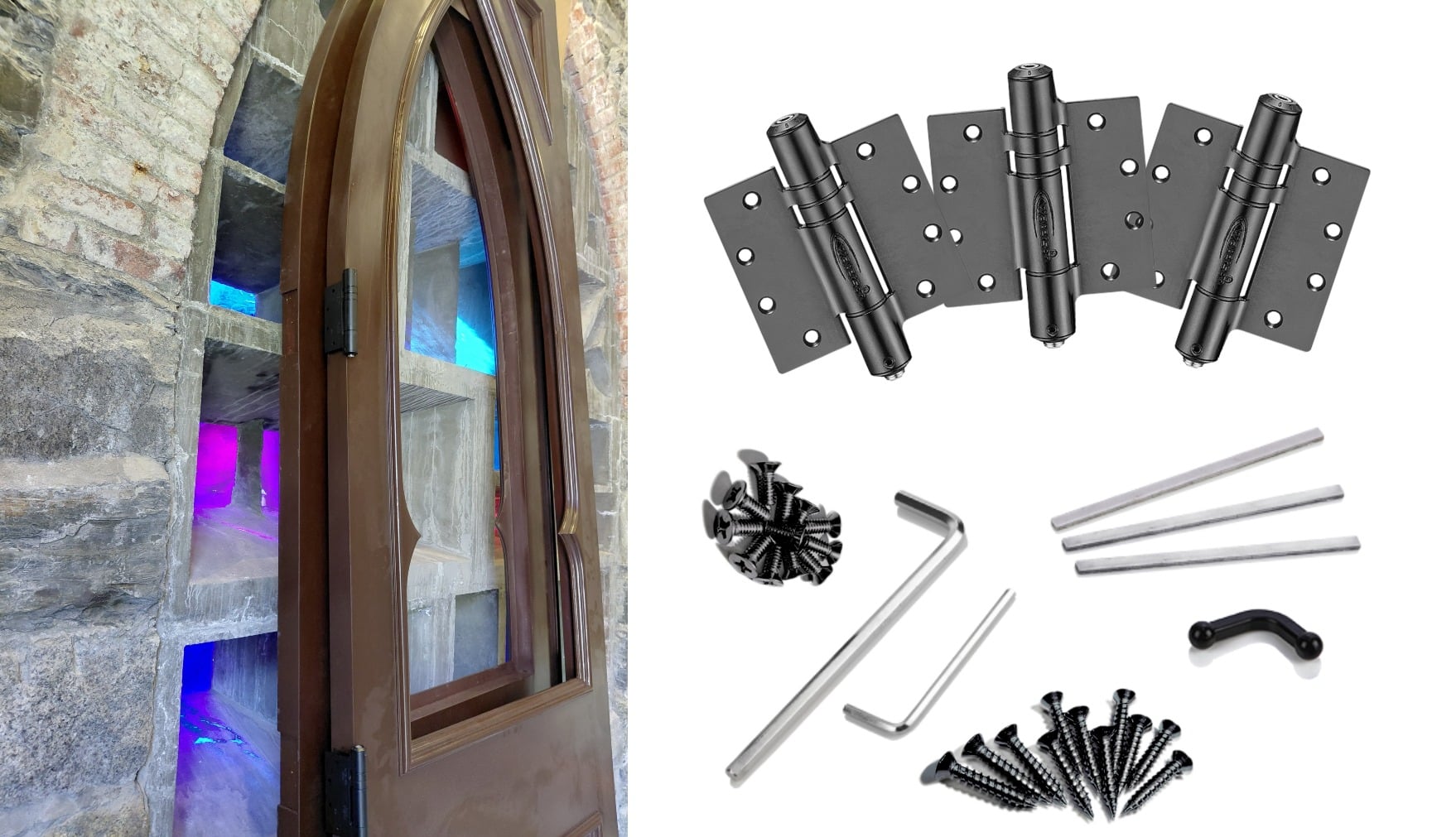

Following a recent installation on a gothic opening, the field installer shared this feedback:
“The hinges felt very strong, they were easily installed and close and dampen the door properly. They were a great alternative for this Gothic style door.”

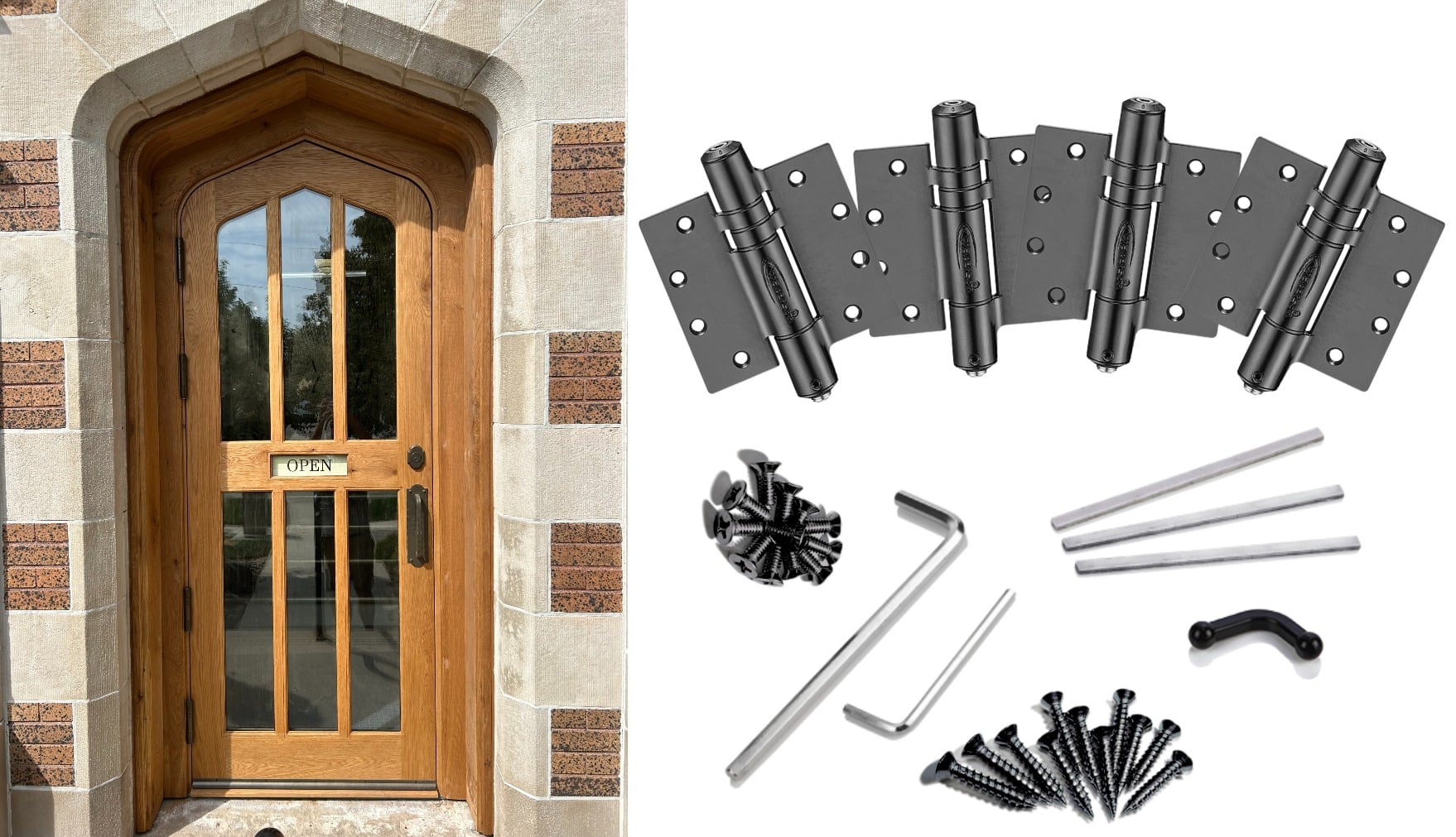

Waterson Stainless Steel Self and Soft Closing Hinges for Gothic Style Door
Waterson fire rated self closing hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.
In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.
Request For Quote
Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
