When it comes to ensuring doors close smoothly and safely, two popular options emerge: spring hinges and door closers. Both claim to deliver self-closing functionality, but the better choice seems only one: Spring loaded hinges, which combine fluid motion, space-savings, and elegance, solving the issues of door slamming and bulky design.

Two Effective Anti Slam Solutions

Spring loaded hinge systems offer two speed control options: mechanical and hydraulic hybrid. Mechanical uses friction for reliable control in harsh exterior environments. Hydraulic hybrid, on the other hand, provides smooth control through oil flow, ideal for breezy environments and doors without latches.

Go deeper into mechanical vs hydraulic comparison here.

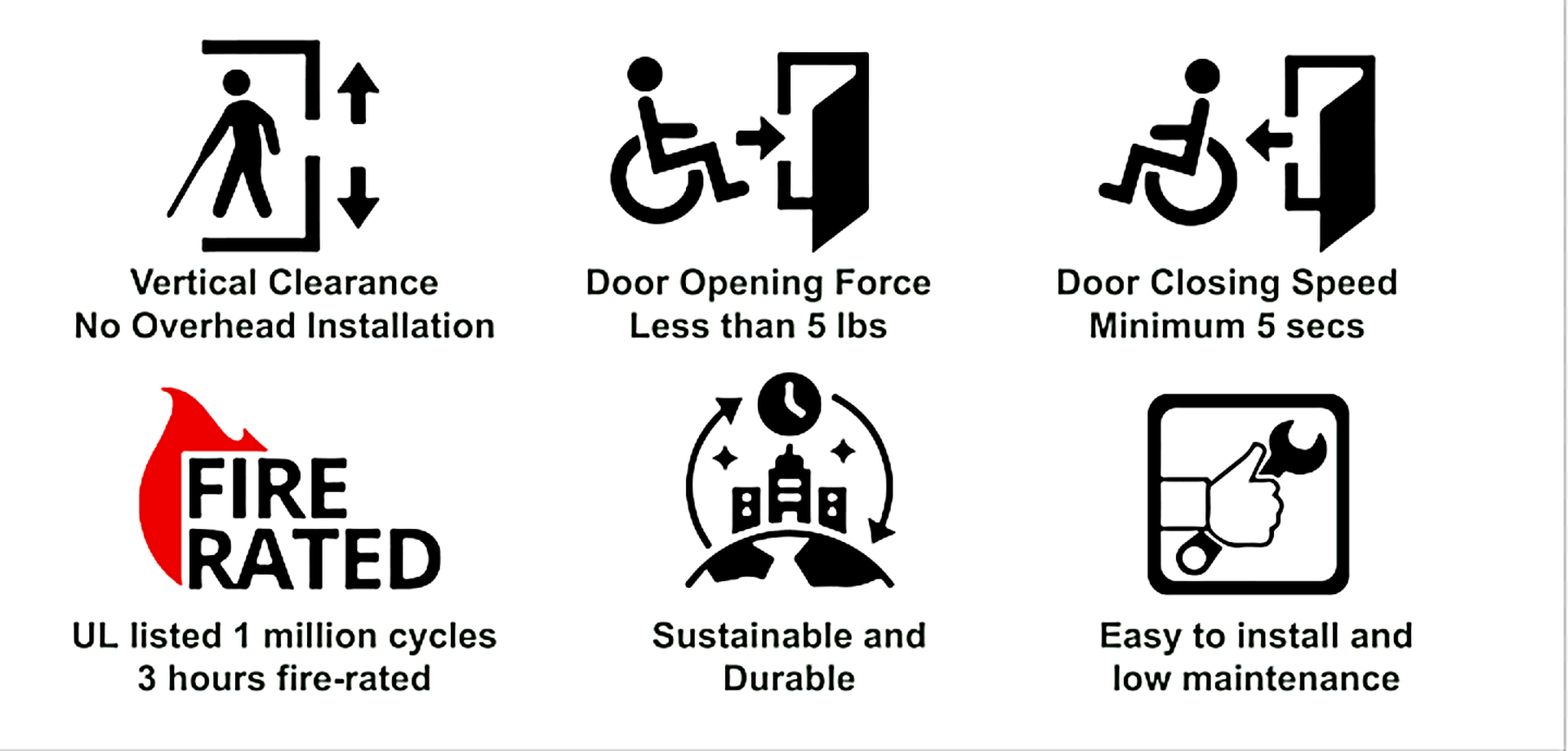

Multiple Outstanding Spring Loaded Features

Waterson Spring Loaded Hinge are expertly designed to meet the rigorous demands of commercial wooden door applications, providing exceptional functionality and durability.

• Configurations: Available in both 3-hinge and 4-hinge configurations.
• Template: 4.5 x 4.5″ template specifically designed for exterior doors.
• Stainless Steel: Made with 304 and 316 stainless steel to withstand the elements and heavy use.
• Weatherproof: Designed to withstand harsh weather conditions, such as rain, storms, winds, and extreme temperatures.
• ADA Compliance: Meets ADA & ICC A117.1 requirements for 5lbs of opening, and at least 3 seconds to close from 70 degrees to 3″ from the latch, with adjustable closing speeds.
• Fire Rated: Complies with NFPA 80 standards and holds a UL 3-hour fire rating.
• Load-Bearing Capacity: Waterson hinges can support extreme heavy loads – three hinges can bear over 260 lbs, and four hinges up to 440 lbs.
• Installation: Straightforward to install, reducing complexity and time involved.
• Meeting Hinge Codes: Meets California Building Code 2016 (1126A.4.2 Spring hinges), ADA 404.2.8.2 standards, and even more!

ANSI/BHMA Finish Codes

At Waterson, we provide a variety of aesthetically pleasing Physical Vapor Deposition (PVD) finishes on our stainless steel closer hinges. These include Satin Stainless Steel (US32D), Satin Brass (US4), Dark Satin Bronze (US10B), and Flat Black (US19). This finish has gone through the process of Titanium Ion Plating, which improves the performance of heavy duty stainless steel by increasing wear, scratch, and corrosion resistance.

Besides, Waterson Hinges offers custom finish options for special requests. Contact the Waterson Hinges Team today to submit your code and receive a tailored solution!

Spring Hinges Application

• • Non removable pin door hinge
  • Heavy duty commercial door hinges
  • 6 inch door hinges
  • Garage entry door self closing
  • Hold open door hinge
  • Fire door self closing hinges

Q: How to install spring loaded hinges

A: We recommend that you install them based on the stickers affixed to each individual hinge (top, middle, and bottom). This will help you follow our adjustment instructions.

Waterson hinges are very easy to install. You simply need the following three items:

• 3mm and 5mm hex wrenches (included)
• Spreader bar (included with double spring (DS) hinge)
• Philips screwdriver

Please contact us directly concerning doors over the above specifications.

Q: How to adjust spring loaded hinges

A: To adjust spring-loaded hinges:

• To adjust door closing speed, turn 3mm hex nut clockwise (–) to reduce speed or counterclockwise (+) to increase speed.
• To adjust the Hazard Zone (HAZ), turn 5mm hex nut clockwise (–) to shift HAZ towards zero degrees or counterclockwise (+) to shift towards 50˚ maximum position.

Explore more about Waterson 3 adjustable setting speeds here.

Q: Types of spring loaded hinges

A: The top 5 types of spring-loaded hinges are: Butt Hinges, Concealed Hinges, Continuous Hinges, Pivot Hinges, and Strap Hinges. Each type offers unique benefits and applications.

Waterson’s spring-loaded hinges meet the application of 4 over 5 types listed, showcasing our variety to provide high-quality and state-of-the-art door hardware solutions. Whether you’re looking for a specific type of hinge for a residential, commercial, or industrial project, Waterson has got you covered.

Waterson Heavy Duty Spring Loaded Hinges

Waterson Spring Loaded Hinges combine an overhead closer and hinge into one attractive component with optional hold-open and door stop features. These hinges are ideal for commercial openings, gates, and glass doors. The hinges are easily installed and adjusted to comply with ADA & ICC A117.1 requirements for opening force and to assure quiet, secure closing. Made with stainless steel, Waterson hinges meet NFPA 80 and are UL 3-hour fire-rated, as well as being one of the best door hinges for both interior and all-weather exterior openings. See all our features.
