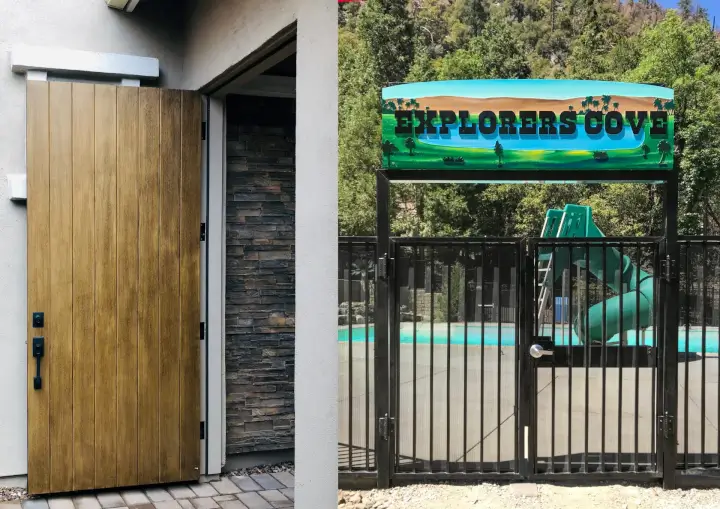

Mortise Hinge vs Surface Hinge: Key Differences and Applications

Door and gate hinges rarely make the spec sheet headline, but they’re where projects win or lose inspections. One wrong call between mortise and surface can throw off NFPA 80 compliance, chew up jambs, or force callbacks when the top hinge gives way after 100,000 cycles.

The real question isn’t which is better, but when to call for mortise hinges and when to call for surface hinges—because each type solves problems the other can’t. Before we go deeper with mortise hinge vs surface hinge, let’s clarify what they are, where they’re applied, and which technical factors distinguish them.

What Is a Mortise Hinge?

A mortise hinge is recessed into both the door edge and the frame so that only the barrel is visible when closed.

• Design: Flush installation into mortised pockets; standardized templates ensure interchangeability.
• Specifications: Available in stainless steel (304/316) with plain, ball-bearing, or concealed bearing designs. Sizes typically range 3.5″–6″; heavy-duty models have 0.130″-0.190” leaf thickness.

Professionals rely on mortise hinges because they carry heavy loads and endure high traffic. Grade-1 ball-bearing versions are cycle-tested beyond one million uses, making them the standard for fire-rated openings, hollow metal frames, and commercial cores. In corrosive or sanitary environments—labs, cleanrooms, and coastal projects—stainless models provide the required durability.

Go further with the stainless steel mortise hinge catalog here.

What Is a Surface Hinge?

A surface hinge attaches directly to the face of the fence gate frame—no cutting or mortising required.

• Design: Both leaves visible; frame-side leaf often narrower to accommodate inset. Variants include full surface, half surface, strap, and continuous hinges.
• Specifications: Commonly manufactured in stainless steel for weather resistance and washdown use. Heavy-duty options can include grease bearings or continuous geared.

Surface hinges are valued for retrofit efficiency and flexibility. They’re installed when mortises are damaged or absent, when frame conditions don’t allow recessing, or when doors are exceptionally heavy. They’re most common on gates—residential, industrial, or security—but also solve retrofit challenges in storm doors and high-traffic commercial entries.

Go deeper with the technical specs of heavy duty surface hinges catalog here.

Mortise Hinge vs Surface Hinge

Feature	Mortise Hinge	Surface Hinge
Self Closing	Integrate spring power, swing speed, latch control, hydraulic soft close, and hold open functions into compact stainless steel barrels Heavy duty Grade-1 for 1,000,000 cycles.
Materials	304 and 316 stainless steel for corrosion resistant marine/exterior use.
Compliance	ANSI/BHMA A156.1; ADA compliance; UL-listed for 3-hr fire doors; NFPA 80 standard.
Finishes	Satin stainless (US32D), flat black (US19), satin brass (US4), dark bronze (695), and custom hinges.
Adjustable Tension	Patented numerical tension panel that lets installers fine-tune spring power, latch speed, and hold-open settings with visible scale markings
Installation	Recessed into door edge and gate frame; requires precise full mortising.	Mounted directly on door/gate frame face; no mortising, faster retrofit.
Appearance	Clean, architectural; only barrel visible.	Fully visible; can be decorative (strap) or utilitarian (continuous/barrel).
Load Capacity	Standard 3 hinges support up to 260 lbs; heavy-duty up to ~330 lbs and more.	Standard 3 hinges support up to 260 lbs; heavy-duty up to ~330-440 lbs, and more.
Maintenance	Low—inspect bearings, tighten screws annually.	Low—inspect surface mounting, tighten screws annually.
Replacement	Easy if the same BHMA template; damaged mortises may need repair.	Flexible; bracket kits or back plates allow adaptation in the field.
Applications	Fire-rated openings, hollow metal frames, commercial cores, labs, cleanrooms, coastal projects.	Gates (residential, industrial, security); storm doors; commercial retrofits; high-traffic entries.
Warranty	Indoor: 5-10 years; Outdoor: 3-10 years

From fire-rated doors in hospitals to welded gates in industrial yards, door gate hinges remain the backbone of secure openings. Waterson’s stainless steel mortise hinges and surface hinges refine these proven formats into stainless steel systems engineered for today’s toughest environments.

Instead of choosing between aesthetics, durability, or code compliance, you get a 3-in-1 solution built for high-cycle, high-demand environments.

Waterson Seft Closing Mortise and Surface Hinges

Waterson heavy duty self closing hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers flexible customization services. As a direct custom hinge manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.
