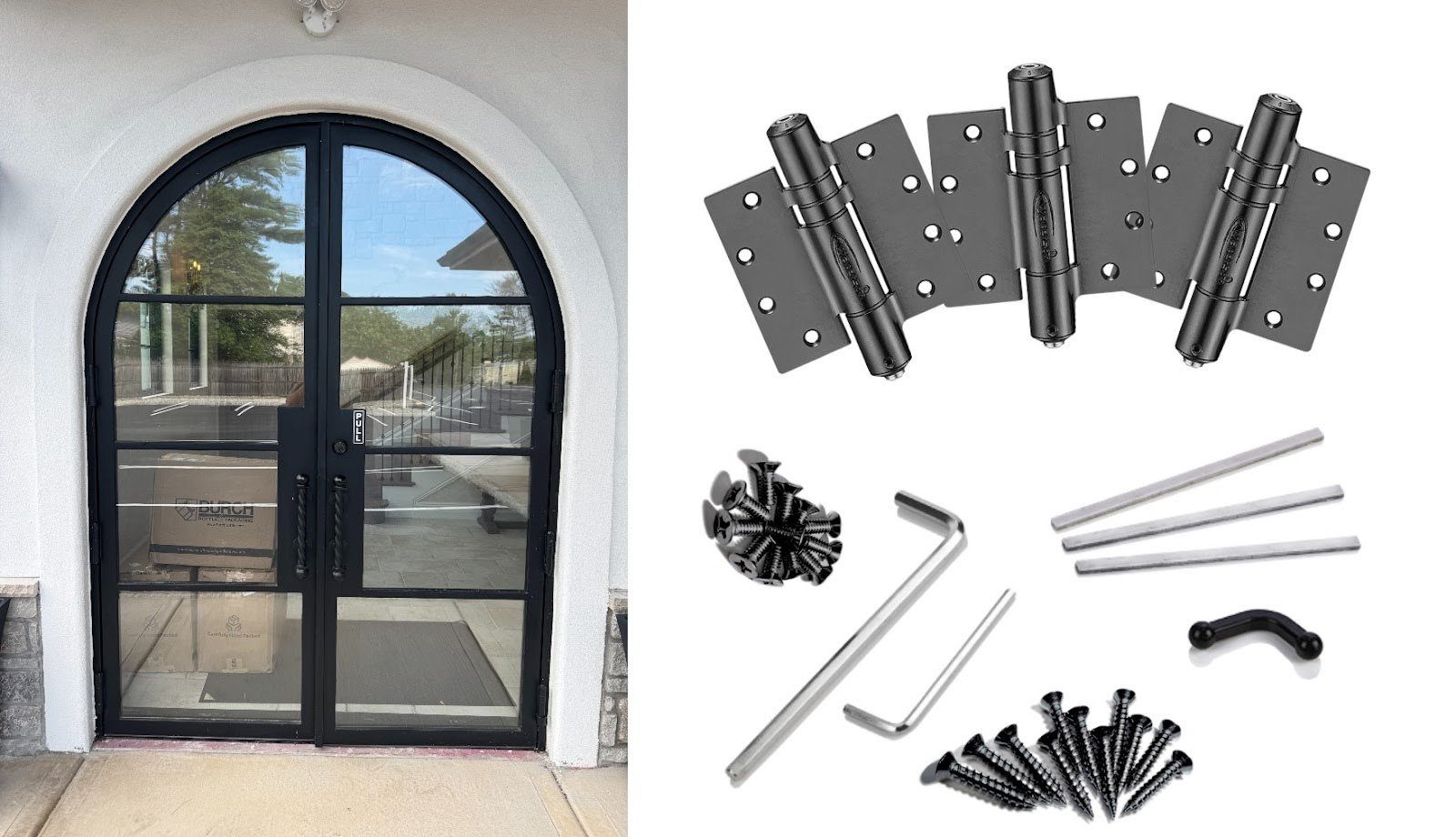

Door Hinge Size Explained: What Size Door Hinges do I Need

A right hinge size depends on alignment between several factors:

• Door weight
• Door height
• Traffic frequency
• Code or fire-rating requirements

For self closing door hinge size, this alignment becomes even more important because the hinge is responsible not only for supporting the door but also for controlling its closing behavior. But what size door hinges do I need? And how to clarify these options? Let’s find out!

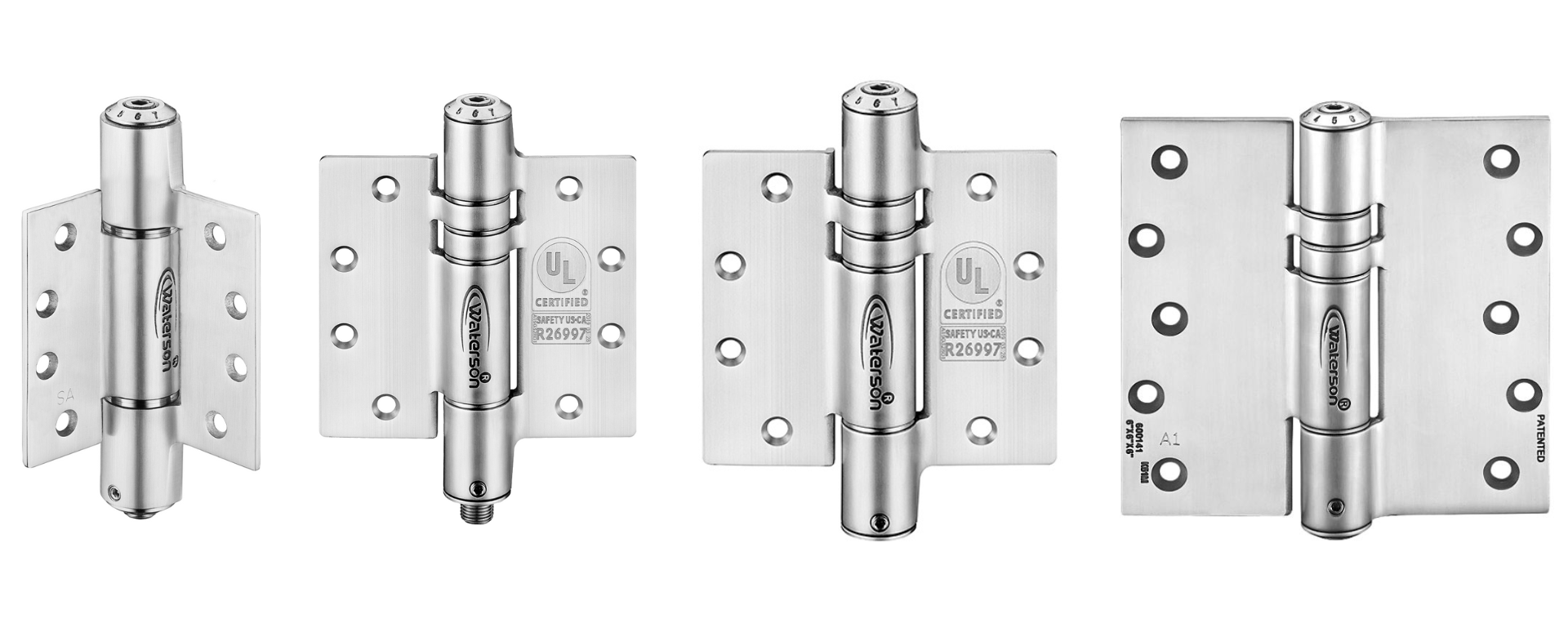

In Waterson’s case, door hinge size refers to the hinge template dimension: 4″x4″, 4.5″x4.5″, 5″x5″, or 6″x6″.

Because Waterson integrates the closing mechanism directly inside the hinge body, template size directly impacts performance. Larger hinges provide more bearing surface and better stress distribution across the frame and door edge.

The 4 inch door hinge is built for residential or light-duty commercial settings. It works well for interior wood doors and lower-traffic openings. This door hinge size maintains the architectural look without overbuilding the hinge system: Efficient, clean, and appropriately sized for moderate loads.

Commonly specified for:

• Residential interiors
• Small offices
• High-traffic retail
• Light fire-rated configurations

It’s the right answer when the load is moderate and aesthetics matter.

A 4.5-inch door hinge is where commercial application begins. This self-closing door hinge size handles taller and heavier doors more reliably and is commonly specified on 1-3/4″ thick commercial doors, especially when the height reaches 8 feet.

Architects often default to 4.5″ in office buildings, schools, and general commercial corridors because it balances strength and cost.

You will often see this self-closing door hinge size used for:

• Hollow metal doors
• Solid core commercial doors
• Medium traffic
• Fire-rated assemblies

If you’re unsure where to start in a commercial project, 4.5″ is usually the practical starting point for both standard and self closing door hinge size selections.

5 inch spring hinges are selected when door weight moves into the heavier commercial category. The additional surface area improves long-term durability and reduces stress concentration at the frame, making this door hinge size practical, not excessive, when doors are pushing 300+ lbs or used constantly throughout the day.

These 5-inch door hinges are typically used for:

• Institutional projects
• High-traffic entries
• Heavier fire-rated doors
• Industrial applications

For environments with reinforced steel doors or higher cycle counts, 5″ is the responsible specification.

A 6 inch heavy duty hinge is specified when structural load is the primary concern. The hinge leaf size distributes force across a larger frame area, improving stability and service life. This is not common in standard office work; it’s reserved for demanding openings.

Where you’ll see 6″ specified:

• Oversized doors and heavy steel construction
• Hospitals and healthcare facilities
• Airports and transportation hubs
• Industrial facilities with extreme cycle counts

Most doors follow these general guidelines:

Waterson manufactures self closing and soft closing door hinges designed for demanding commercial environments.

Unlike standard hinges, Waterson Hinges integrates the closing mechanism directly inside the hinge body, allowing multiple self closing door hinge size options to perform reliably across different door conditions.

What makes Waterson Hinges different include:

• Self Closing: Mechanical spring ensures positive closure even under fluctuating pressure conditions caused by the wind tunnel effect.
• Soft Closing: Hydraulic damping absorbs sudden gust-driven acceleration, preventing slamming and impact noise.
• Heavy Duty: Tested to 1,000,000 cycles under BHMA A156.17; built to withstand repeated impulse loads common in wind tunnel zones.
• Fire Rated: UL-listed up to 3 hours, suitable for fire doors exposed to pressure variation such as exit or entrance doors in buildings
• High Load Capacity: Supports doors up to 330 lbs — perfect for large, solid-core or oversized front doors.
• Stainless Steel: Built from 304 or 316 stainless steel for superior durability.
• Adjustable Tension: Separate controls for swing (90°–20°) and latch (20°–0°) prevent slamming.
• ADA Compliant: Requires only 5 lbs of opening force.
• Hold Open Option: Keeps the door open at 85°–90° when you need it.
• Multiple Finishes: Available in flat black, satin stainless, dark brown, and satin brass finishes.

If you install Waterson hinges, the number of hinges your door needs is usually based on door height first, then confirmed by door weight and application.

As a general guide, Waterson recommends:

• Doors 6 feet or less: usually 2 hinges
• Doors around 7 feet: usually 3 hinges
• Doors around 8 feet: usually 4 hinges

Regarding the door weight:

• Under ~150 lbs: usually 2 hinges if the door is not tall.
• 150–260 lbs: typically 3 hinges for stable support.
• 260–330 lbs: usually 4 hinges to distribute load evenly and ensure smooth self-closing.

Heavier doors, high-traffic openings, or fire-rated applications may require a larger hinge size or additional hinges. Door height provides the starting point, but door weight and usage determine the final setup. Please check our How to Order Guideline here.

Or send us a Quote Request, and our team can recommend the best hinge model for your door.

Waterson self and soft closing door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
