A small detail like a hinge could affect the overall perfection of your design! A wrong choice could cost you both quality and reputation. Careful consideration has never been more crucial. However, why overthink when you can choose a self closing door hinge that meets all standards and perfectly fits your design?

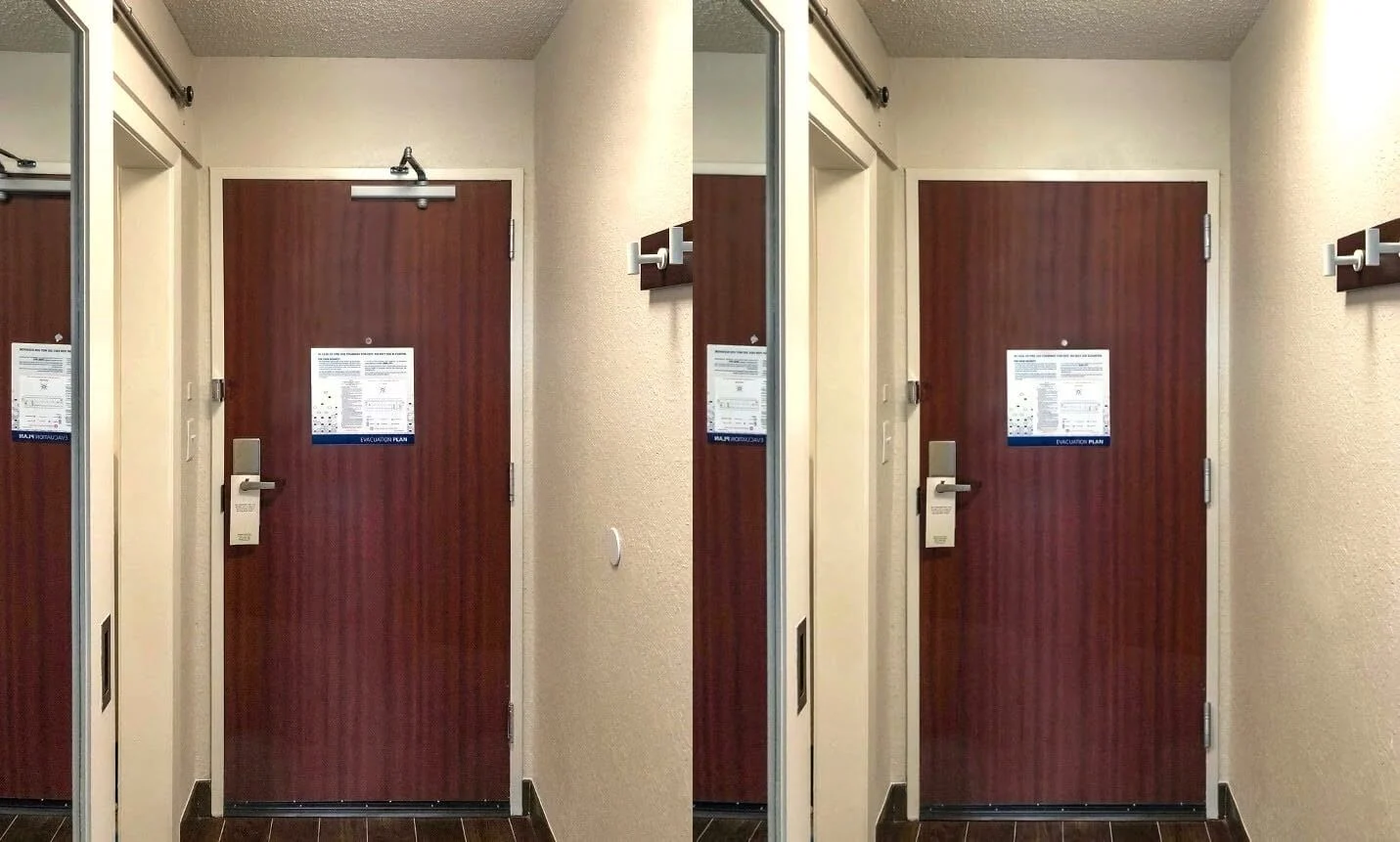

door closer vs spring hinges

How to Define a BEST Self Closing Door Hinge

The door hinge industry defines the BEST solution by four basic but extremely important criteria: Beauty, Ease, Strength, and Trust. For architects, engineers, and project managers, the right hinge must do more than work—it should elevate both the design and the structure it supports.

Here is how Waterson Hinges achieves the BEST criteria

Beauty All-in-One Design: Combines door closer, spring hinge, and optional hold-open in a single compact component

ANSI/BHMA A156.17 Certified: Tested for 1,000,000 cycles. Suitable for both interior and exterior doors

Self Closing-Soft Closing: Once set, the door closes gently and reliably every time
Ease Pinless Design: Quick and easy installation—no extra pin required

Adjustable Closing Speed: Fine-tune for a smooth, consistent soft-close

ADA Compliant: Supports 5 lbs opening force and 5-second closing time
Strength Heavy Duty: 3-hinge set supports up to 260 lbs; 4-hinge set supports up to 440 lbs

Fire Rated: UL-listed for 3-hour fire resistance, NFPA 80

Long-Term Warranty: Backed by manufacturer warranty. 10 years for indoor use, and 3 years for outdoor use
Trust B.L., Chief Engineer of Omni Hotel, shared,

“A year after installing Waterson Hinges, the closers performed exceptionally, with fewer than five rooms out of 800 needing minor adjustments.”

Waterson has since supplied its hinges to hundreds of hotels, apartments, and commercial and industrial spaces, with more installations to come



Waterson Hinges proudly embody the perfect blend of Beauty, Ease, Strength, and Trust into a single door hinge, making them the ultimate choice for architects, engineers, and project managers. Trusted by leading hotels, apartments, and industrial spaces, Waterson Hinges delivers incomparable performance and reliability.

The Galatyn residential building in Dallas with Waterson hinges

The Galatyn

Dallas, TX

Self-closing hinges that keep residential unit doors safe and code compliant

  • ✓ Self-closing
  • ✓ 3hrs Fire-rated
  • ✓ ADA Compliance

READ MORE

River Electric Resort in Guerneville with Waterson hinges

River Electric Resort

Guerneville, CA

Durable self-closing hinges for resort doors exposed to the outdoors

  • ✓ Stainless Steel
  • ✓ All-weather Use
  • ✓ Soft Closing

READ MORE

The Florian building in Washington DC with Waterson hinges

The Florian

Washington, DC

Fire-rated self-closing hinges for multi-unit residential doors

  • ✓ 3hrs Fire-rated
  • ✓ NFPA 80
  • ✓ Low-maintenance

READ MORE

ROSS Store in Columbus with Waterson commercial door hinges

ROSS Store

Columbus, OH

Heavy-duty commercial hinges built for constant retail traffic

  • ✓ 1,000,000 Cycles
  • ✓ Heavy Duty
  • ✓ Speed Control

READ MORE



Waterson Commercial BEST Self Closing Door Hinges

A self closing door hinge is a small line item on a hardware schedule, but it decides whether a door closes, latches, and stays compliant for years. The BEST choice is the one that meets every requirement without adding extra parts to install and maintain.

Waterson hinges combine a door closer and a hinge in one stainless steel unit, with optional hold-open and door stop. They adjust to meet ADA and ICC A117.1 opening force, carry UL 3-hour fire ratings and NFPA 80 compliance, and are tested to 1,000,000 cycles under ANSI/BHMA A156.17. They perform on interior doors, exterior doors, gates, and glass doors.

For door manufacturers and large projects, Waterson works as a direct manufacturer. We can customize hinge sizes, finishes, and leaf designs to fit your frames and production needs.

High-traffic retail doors need hinges tested for constant use. Waterson self closing hinges are certified to ANSI/BHMA A156.17 and tested for 1,000,000 cycles. Because the closer is built into the hinge, there is no overhead arm to knock out of adjustment, and the closing speed can be tuned so the door shuts gently every time. See how they perform in the ROSS Store project.

A standard butt hinge only lets the door swing. It cannot close or latch the door by itself, so fire-rated and accessible openings need a separate closer that must be specified, installed, and adjusted on its own. Every extra component adds another point that can fall out of compliance. A self closing hinge combines the hinge and closer in one listed unit, so the closing function is part of the hinge itself.

The main challenge is balancing two requirements that pull in opposite directions. ADA calls for a light opening force, while fire doors need enough closing force to latch reliably. The hinge also has to match the door weight, size, and frame. Waterson hinges are adjustable for both opening force and closing speed, so one product can be tuned to meet both. Learn more about ADA force vs. fire door latching and how to specify self closing door hinges.

Fire doors only protect a building if they close and latch every time. Waterson self closing hinges are UL-listed for 3-hour fire resistance and comply with NFPA 80, so the door returns to the closed position on its own. They also support ADA requirements, with a 5 lbs opening force and a 5-second closing time.

A set of 3 Waterson hinges supports doors up to 260 lbs. For heavier doors, a set of 4 hinges supports up to 440 lbs.

Waterson closer hinges start at 4″ x 4″ and are single acting only. They work on both interior and exterior doors. For door manufacturers, Waterson can customize hinge sizes, finishes, and leaf designs to fit specific frames.

Request For Information

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
