Heavy Duty Large Door Hinges: How to Spec the Right Hardware for Oversized and 8ft+ Doors

When a door crosses the 7-foot mark, everything changes. The weight multiplies, the leverage on every hinge increases dramatically, and a standard residential or light commercial hinge simply cannot keep up.

Large door hinges are not just bigger versions of ordinary hardware. They are engineered systems built to sustain closing force and carry real structural loads across the full lifespan of the door. So what features do oversized and 8ft+ doors actually demand from their hinges, and what happens when the wrong hardware is specified?

Why 8 Foot Doors Are the New Stress Test for Hinges

Eight-foot doors have become a design standard in high-end residential builds, commercial lobbies, and hospitality spaces. They open up a space dramatically, but they also create a physics problem.

A taller door means a longer lever arm. The farther the door’s center of gravity is from the hinge axis, the more rotational torque is placed on every hinge during opening and closing. At 96 inches tall, even a moderately heavy door can exceed the rated capacity of a standard three-hinge configuration. There are two challenges that compound this:

• Weight concentration: Large solid-core or metal doors can exceed 300 to 440 lbs. If the wrong number of hinges is used, the top hinge absorbs a disproportionate share of the stress, causing sag, binding, and premature wear over time.
• Closing force requirements: A self-closing hinge on an 8-foot door must generate significantly more torque than one on a standard 6-foot-8 door. If the spring mechanism is not rated for that weight class, the door will fail to latch fully.

This is why hinge specification for oversized doors is a serious decision to make.

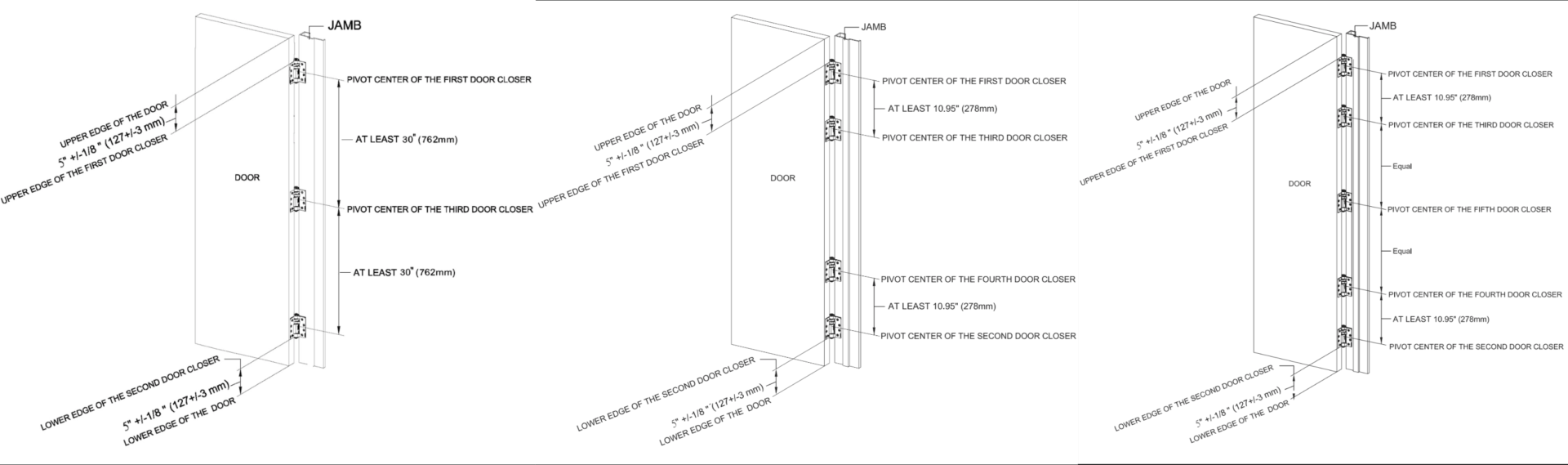

How Many Hinges Does an Oversized Door Need?

The number of hinges required is not arbitrary. It is determined by the door height and weight, and using too few is a structural and code compliance problem.

For doors that exceed these dimensions, or that fall into unusual weight categories due to material choices, glazing, or custom design, a standard recommendation table is not sufficient.

Waterson can accommodate doors well beyond 8 feet tall and far heavier than 440 pounds. For these applications, the right approach is to get a direct consultation and recommendation based on your specific door information. You can provide your door information here to get a configuration tailored to your project.

What Cycle Testing in ANSI/BHMA A156.17 Proves About Heavy-Duty Performance

The ANSI/BHMA A156.17 standard, “Standard for Self Closing Hinges and Pivots,” is the benchmark the industry uses to evaluate whether a spring hinge is actually fit for commercial and heavy-duty use. It covers five core performance areas: closing force, durability, strength, corrosion resistance, and accessibility compliance.

For large door applications, the durability and closing force categories can be divided by grade as follows:

Grade 1 is the minimum for any oversized door in a commercial or high-traffic setting. But there is a nuance worth knowing: the standard only requires the hinge to still open and close at the end of the test. It does not measure how much closing force remains midway through. And in practice, many standard hinges cannot sustain reliable closing force across thousands of cycles due to spring fatigue, thermal stress relaxation, and adjustment drift accumulating over the door’s lifespan.

For oversized and 8ft+ doors, you need a hinge system that addresses all three of these degradation pathways, not just one that technically passes the minimum cycle test.

How Waterson Self Closing Door Hinges Handle Large and Oversized Openings

Waterson hinges are built specifically for applications where standard hardware fails. Combining a self-closing spring mechanism, hydraulic soft-close damping, and heavy-duty structural performance into a single hinge unit, Waterson eliminates the need for separate overhead closers while meeting the most demanding certification requirements on the market.

Here is a summary of the certifications and features that set Waterson apart for large door applications:

Certifications and Standards:

Some of Waterson Self Closing Large Door Hinge Features include:

• Self-Closing Mechanism: Spring-loaded (mechanical), set at installation via numerical adjustment panel for consistent, calibrated closing force
• Soft Closing: Hydraulic damping cylinder with adjustable deceleration in the final degrees of travel, preventing slamming on heavy doors
• Fire Rated: UL Listed, 3-hour fire-rated for compliance in fire-rated openings
• Closing Speed Control: Three independently adjustable speed zones: swing speed, latch speed, and backcheck, giving precise control over the full closing arc
• Opening Force: 5 lbs or less, fully ADA compliant for accessibility requirements
• Hold Open: Optional feature that holds the door open at 90 degrees; the door self-closes once moved past perpendicular
• Available Sizes: 4 inch, 4.5 inch, 5 inch, and 6 inch to match a range of door weights and configurations
• Finishes: Satin, flat black, bronze, brass, and custom orders available
• Warranty: 10-year mechanical warranty and 3-year hydraulic warranty

For oversized doors beyond the standard tables, or for projects with unusual weight, height, or configuration requirements, contact the Waterson team for a custom consultation. Provide your door information here to get started.

Waterson’s Large Door Hinge Applications

Heavy Duty Golden Door Hinges for a 200 kg Door

This project showcases Waterson large door hinges installed on a 200 kg (roughly 440 lb) door finished in gold. It demonstrates how Waterson’s engineering handles extreme weight loads without sacrificing aesthetic quality. The hinges provide smooth operation and reliable self-closing performance even at this weight class, making them suitable for high-end commercial and hospitality environments where both function and appearance matter.

7 Waterson Self Closing Door Hinges Carrying a 10-Foot Arched Door

This installation uses seven Waterson self-closing hinges to support a 10-foot arched door, a format that creates significant challenges due to the door’s height, weight distribution, and curved top geometry. Designed to support heavy and large doors, these hinges are engineered to prevent slamming while ensuring safety and durability over the long term. The result is a smooth, controlled closing experience that holds up under demanding real-world conditions.

UAE Project: 240 kg Heavy Duty Large Door Hinges

In this project from the UAE, Waterson successfully installed large door hinges on doors measuring 7.2 ft by 12.5 ft and 14.8 ft. These are genuinely extreme dimensions, well outside the range most hinge manufacturers can accommodate. Waterson’s door hinges delivered both durability and aesthetic appeal for this challenging installation, proving their capability in demanding international commercial projects.

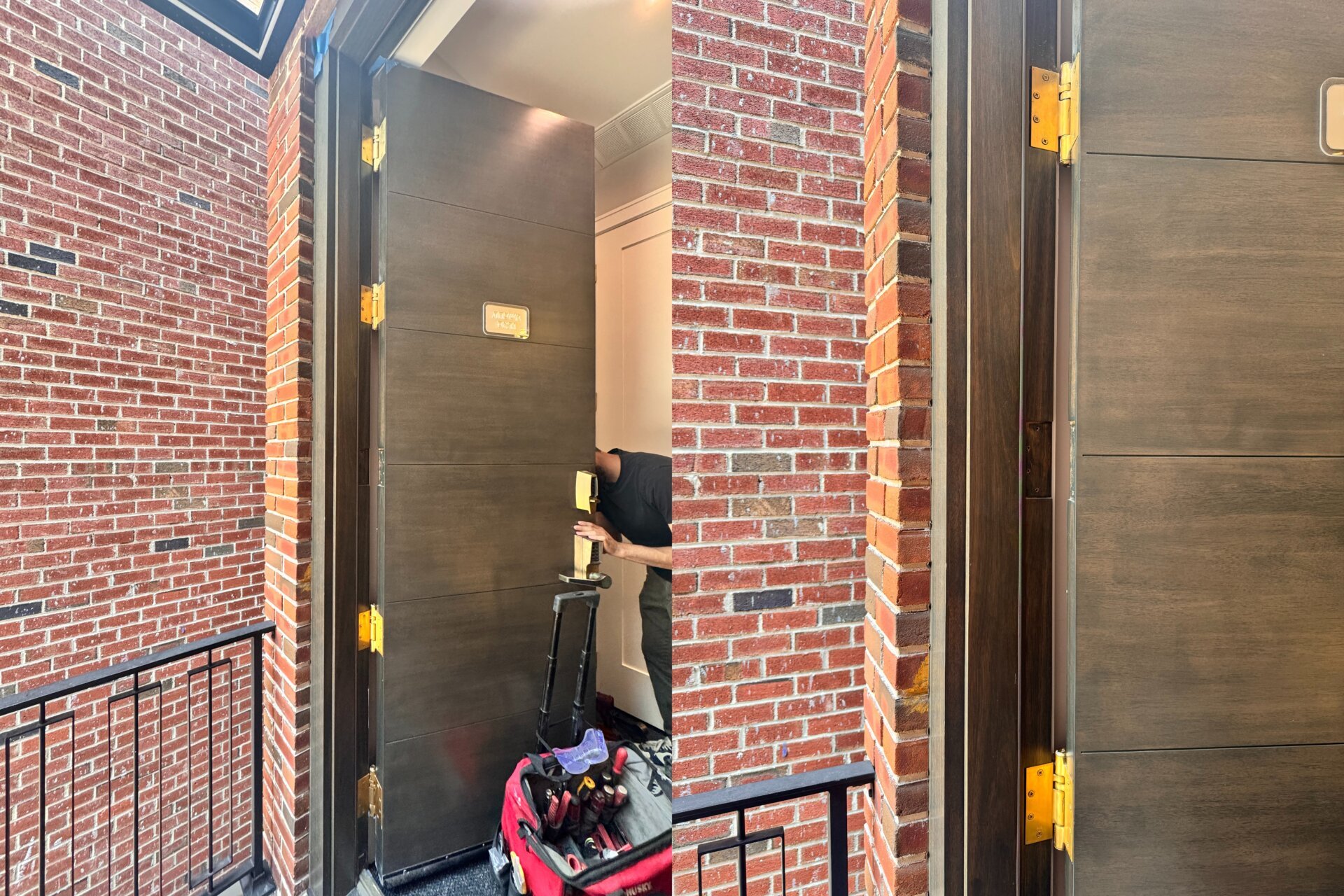

Waterson Heavy Duty Self Closing Large Door Hinges for Oversized Door

Waterson self closing large door hinges combine the function of an overhead closer and a hinge into a single, sleek component, complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson Closer Hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
