How to Choose Self Closing Hinges for Fire Rated Doors?

NFPA 80 sets a requirement that every fire door must be self closing, without people doing it manually, to prevent fire and smoke spread.

Choosing proper self closing spring starts with knowing the fire door specs. Then confirm the traffic use and clearance needed. Therefore, you can match the fire rated spring hinges capacity, whether or not they comply with the necessity.

What Fire Door Spec You Need To Know

Both for a new application or replacement, knowing the door specs helps you choose reliable self closing spring hinges. They should have enough power to fully close the door and hold up to daily use over time. What is important:

• Door width and height
• Estimated door weight
• Fire door material (wood/steel/composite)
• Traffic level (office corridor vs stairwell vs back-of-house)
• Existing spring hinge template and screw hole positions

Also think about:

• Who will use these fire doors (not too heavy for kids, not closing too fast for the disabled)
• Any alignment issues with the existing door and frame

Quantity and Size of Spring Hinges for Fire Doors

Choosing the quantity and size of self closing fire rated spring hinges influences the overall door performance. Heavier fire doors need more closing force, which means requiring more spring hinges.

Waterson self closing hinges for fire rated doors can hold various weight fire doors:

• ≤150 lbs: 2 hinges
• ≤260 lbs: 3 hinges
• ≤ 330-440 lbs: 4 hinges

To get the right spring hinge size, think about: hinge height and hinge width (how wide it is when fully open). Thicker and wider doors need taller and stronger hinge to properly support the weight. And if the hinge width is too narrow, the door may bind against its frame or trim.

Waterson self closing hinges for fire rated doors size specifications:

Who Will Use Your Door? Can They Open It?

Fire rated doors must be accessible for everyone. If the door is too hard to open, it means that they don’t function effectively. You can’t only think “close tightly” without thinking “open easier”.

Think about who actually uses it. Will there be kids or elderly users? Fire rated spring hinges should make the access easier, not a struggle. In places like hospitals or schools, limited mobility individuals need enough time to pass through safely without being hit. In high-traffic areas like offices or stairwells, self closing spring hinges must continue working smoothly without losing closing power. That’s why understanding the usage conditions is important.

How Fire Rated Spring Hinges Template Alignment Is Crucial for Renovation

Many fire door issues come down to alignment, not hardware. Cases like this are not pleasant:

“My fire door failed inspection due to a tapered gap at the top that widens from about 1/8 inch to 3/8 inch, even though the rest of the door seems perfectly aligned.”

The NFPA 80 standard limits the gap under the door to be less than 3/4 inch, while the gap on the door top and sides must be less than 1/8 inch (or 3/16 inch for steel doors).

When a fire rated spring hinge is misaligned, like a tapered top, it can no longer seal smoke and fire properly. Think this as field checklist: measure clearances, confirm alignment, and fix issues early to avoid hardware changes or failed inspections.

For replacement work, the existing template and screw hole pattern determine which self closing spring loaded hinge will fit. Matching layout avoids unnecessary frame rework. Before purchasing a replacement, confirm that it fits your application. Contact Waterson team: share your hinge template and understand more.

Best Self Closing Spring Hinges for Fire Rated Doors Endure High-Traffic

Understanding the basics of fire rated door compliance is exactly why Waterson spring loaded hinges were designed to be 3-hour fire rated and integrated with advanced features.

“I need high quality replacement hinges for a steel fire door leading to my garage. The standard big box store options are too weak to close the door fully, even at maximum tension. I’m looking for a set of three 4-inch hinges, and do you have it in a 5/8″ radius?”

Garage doors are high traffic, so they need high quality hinges that won’t fail even if you use them a million times. Waterson spring loaded hinges for fire door met the 1million cycle test, ensuring long-term functionality. Available in a 5/8″ radius, perfectly fit for garage fire door hinges replacement:

• Spring Loaded: self closing, utomatically close the door after every use, preventing smoke and fire from spreading.
• Fire Rated: Certified with a 3-hour UL-list and NFPA 80 to resist high temperatures and maintain barrier integrity under extreme fire conditions.
• Latch Verification: Ensure the door closer provides enough force to fully latch.
• Stainless Steel: Built in 304 or 316 SST for high durability
• ANSI/BHMA A156.17 Grade 1: Proven durability with over 1,000,000 cycles, guaranteed to function in high-stress and high-traffic conditions.
• ADA Compliance: <5 lb opening force. >= 5 sec close time. Works seamlessly with over 34” wide door designs.
• Easy Installation: Check the spring hinges’ alignment and follow our step-by-step installation guidelines.
• Adjustability: Designed with a numerical panel that allows users to adjust easily.
• Wide Application: Performs reliably in wooden fire doors, classroom doors, soft close hotel room doors, stairwells, and many more.

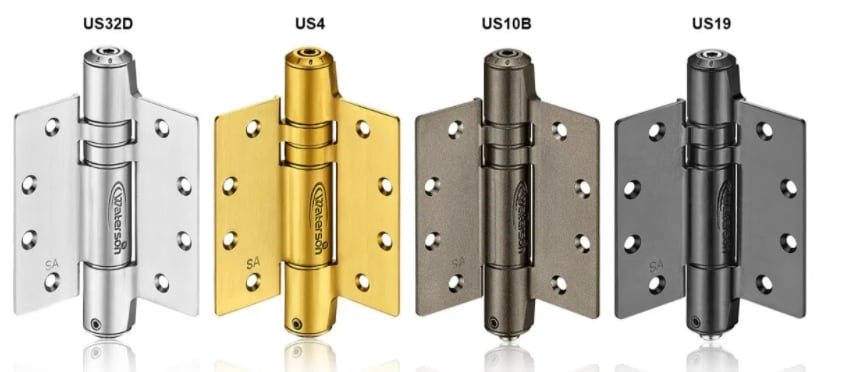

Waterson Fire Rated Spring Hinges To Ensure Building Safety

Waterson self closing fire rated door hinges combine the function of an overhead closer and a hinge into a single, sleek component—complete with optional hold-open and door-stop features. Designed for commercial openings, gates, and glass doors, these hinges are easy to install and adjust to meet ADA and ICC A117.1 standards for opening force, while ensuring quiet and secure closure. Crafted from durable stainless steel, they are NFPA 80 compliant, UL 3-hour fire-rated, and built to perform reliably in both interior and all-weather exterior environments. See all our features.

In addition to these performance advantages, Waterson offers custom hinge services. As a direct manufacturer, we can tailor hinge sizes, finishes, and especially hinge leaf designs to meet the specific structural needs of your doors. This makes our hinges an ideal solution for door manufacturers seeking custom options that integrate seamlessly with their existing frames.

Request For Quote

Please note that Waterson closer hinges start from a size of 4″x4″. If you’re in need of smaller self-closing hinges, we’d recommend checking out some other resources! Also, we only provide single acting closer hinges. Thank you.
